Product information "Underground Plastic to Clay Adaptor"
Plastic to Clay Adaptor for 110mm Plastic Terracotta Underground Drainage
(Suits 110mm drainage)
Manufactured to BS EN 1401-1!

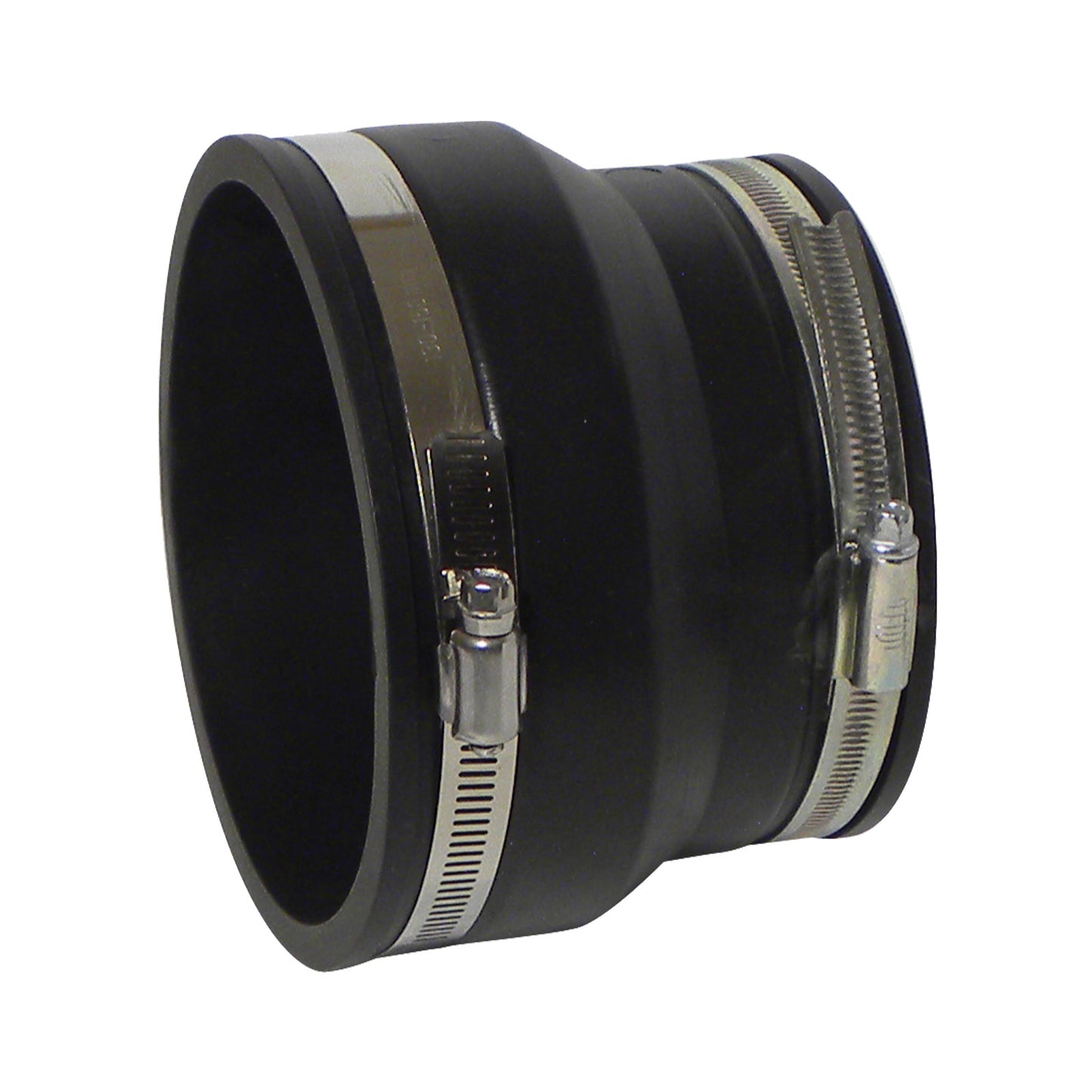

Flexible rubber adaptor for connecting 110mm PVC-u plastic underground drainage to clay. Made from EPDM rubber, with stainless steel bands that tighten like a jubilee clip to create an even airtight and watertight seal.
Part of our range of durable and impact resistant fittings for 110mm plastic PVC-u underground drainage pipes, the most common residential system. These lightweight, easy-fit parts are compatible with all systems manufactured to BS EN 1401 or BS EN 13476-2.
The range of pipe and bend fittings are available with pre-chamfered plain or socketed ends, which feature a ring seal for easy and secure connection to different parts of the system. These fittings can be used in conjunction with new or existing inspection chambers, or soakaway crates, to complete the underground drainage system.
Benefits of our Underground Drainage
Outstanding strength - resilient to harsh treatment
Incredibly light - easier to fit and transport
Double-sided finish - looks good on both sides
No more timber repairs - will not rot, flake or split
Low-maintenance - wipes clean and no need for preservers
Decorative finishings - convex/concave top options
75% recycled material - protects natural resources
UK Made - manufactured in the United Kingdom
20 Year Warranty - assurance against rotting
Did you know? Underground drainage is manufactured in a terracotta colour to differentiate them from above ground soil and waste pipes, which are typically black, grey or white.
Technical Information
Measurement
Value
System compatibility
All 110mm PVC-u systems manufactured to BS EN 1401 or BS EN 13476-2
Material
PVC-u (pipes, bends and junctions), Polypropylene (grids, covers and frames), EPDM rubber seal (socket and riser seals)
Colour
Terracotta
Certification
BS EN 1401-1 : 1998 PVC-U Underground Drainage Systems and EN-1329 (B). KM655203
Guarantee
10 year guarantee

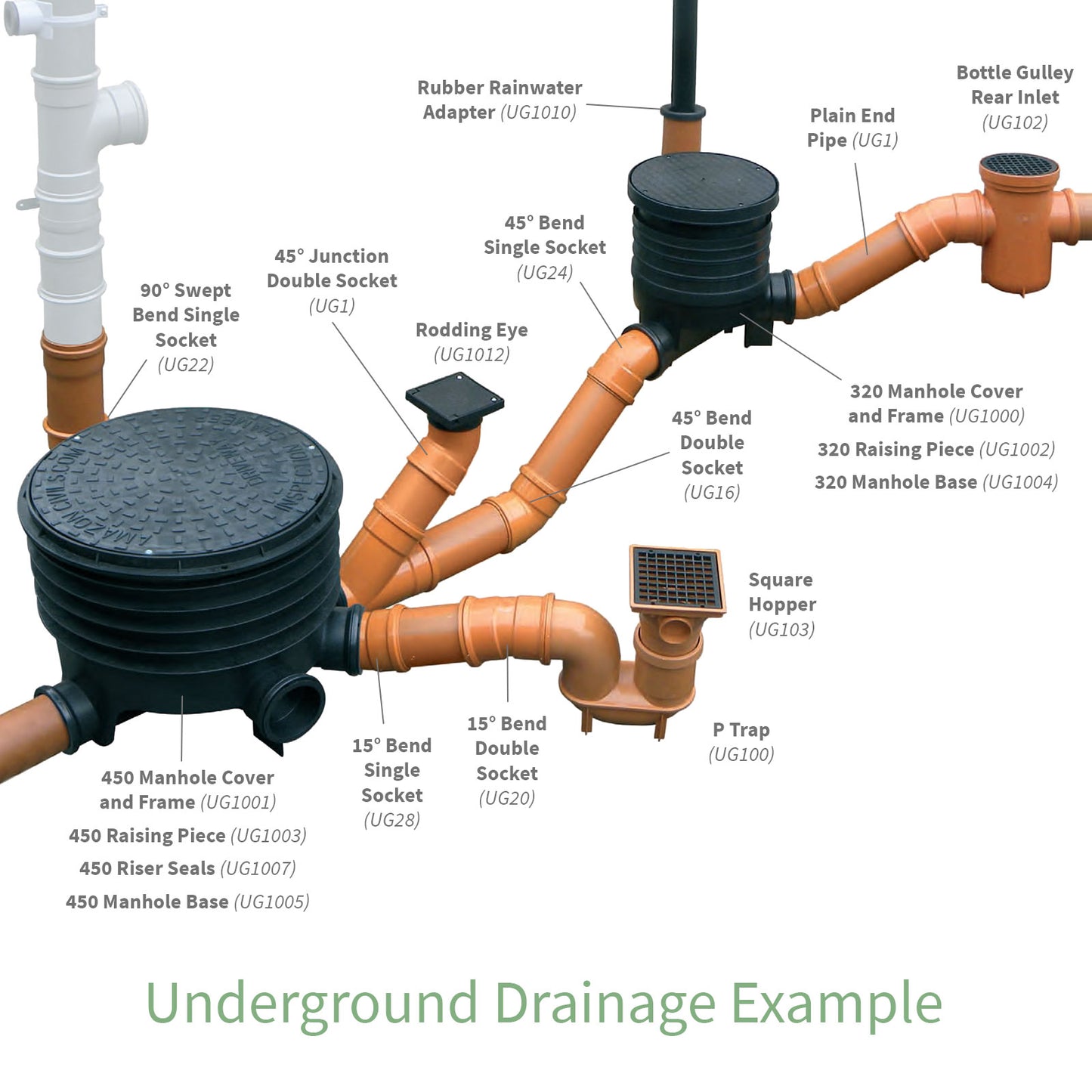

Fitting the 110mm Underground Drainage System
Underground drainage installations, which are usually laid in a trench bottom lined with pea gravel, should be planned in advance. The basic drainage design principle, that all points in the system should be accessible for inspection, testing and cleaning. The system should also be laid to the correct fall, with consideration given to the location of key components, like inspection chambers, gullies, adaptors and rodding eyes.
