125mm Shiplap Cladding Butt Joint

125mm Shiplap Cladding Butt Joint

SKU: EUR-2265-1004
MPN: BJ125WY

£2.72

Sale Sold out

Tax included. Shipping calculated at checkout.

45 in stock

Order within

h m s

for Same Day Despatch

Quantity

Have a question about this product?

View full details

Description

Butt Joint for 125mm (5in) uPVC Shiplap Cladding

Name: 125mm Shiplap Cladding Butt Joint
Brand: Eurocell
SKU: EUR-2265-1004
Price: 2.72 GBP
Availability: InStock

(Available in range of colours)

Protects and conceals individual 125mm board joints!

Popular uPVC trim for covering the joint between two inline cladding boards. Useful for protecting and concealing individual joints.

The simple click-together system has been designed to make the installation both tidy and simple.

Available in a range of colours this is a attractive, low-maintenance, weathe resistant solution for replacing rotten timber cladding, concealing problem brickwork or adding a unique and interesting feature to your property.

Designed for an easy installation, it uses a simple clip-together system and with the woodgrain finishes you can create a rustic timber-effect or a simple modern contemporary white finish

Features & Benefits

Attracive way of covering the joint between 2 boards
Fits quickly and easily meaning less hassle
Adds a unique and attractive feature to your property
No warping, cracking or discolouration
A simple clip-together system ensures 100% compatibility.

Refresh tired, old brickwork or timber cladding with robust, low-maintenance PVC-U cladding.

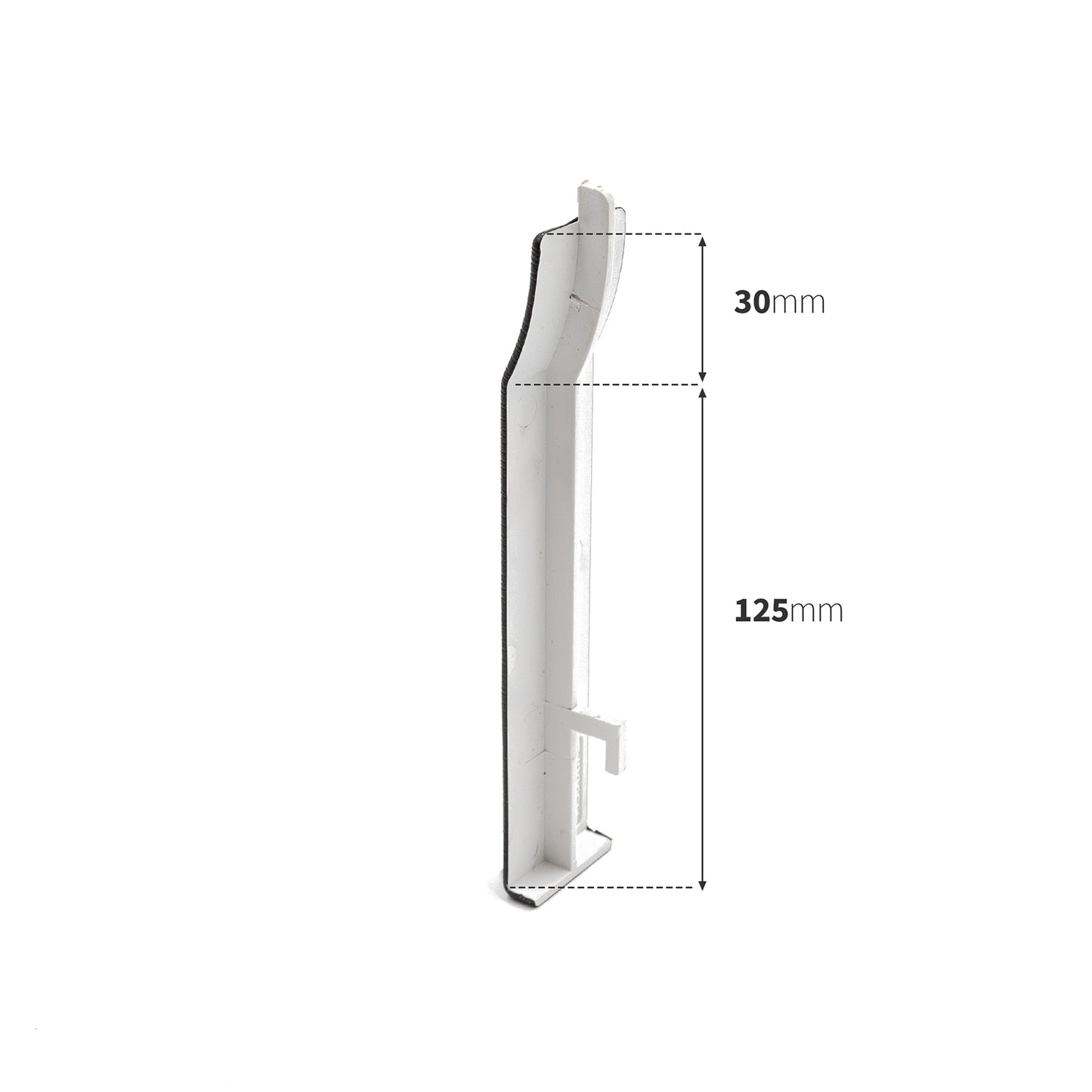

Specification

Measurement	Value
Depth	15mm
Length	125mm
Width	25mm
Material	PVC-u
Colour	White, Anthracite Grey, Black Ash, Rosewood
Guarantee	Profiles are guaranteed against discolouration, warping and cracking, providing they are fitted to manufacturers recommendations. Standard profiles are covered for 20 years, foiled woodgrain profiles for 10 years.
Applications	Direct fitting as new or replacement cladding

Fitting & Usage

Fitting uPVC Shiplap Cladding

Preparation

Measure the area to determine the amount of cladding needed.
Consider purchasing extra material to account for errors or adjustments.
Ensure you have all necessary tools, including a tape measure, level, saw, hammer, nails, screws, drill, and uPVC adhesive.
Required materials may include cladding boards, starter trim, corner trims, drip trims and edge trims.
Prepare the surface where the cladding will be installed, removing any protrusions, and repair any damage to ensure a smooth and even base.

Installation

Use a level to draw a straight line at the base of the wall where the first trim will be installed.
Secure the starter trim along the marked line using screws or nails. Ensure it is level to provide a solid foundation for the cladding boards.
Insert the bottom edge of the first cladding board into the starter trim. Make sure the board is level and then secure it in place with nails or screws through the nailing flange.
Continue to install the subsequent boards by interlocking them with the previous ones. Each board should snap securely into place over the lower board's flange. Nail or screw each board through the flange, ensuring they are level and properly aligned.
Use specific corner trims for internal and external corners. Fix these trims in place first, before installing the cladding boards that will meet at these points.
Edge trims can be used around windows and doors to provide a neat finish. Measure and cut the trims to fit accurately around these openings.
The topmost cladding board may need to be cut lengthwise to fit. Once in place, cover the top edge with a fascia board or a finishing trim to seal the installation.
Finally, check for any loose boards or trims and secure them as necessary. Ensure all joints are tight and the cladding is uniformly installed.
