Yale Quartus Inline Window Handle

Yale Quartus Inline Window Handle

SKU: YAL-2125-1008
MPN: YBI10WH

£2.44

Sale

Tax included. Shipping calculated at checkout.

96 in stock

Order within

h m s

for Same Day Despatch

Measuring Guide

Quantity

Have a question about this product?

View full details

Description

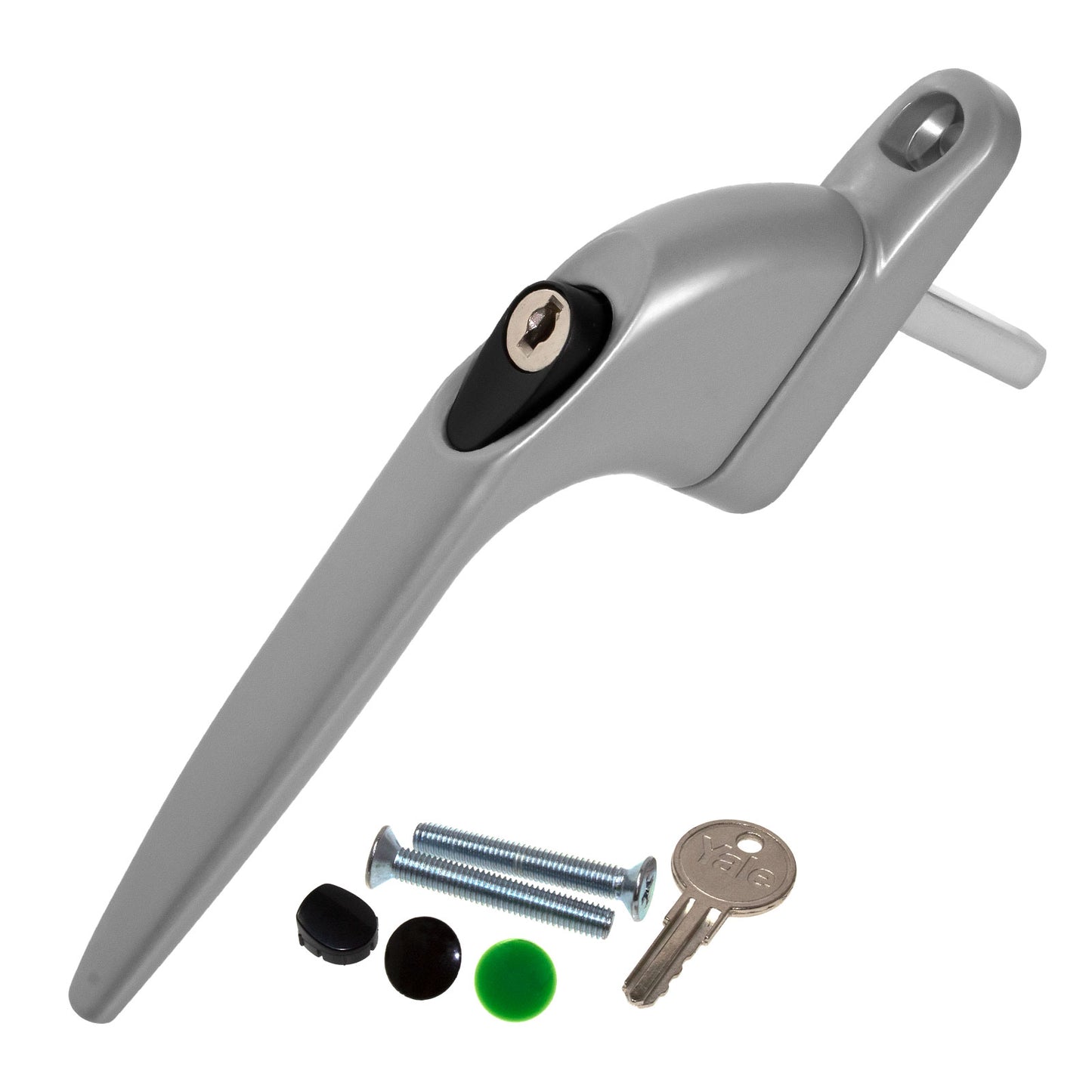

Yale Quartus Inline Window Handle

Name: Yale Quartus Inline Window Handle
Brand: Yale
SKU: YAL-2125-1008
Price: 2.44 GBP
Availability: InStock

(Choice of finish and spindle length)

Replacement uPVC window handles from Yale

Stylish and strong, lockable inline window handle for aluminium and uPVC espagnolette windows. Manufactured by industry leader Yale, and supplied with a 10-year mechanical and surface guarantee.

Straight inline handles look sleek and discreet on any window, whilst being comfortable and versatile on left or right-hand windows. They are made from tough die-cast zinc, with a durable powder-coated, passivated, or plated finish to offer high corrosion resistance, impact strength and protection against abrasion.

Features & Benefits

Attractive and ergonomic - sleek design and comfortable use
High quality finishes - smooth and durable coating
Locking or non-locking - optional keyhole cover
Universal Key - will fit any Yale window lock
Improved window security - key deadlocks the sash
Child safety - lever requires button press
Fixings supplied - includes key, screws and covers
Standard fitting - 43mm screw centres and common spindles
10-Year guarantee - product you can trust
Quality assured - British Standard accredited

Please check before ordering:

Screw Hole Centres: This handle has 43mm fixed screw centres. Make sure this matches your existing handle.
Spindle Length: Spindles are fixed length, sold in different sizes, measured from the back of the backplate to the tip. Longer spindles can be trimmed if needed.
Inline Handle: Straight and non-handed, fitting left or right windows. Confirm this matches your old handle.

Espag handles feature a 7mm metal spindle that is fixed to the lever and runs through the handle backplate to fit into a lock mechanism within the sash. Turning the lever rotates the spindle and triggers the mechanism, which in turn locks or unlocks the window.

DID YOU KNOW? The Yale Quartus Espag handles are also available as left and right offset cranked versions, which provide increased hand clearance.

Related Collections

Inline Handles
Replacement inline window handles for uPVC espag windows. Available in various colours...

Inline Handles
Cranked Handles
Replacement left and right cranked handles for uPVC espag windows. Choice of...

Cranked Handles
Cockspur Handles
Replacement surface-mounted left-hand and right-hand cockspur window handles.

Cockspur Handles

Overview Video

Specification

Measurement	Value
Material	Die Cast Zinc (Base, Grip and Key), Nylon and ABS (Mouldings), Passivated mild steel bar (Spindle)
Finish	Copper nickel chrome plate layer (Chrome and Champagne Gold, Gold has additional coloured lacquer)). Powder-coated (White, Satin Black and Silver).
Backplate size (l x w x d)	65mm x 17.4mm x 13mm
Fixing screw positions	43mm (centre-to-centre)
Spindle length	10mm, 15mm, 20mm, 30mm or 40mm
Overall length	160.2mm (handle and backplate)
Overall projection from sash	49mm
Overall width	17.4mm
Endurance Performance	Tested to BS 6375 Part 2 (Classification EN 12400) Class - 20,000 cycles
Corrosion resistance	Tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
Building hardware requirements	BS EN 13126:2011 Part 1: Building hardware
Guarantee	10-year surface and mechanical

Fitting & Usage

Fitting Yale Quartus Window Handles

Remove the existing handle to reveal three holes in the window sash. The outer holes are for the screw fixings (43mm screw centres) and the inner hole is for the spindle.

Swing open the new handle to reveal both screw ports on the Base
Guide the handle spindle into the spindle hole and align the screw ports
Secure handle to sash using screws provided

That is it! If you wish to keep the handle permanently locked, just key lock and then fit the black blanking plug into the barrel keyway. If you wish to highlight the handle as egress and stop it from being locked, fit the green blanking plug.

Works in both left and right handed positions.

Animation highlighting that the inline handles can be used on both left and right handed set up

Replacing a cranked handle with an inline?

An image highlighting the clearance between a cranked and in line handle

Cranked handles are built with usability in mind, shifting the grip away from the window frame for improved clearance. Before replacing a cranked handle with an inline one, ensure there will be enough space between the windows frame and the grip.
