A high-security cylinder is a lock designed to resist forced and covert entry attacks well beyond what a standard euro cylinder can withstand. It combines hardened materials, complex pin arrangements, and controlled key duplication to make both physical attacks and manipulation techniques far harder to succeed.

For a high-security euro cylinder, look for recognised certification such as TS007 3-star or Sold Secure Diamond (SS312). TS007 provides a 1-to-3-star security rating for cylinders, while SS312 Diamond is a separate Sold Secure certification for high-security cylinders. Secured by Design is a UK police-backed security scheme that recognises products meeting specified security requirements.

The main standards explained

• TS007 — British kitemark rating cylinders 1 to 3 stars based on resistance to snapping, drilling, picking, and bumping
• Sold Secure Diamond (SS312) — an independent lab standard recognising the highest tier of cylinder security
• Secured by Design — a UK police initiative certifying products, including cylinders, doors, and windows, that meet strict tested security requirements

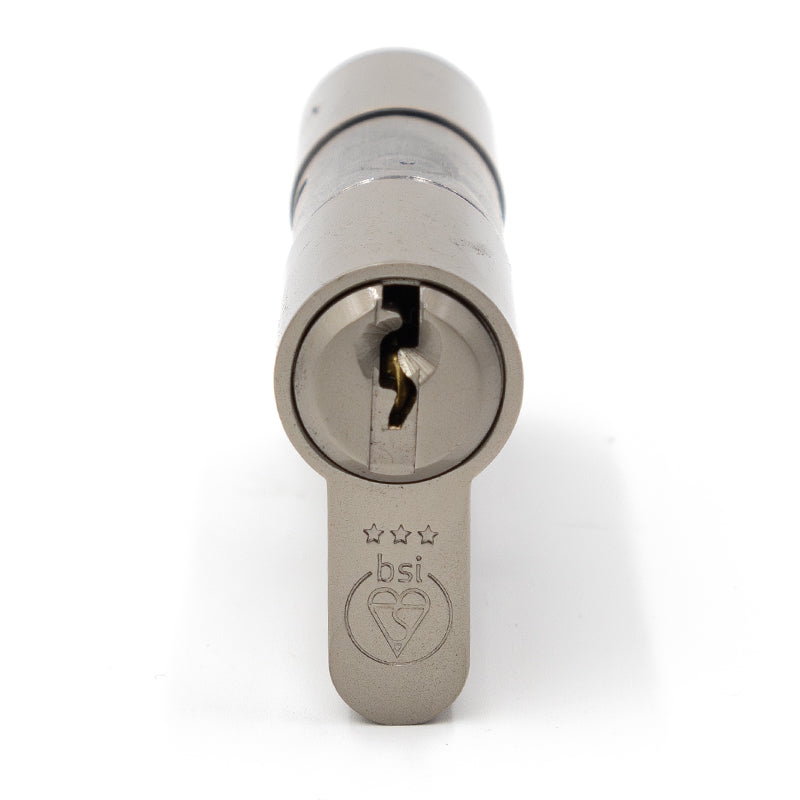

Both ratings come from the TS007 kitemark standard, but they cover different levels of protection. A 1-star cylinder resists picking, drilling, and bumping, but not snapping on its own — it needs a 2-star security handle to reach full 3-star equivalent protection. A 3-star cylinder resists all of these attacks, including snapping, as a standalone product with no extra hardware required.

1-star vs 3-star at a glance

• 1-star cylinder — resists picking, drilling, and bumping; needs a 2-star handle for full snap protection; suited to internal doors or upgraded external setups
• 3-star cylinder — resists all common attacks including snapping on its own; suited to main external entry doors as a standalone upgrade

High-security cylinders are tested against the main forced and covert entry methods used on UK doors: snapping, drilling, picking, and bumping. The latest models also incorporate features designed to resist techniques such as freeze attacks and attempts to jam the keyway with adhesive.

Attack methods explained

• Snapping — breaking the exposed section of a standard cylinder to reach the cam
• Drilling — drilling through the cylinder to disable the pins
• Picking and bumping — manipulating the internal pins with tools or a specially cut key, without force or a genuine key
• Freeze and glue attacks — disabling the lock by freezing or filling the mechanism rather than forcing it

Anti-snap protection is a security feature designed to prevent an attacker from snapping the lock and reaching the internal mechanism. It works using a deliberate "sacrificial" weak point — when force is applied, the outer barrel breaks away cleanly at this point, leaving the cam and core protected and the door still locked.

How anti-snap design works

• Sacrificial cuts — grooves on the outer barrel encourage the metal to snap away from the main mechanism
• Controlled break — force snaps the cylinder at the weak groove rather than through the middle
• Protected core — the cam and inner pins stay shielded behind the break point, out of reach of tools
• Reinforced bars — higher-end models add hardened steel bars or anti-drill pins to block power drills and pick tools
