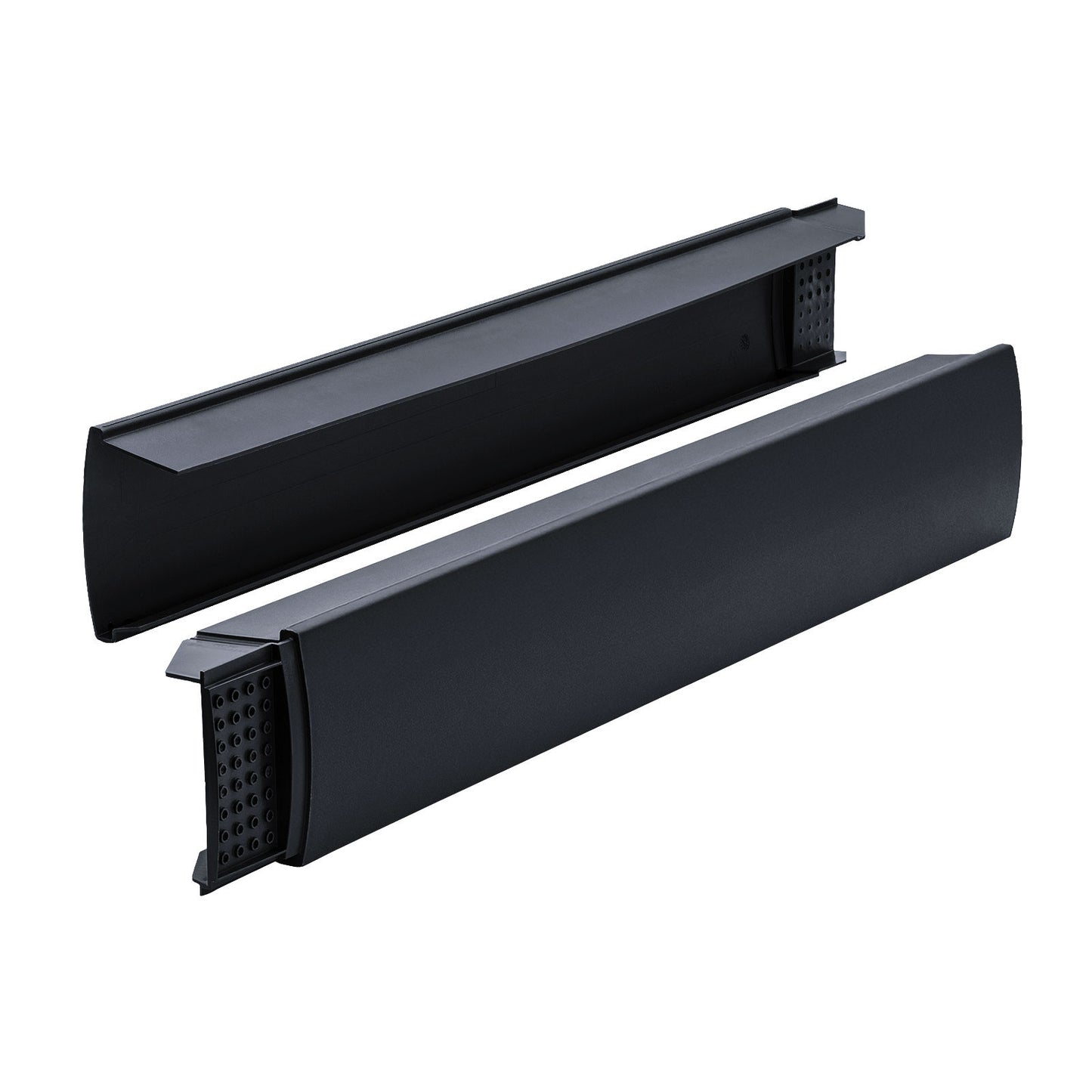

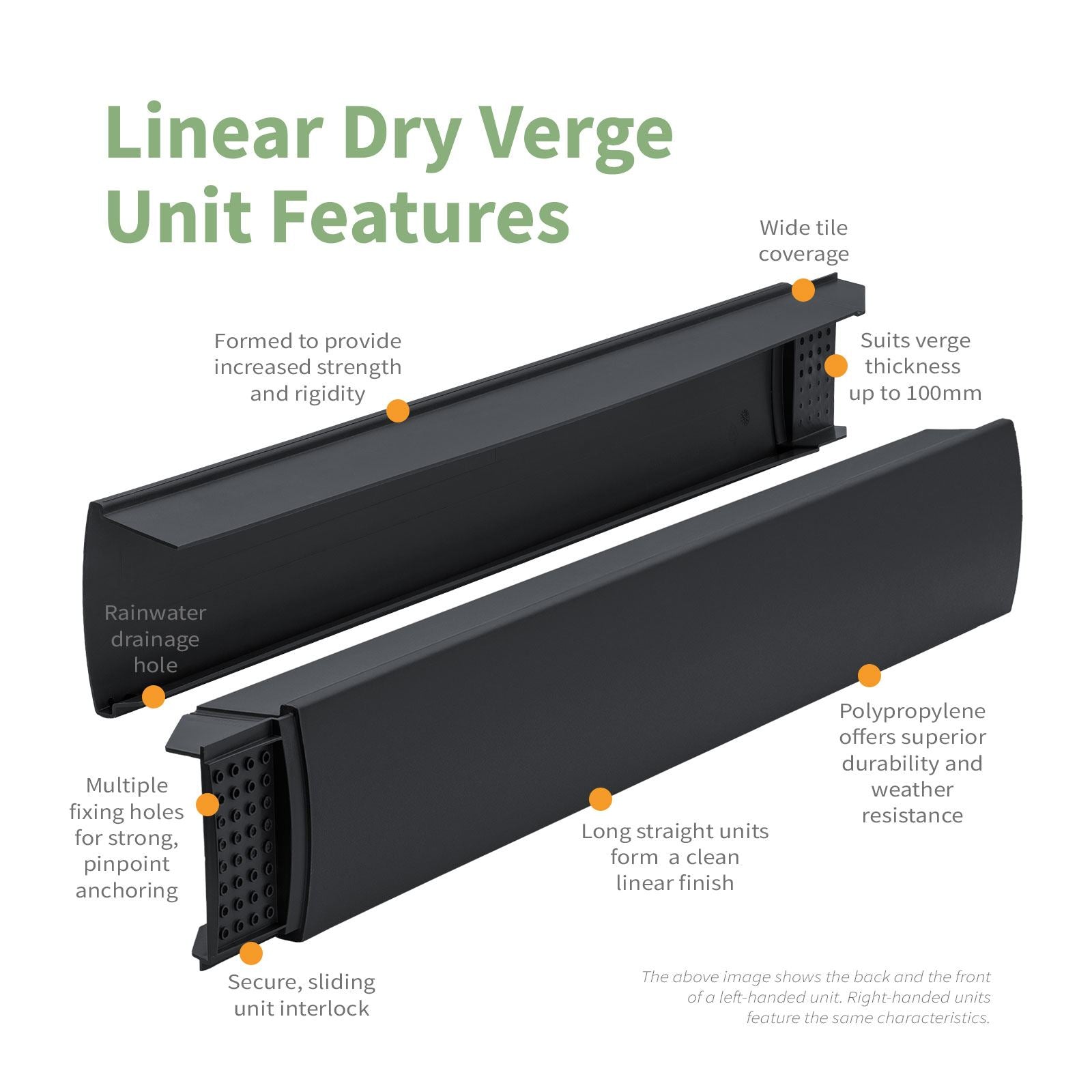

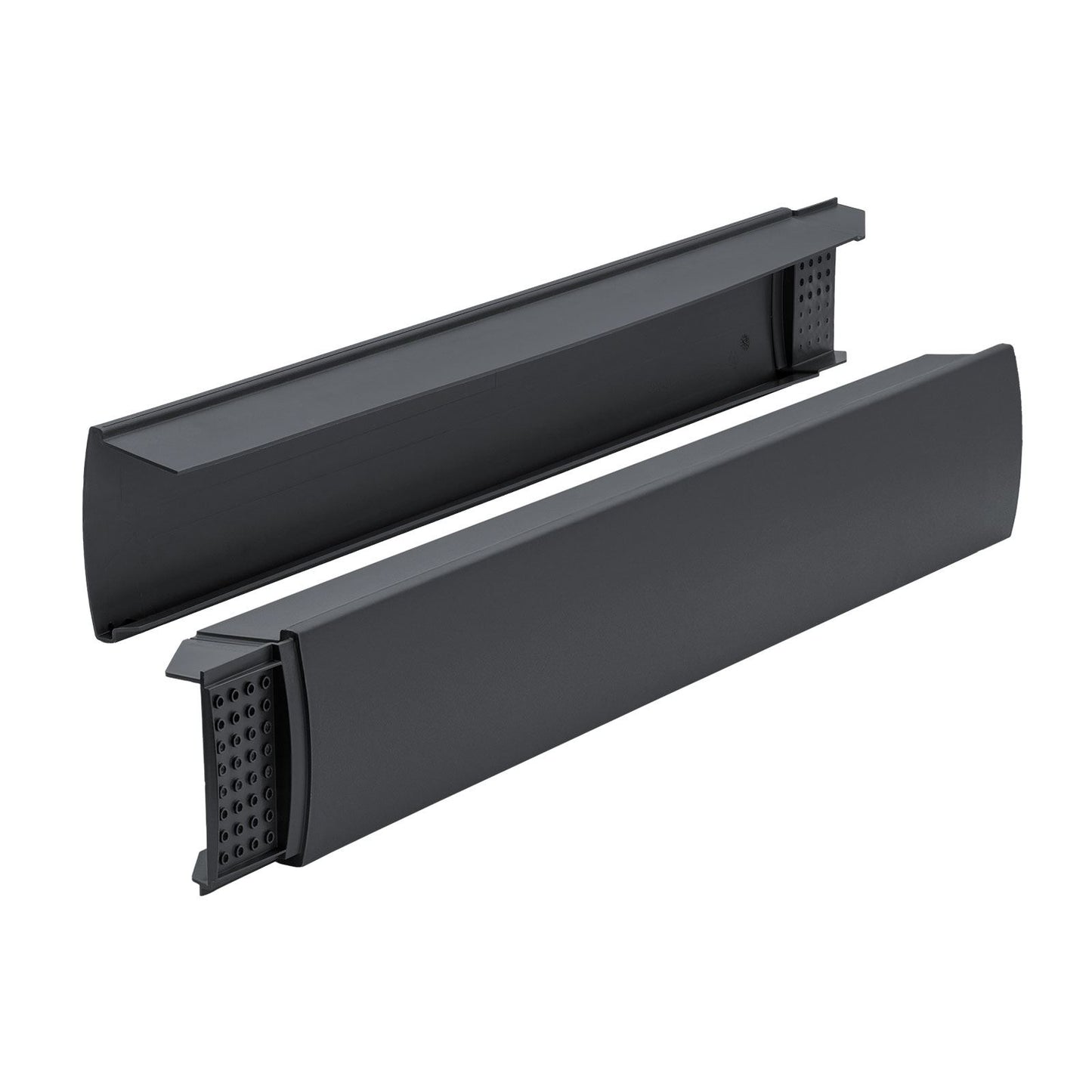

Technical Information

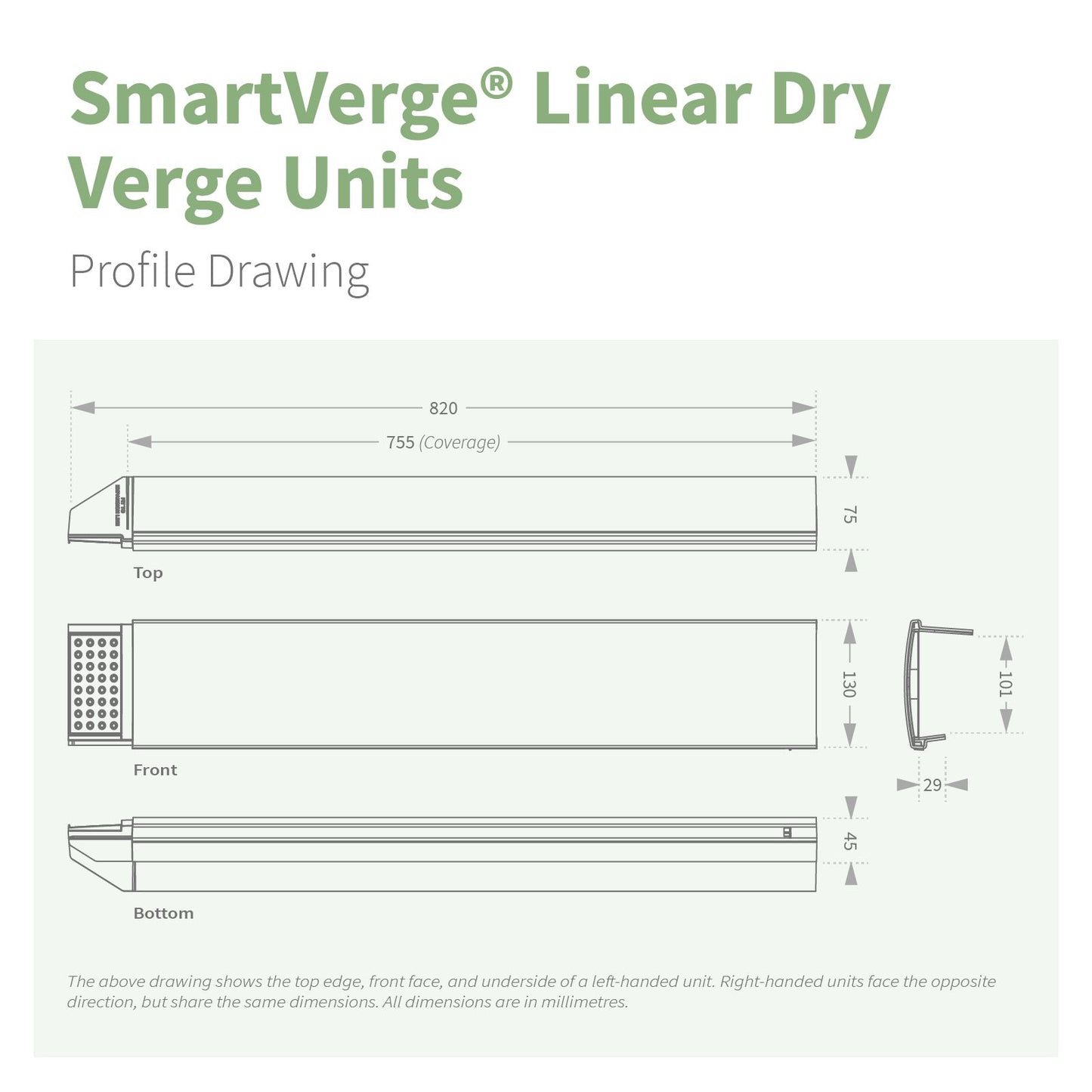

| Measurement | Value |
|---|---|
| Height | 130mm (External) 100mm (Internal) |
| Length | 820mm (Overall) 755mm (Effective) |
| Depth | 75mm (Top edge), 45mm (Bottom edge) |
| Weight | 485g |
| Material | Polypropylene |

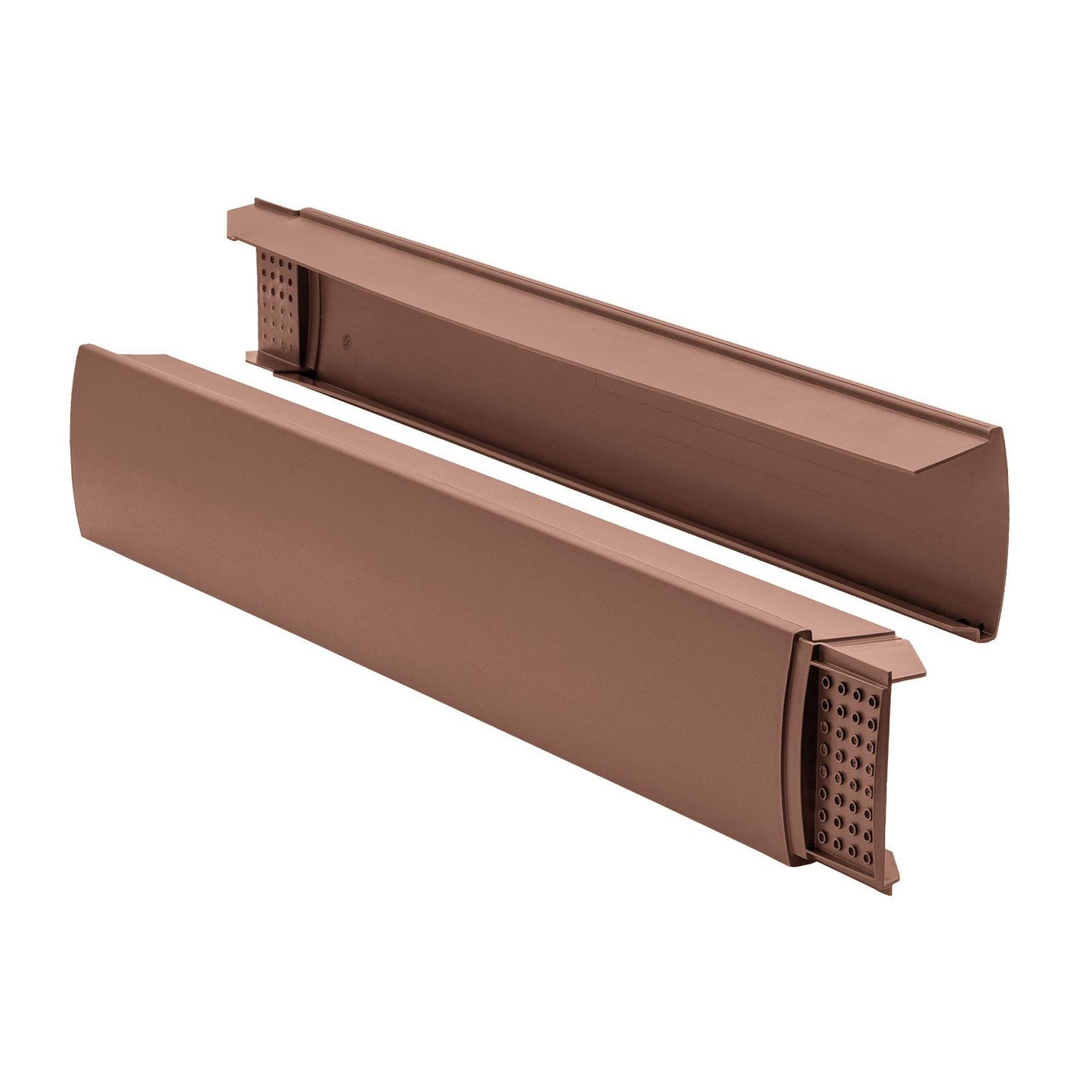

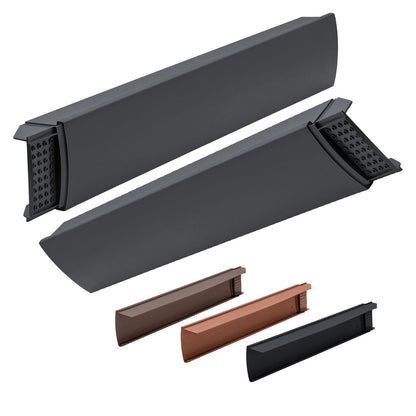

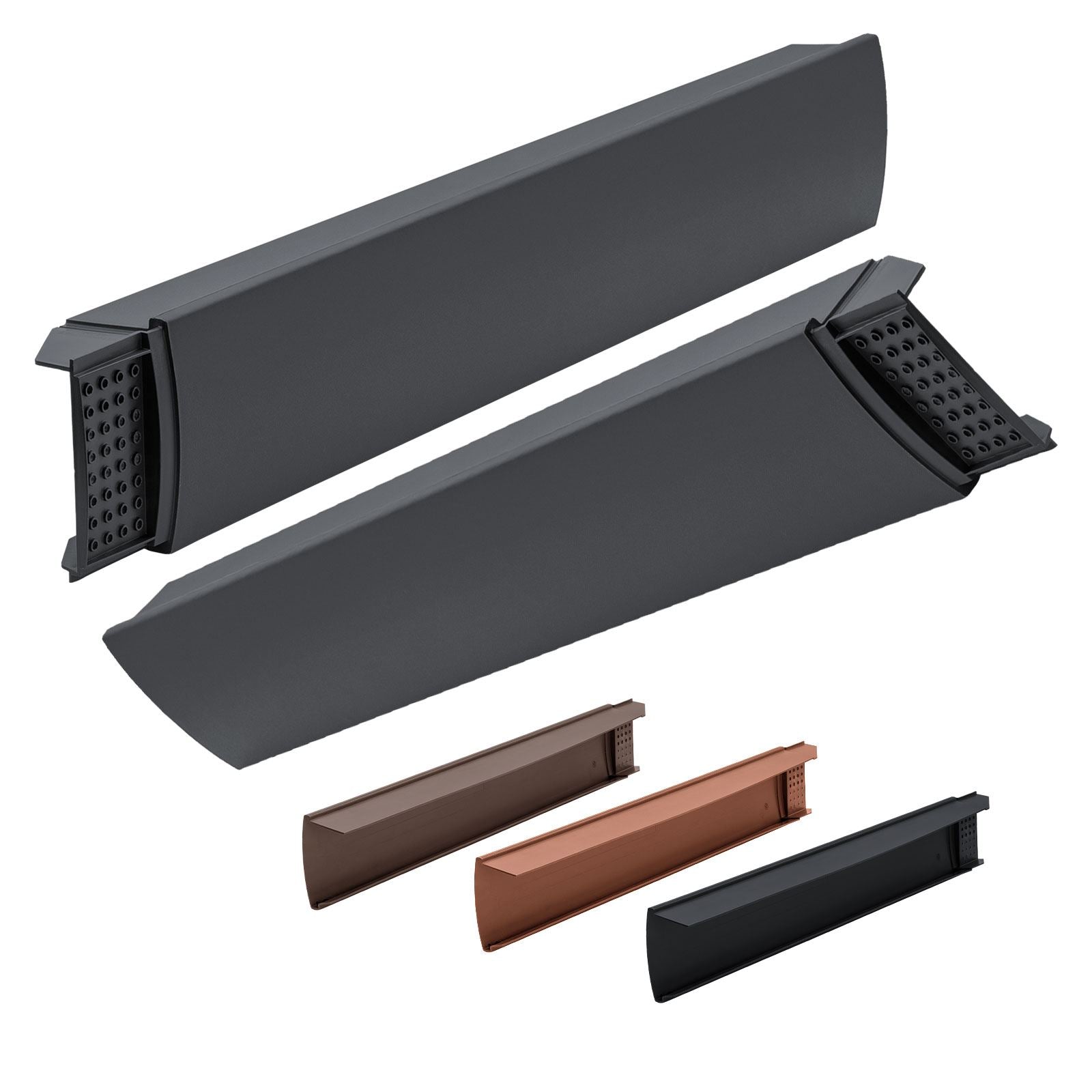

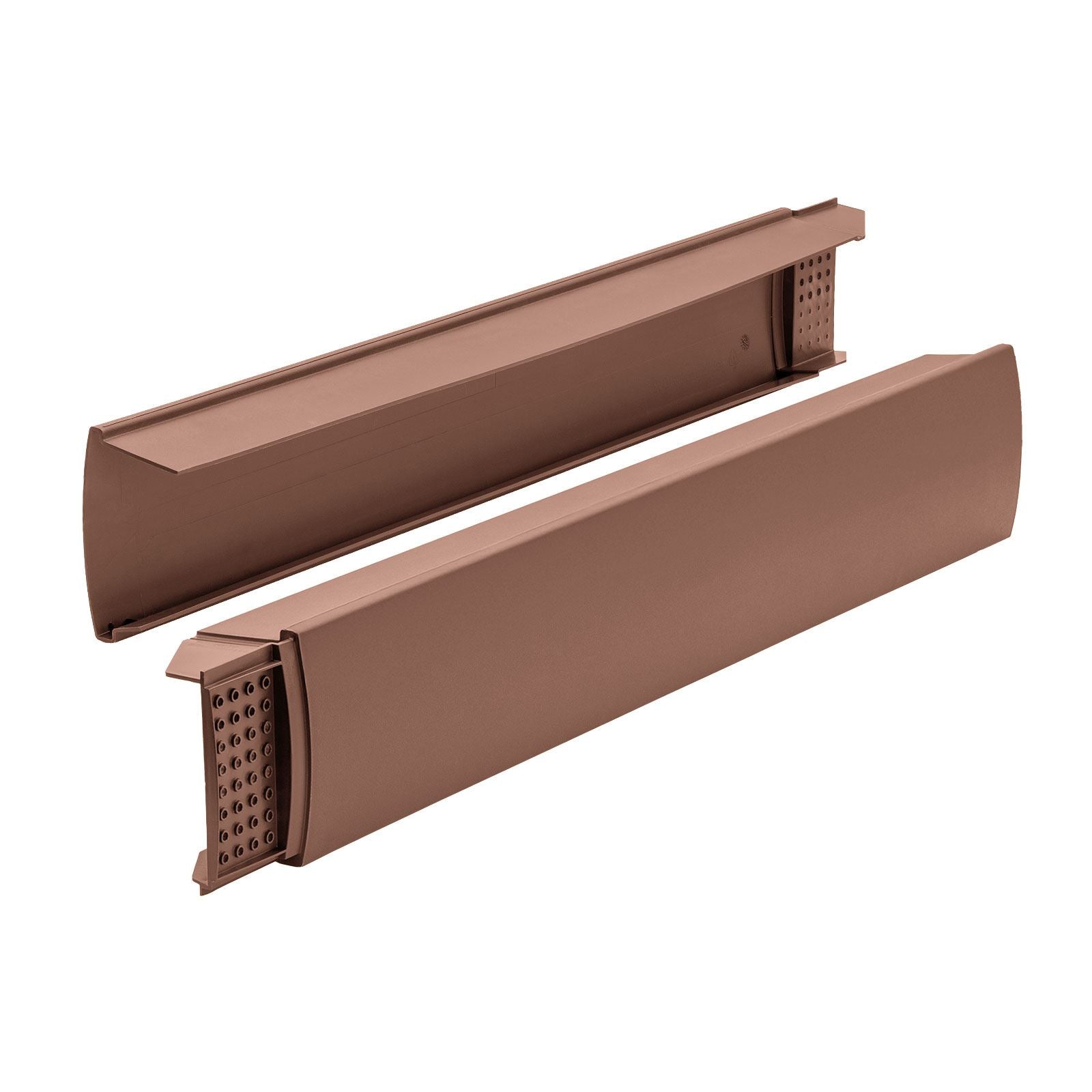

| Colours | Slate Grey (GR), Black (BL), Terracotta (TR), Brown (BR) |
| Maximum Verge Thickness | 100mm (including continuous verge batten) |
| Roof Pitch | 15° to 55° |
| Roof Tile Compatibility | Fibre Cement Slates, Natural Slates, Interlocking Plain Tiles |

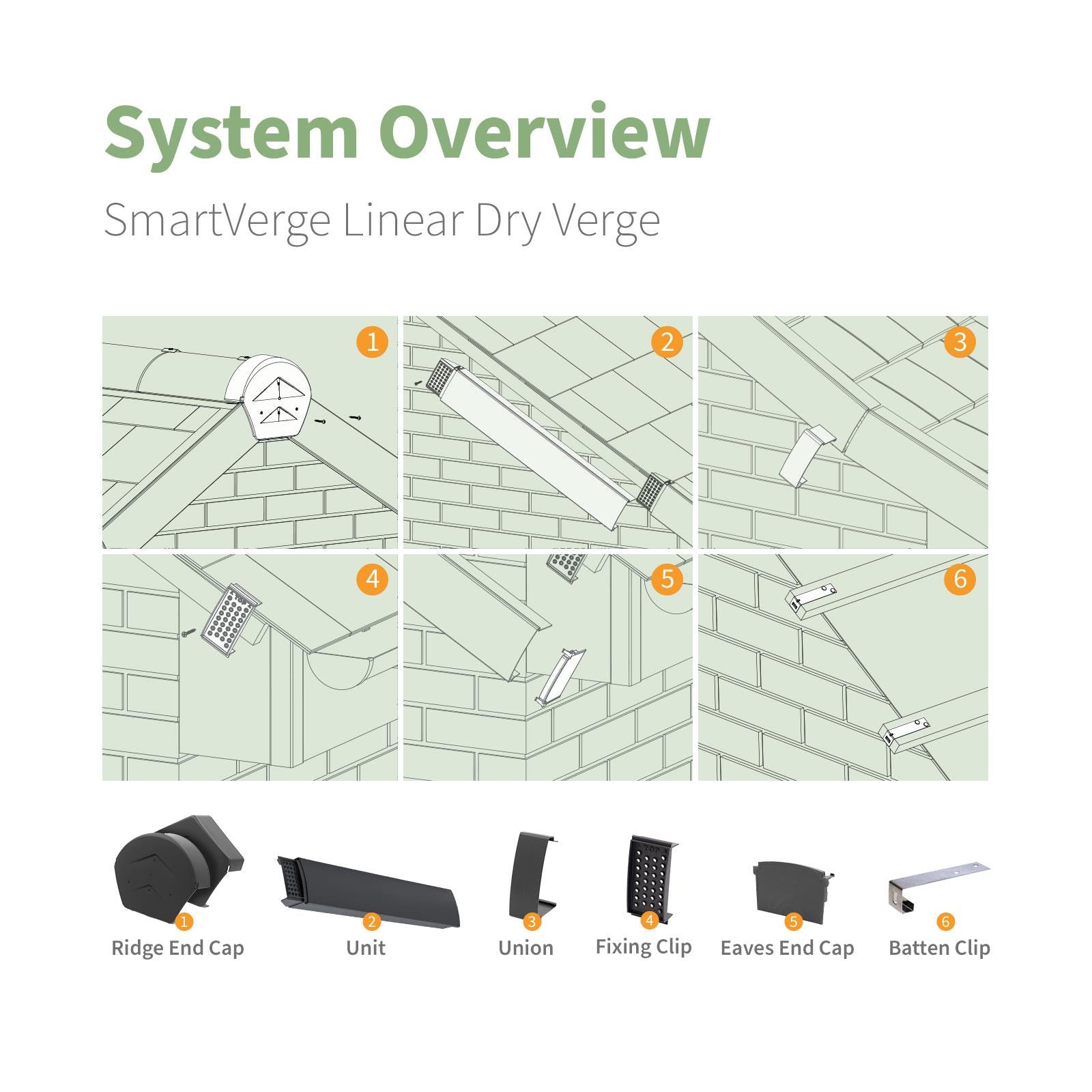

| System Compatibility | SmartVerge Linear Dry Verge System |
| Building Standard Certification | BS8612:2018, BS 5534 |
SmartVerge Linear Tile Compatibility
The tile and slate listed below are known to be compatible with SmartVerge Linear, when fitted in accordance with the manufacturer’s instructions.
Marley
Acme Clay Plain Tile*
Ashdowne Clay Plain Tile*
Ashmore Interlocking Double Plain Tile
Birkdale Fibre Cement Slate
Domino Clay Interlocking Tile
Garsdale Fibre Cement Slate
Hawkins Clay Plain Tile*
Heritage Plain Tile*
Marlden Plain Tile*
Melbourn Interlocking Slate
Plain Tile*
Rivendale Fibre Cement Slate
Thrutone Fibre Cement Slate
Lagan
Elite Tile
Lafarge (Redland)
Cambrian Slate
Concrete Plain Tile*
Downland Plain Tile*
Duoplain Interlocking Plain Tile
Heathland Plain Tile*
Landmark Slate
Natural Slate
Richmond Interlocking Tile
Rosemary Classic Plain Tile*
Saxon Interlocking Tile
Forticrete
Clay Plain Tile*
Gemini Interlocking Plain Tile
Sandtoft
Minislate Interlocking Slate
20/20 Interlocking Plain Tile
Balmoral Interlocking Slate
BritLock Interlocking Slate
BritSlate Slate
Cassius Interlocking Slate
Goxhill Plain Tile*
Humber Plain Tile*
Pennine Major Slate
Pennine Minor Slate Pennine Slate
Plain Tile*
*May not be suitable with additional batten strip.
