25mm Ultraframe Polycarbonate End Closure (2m)

25mm Ultraframe Polycarbonate End Closure (2m)

SKU: ULT-1226-1001
MPN: PCFC604B_2M

£15.11

Sale Sold out

Tax included. Shipping calculated at checkout.

10+ in stock

Order within

h m s

for Same Day Despatch

Quantity

View full details

Description

Premium 2m End Closure for 25mm Polycarbonate

Name: 25mm Ultraframe Polycarbonate End Closure (2m)
Brand: Ultraframe
SKU: ULT-1226-1001
Price: 15.11 GBP
Availability: InStock

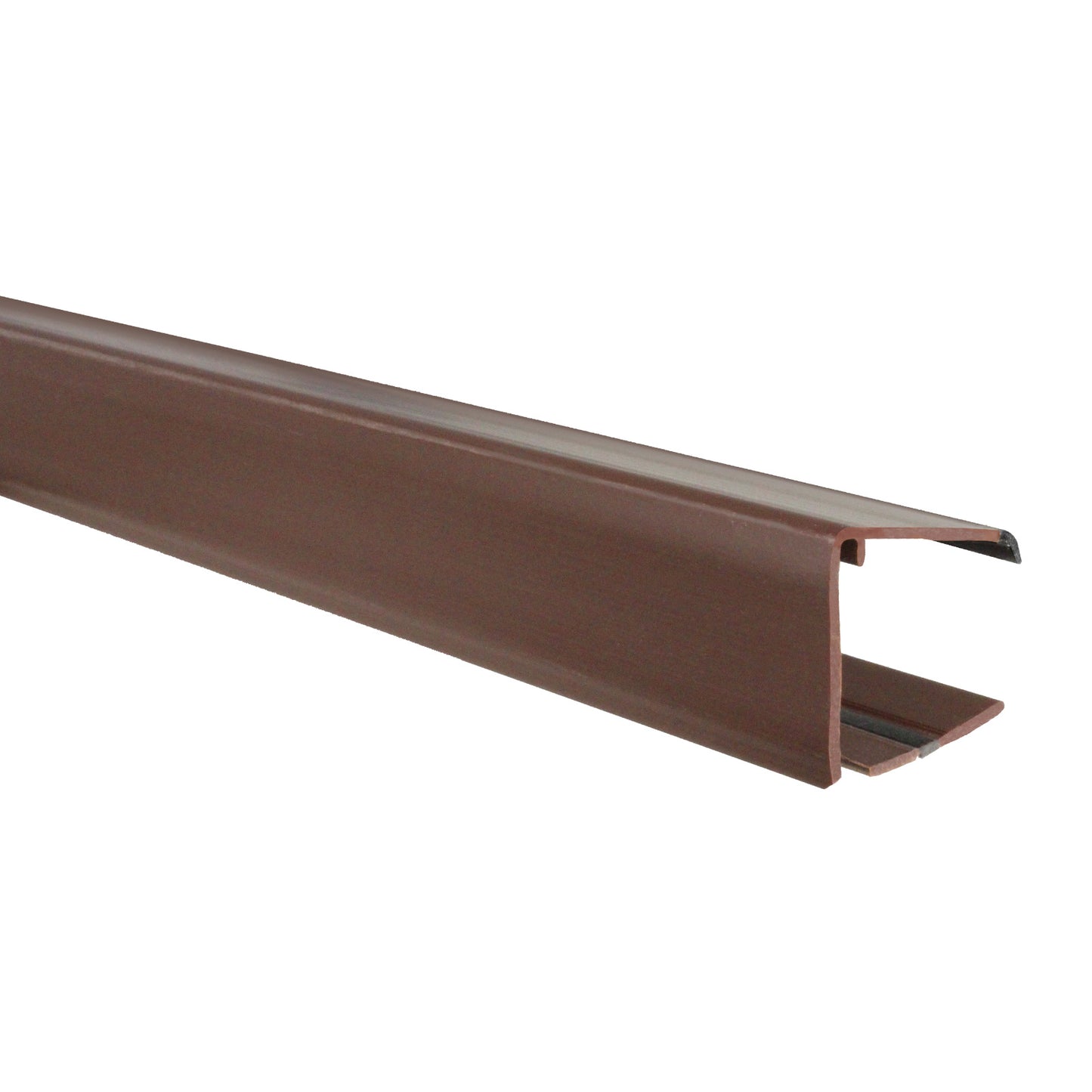

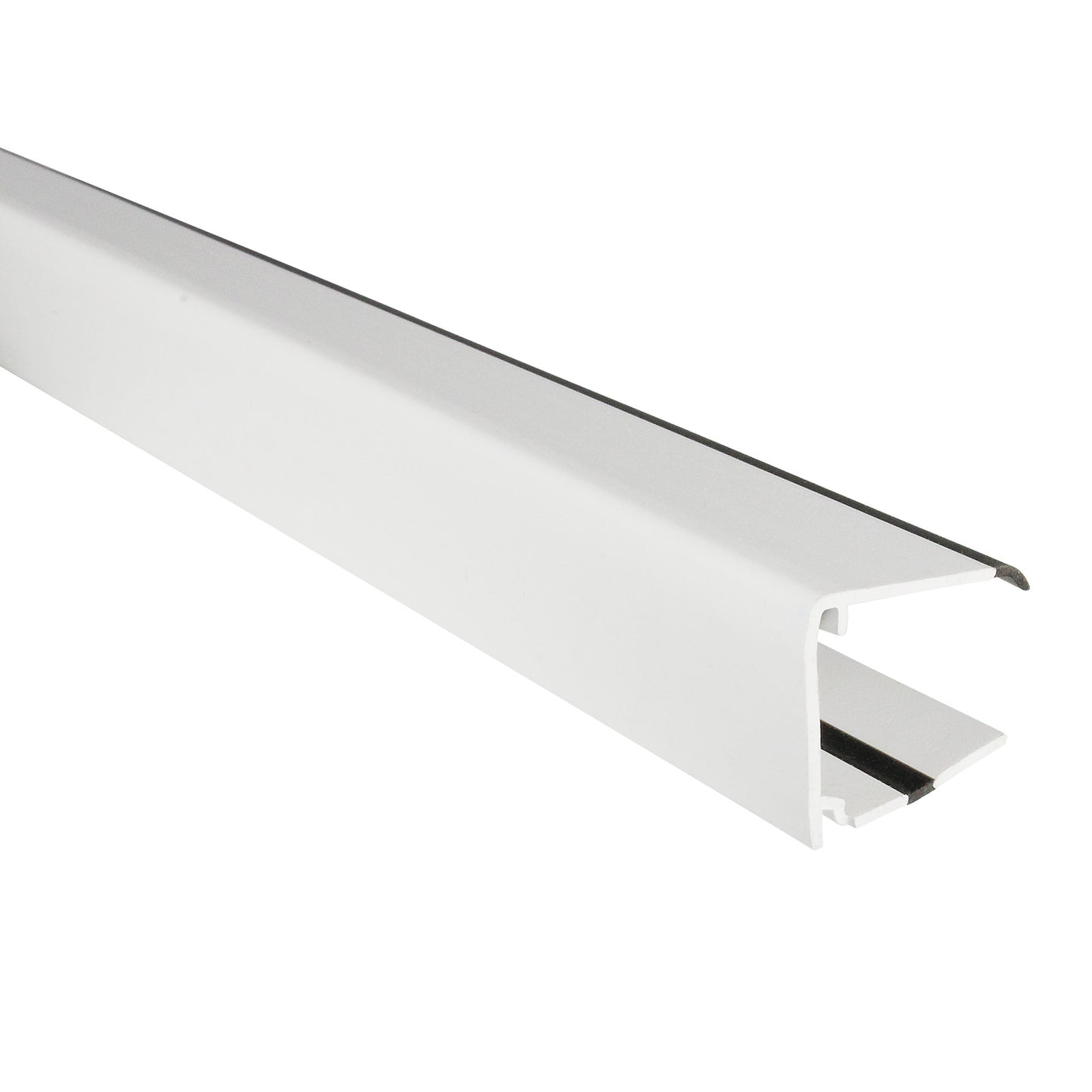

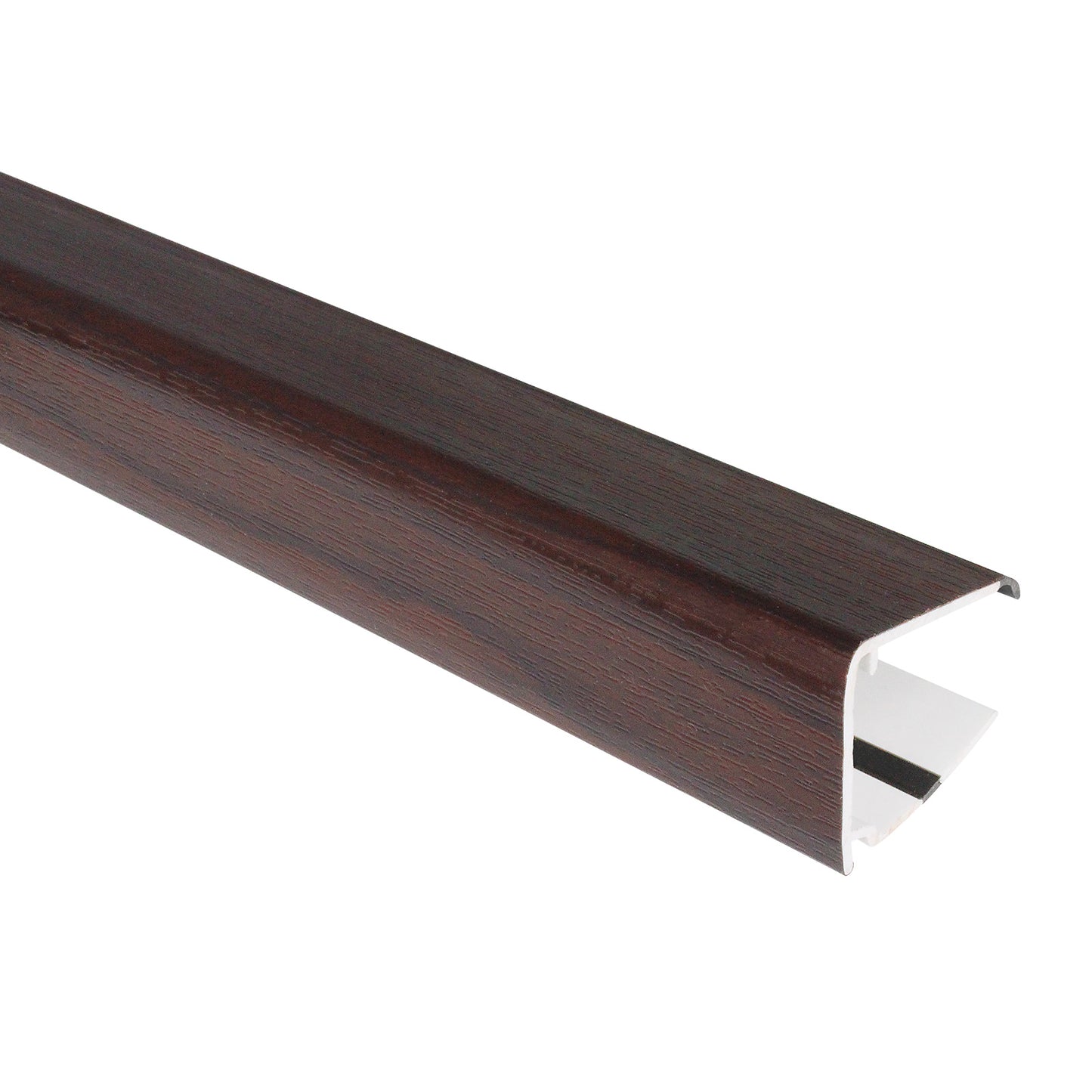

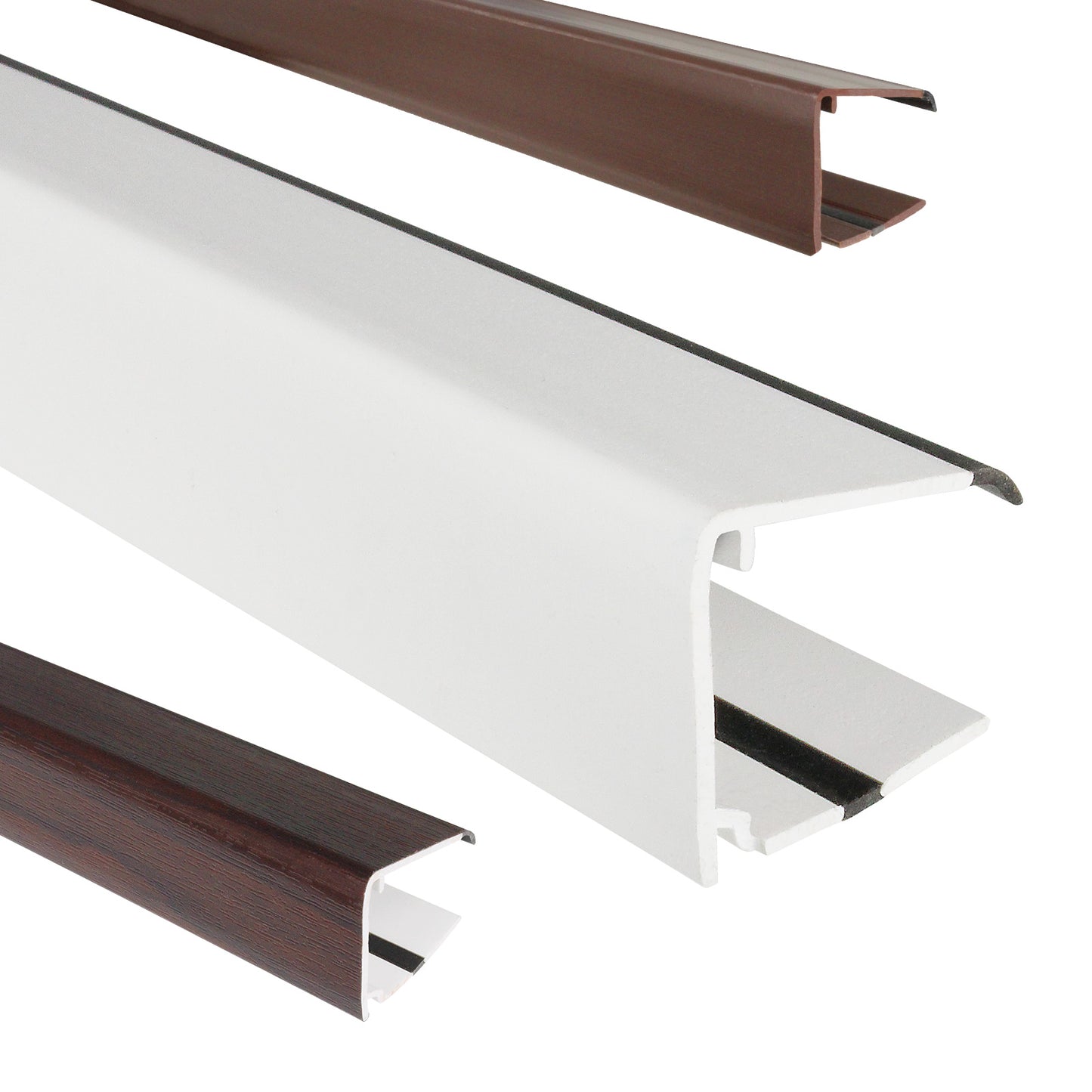

(2m (6' 7") long, in White, Brown and Rosewood)

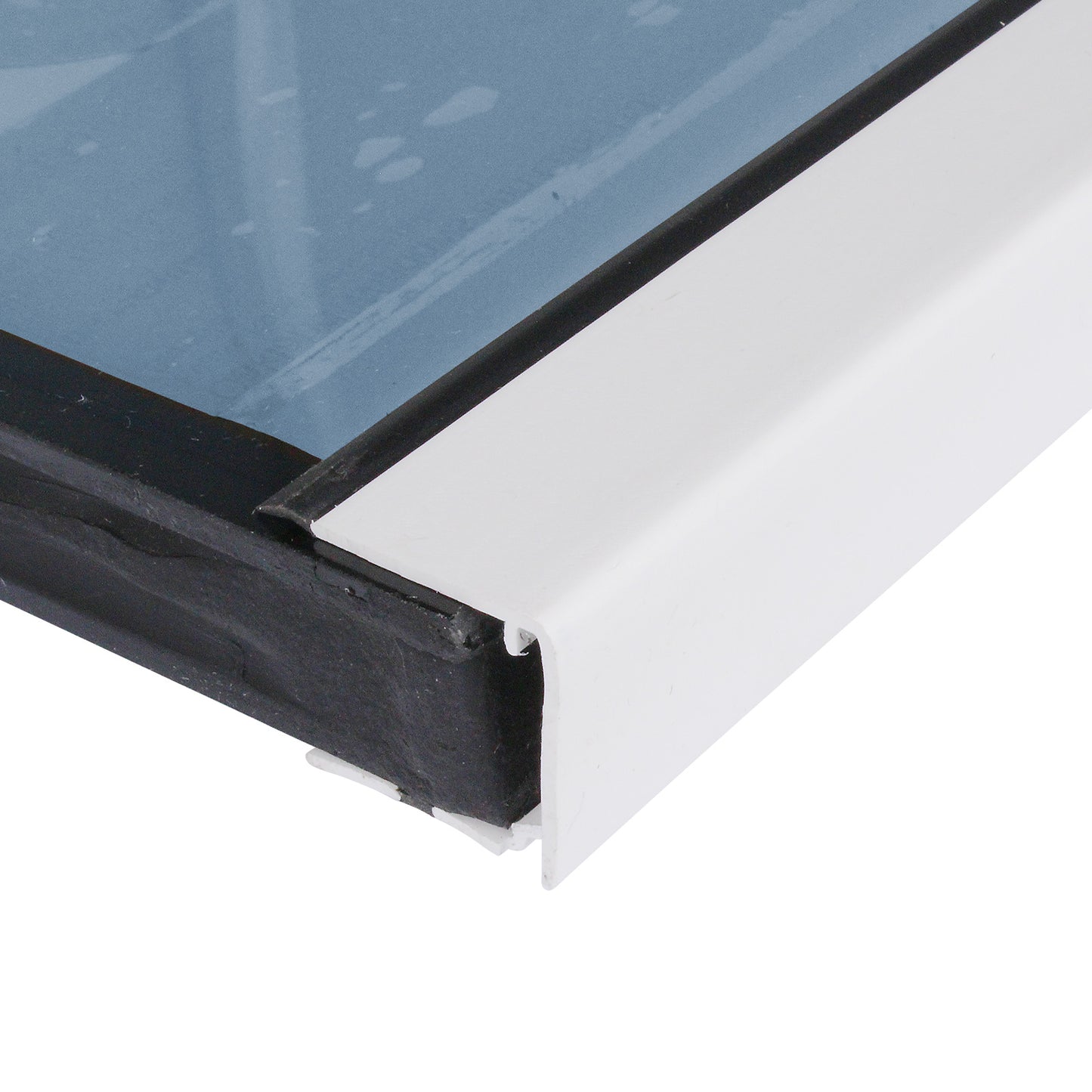

Suitable for both 25mm polycarbonate or 24mm glass!

High quality PVC-u end closure for 25mm polycarbonate and glass. Manufactured by Ultraframe, one of the leading conservatory suppliers, these end closures (also known as "U" Drips, Poly End Covers and End Profile Trims) feature a durable glazing gasket, drainage holes and a 4mm drip to ventilate and discourage water penetration.

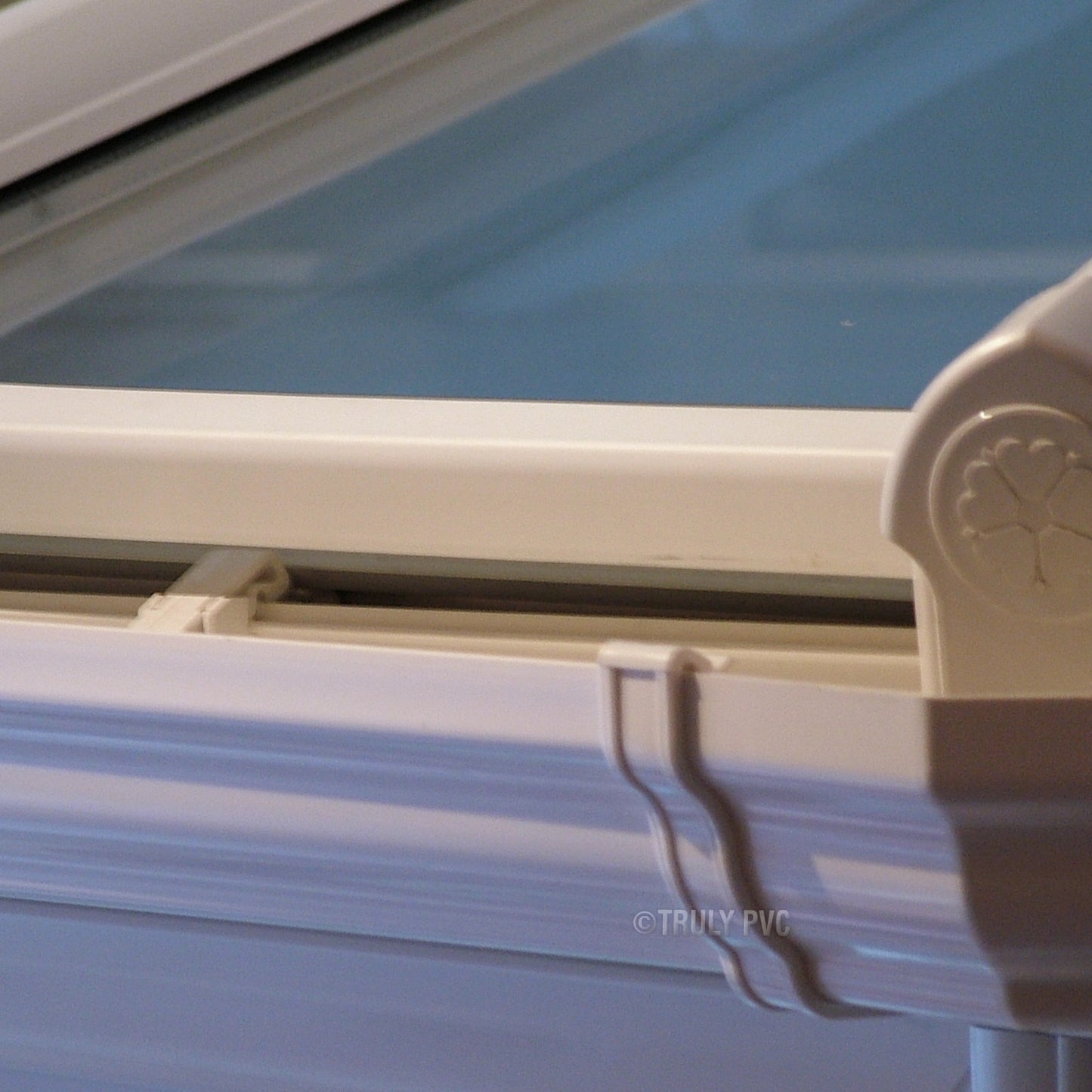

End closures are typically fitted to the gutter-end of pitched roofs, such as those of a conservatory, or to both ends of a free-standing roof. They provide decorative, protection to the ends of glass units and the vulnerable ends of polycarbonate sheeting.

Features & Benefits

Seals open end of polycarbonate sheet
Helps prevent dust and insects entering the sheet
Protects vented anti-dust breather tape
Attractive finishes (inc. Rosewood woodgrain)
Silicone not required
Drip design prevents water from being blown back towards the roof
Rubber gasket provides tighter fit onto glazing
Prevents the Sun's UV light breaking down glass unit seals
Drainage holes reduce condensation and moisture

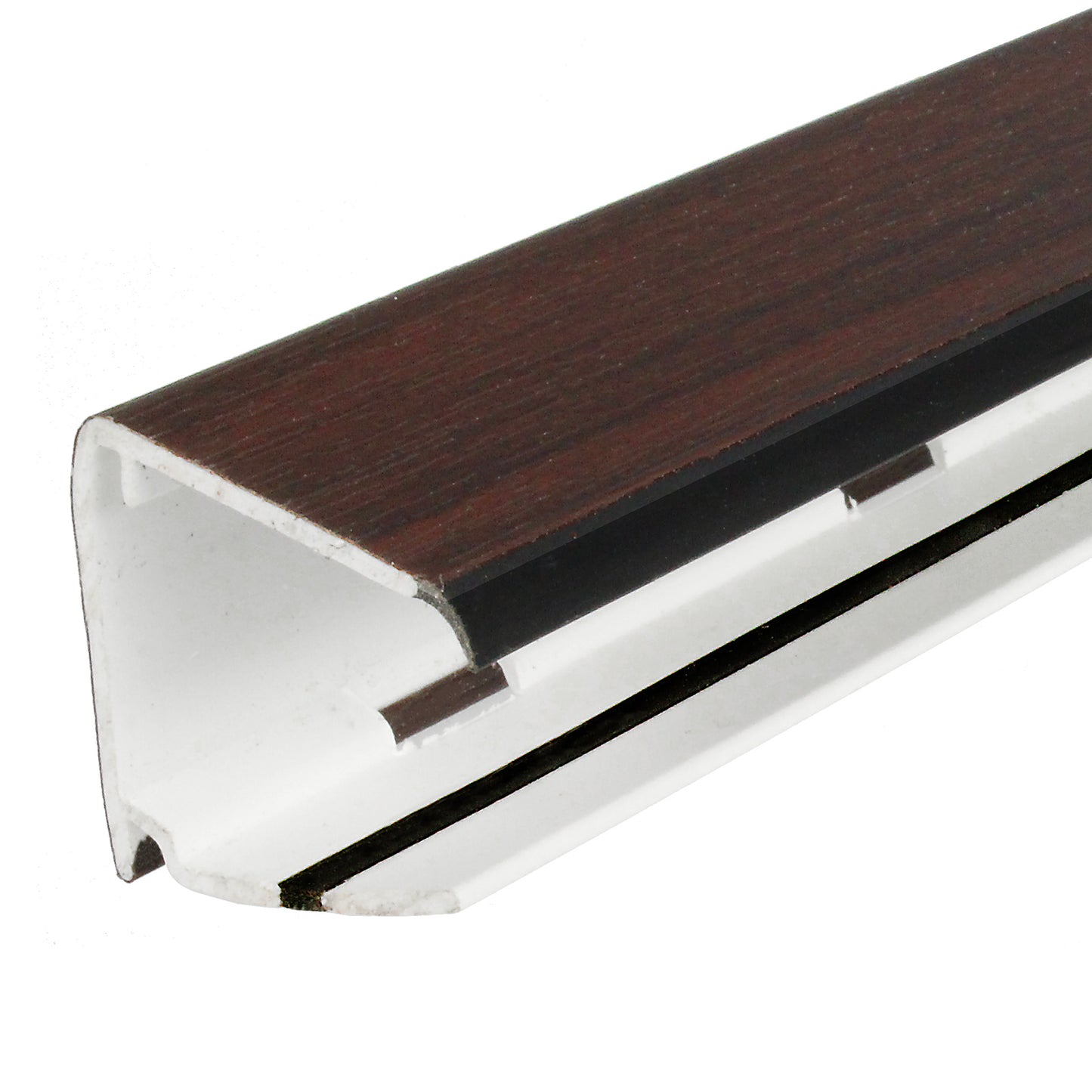

What makes the Ultraframe End Closure so special?

4mm 'Drip' - hangs from the front face and extends the full length of the closure. Provides a means by which water gathers and drips from the front face, rather than running back towards the roof.

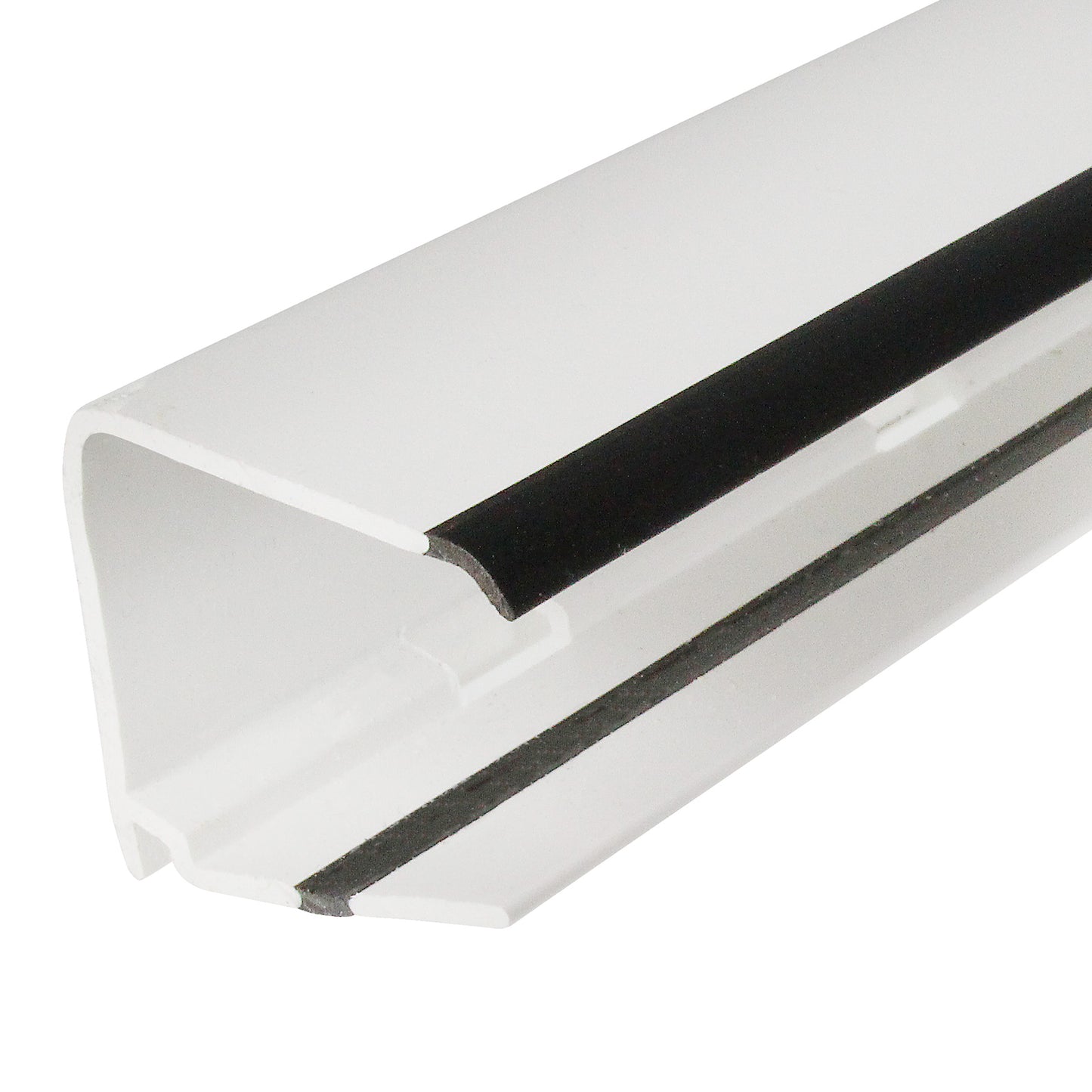

Rubber Gasket - runs along top edge of end closure to provide a tight seal against the roofing material.

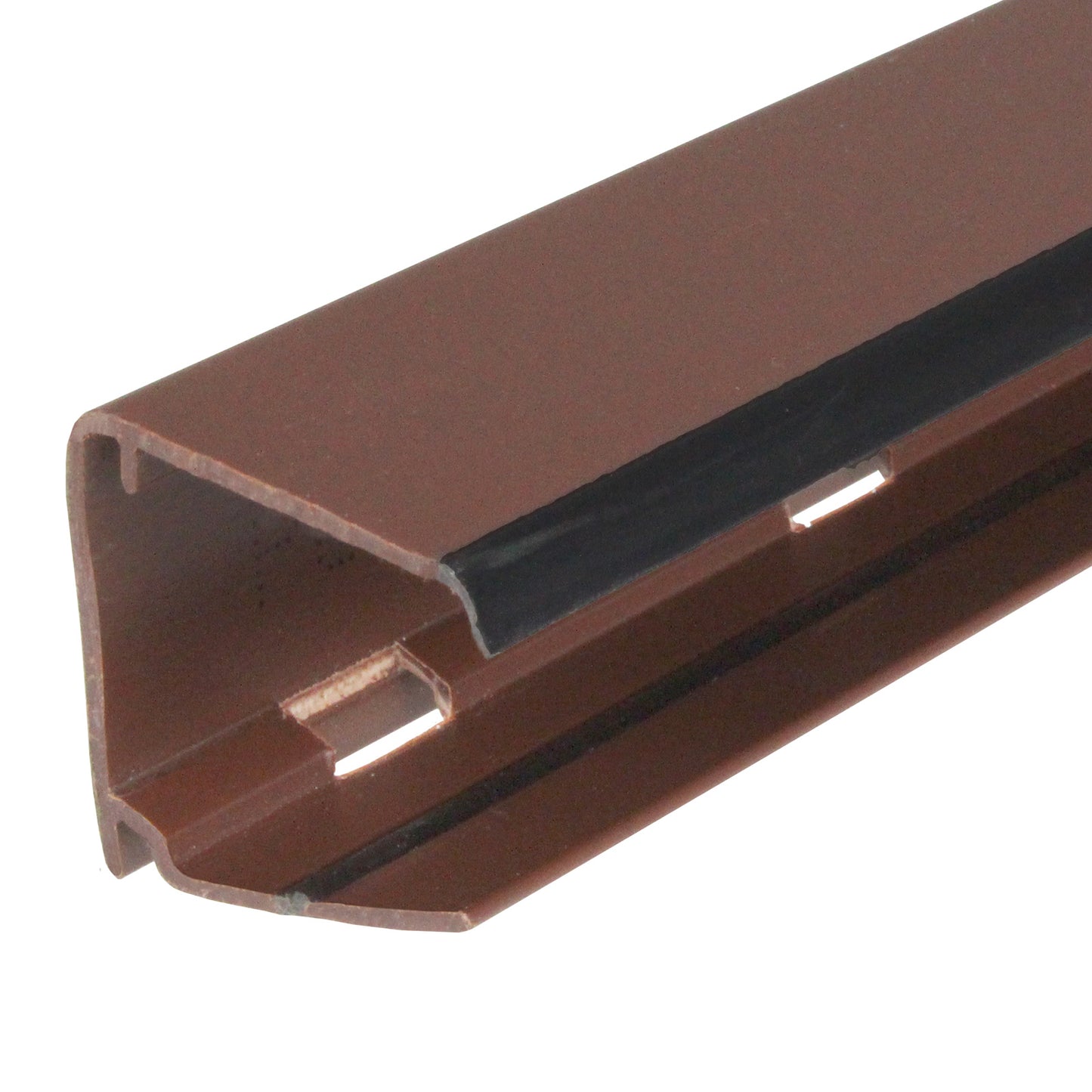

Drainage/Ventilation Holes - 8mm slots appear every 50mm behind the drip to provide ventilation and drainage.

Specification

Fitting & Usage

Fitting Ultraframe 25mm Polycarbonate End Closure

Prepare Roof Material

Whether fitting to glass or polycarbonate, it's important that the material is cleaned and dried thoroughly to ensure that the End Closure works effectively. This is particularly important on the top face which will be sealed with silicone.

Seal Ends of Sheets

Ensure that Anti-Dust Breather Tap is used to seal the ends that the End Closure is being applied to. If existing breather tape is in a poor state, then we recommend that it is removed the flutes are cleaned and fresh tape applied.

Anti-Dust Breather tape allows the movement of air inside the sheet and the evaporation of any condensation, while preventing insects and dust from getting inside. The maximum breathability offered aids the dispersal of moisture that could otherwise lead to unsightly algae and mould. Anti-Dust Breather tape is not weatherproof and should therefore be protected by an End Closure.

Fit the End Closure

Cut the End Closure to the desired length, typically the width of the roofing material, and remove any swarf created during cutting the End Closure.

Water should not be allowed to seep into the End Closure as this could cause the breather tape to become saturated and fail, which would result in moisture entering the polycarbonate. It may be recommend to apply a small bead of silicone to the top edge along the entire length of the End Closure. This will seal the top face of the sheet and prevent water from entering the End Closure and making contact with the breather tape. It is important that polycarbonate compatible silicone is used as standard silicone may release an acid which can cloud the polycarbonate.

Remove the trim to help glazing sit on glazing bar gaskets

Delivery

SHIPPING

We endeavour to despatch most orders within 1 working day. Where possible, orders received before 1:00pm may be despatched the same day. Accurate despatch times are available on individual product pages.

Most orders (those being stock items below 1.2m in length) will be despatched same day when ordered before 1pm, and received the following delivery day. We deliver items of that size from Monday to Saturday. Stock items over 1.2m are sent using a two-day carrier, who do not deliver on a weekend.

Due to the size and nature of some bespoke, and non-stock products, we offer restricted delivery options. Delivery options can be selected at the checkout page before payment Is made.

DELIVERY AND RETURNS

Any dates quoted for delivery of the goods are approximate only and Truly PVC shall not be liable for any direct, indirect or consequential loss suffered by the customer arising from any delay in the delivery of the goods.

All deliveries must be received, and where appropriate, signed for, by a person over the age of 18 years old.

Delivery takes place, and risk passes to you, at the earliest of the following:

When the goods are handed over to you or your agent at Truly PVC’s premises.
When the goods leave the premises of Truly PVC.
On the 7th day after you have been notified that the goods are ready for despatch.

Customers should notify us within 7 days of the invoice date for any alleged defect, damage, failure to comply with description, missing items, or discrepancies. If no notification is made within this period, the goods are deemed accepted and free from defect.

Customers are responsible for obtaining any necessary licences or permissions for importing goods into their country of destination.

Long Lengths (over 1.2m)

For any product over 1.2m in length we cannot guarantee a ‘Next Day’ delivery service. Products over 1.2m have to be manually handled in some Depots and this can often add 1 – 2 days to the delivery time.

DELIVERY PROHIBITIONS

Orders for aerosol items, items over 1m, or deliveries to remote locations (e.g., Scottish Highlands, offshore islands, Northern Ireland) may not be fulfilable or may incur a surcharge.

Should this be the case, we will contact you with the option of either paying the surcharge or cancelling the order. Remote postcodes include AB30-AB38, AB40-AB56, BT, FK17-FK21, G83, GY, HS, IM, IV, JE, KA27-KA28, KW, PA20-PA99, PH, TR21-TR25, ZE.

COLLECTION (from our Warehouse)

To collect your order, choose 'Collect in Person' as the shipping method. We will contact you if there is an issue preparing your order, so please provide a contact telephone number.

Stock items are usually available for collection 1 business day after ordering. For early collection or non-stock items (e.g., polycarbonate), please call 0161 339 4982.

Warehouse opening times:

Monday to Friday: 8:30am – 4:30pm
Saturday: 8:30am – 12:30pm
Sunday: 8:30am – 4:30pm

Unit 2, 34 Wood Street
Openshaw
Manchester
M11 2FB

*Bespoke items may take 1-2 working days to prepare for collection, with non-stock items, such glazing bars and roof sheets taking longer. Please enquire before making your journey to collect.

Reviews

Finishes	White, Brown or Rosewood (foiled)
Material	PVC-u
Height	28mm (for 24/25mm glazing)
Depth	30mm
Length	2m (6' 7")
