Kayflow Ogee 120mm Gutter Parts

Kayflow Ogee 120mm Gutter Parts

SKU: KAY-2438-1001
MPN: OGA1W

£5.17

Sale

Tax included. Shipping calculated at checkout.

10 in stock

Quantity

View full details

Description

Kayflow 120mm Ogee Profile Gutter System Parts

Name: Kayflow Ogee 120mm Gutter Parts
Brand: Kayflow
SKU: KAY-2438-1001
Price: 5.17 GBP
Availability: InStock

(Choice of component and colour)

Watertight Kayflow ogee gutter fittings and components

Traditional ogee gutter fittings for the high-capacity Kayflow ogee rainwater gutter system, featuring a classic scalloped face and high-gloss finish. Delivering an exceptional 2.2 l/s flow rate for roof areas up to 105m², the system includes angles, stopends, unions, brackets, and outlets. Manufactured from premium PVC-u for use with Kayflow 120mm ogee gutter lengths, and fully compatible with both 68mm round and 65mm square downpipe systems.

Easy-clip connections with integrated rubber seals create a secure watertight joint, with gutter insertion depth up to 38mm. Fully BSI Kitemarked and compliant with BS EN 607, BS EN 12200-1, and BS EN 1462, with a 10-year guarantee for long-lasting weathering and colourfastness performance.

Features & Benefits

Classic Ogee Styling – Traditional scalloped profile with a high-gloss finish
High-Capacity System – Suitable for roof areas up to 105m²
Wide Compatibility – Fits both 68mm round and 65mm square downpipes
Watertight Sealing – Rubber seals provide secure leak-resistant connections
Easy Installation – Quick clip-fit assembly with tool-free connection
Quality Assured – BSI Kitemarked and compliant with BS EN 607, BS EN 12200-1, and BS EN 1462
10-Year Guarantee – Long-term weather resistance and colour stability

Did you know? The name "Ogee" comes from the Old French ogive, an architectural term for Gothic cathedral arches that later evolved to describe a double-curved "S" shape. The Victorians adapted this elegant profile for guttering because its decorative, scalloped front adds a classic architectural finish to any property.

Specification

Measurement	Value
Size (w x h x l)	See diagrams for individual part dimensions
Gutter Compatibility	Kayflow Ogee 120mm gutter
Downpipe Compatibility	68mm Round and 65mm Square Downpipes
Insertion Depth	38mm
Application	Rainwater system suitable for homes, conservatories and small commercial properties
Material	PVC-U
Colour	White, Black, Brown (suits Rosewood or Mahogany frames), and Anthracite Grey
Quality and Standards	Kitemark KM508760, BS EN 607:2004 (Eaves Gutters & Fittings) BS EN 12200-1:2000 (Plastic Piping Systems) BS EN 1462:2004 (Brackets for Eaves Gutters) Manufactured under ISO 9001 Quality Management System

Gutter Flow Rate

Ensure your gutter configuration can handle more flow than the calculated roof runoff. If the roof area exceeds the gutter capacity, increase the gutter fall, upgrade to a higher-capacity system, or use a centrally positioned outlet to effectively double drainage performance.

System	Gutter Flow (litres/sec)	Roof Area (m ²)
System	Ogee	2.2	105

Note: Flow rates are based on end outlet installations with level-laid guttering (up to 3mm fall per metre) in accordance with BS EN 12056-3:2000.

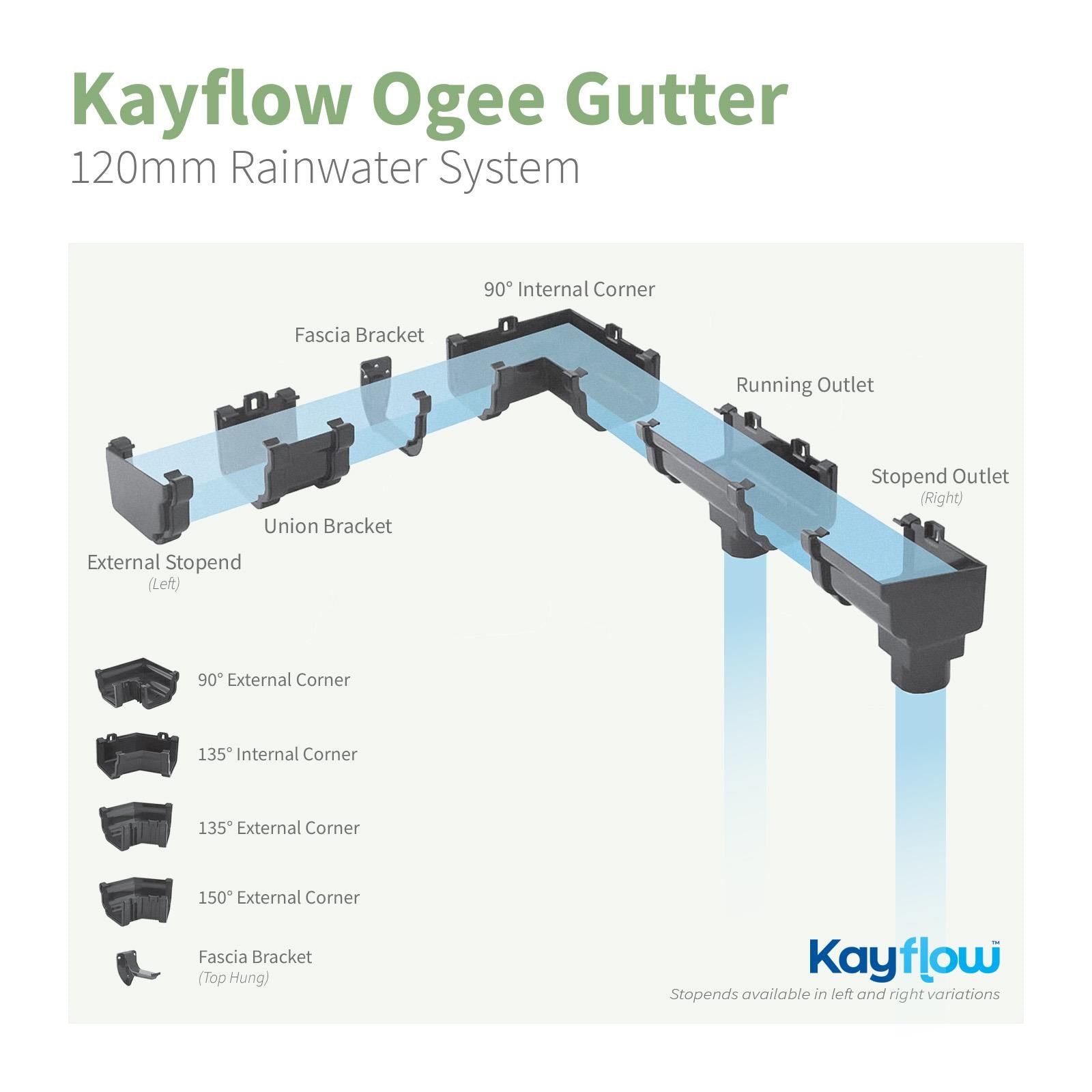

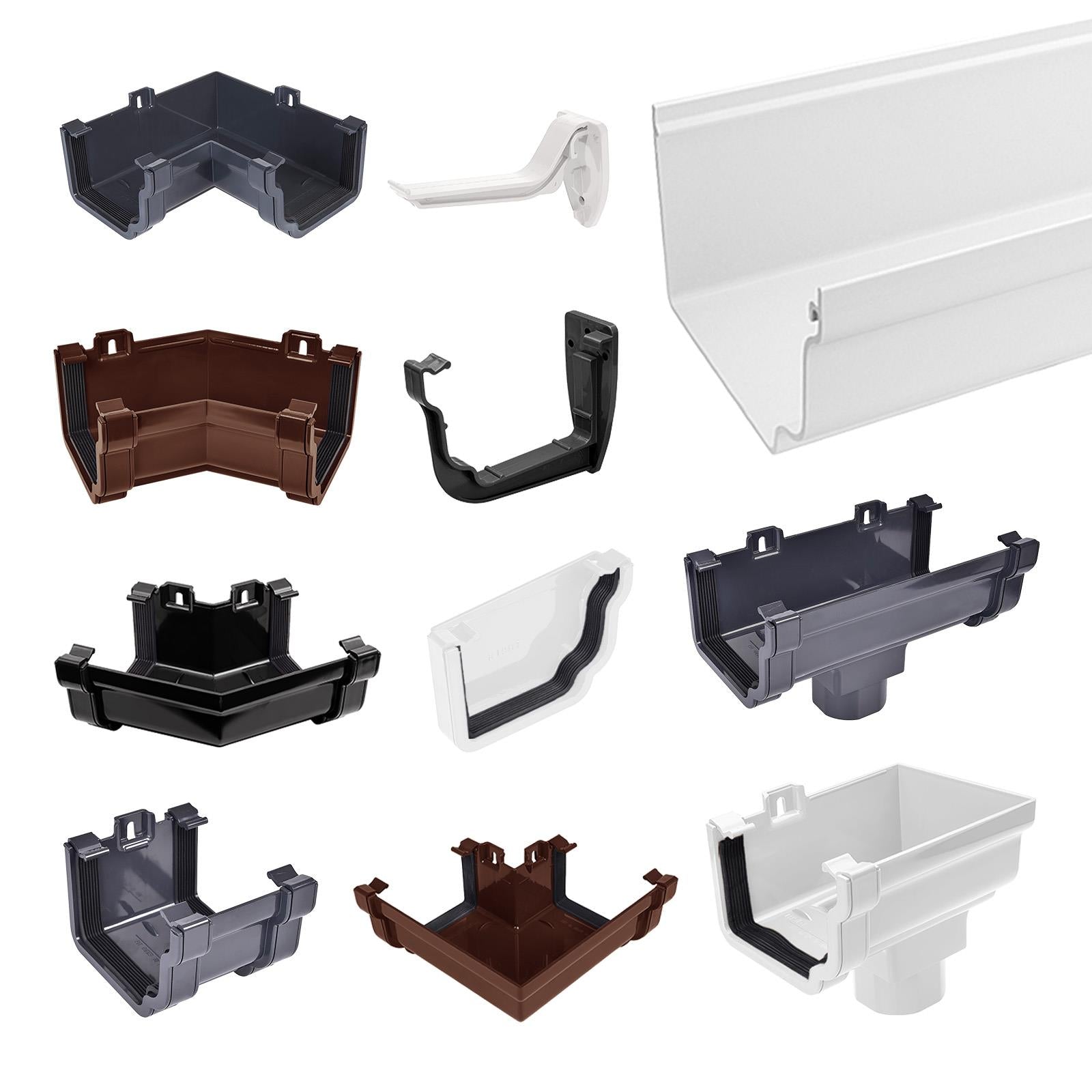

Contents

In this listing you can buy...

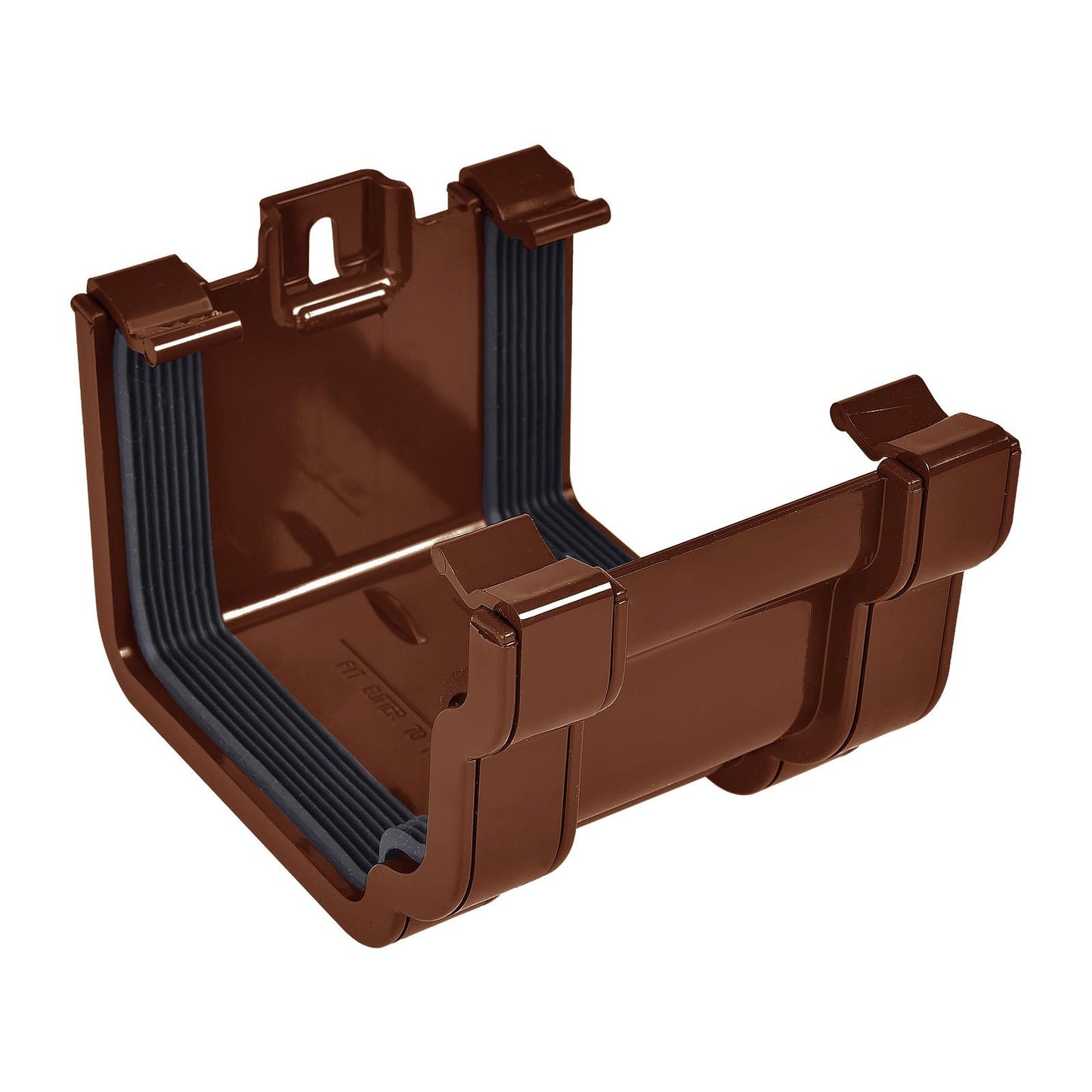

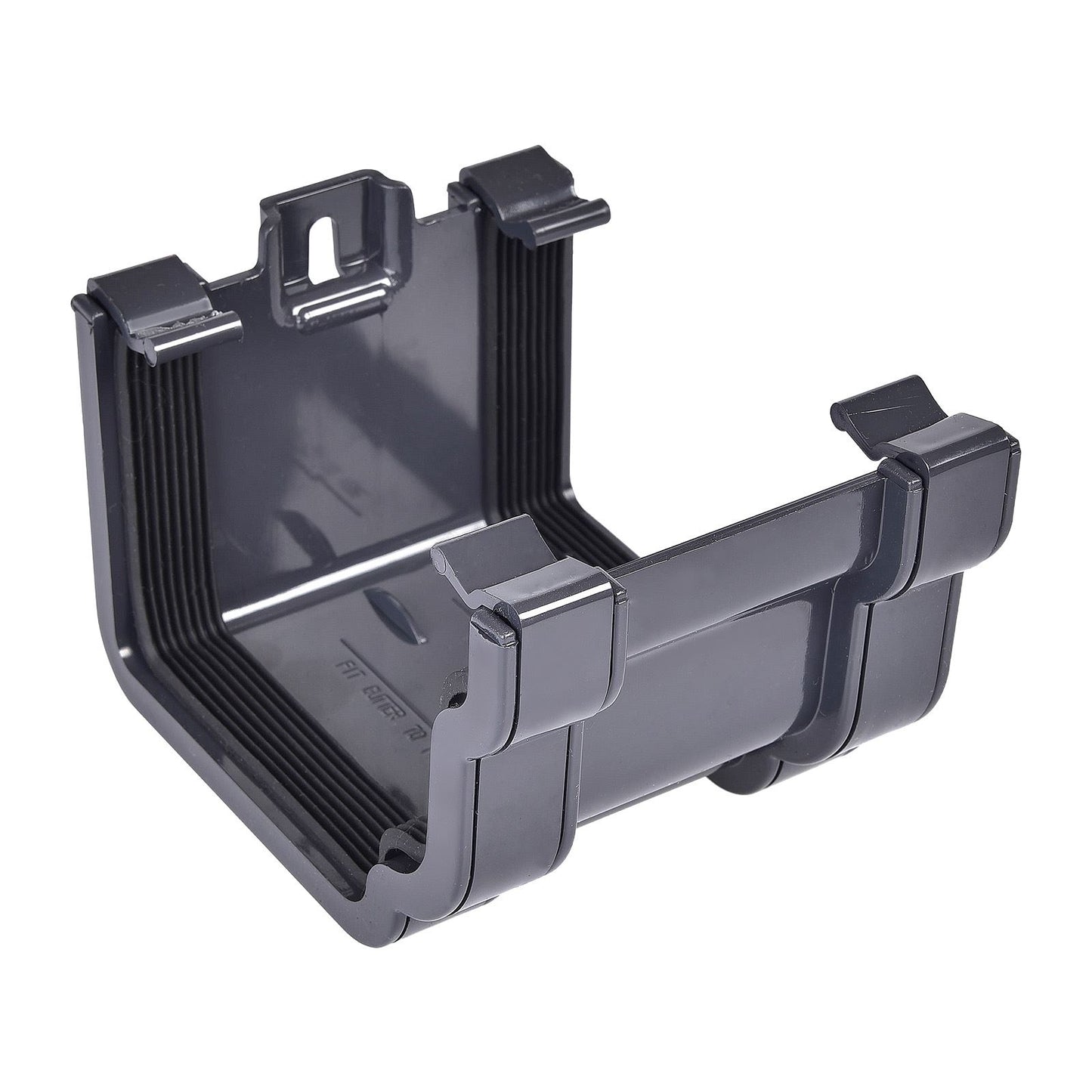

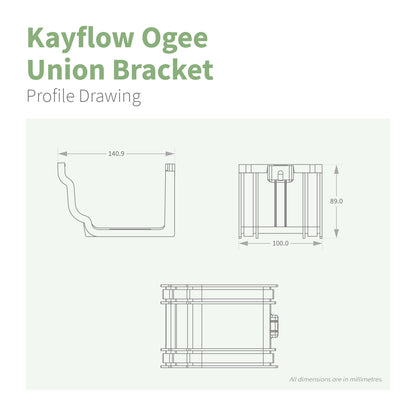

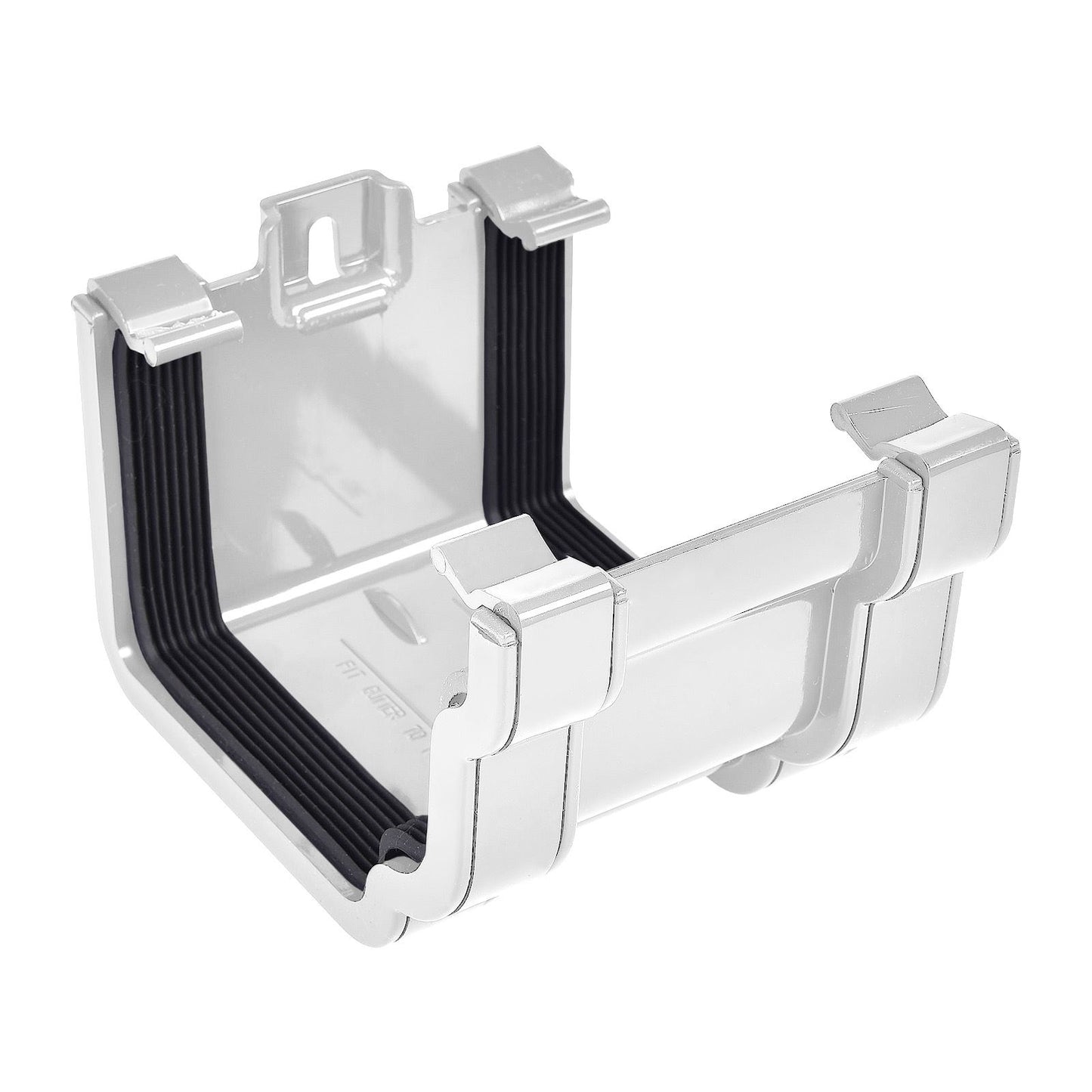

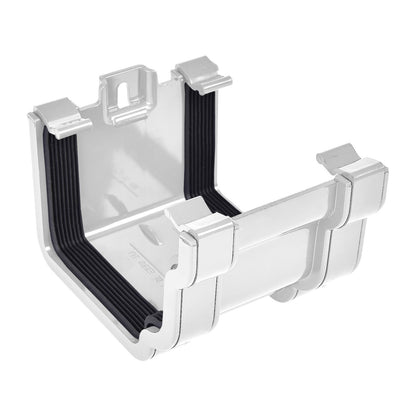

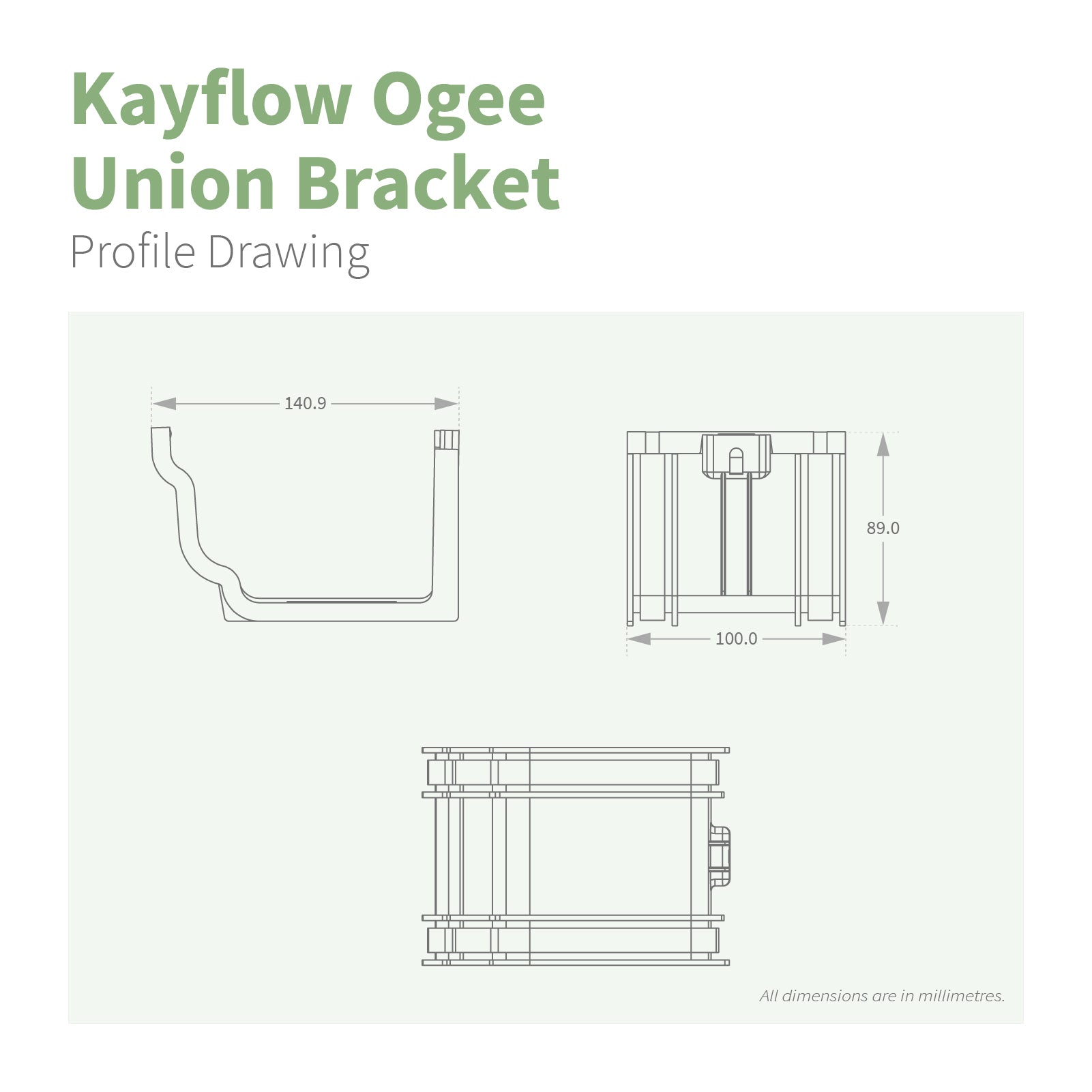

Gutter Union

Straight union for inline joint of gutter lengths and for connecting offset outlets to conservatory guttering.

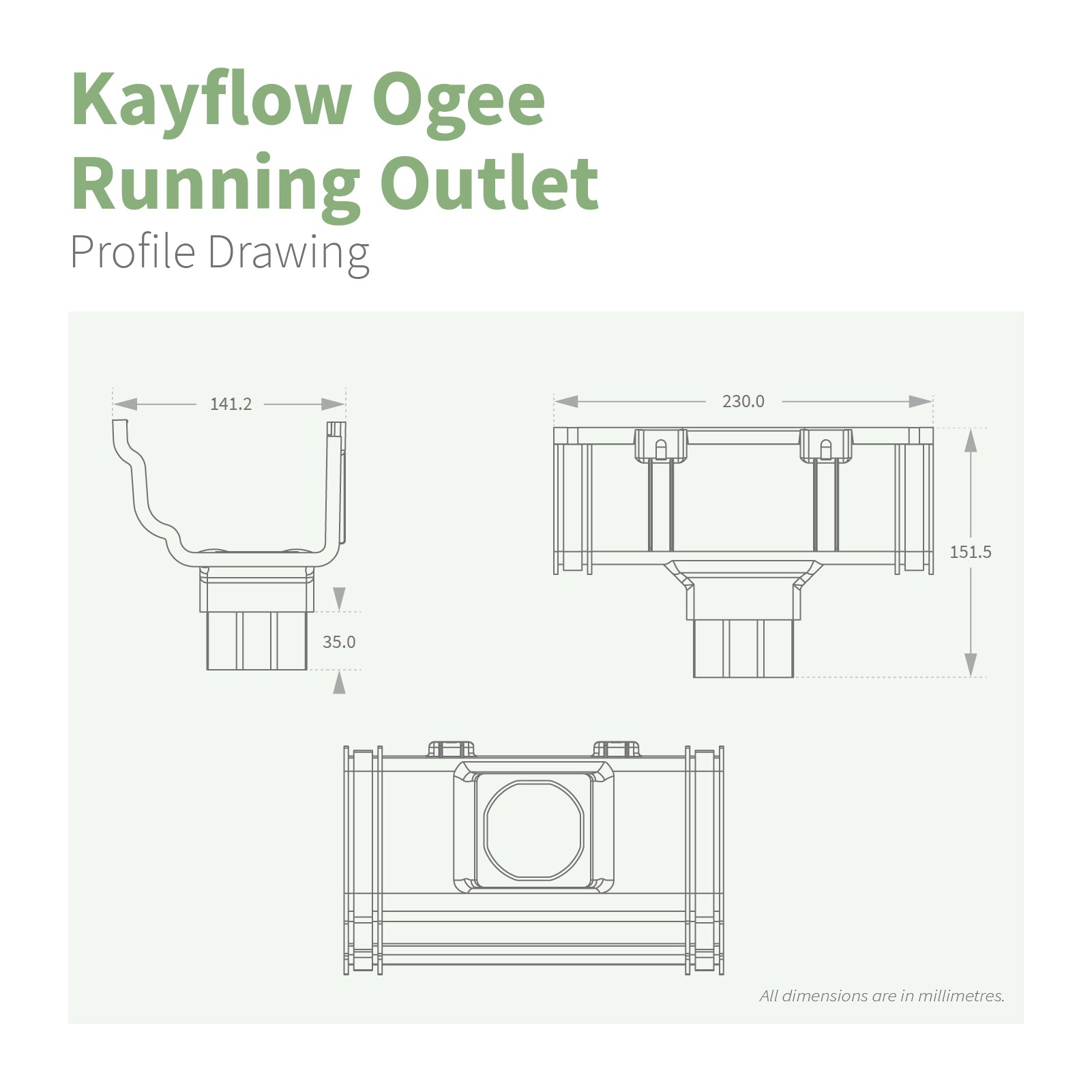

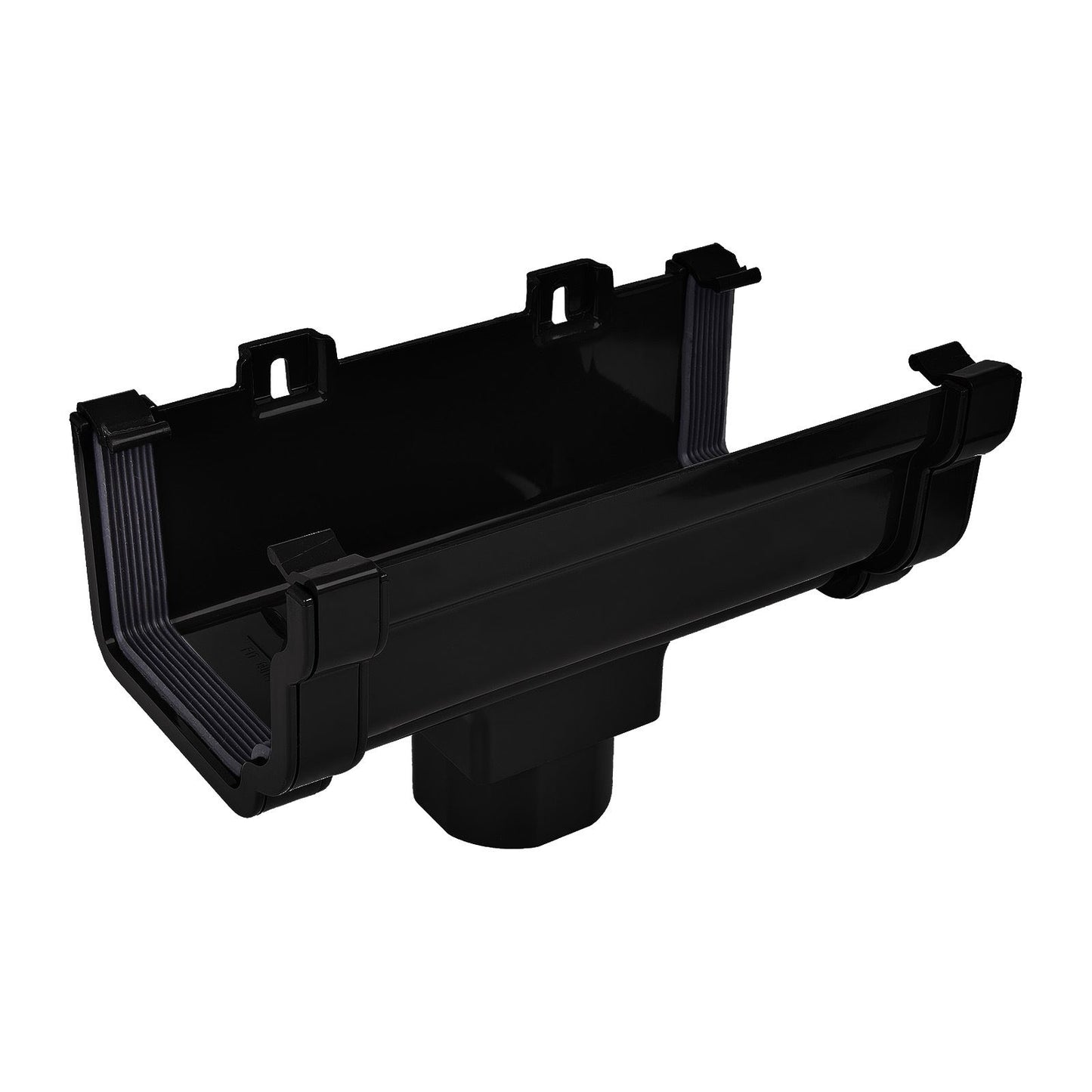

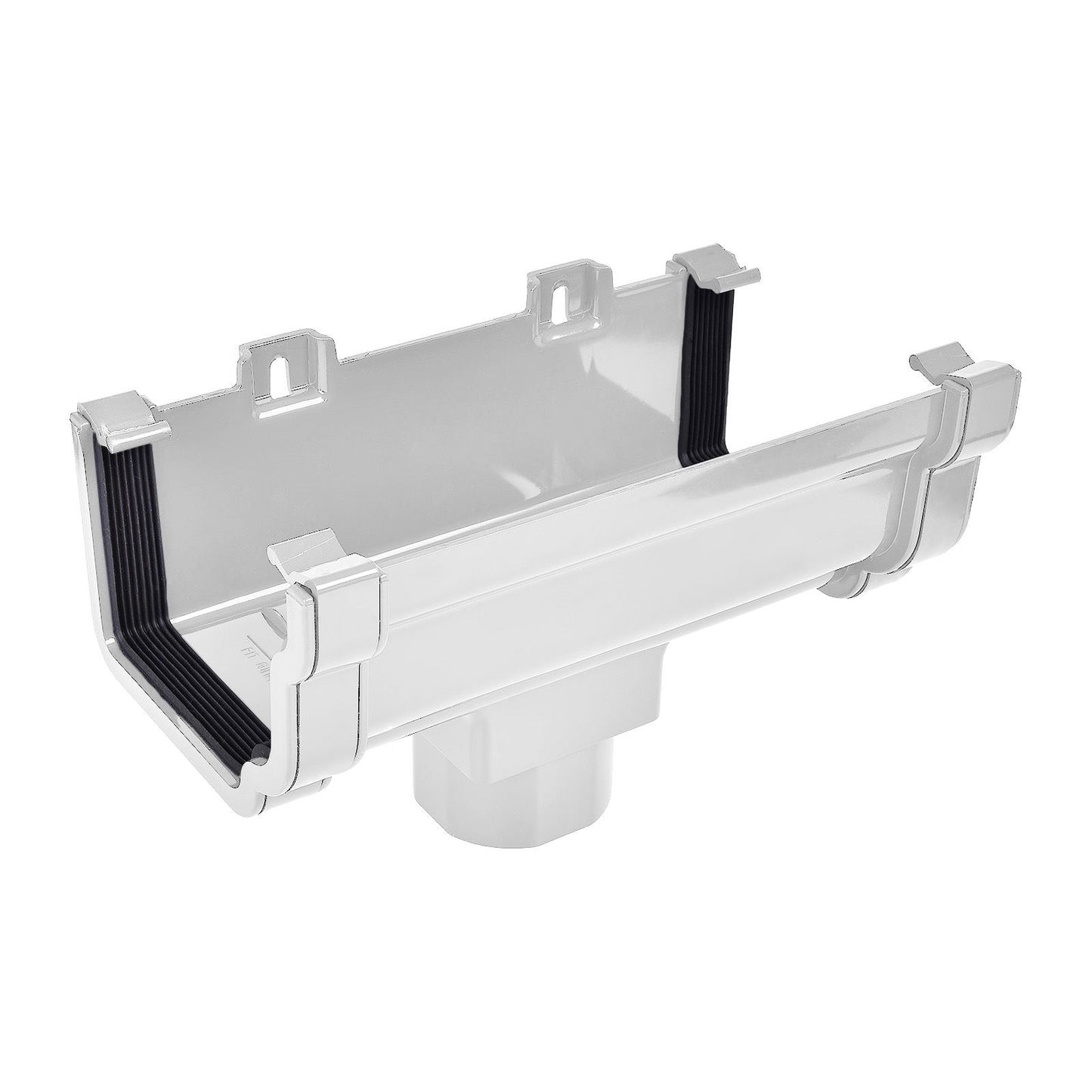

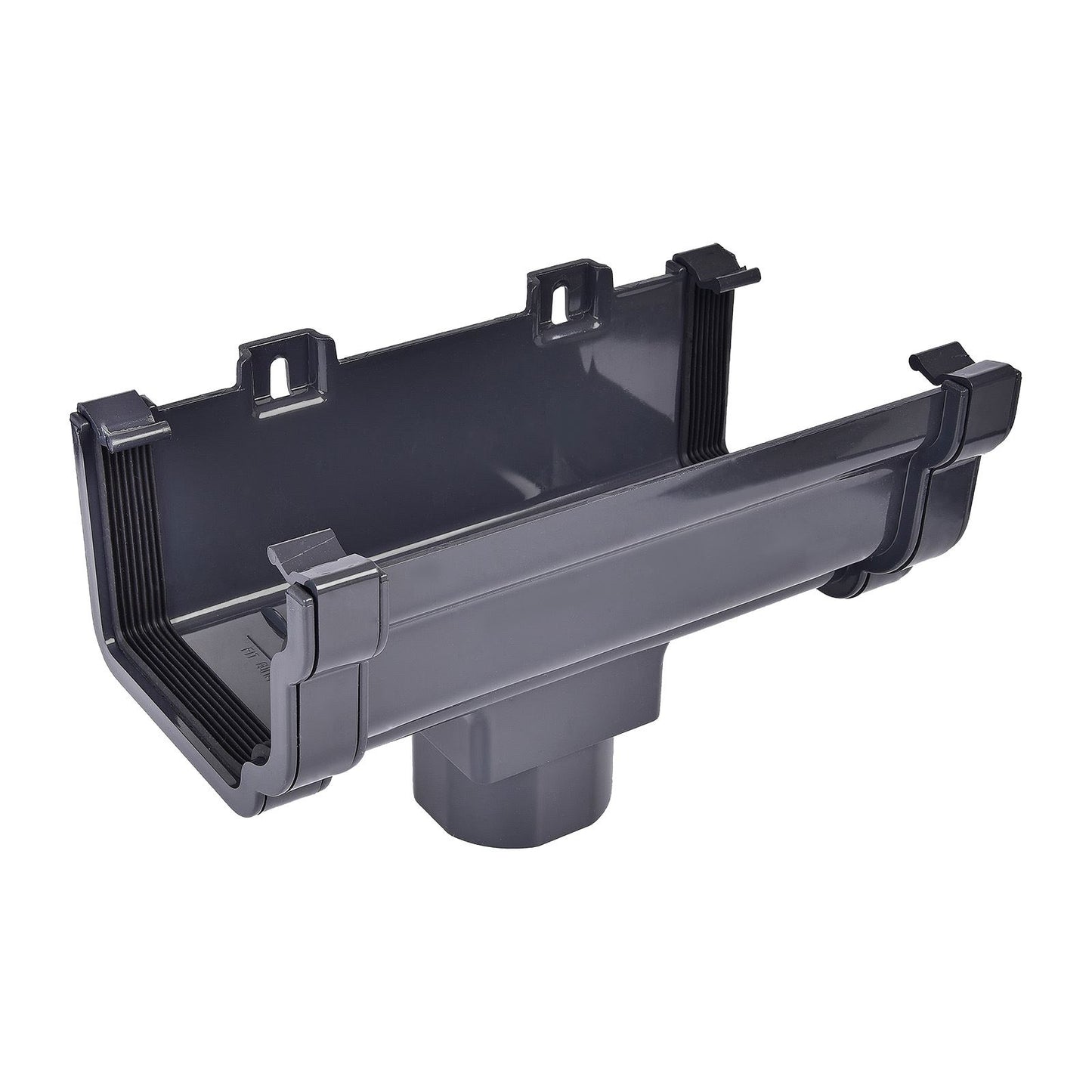

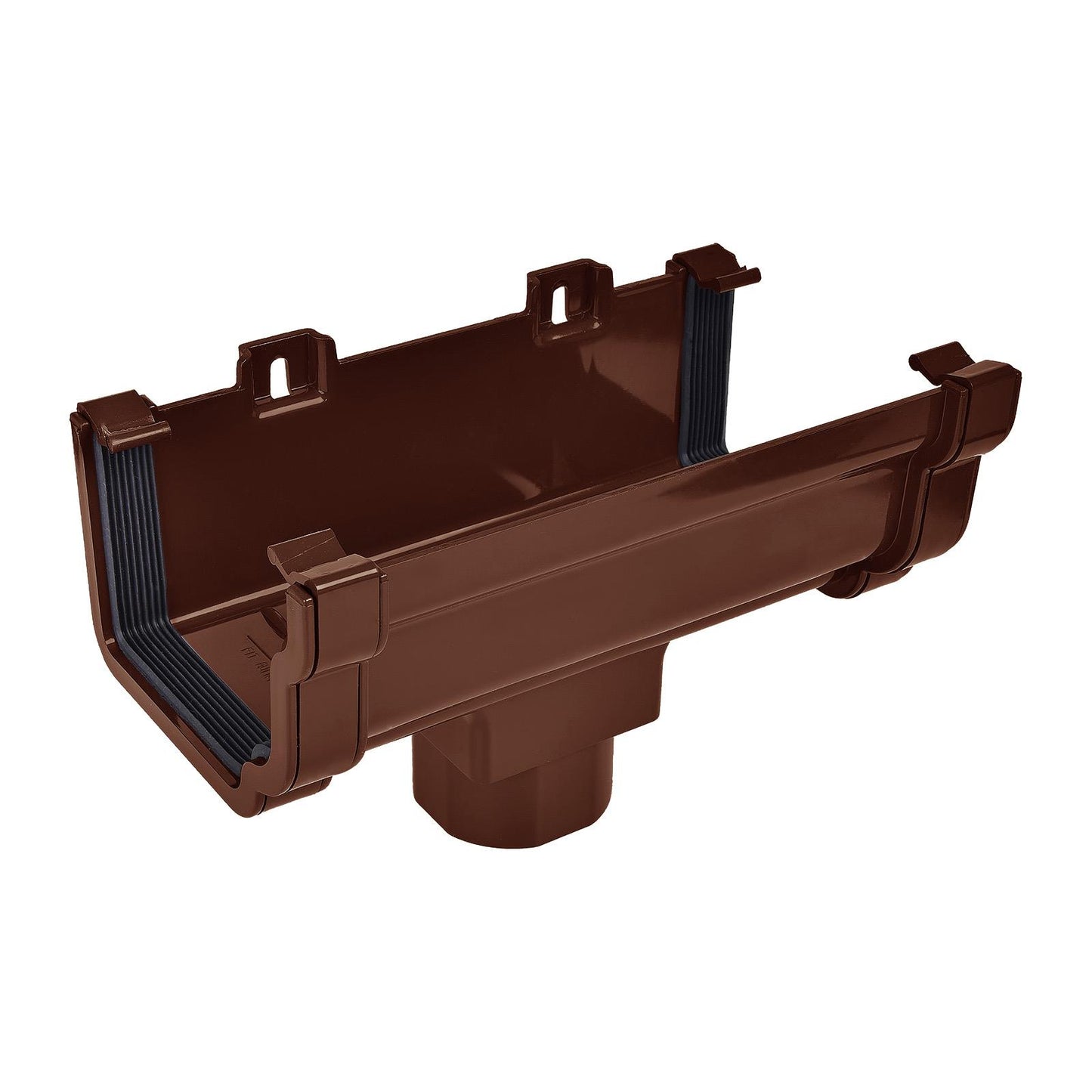

Running Outlet

Fits between inline lengths of Kayflow ogee gutter lengths to provide a drainage outlet for downpipe.

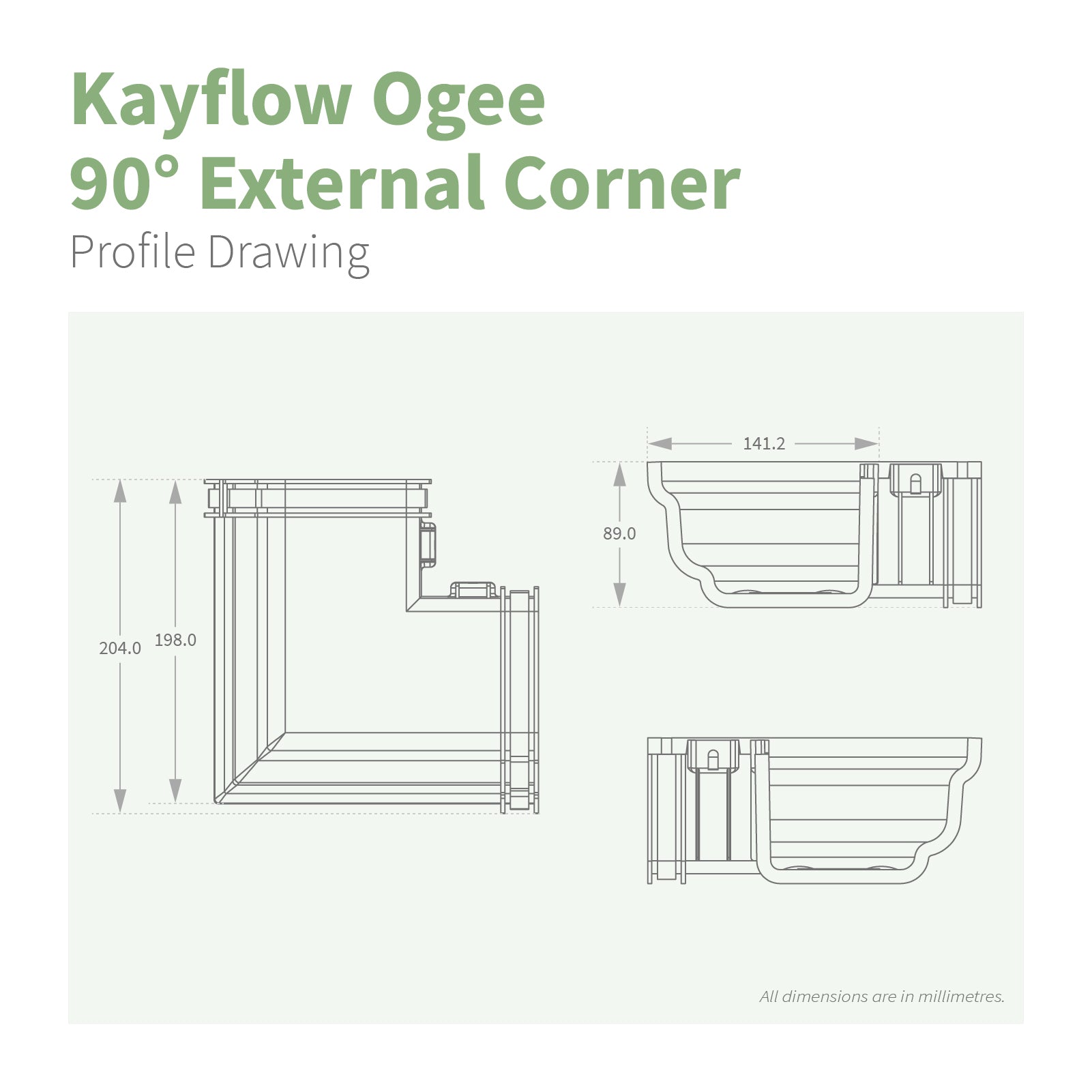

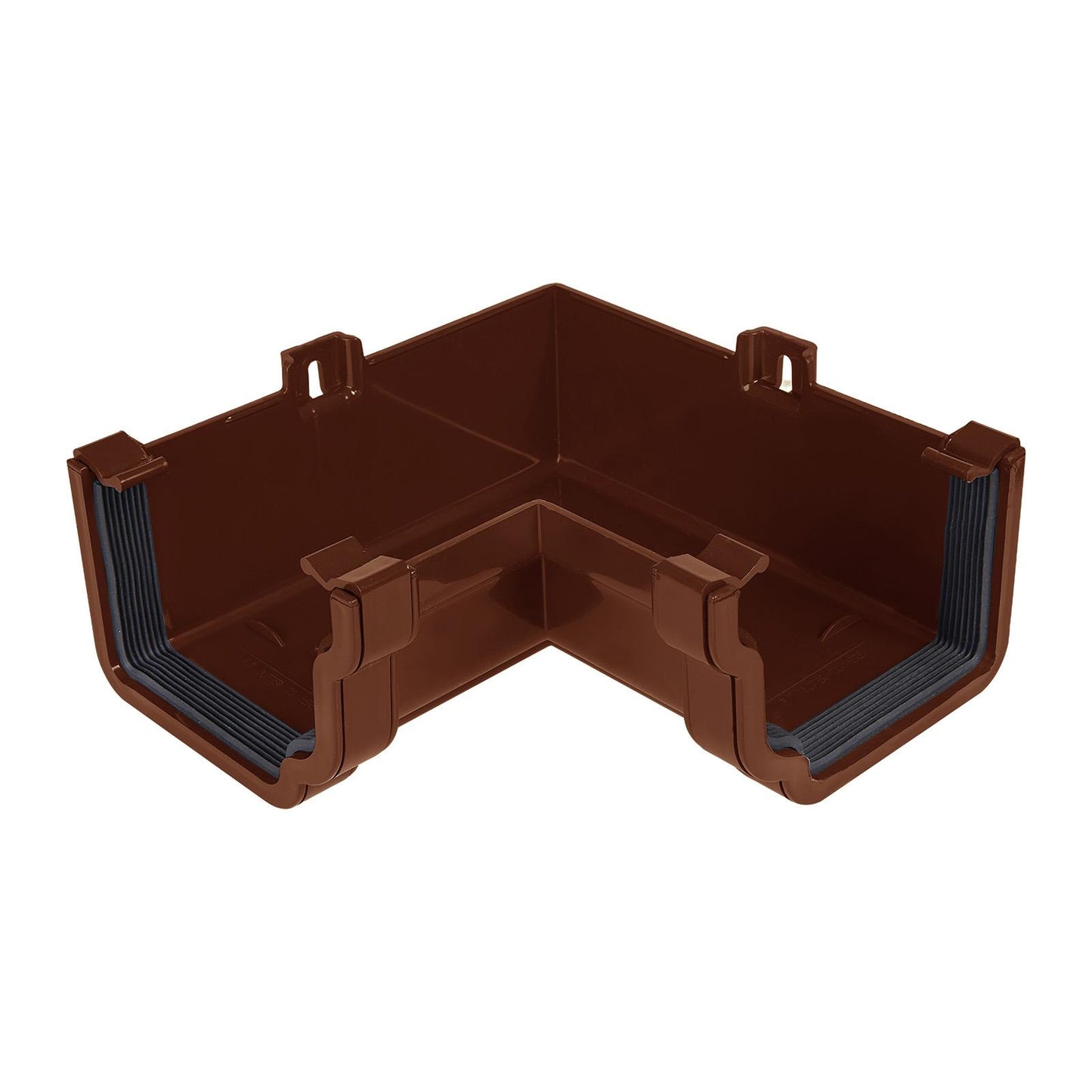

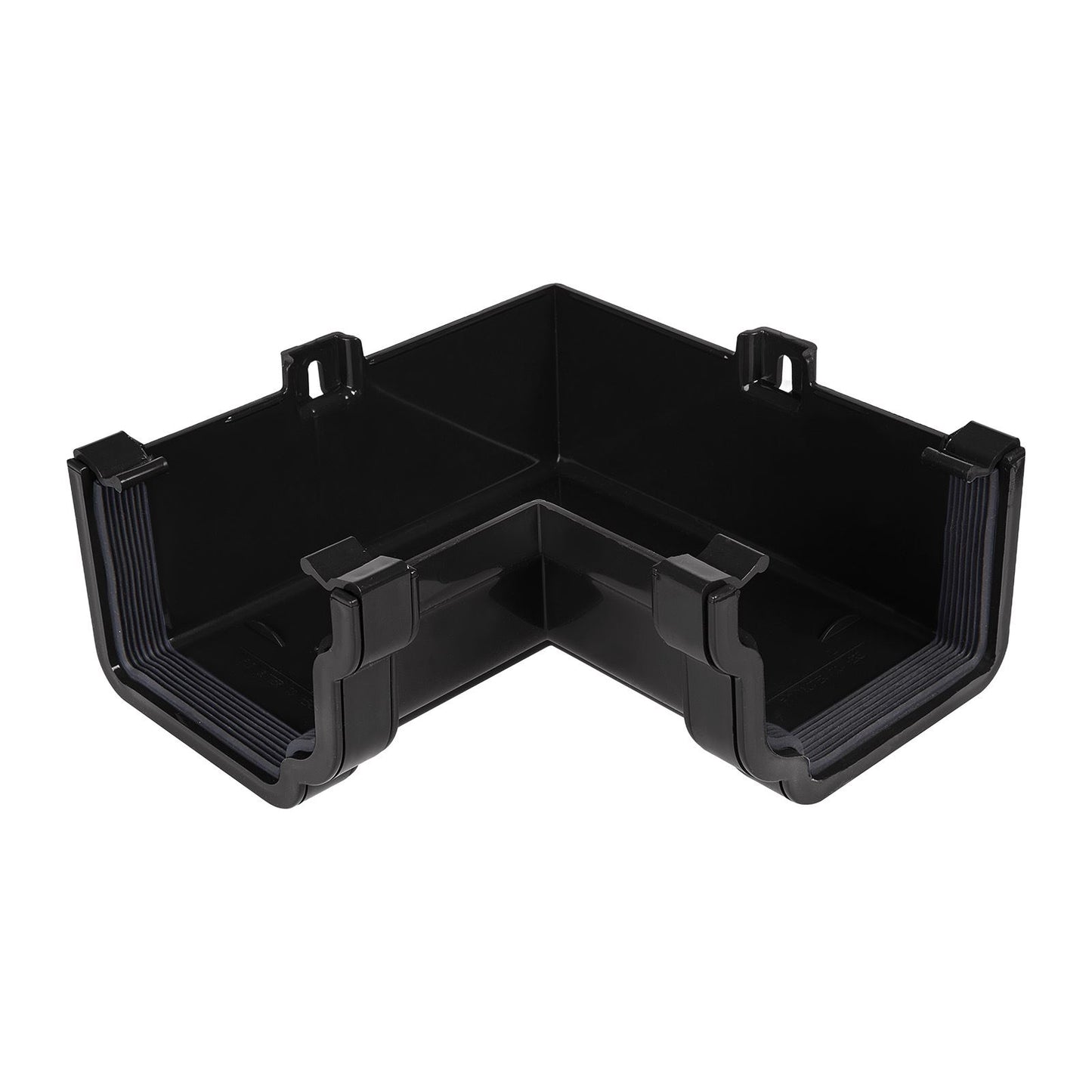

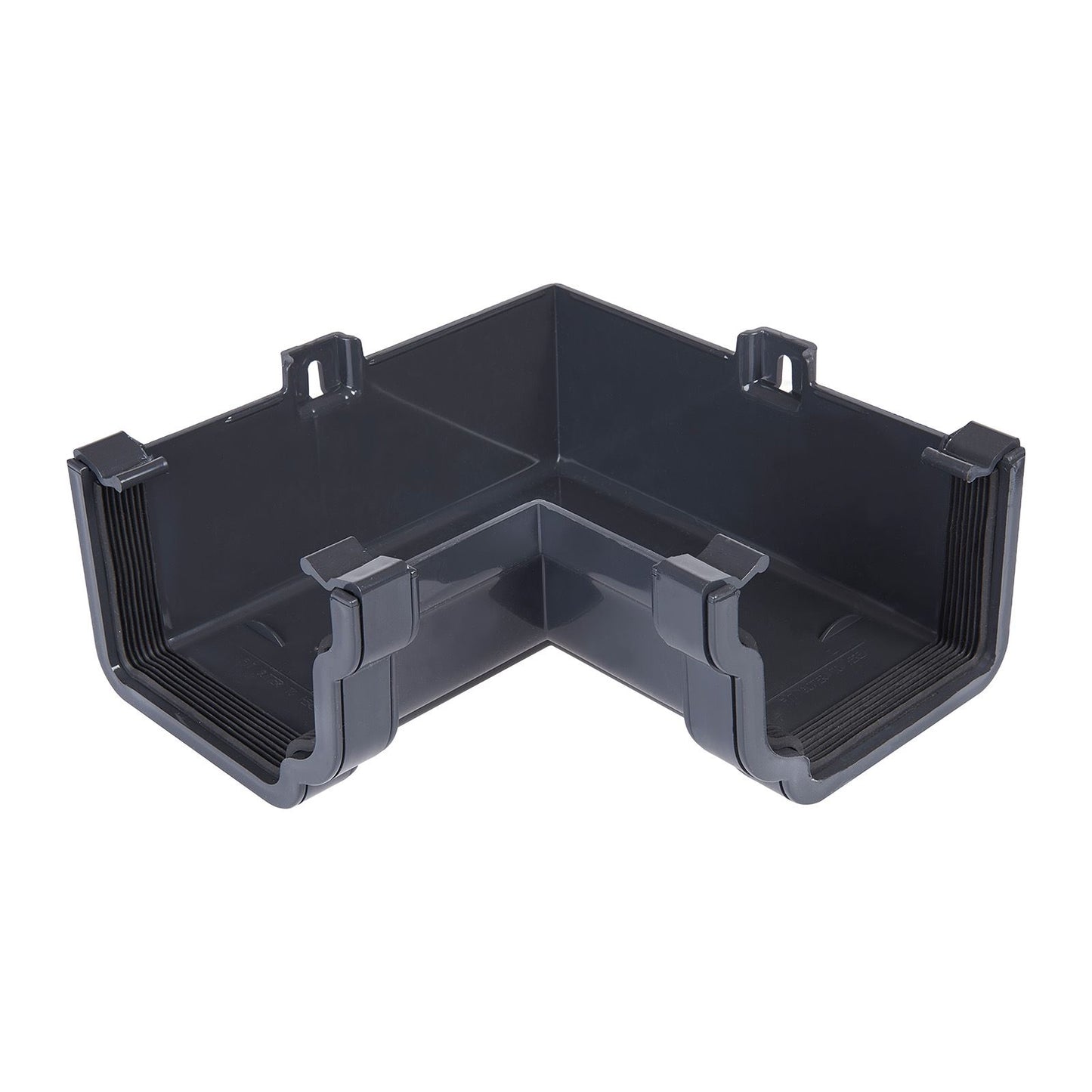

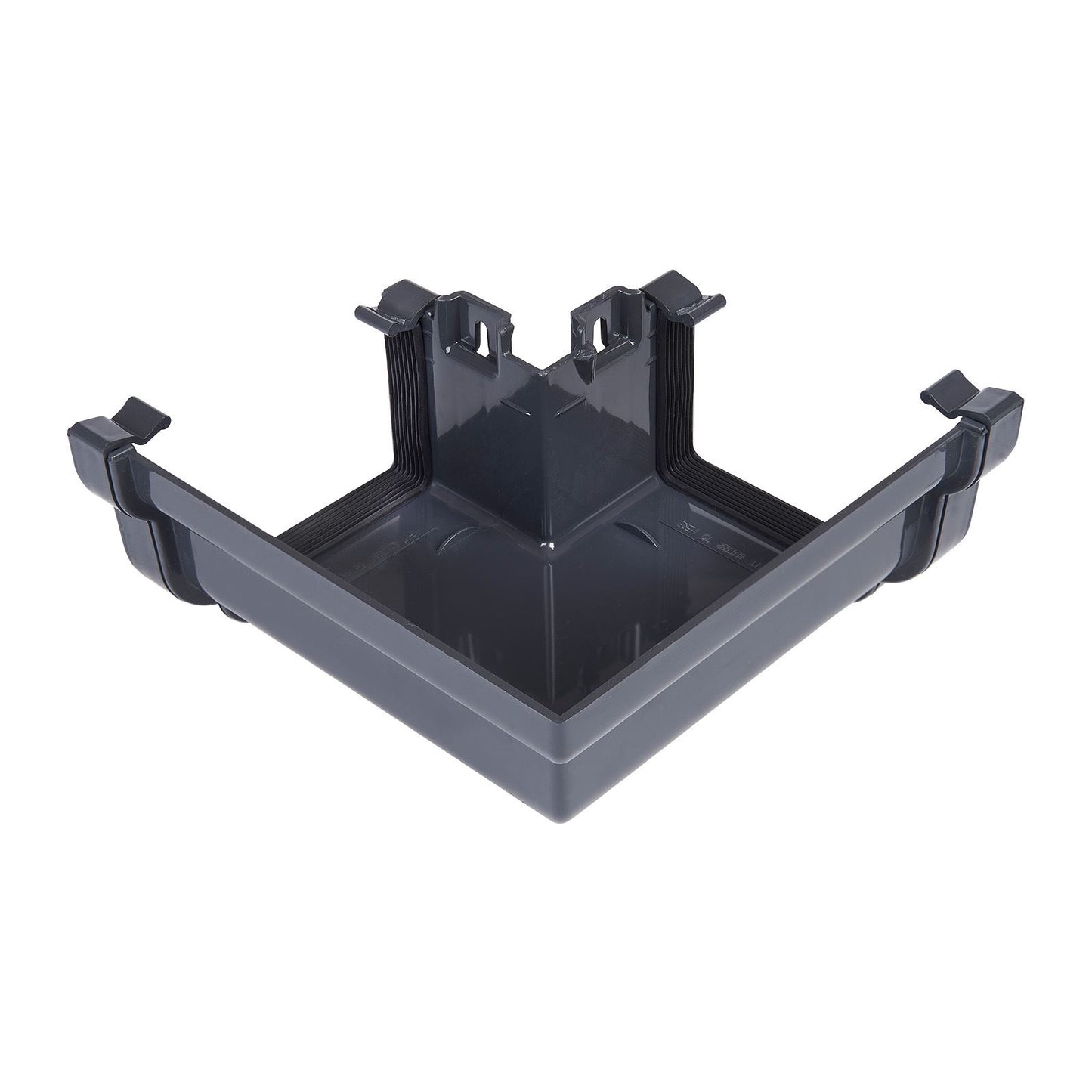

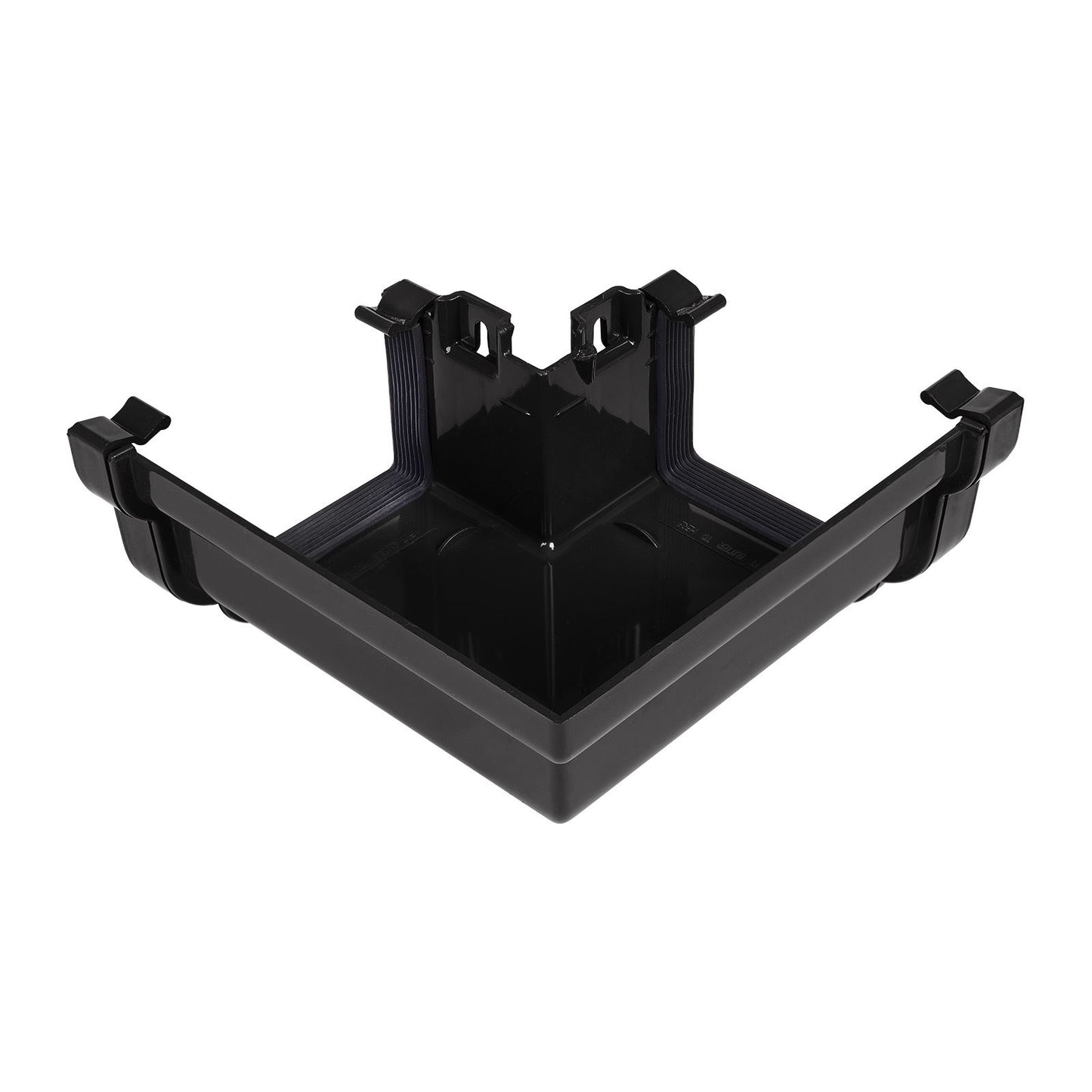

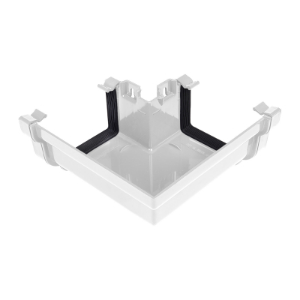

90° External Corner

Outward facing right-angle corner joint for houses and Edwaridan style conservatory gutter.

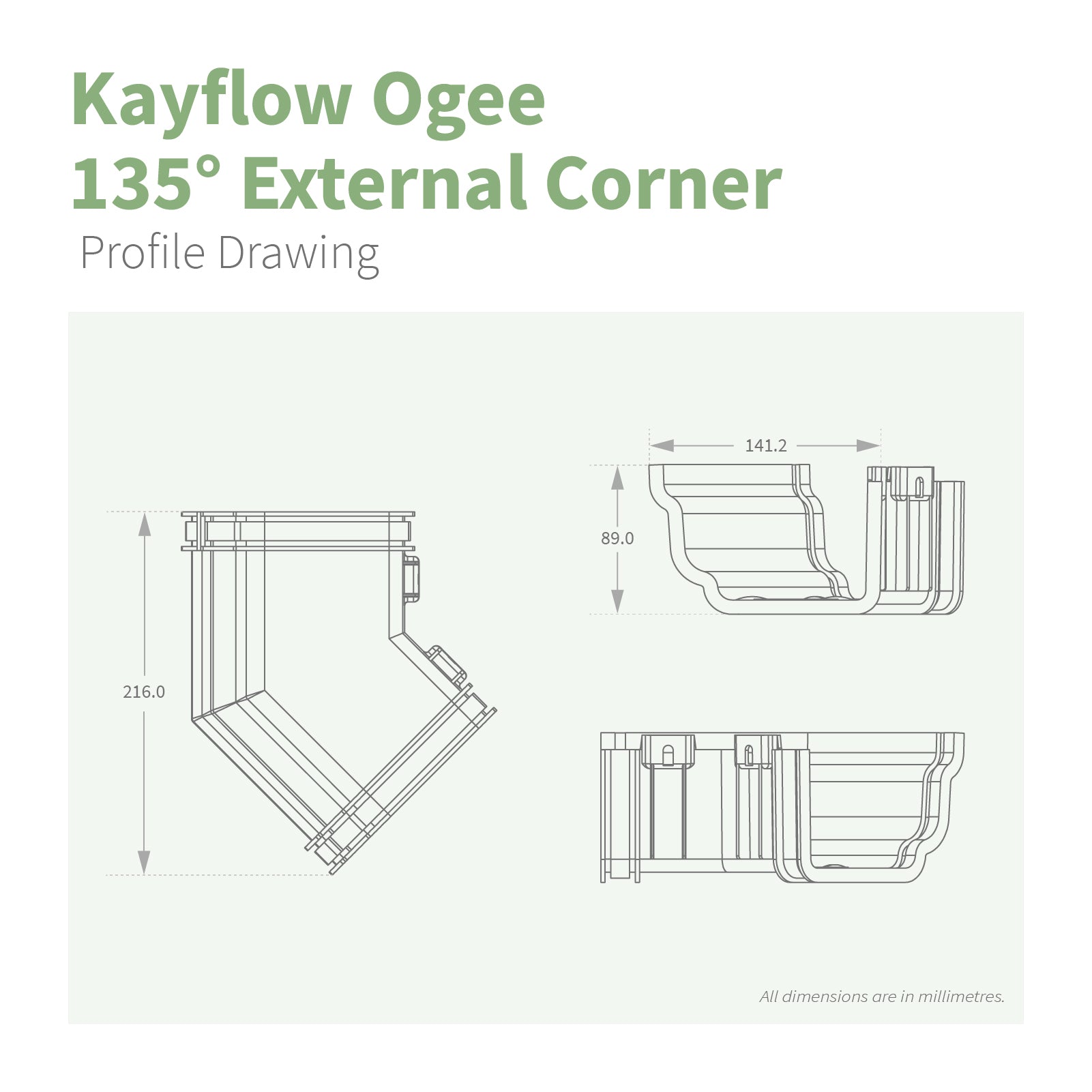

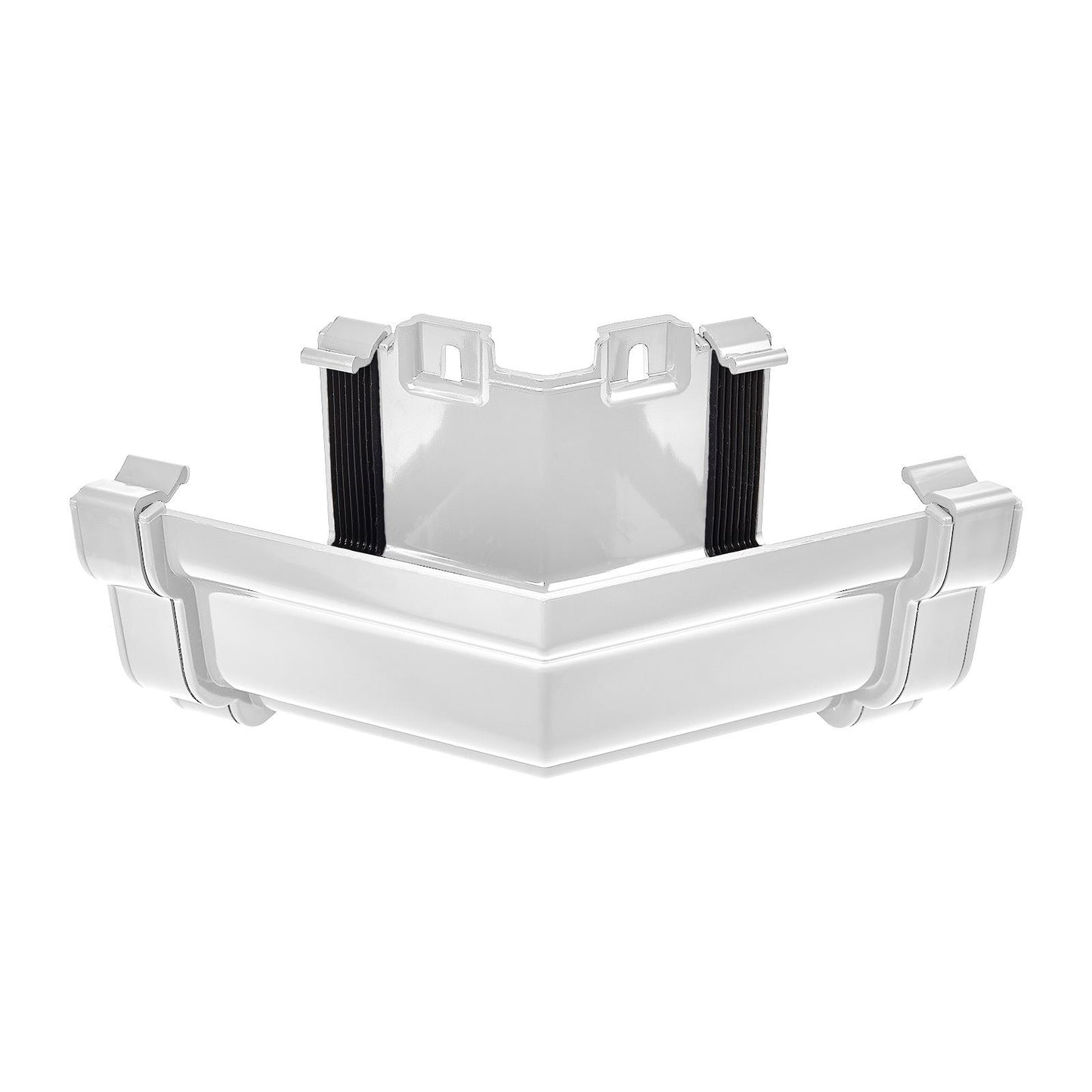

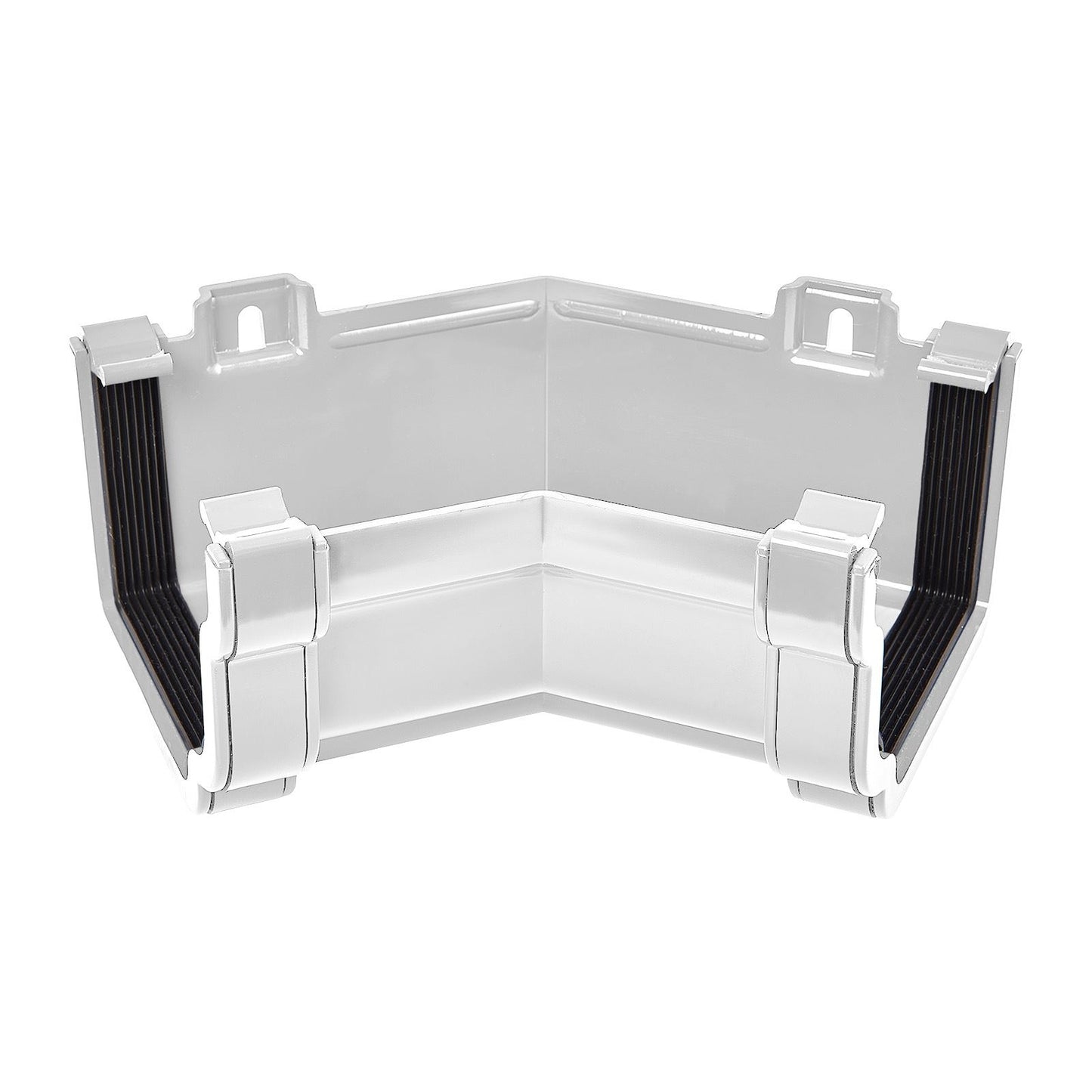

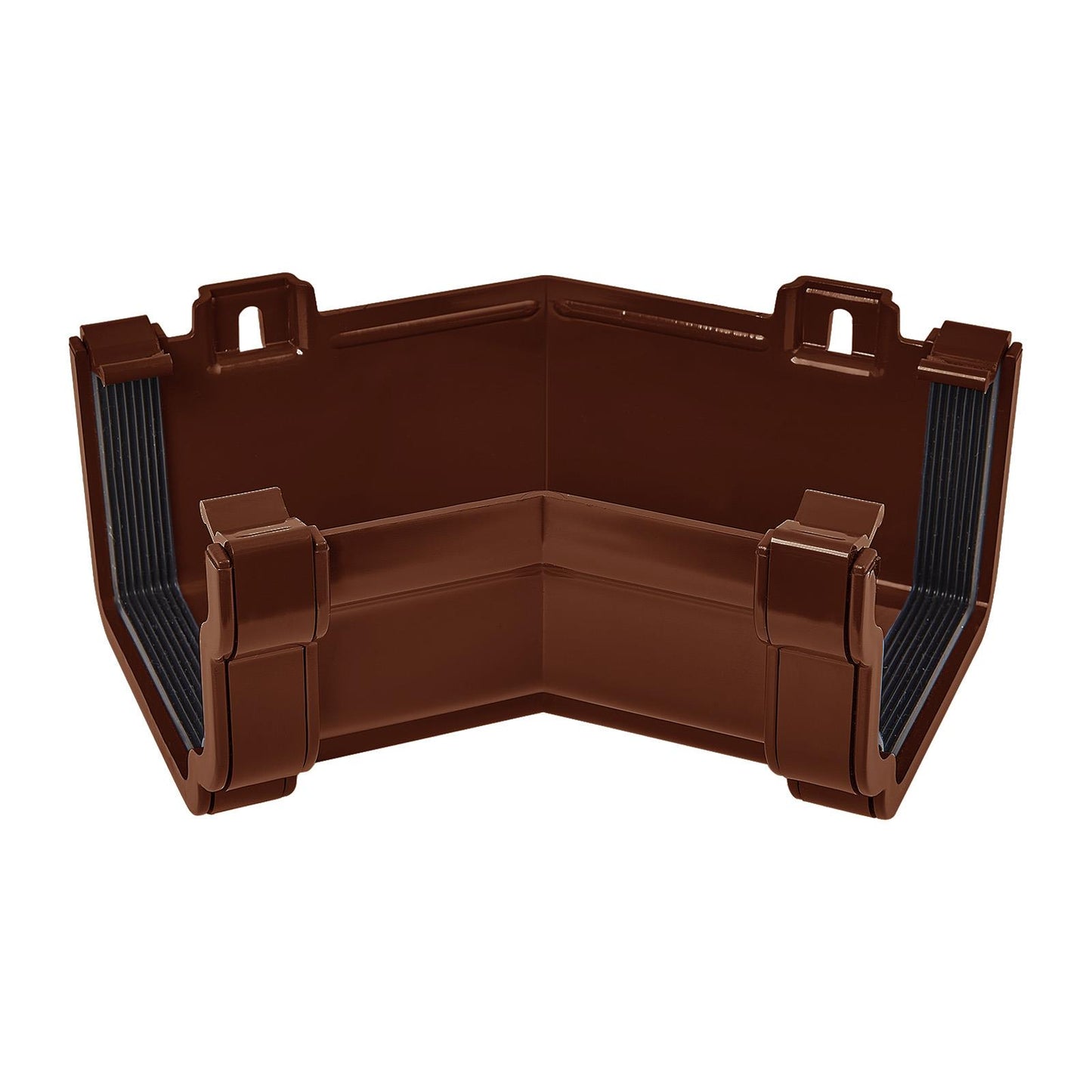

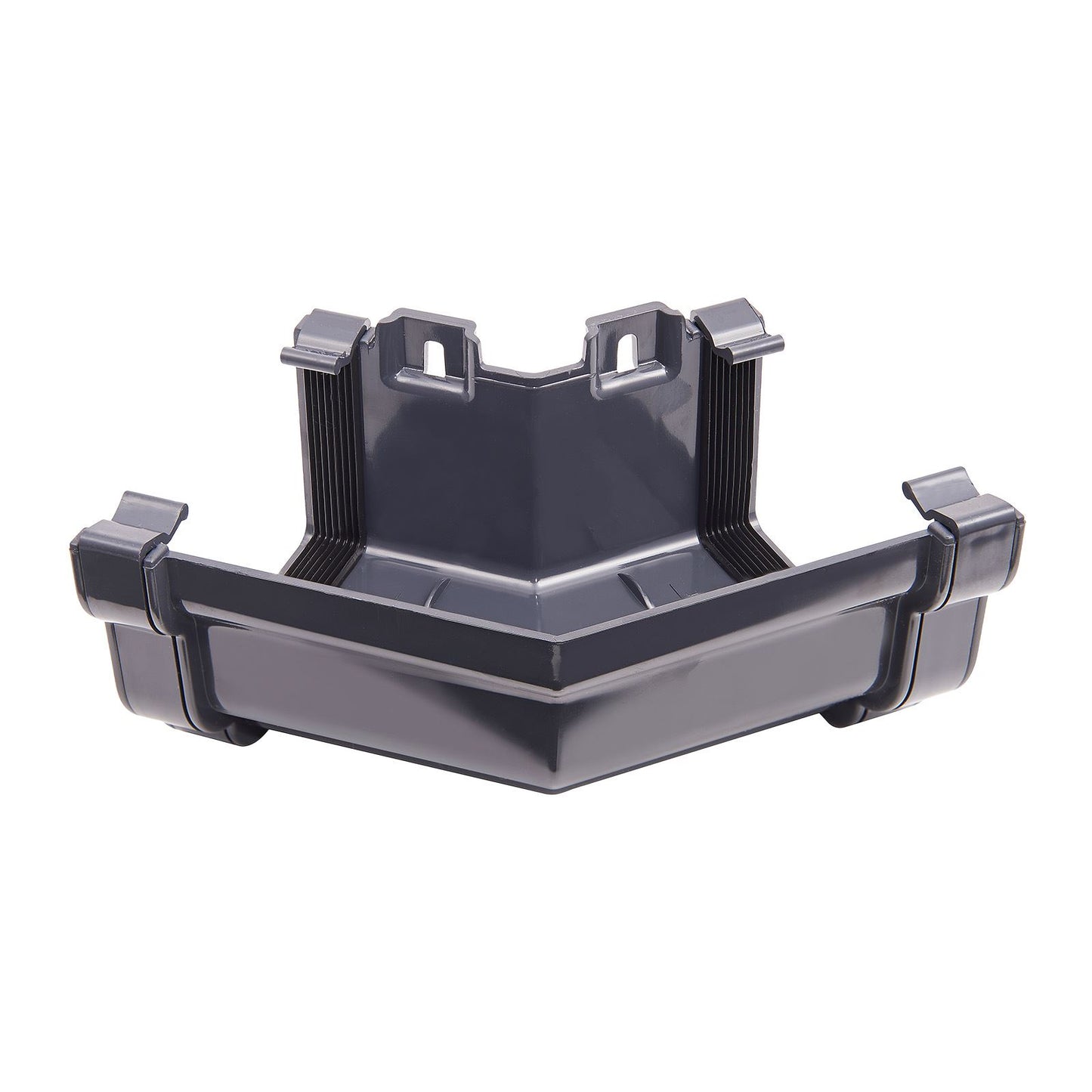

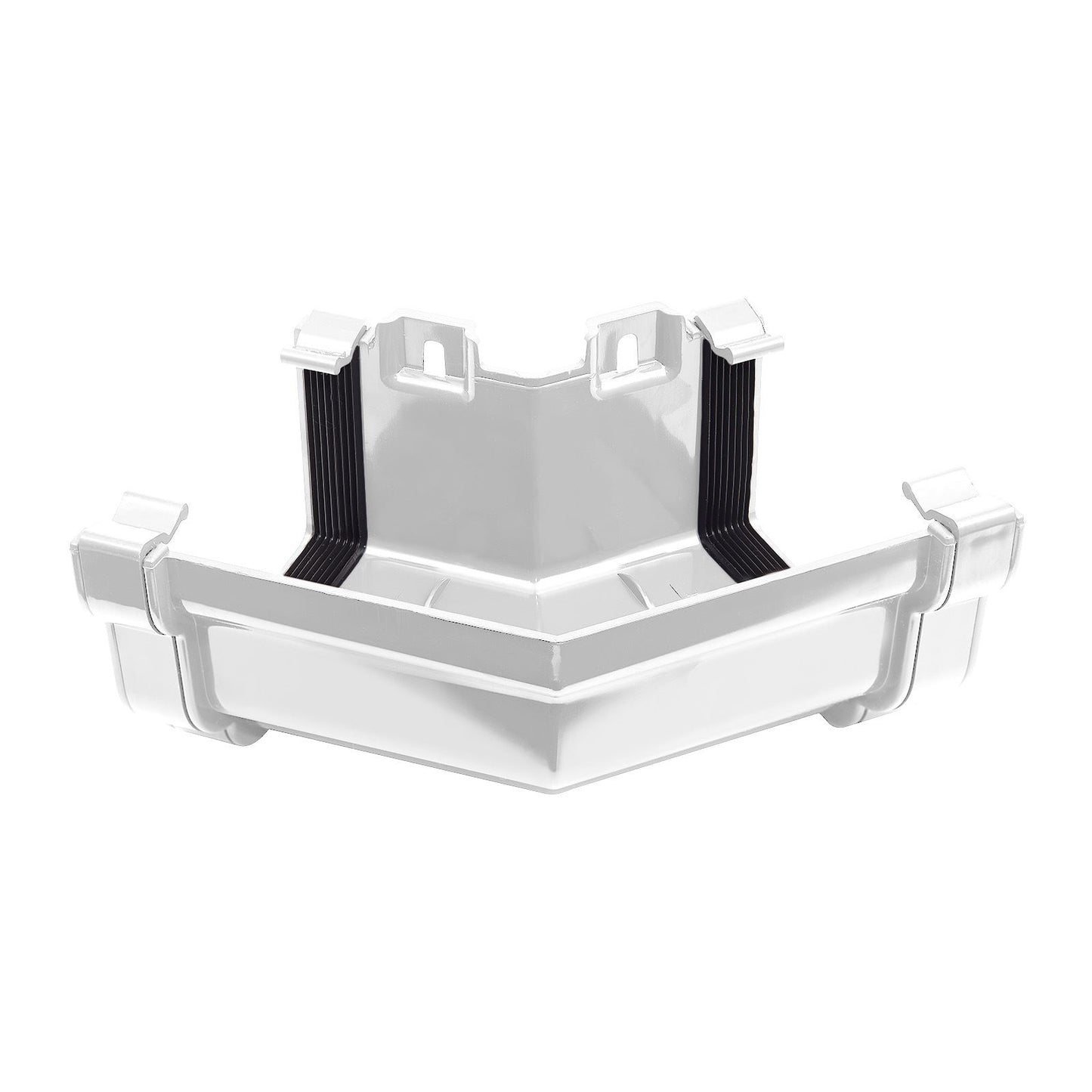

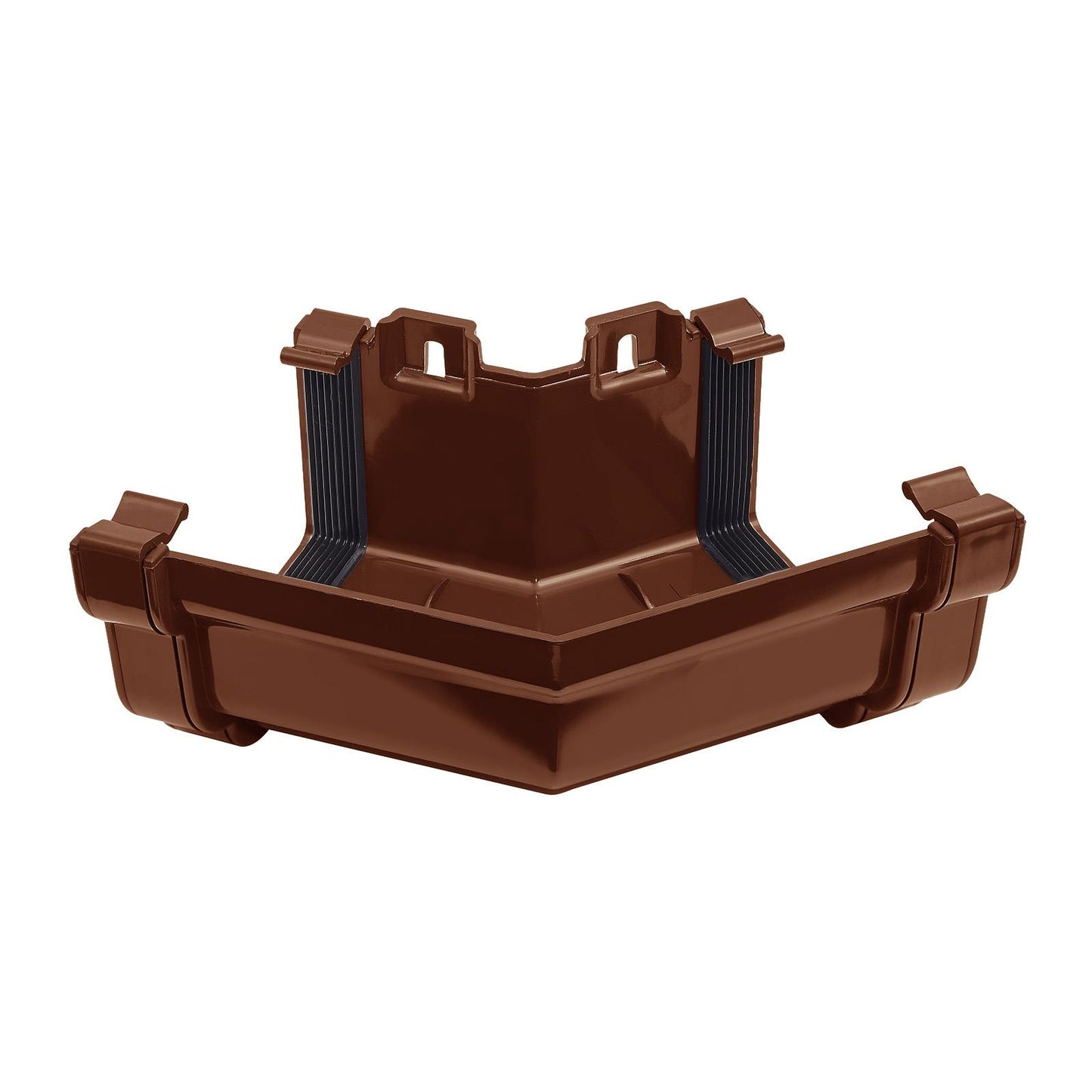

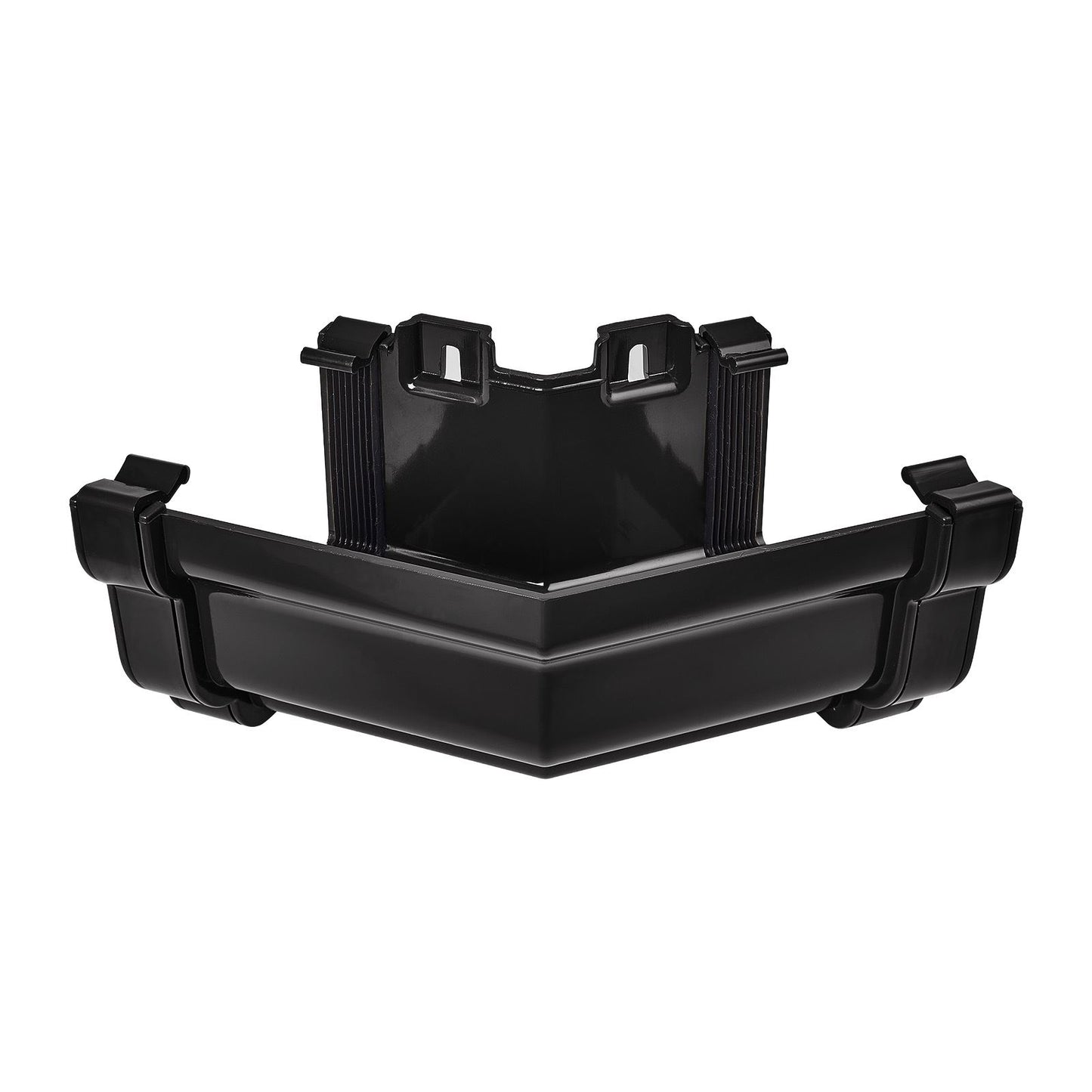

135° External Corner

Angle joint for corners of standard victorian conservatories and 3-sided household bays.

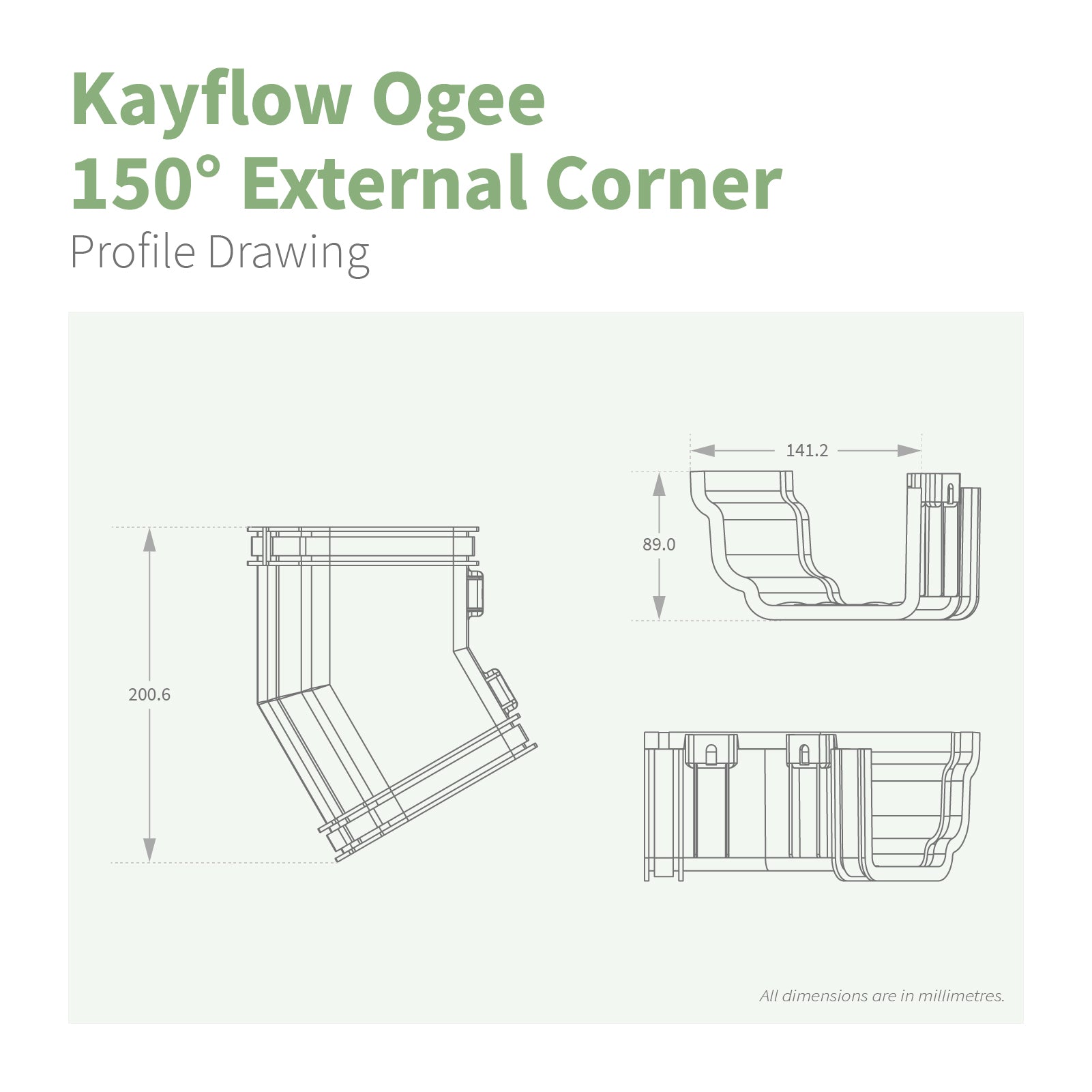

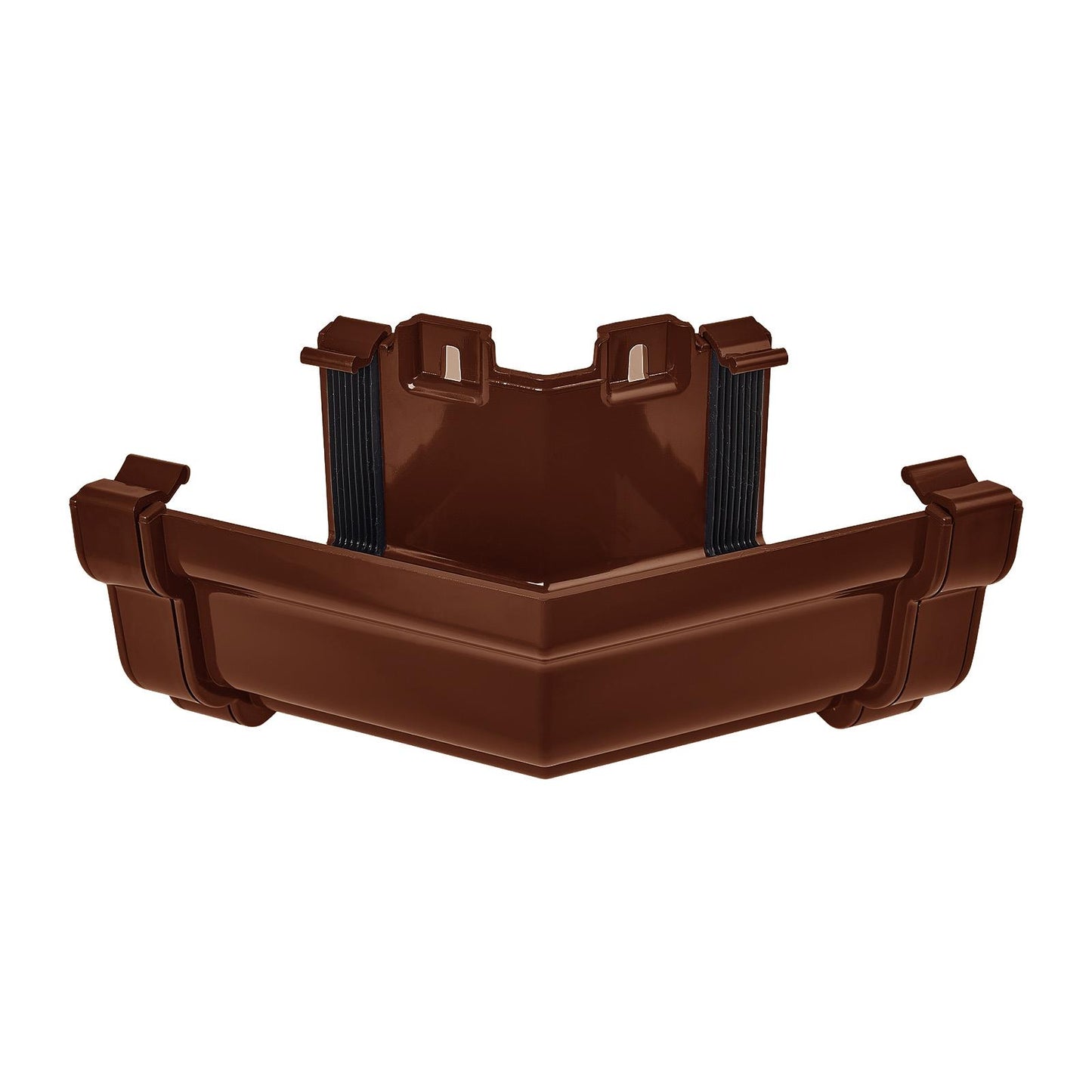

150° External Corner

Corner joint for 5-facet bays and rounded appearance victorian conservatories with 6 hips bars .

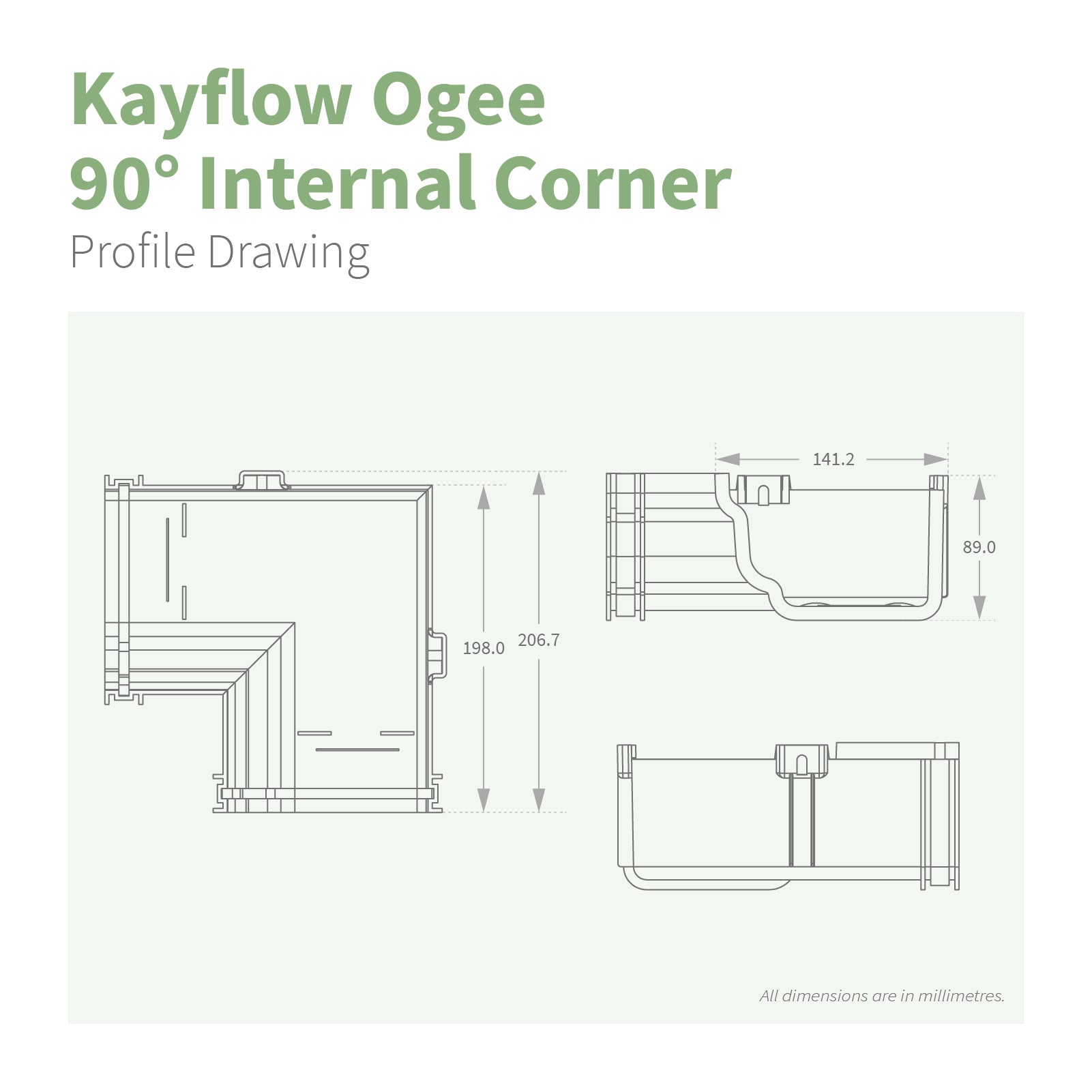

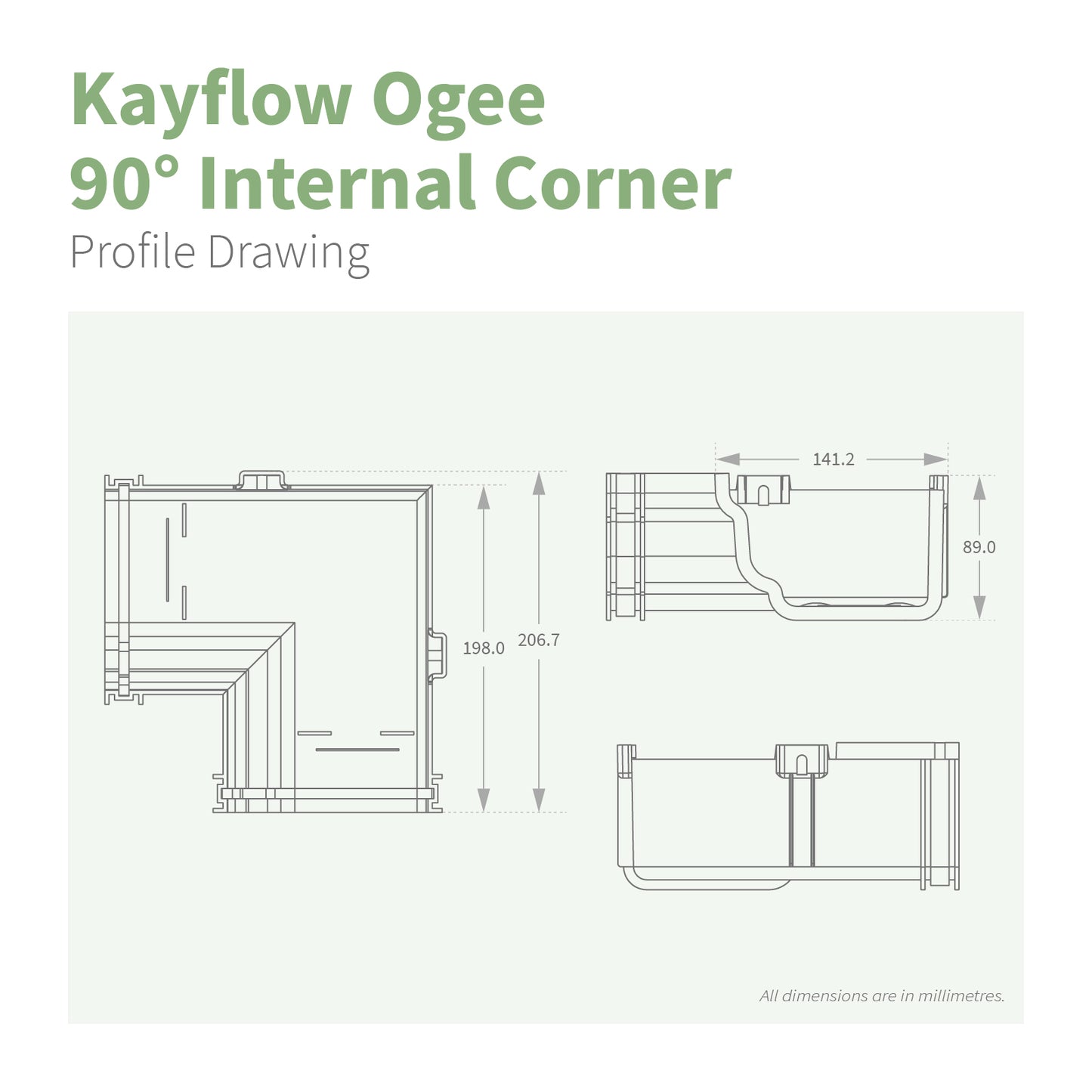

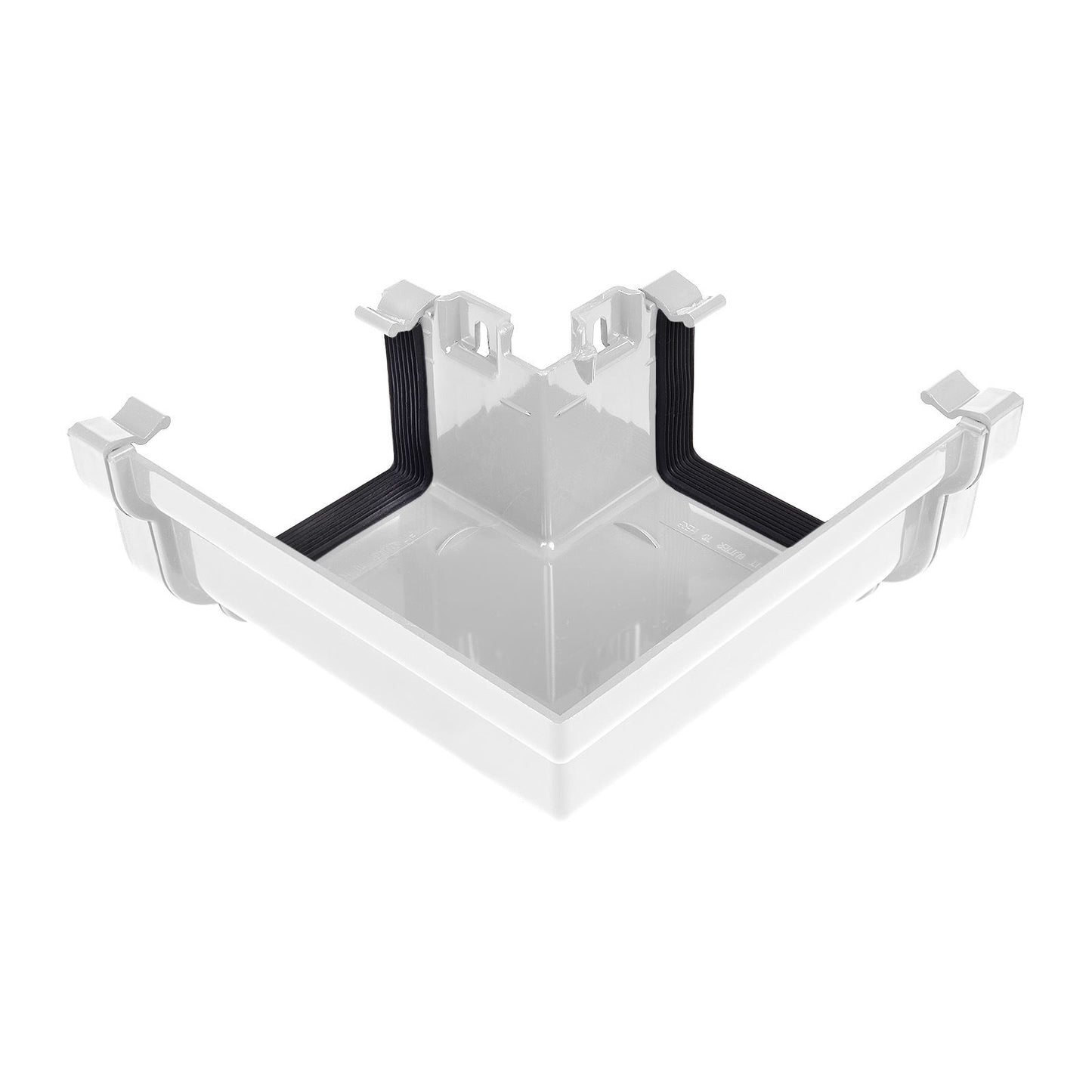

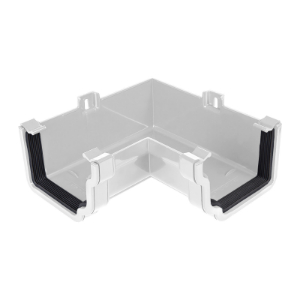

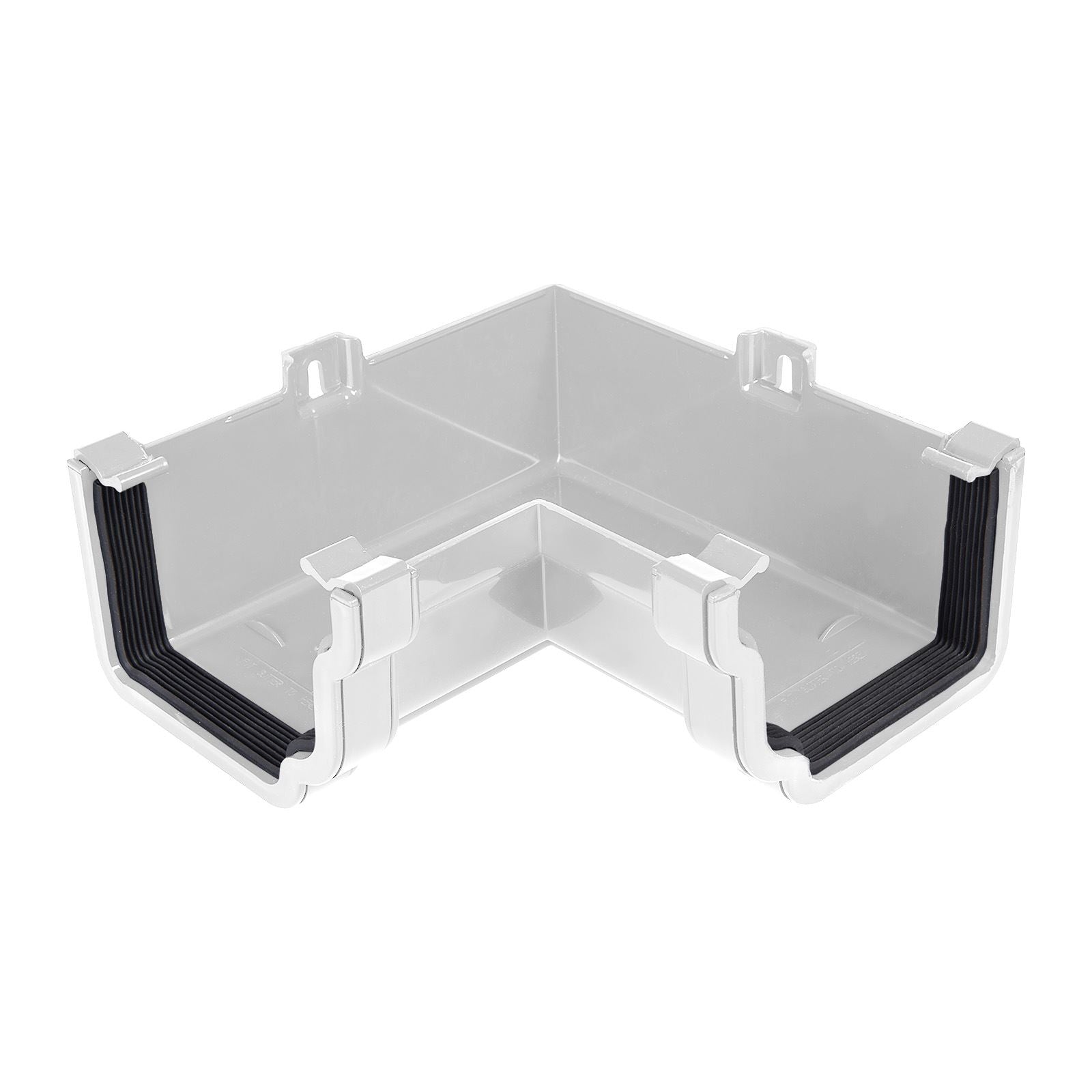

90° Internal Corner

Gutter joint for inward facing right-angle corners when projected roof returns across front of house.

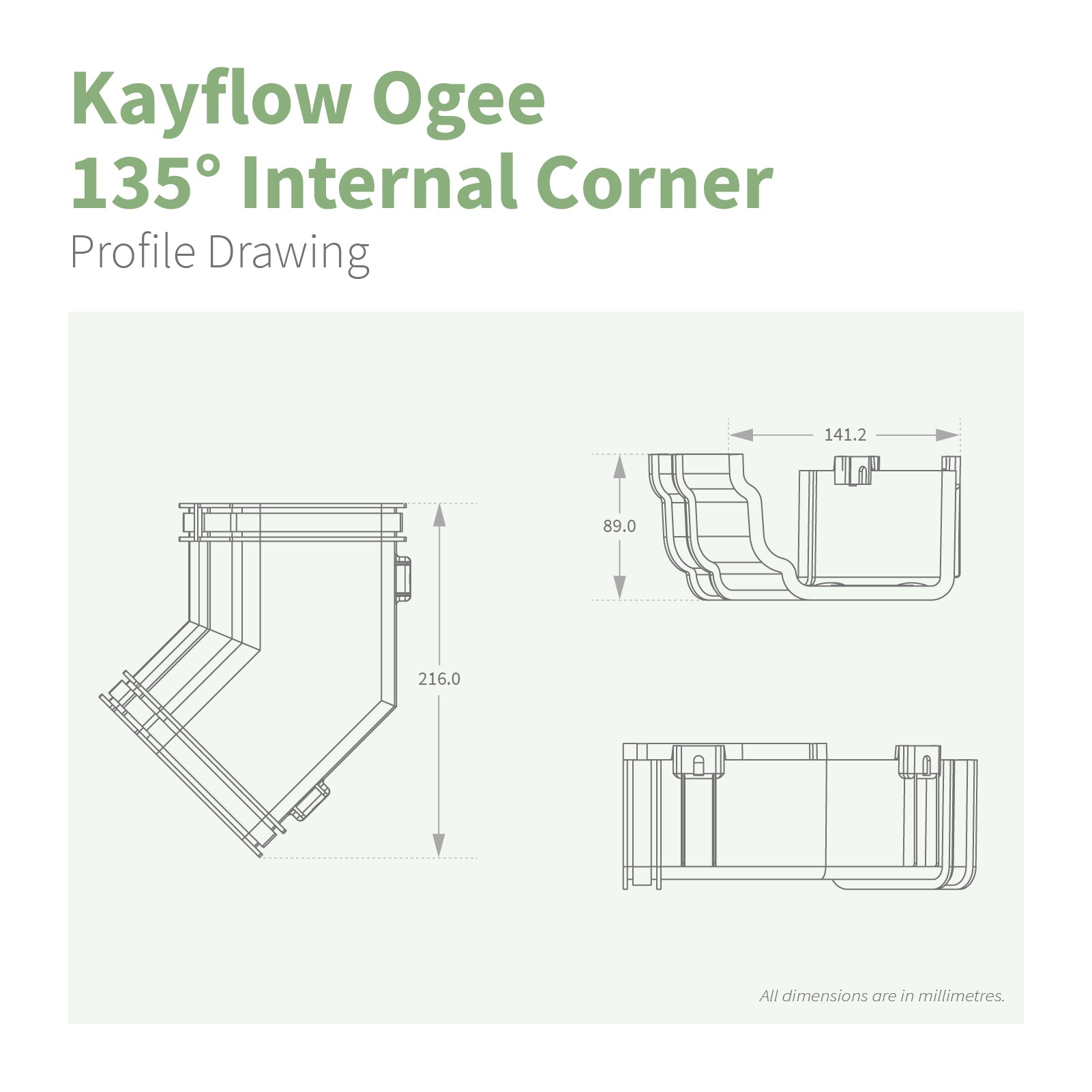

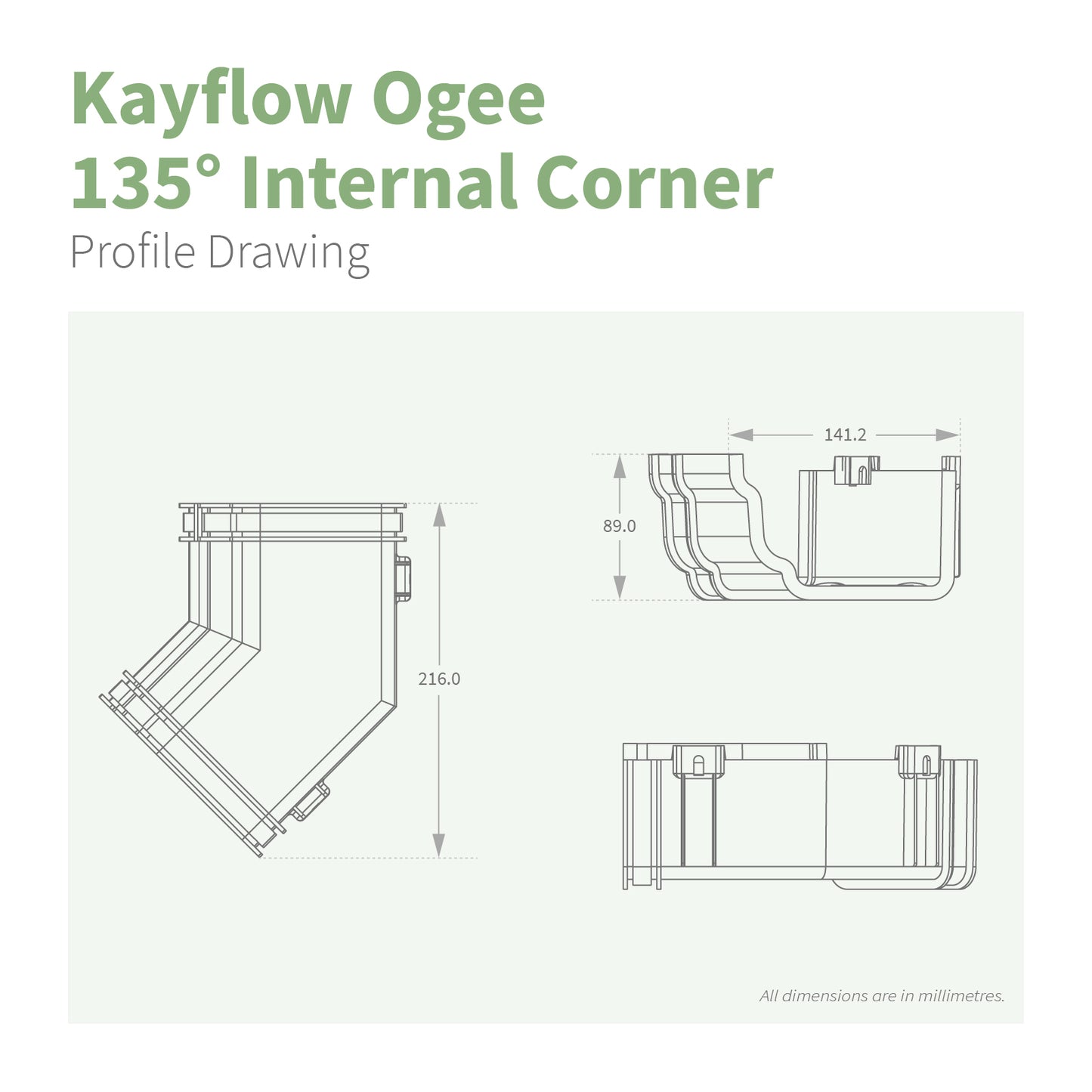

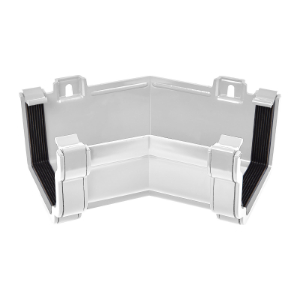

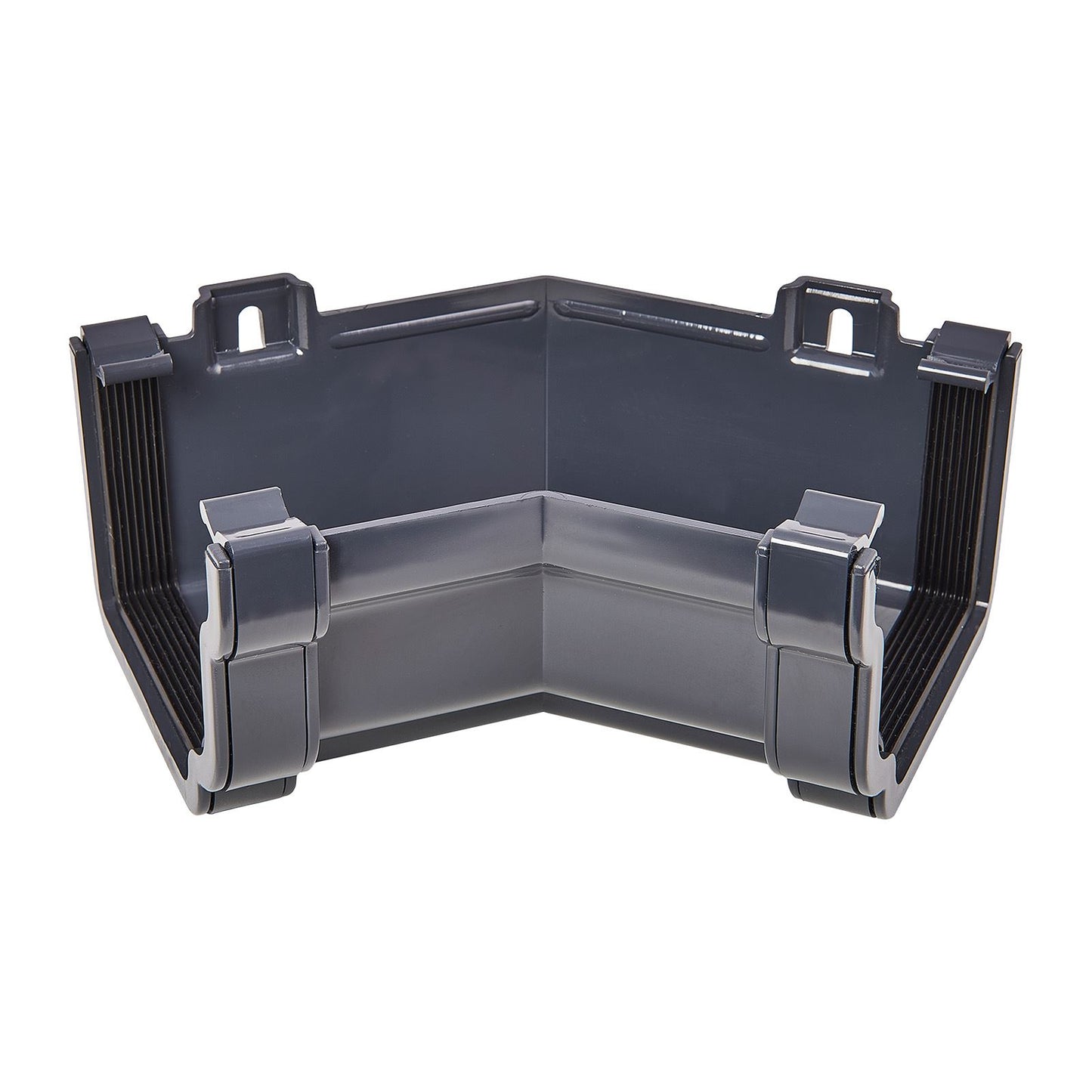

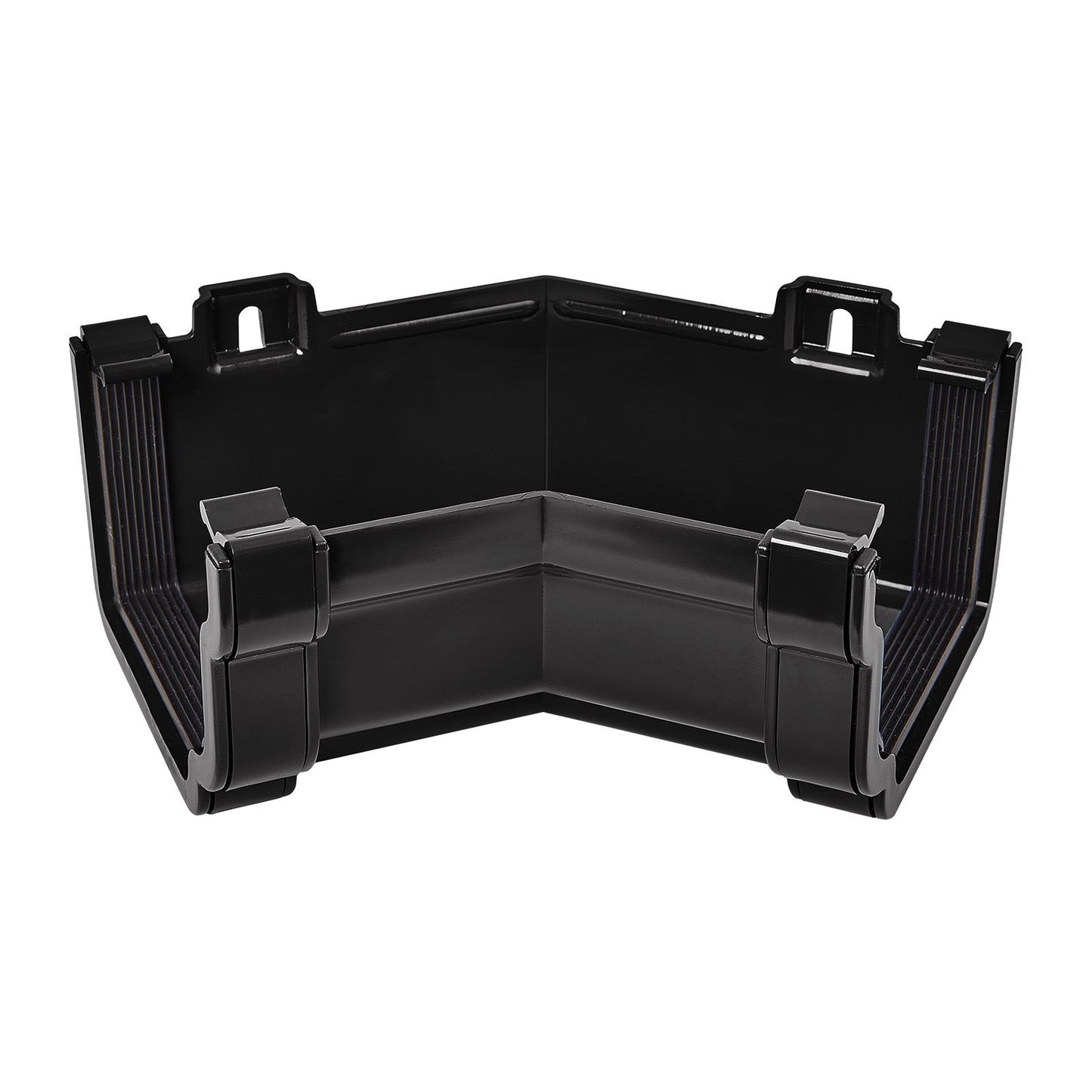

135° Internal Corner

Inward joint for returning typical victorian bay gutter across front of conservatory or house.

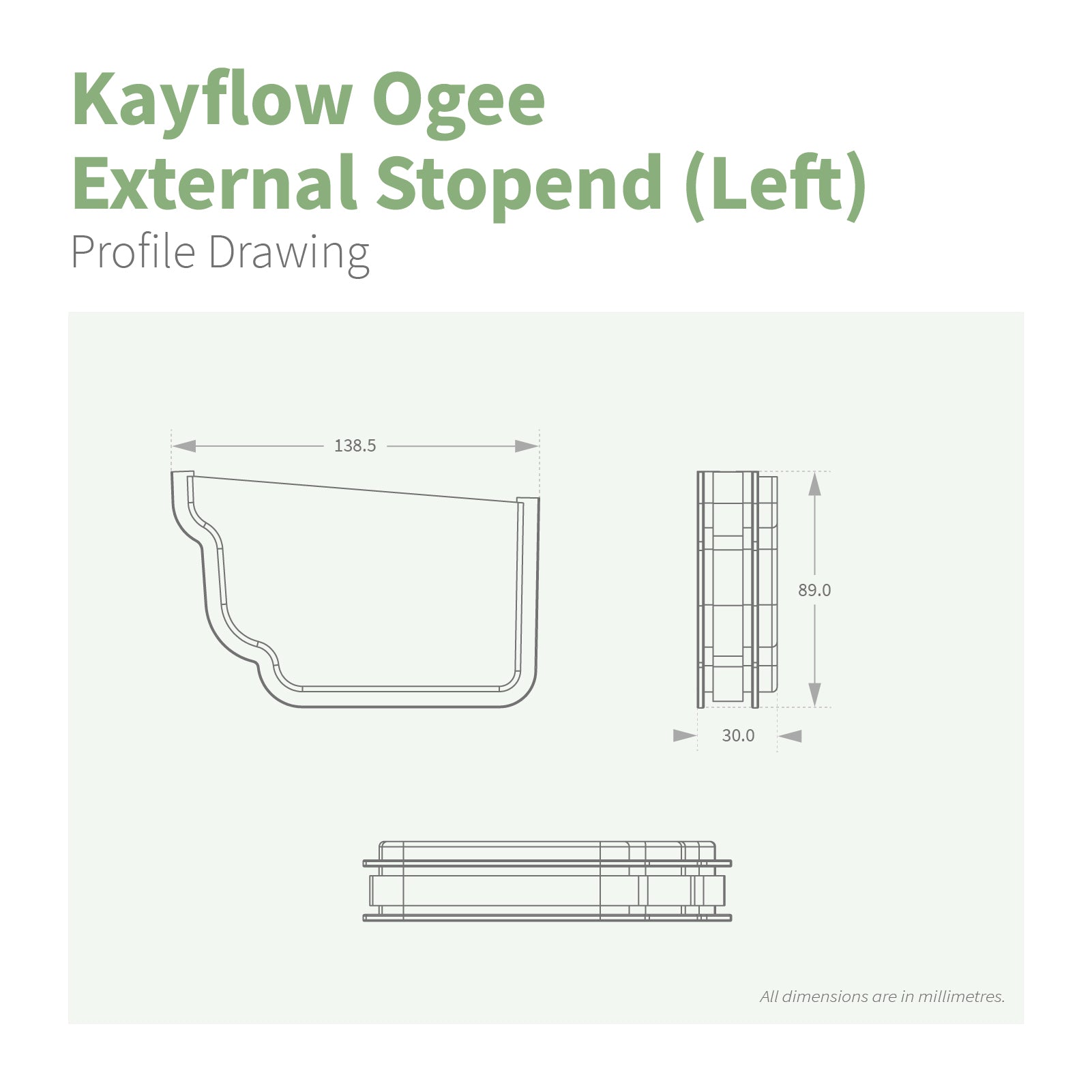

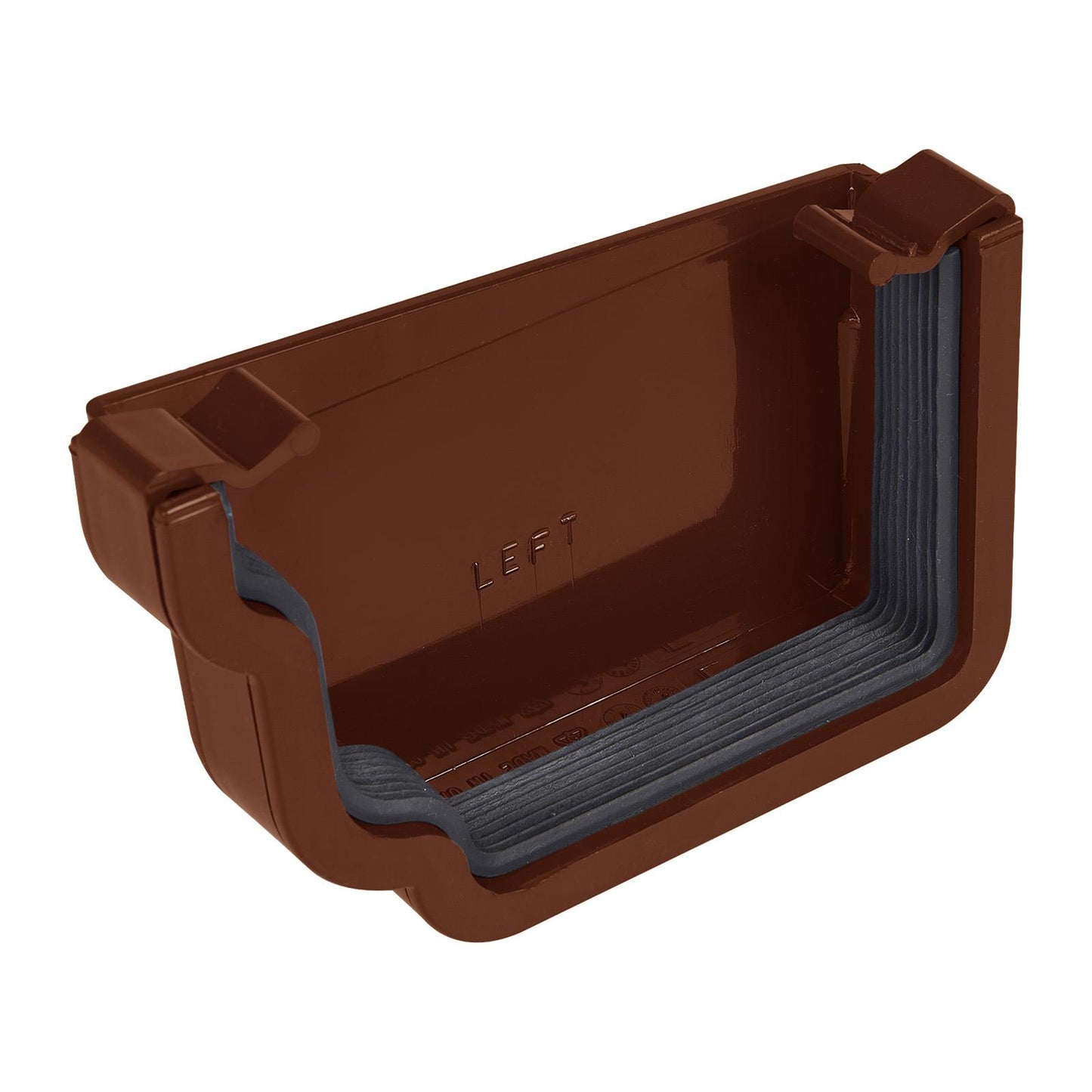

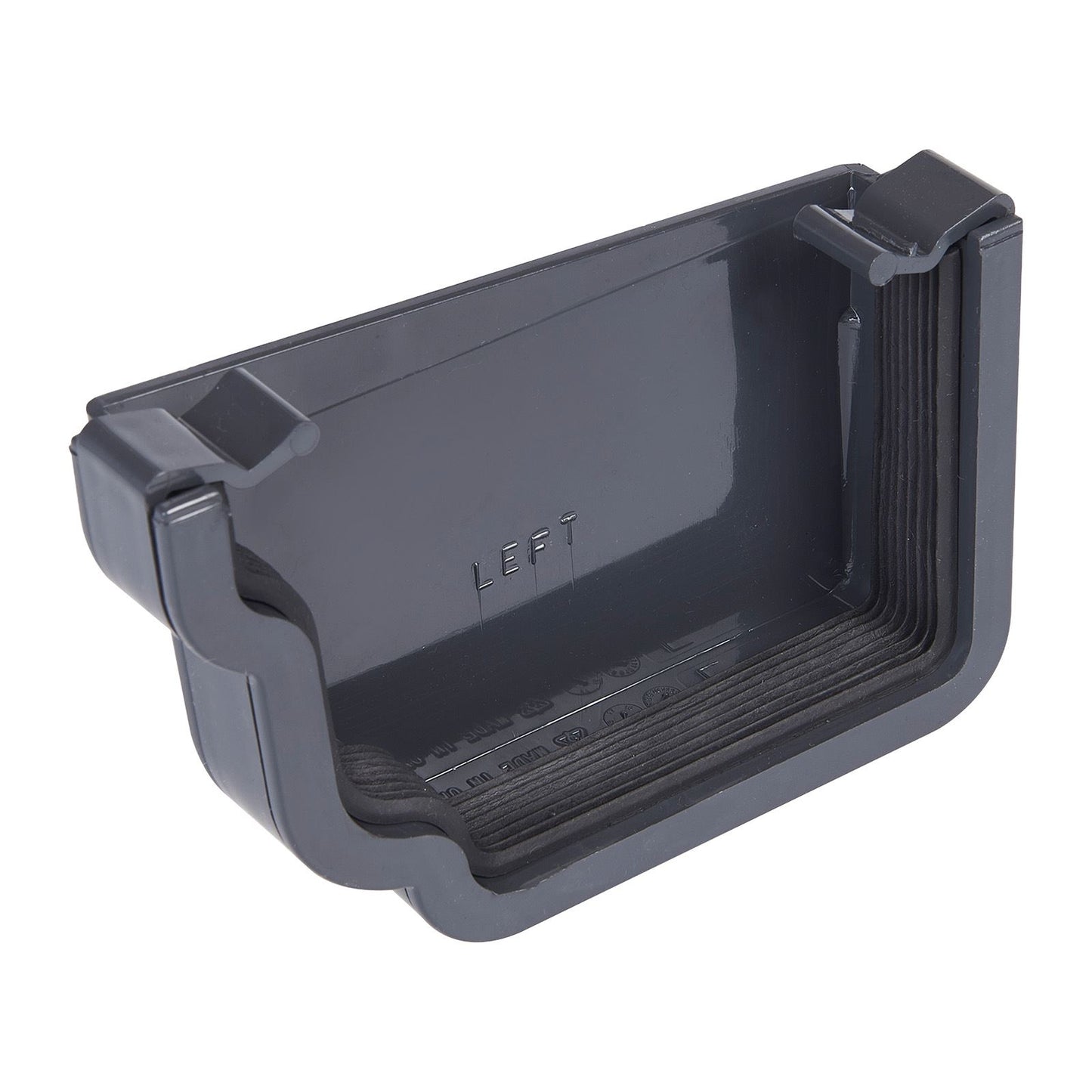

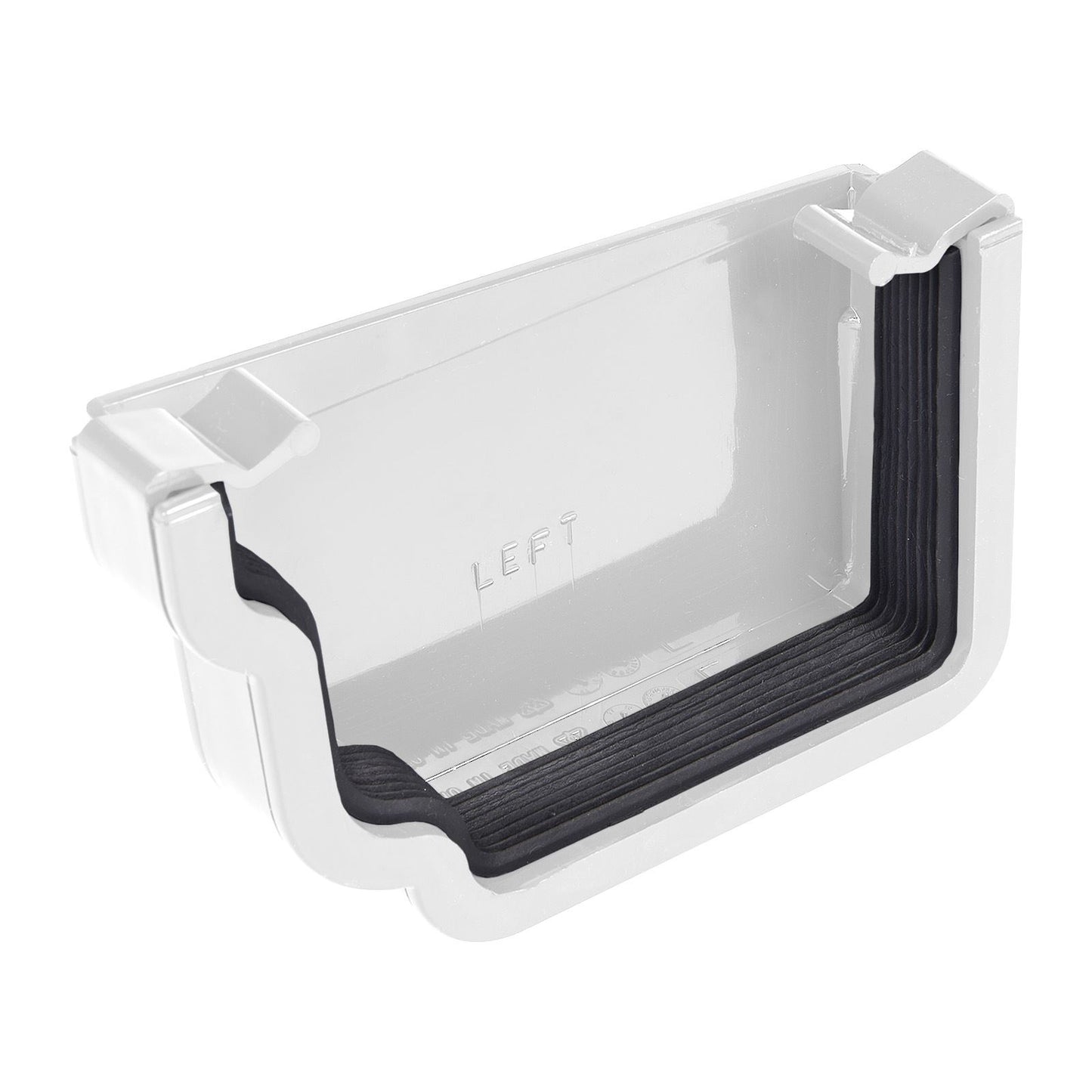

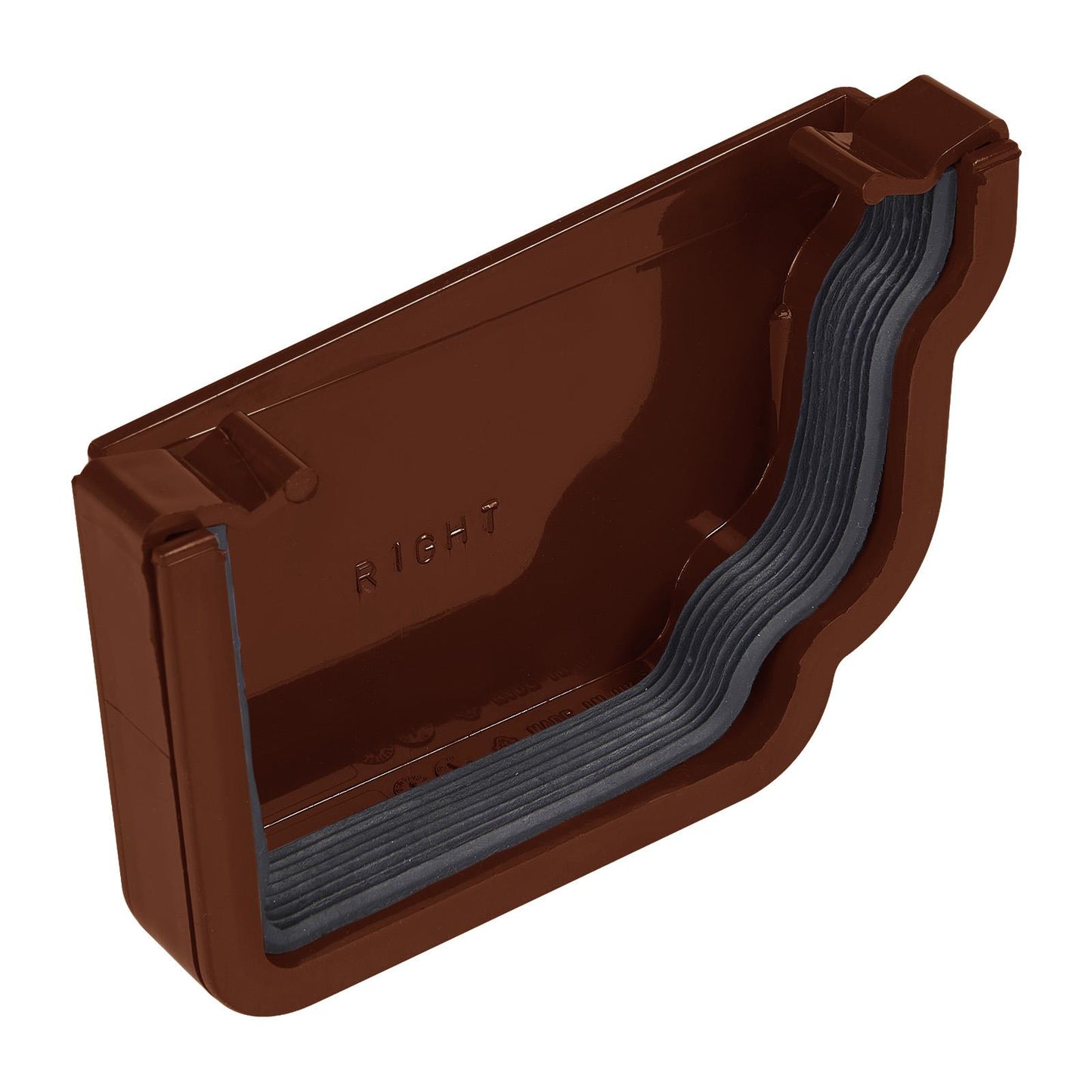

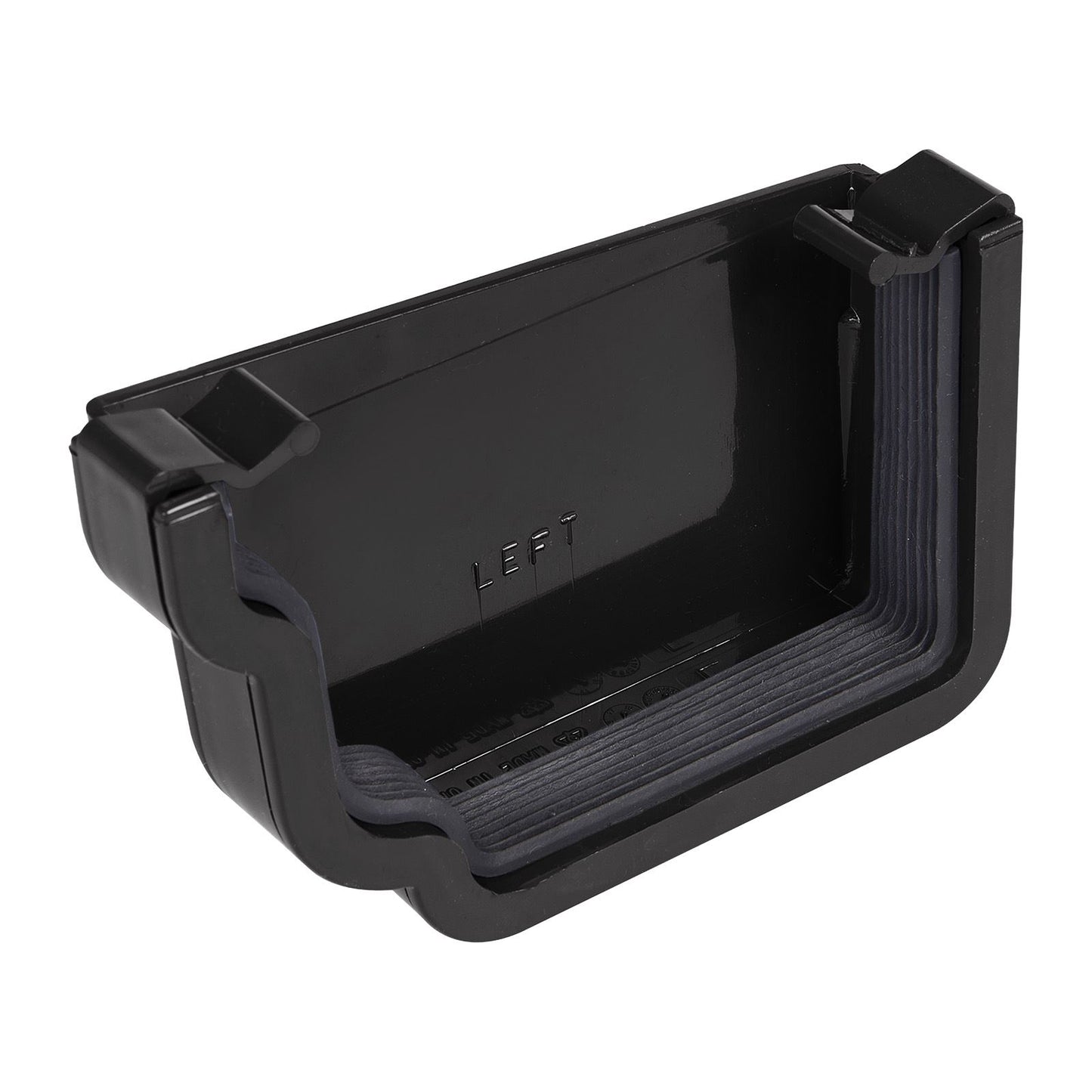

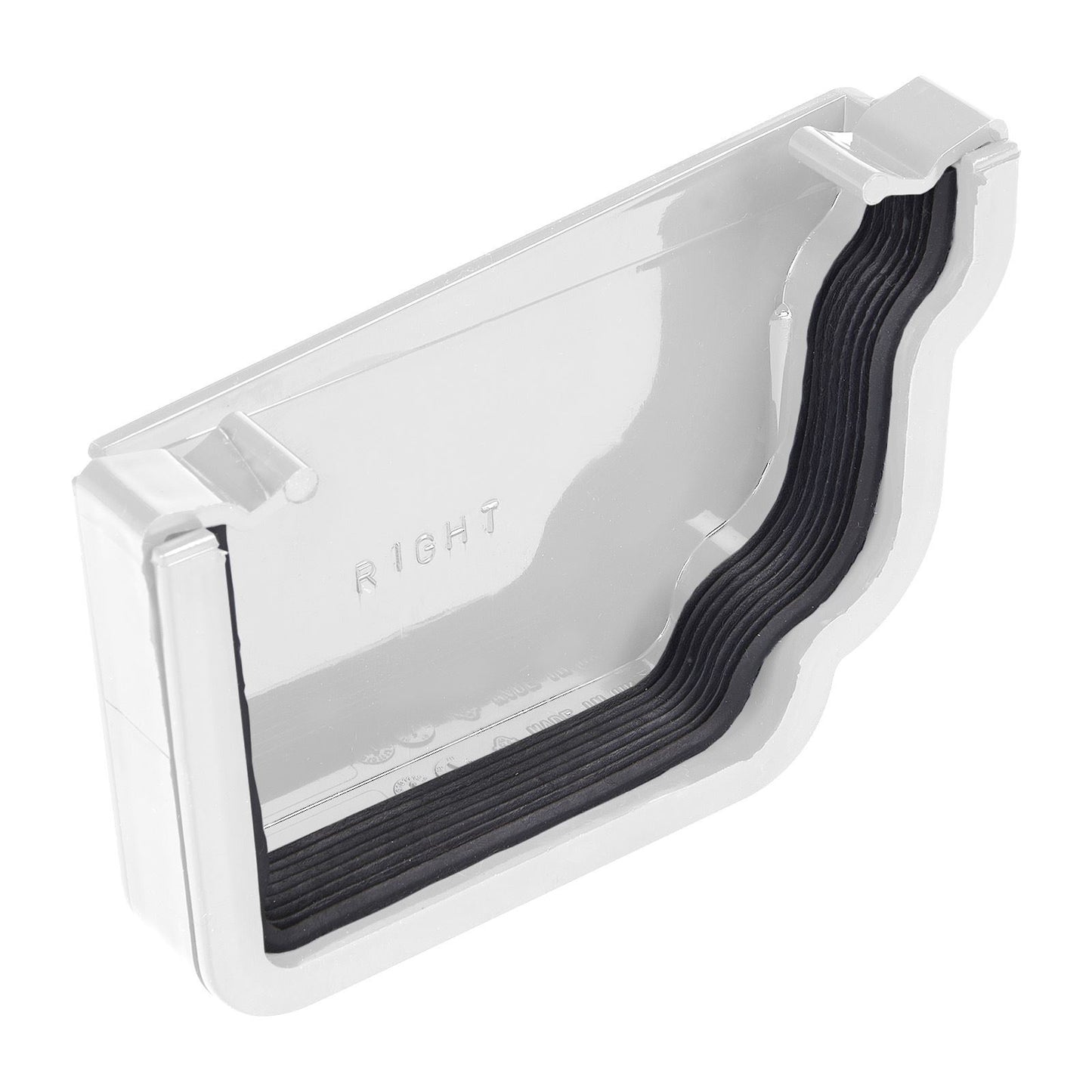

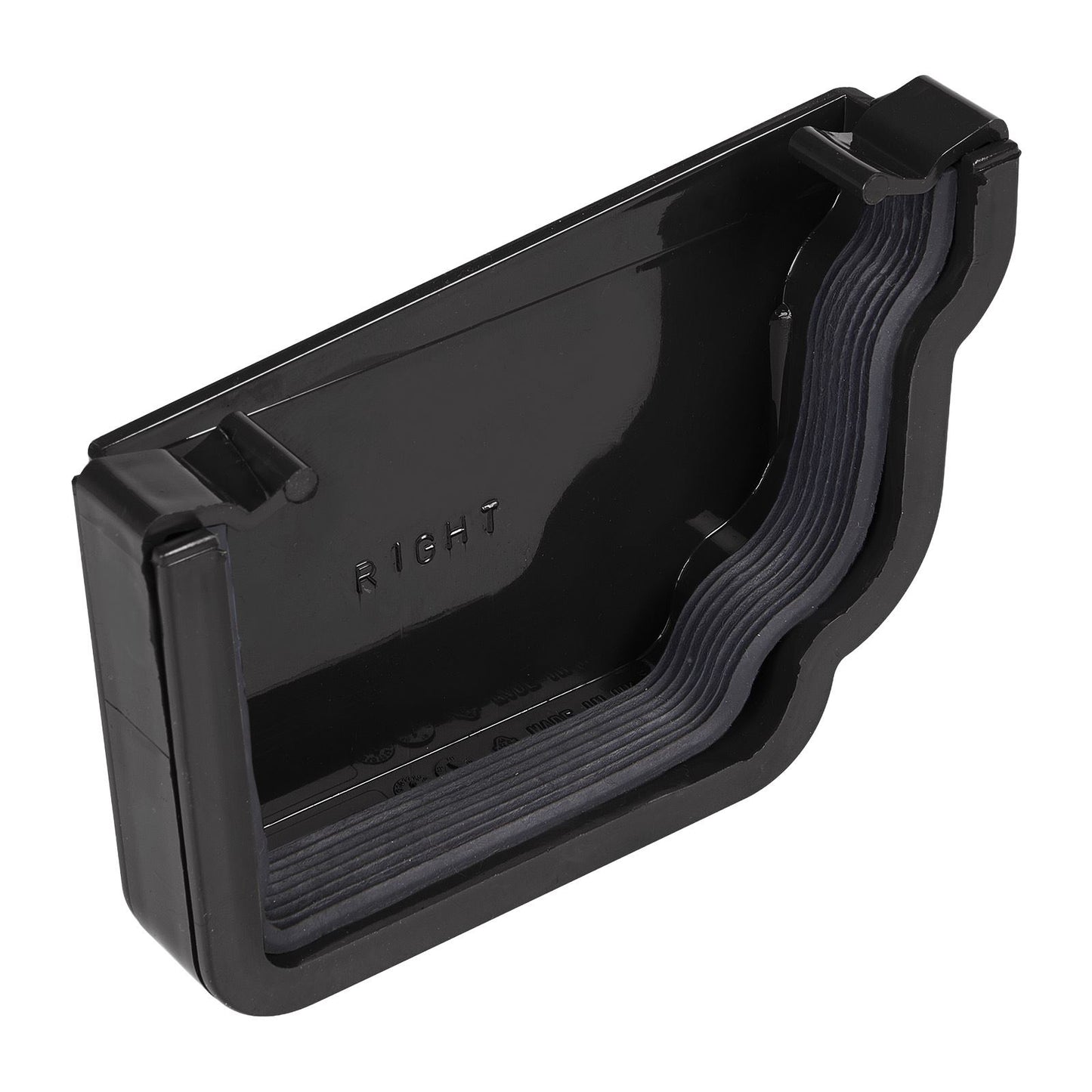

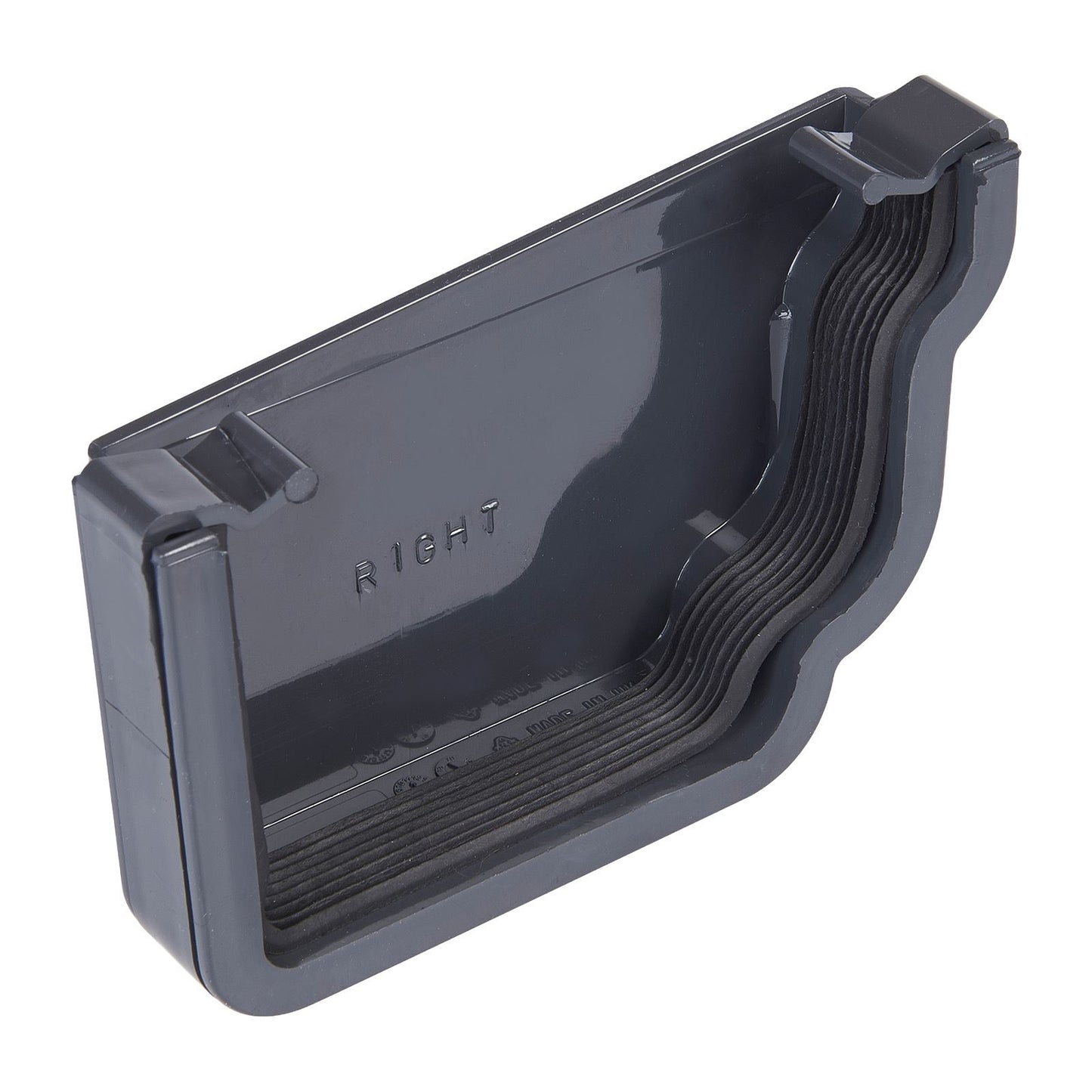

Gutter Stopend

Simply clips to the gutter opening to seal. Choose left or right when viewed from outside.

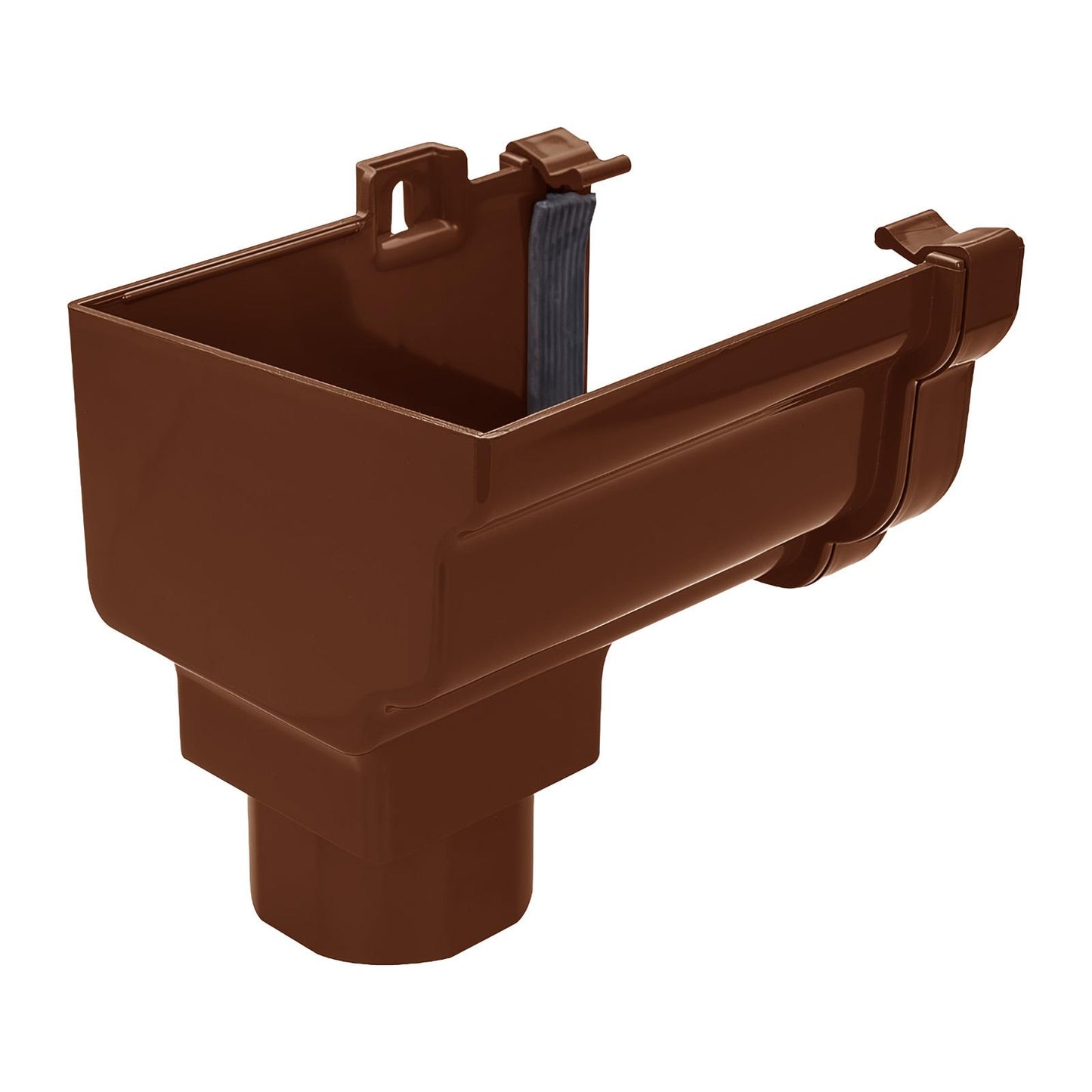

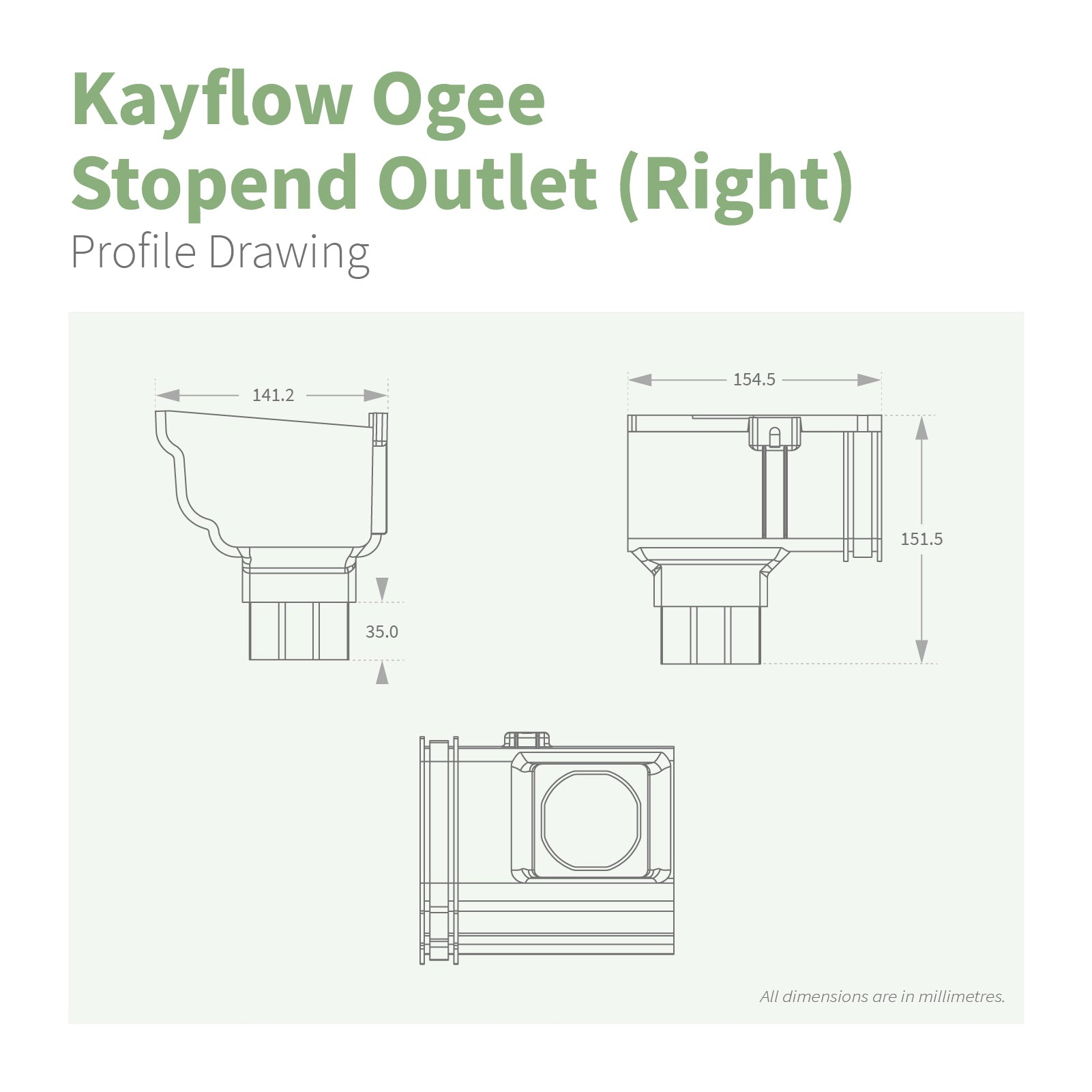

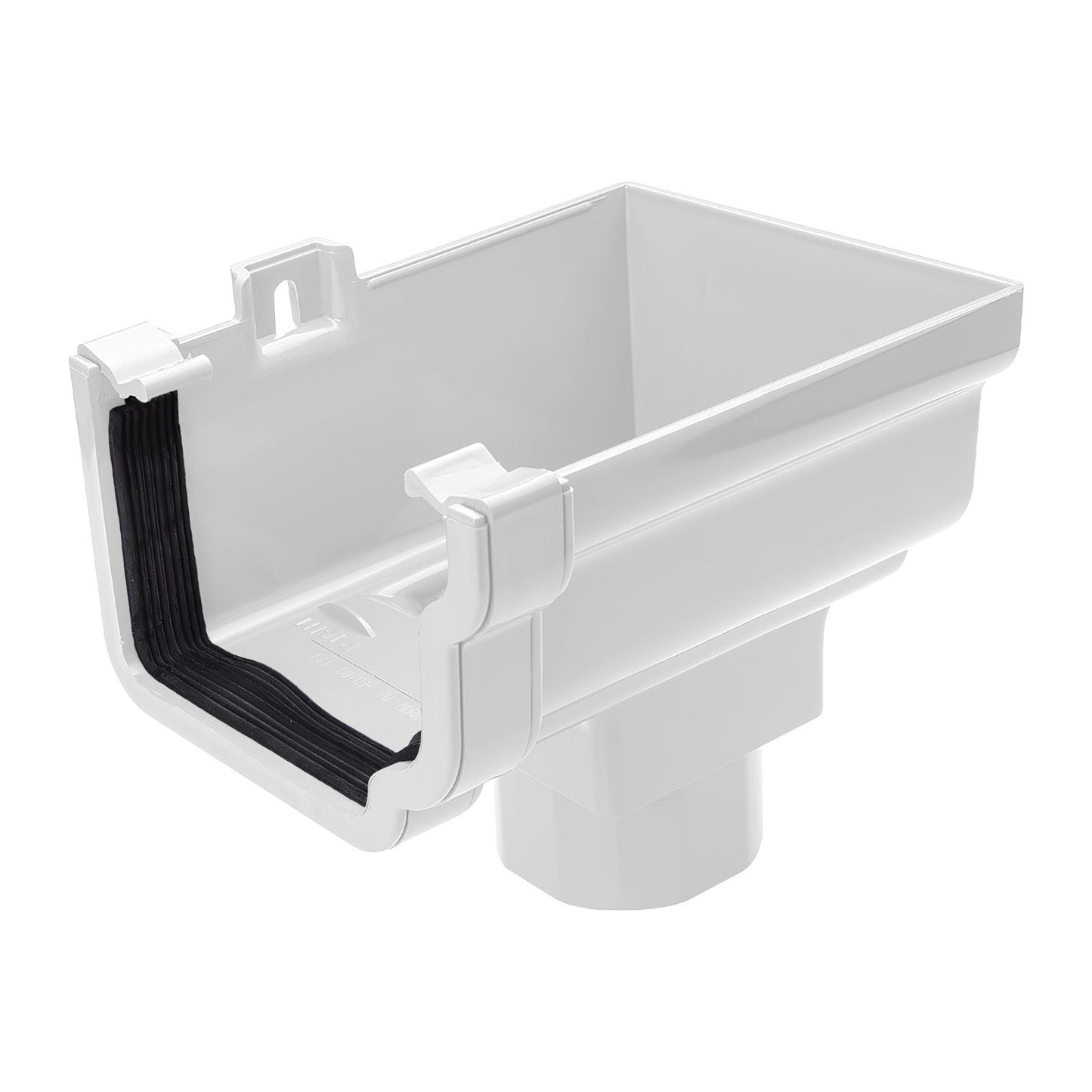

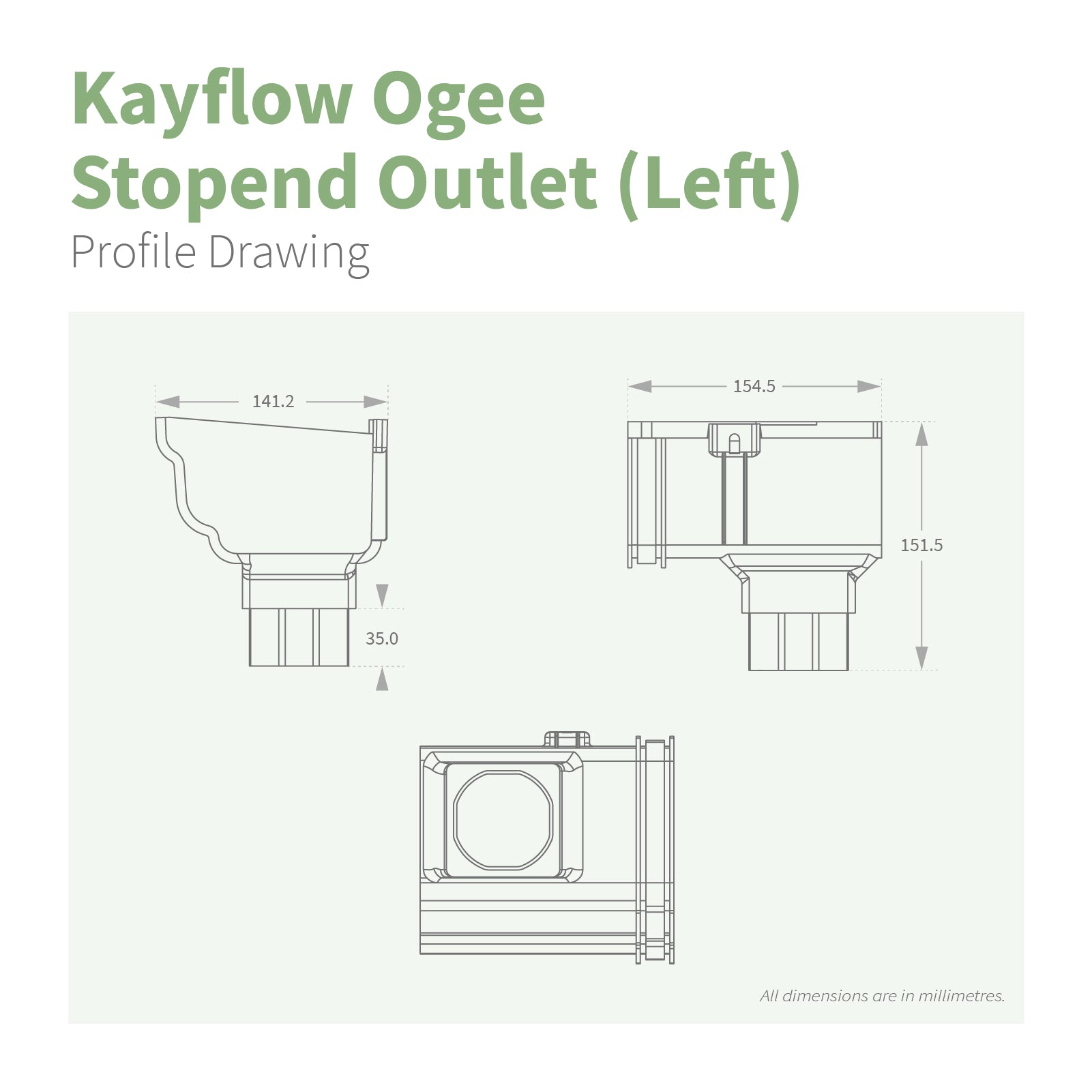

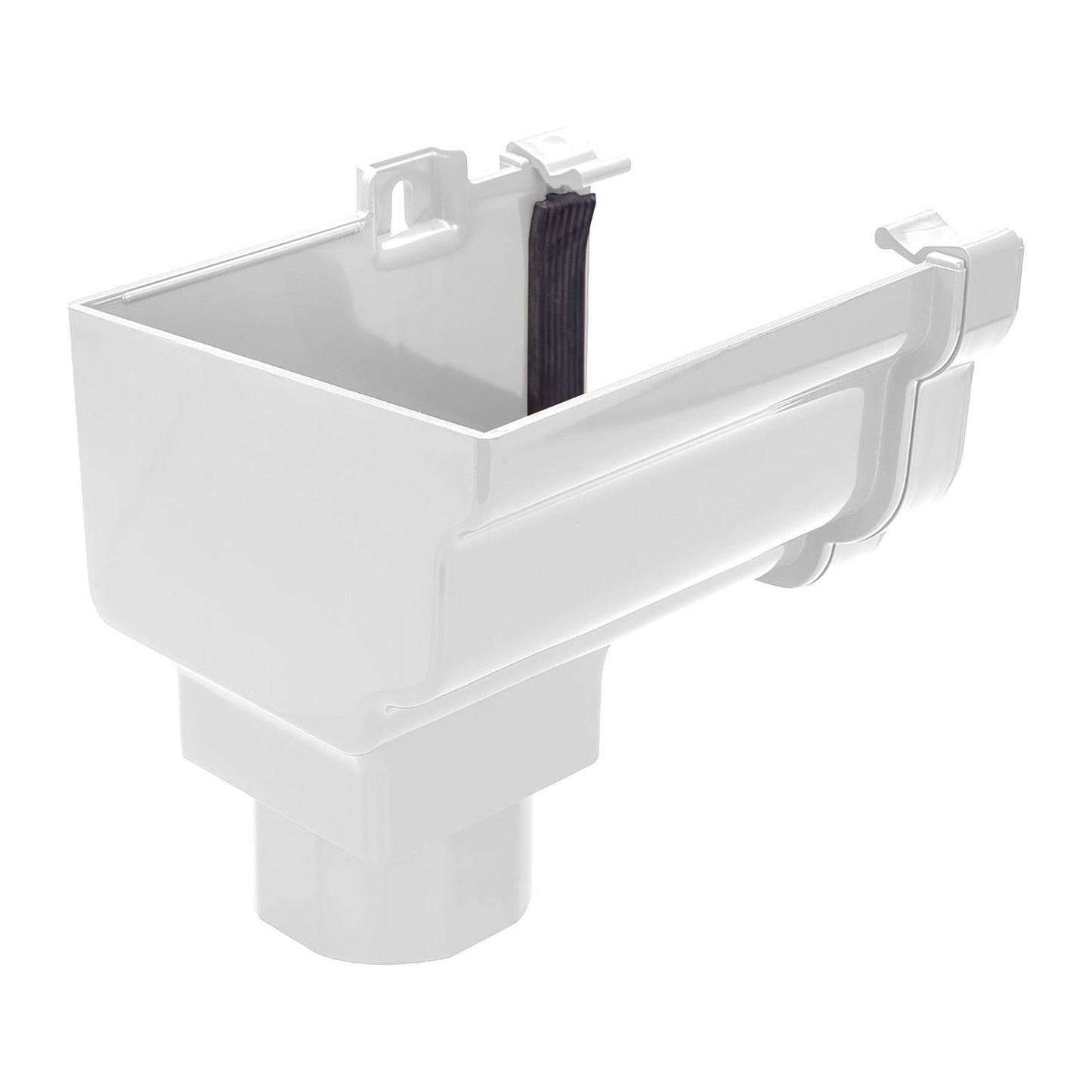

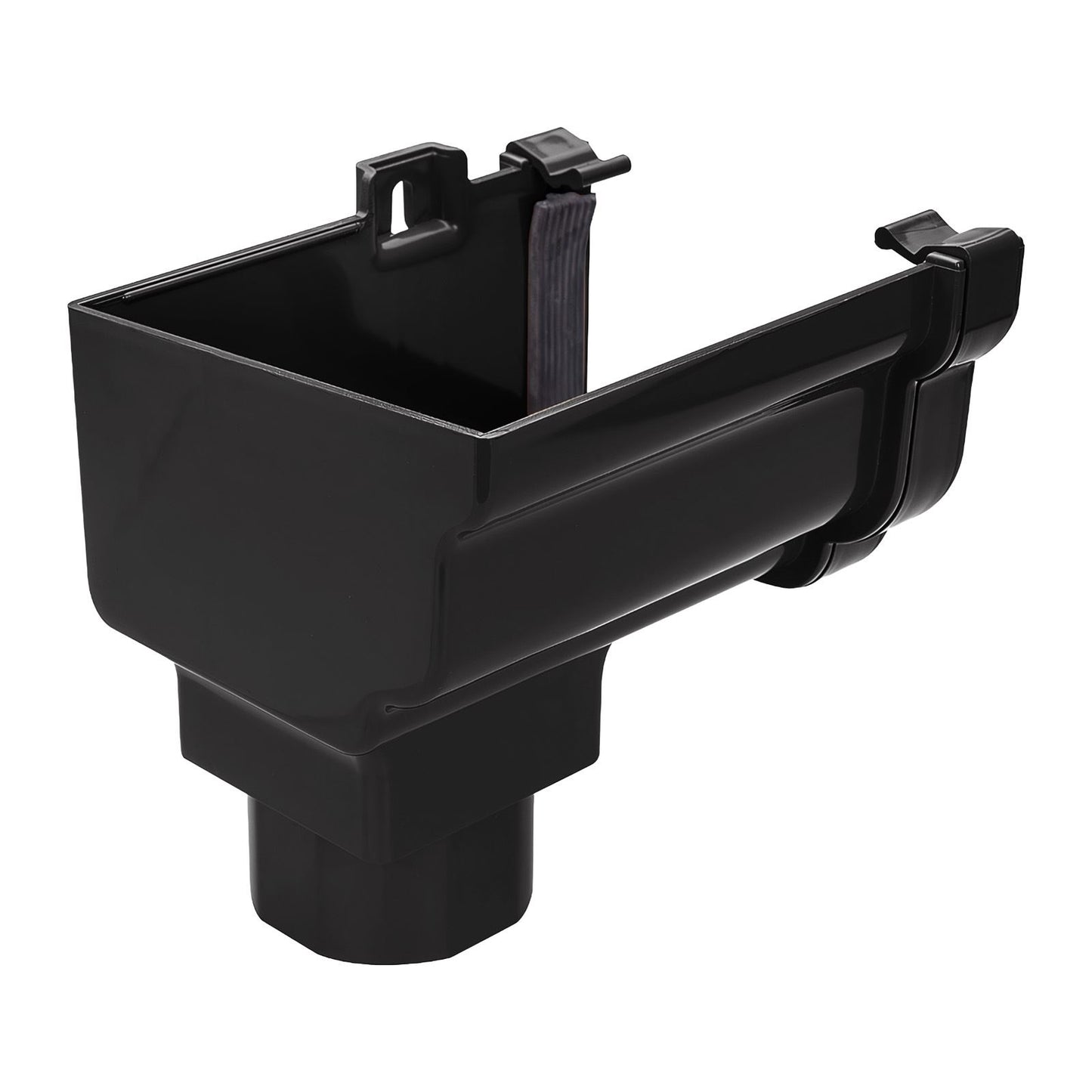

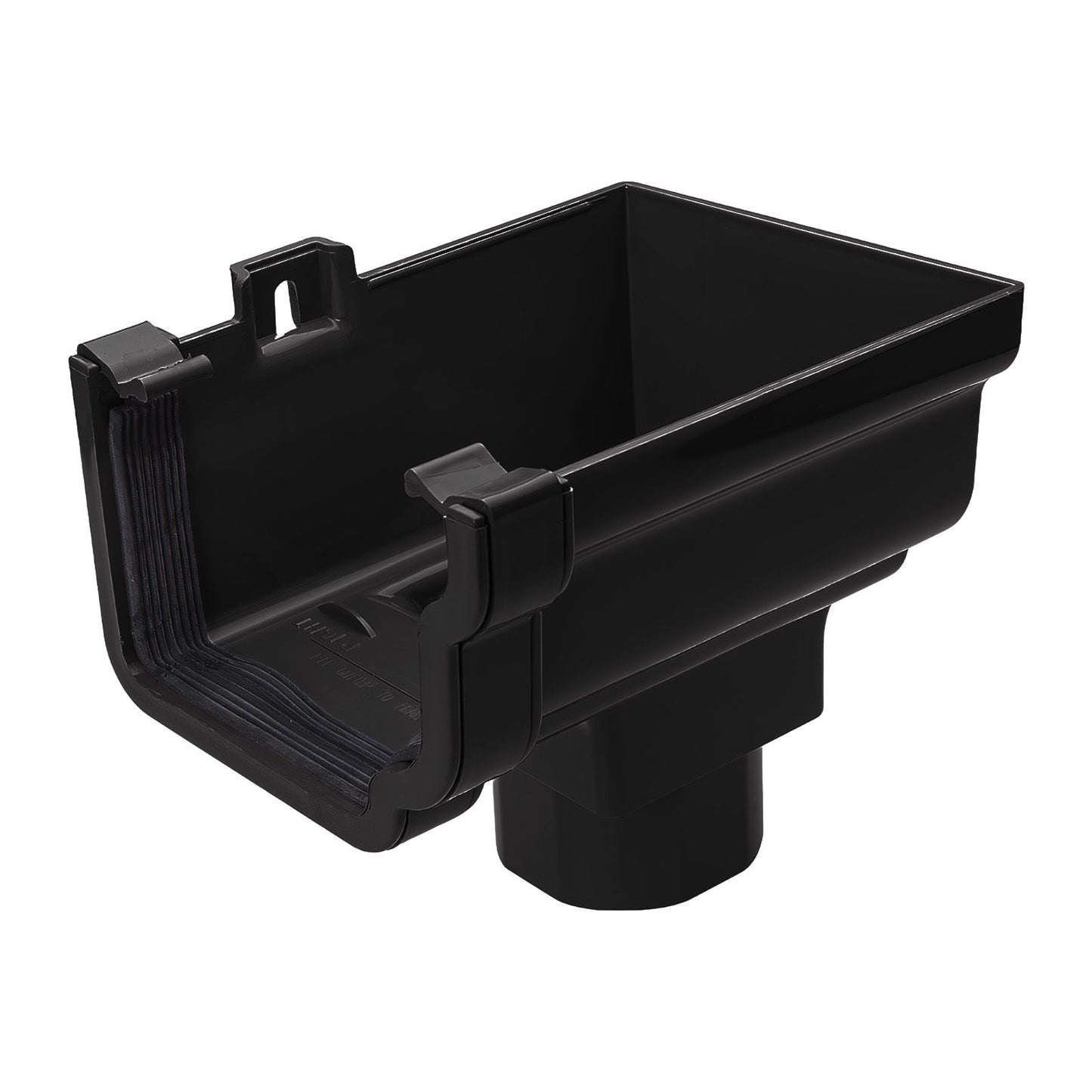

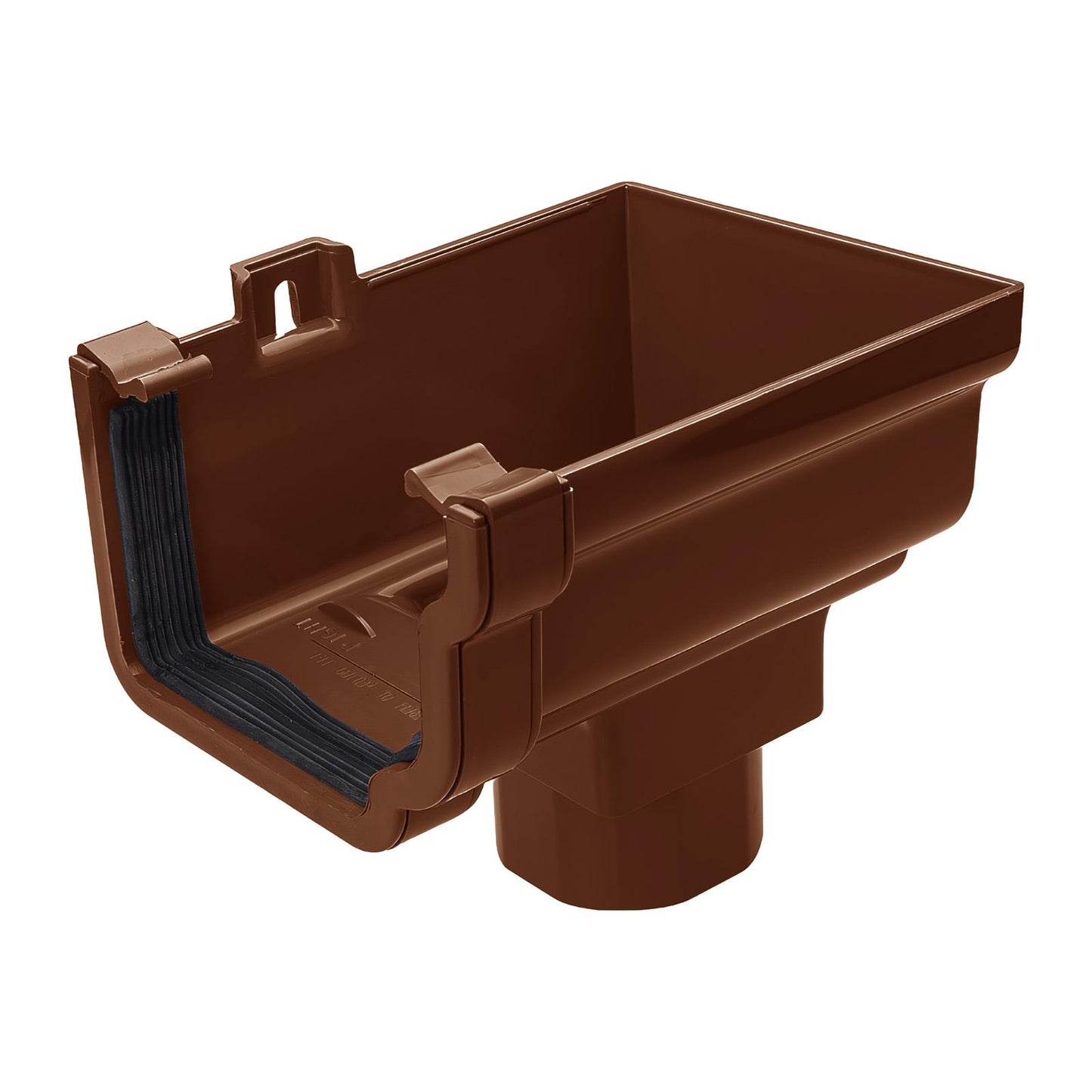

Stopend Outlet

Clips to lengths of gutter to seal ends and provide outlet. Left or right when viewed from outside.

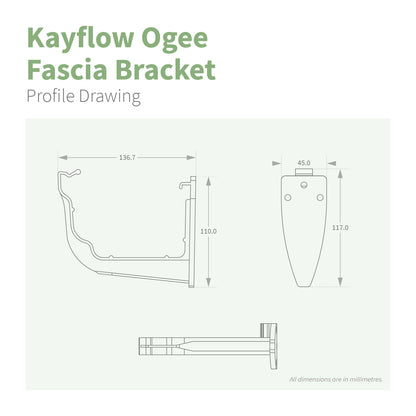

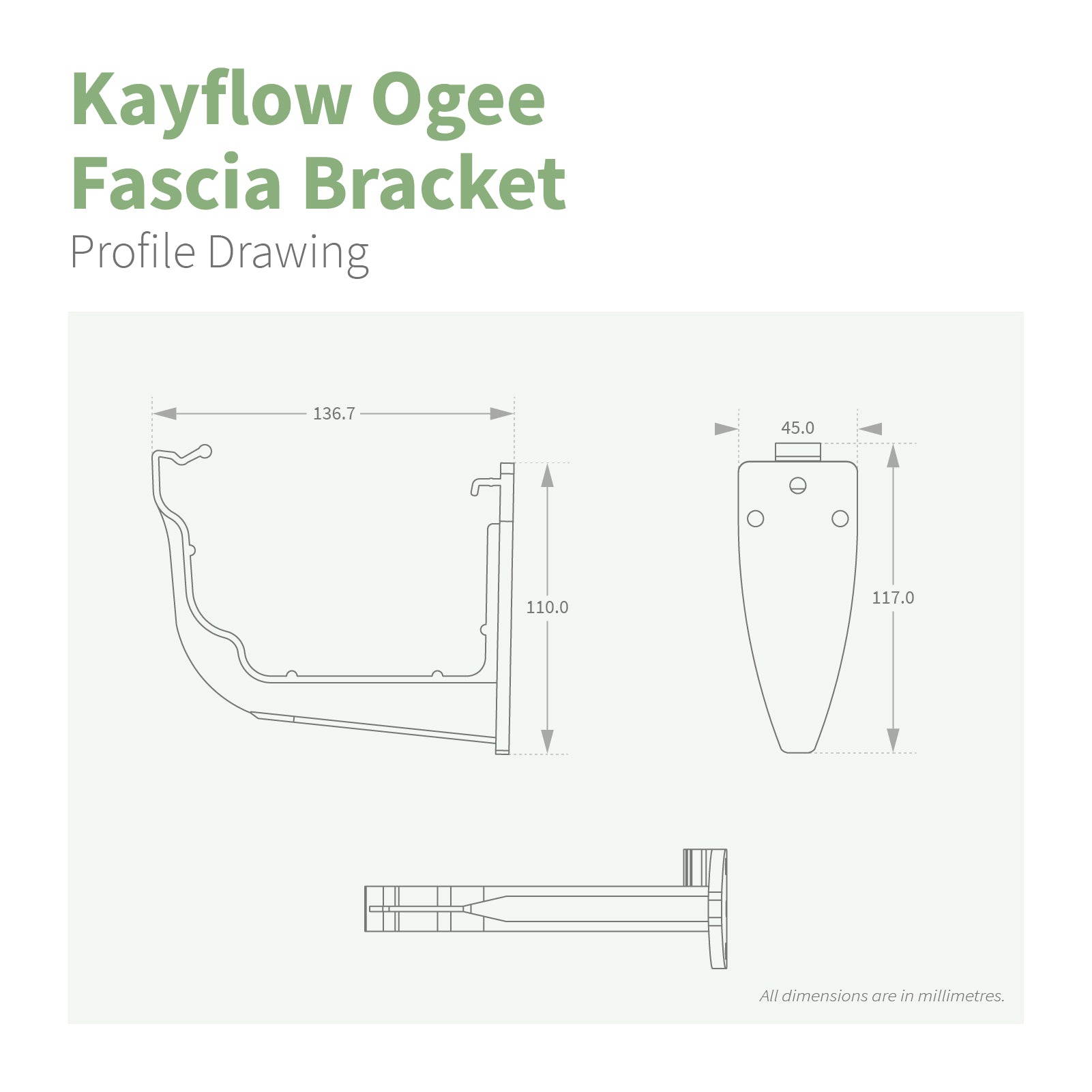

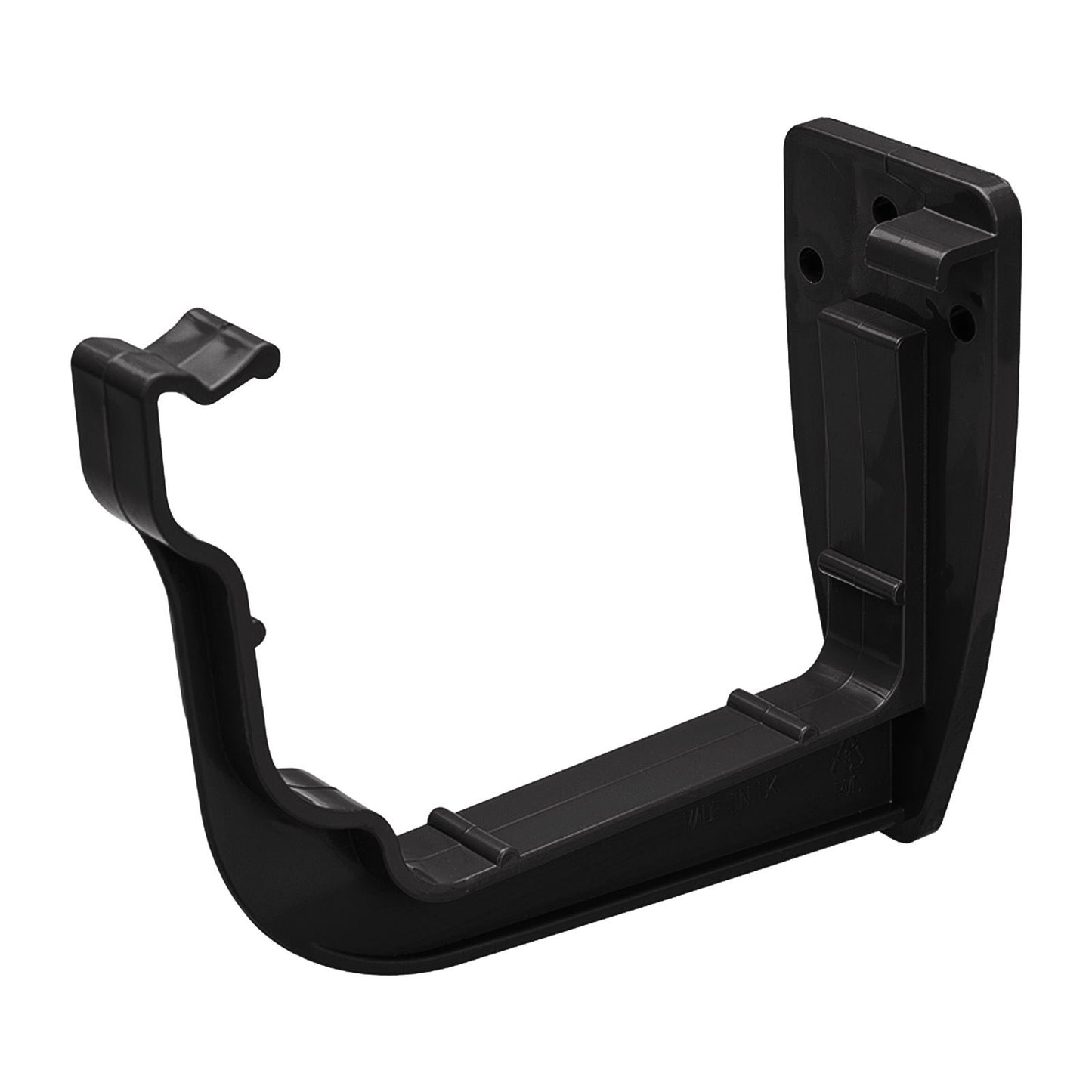

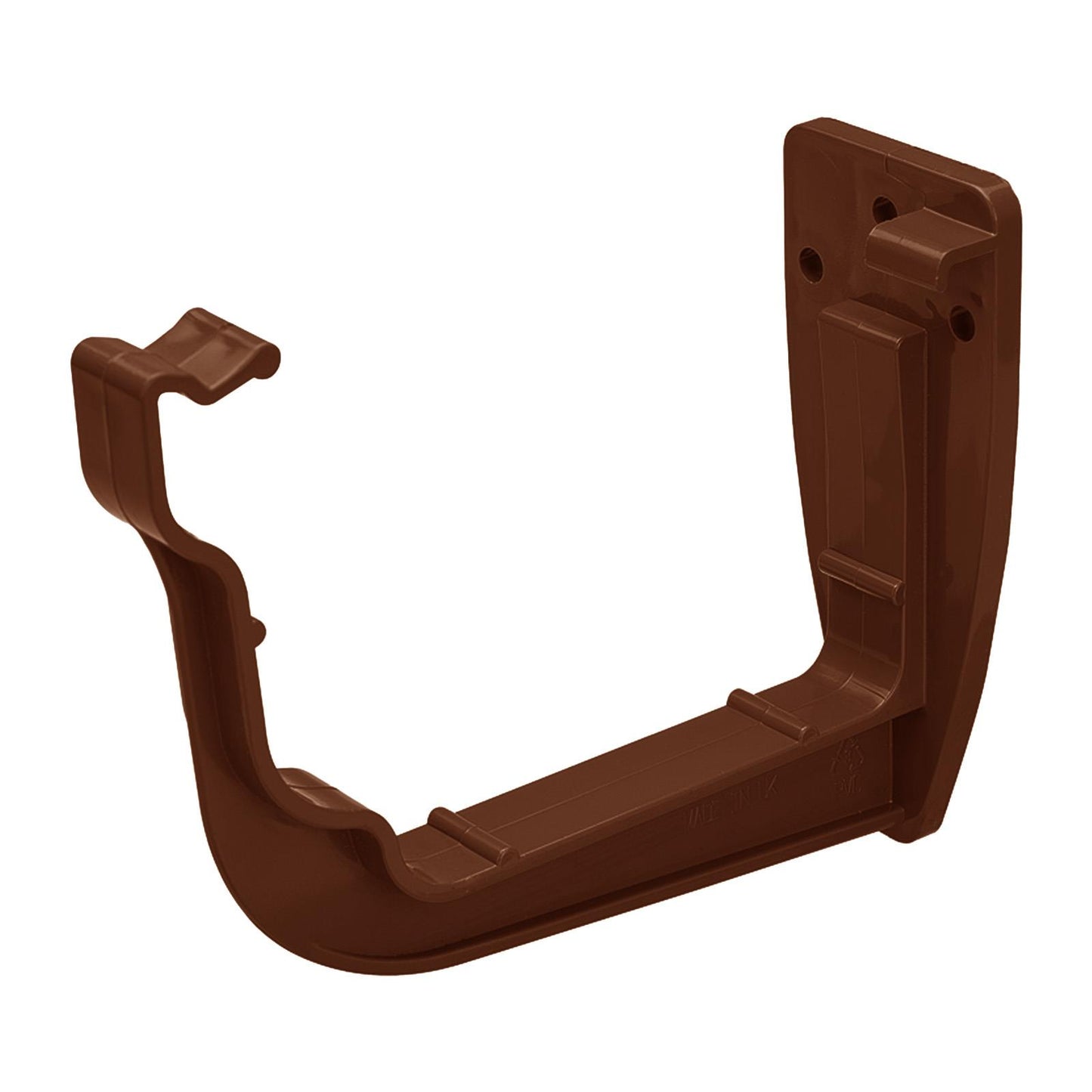

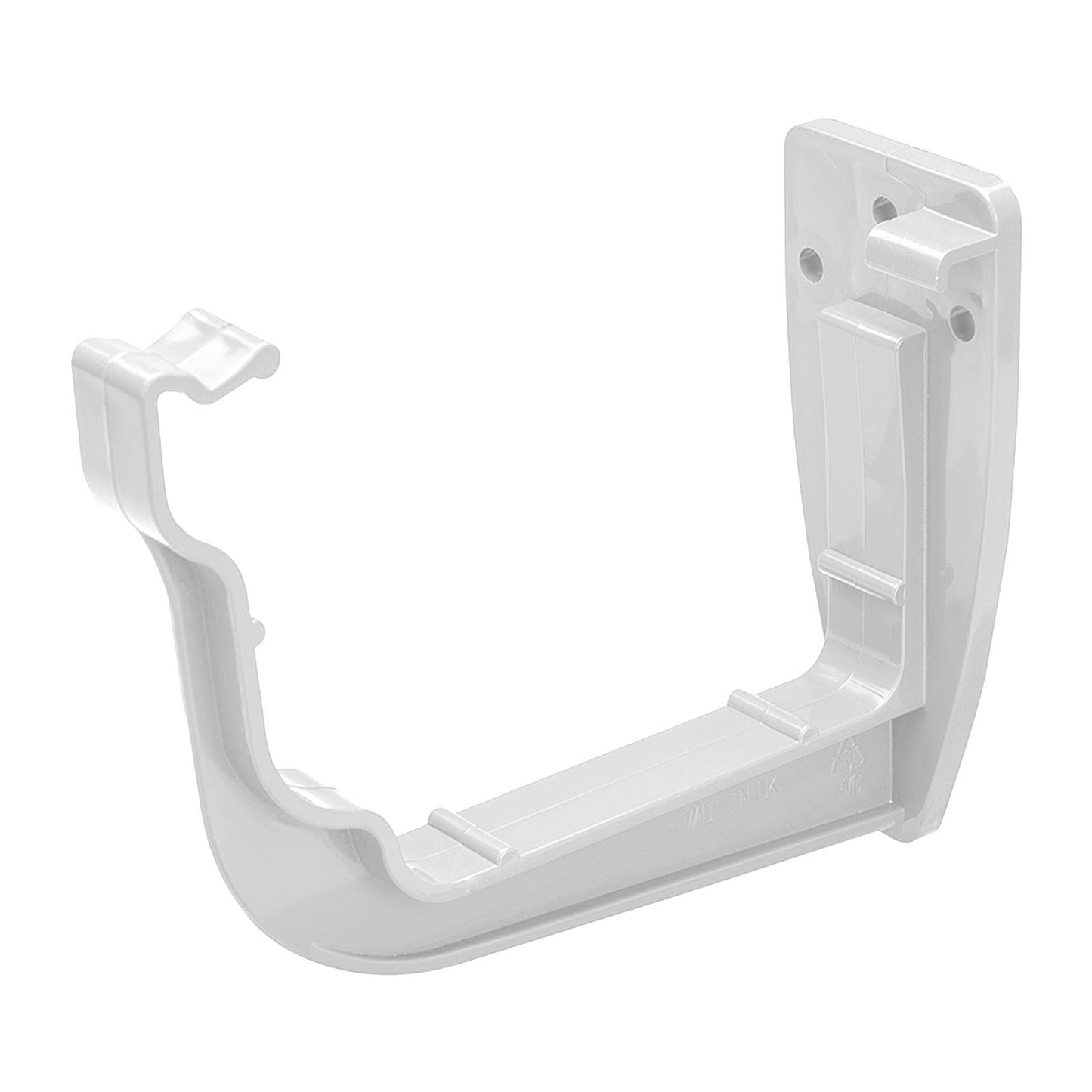

Fascia Bracket

Face-fix bracket screws to household fascia board and wraps-around underside of gutter for secure fixing.

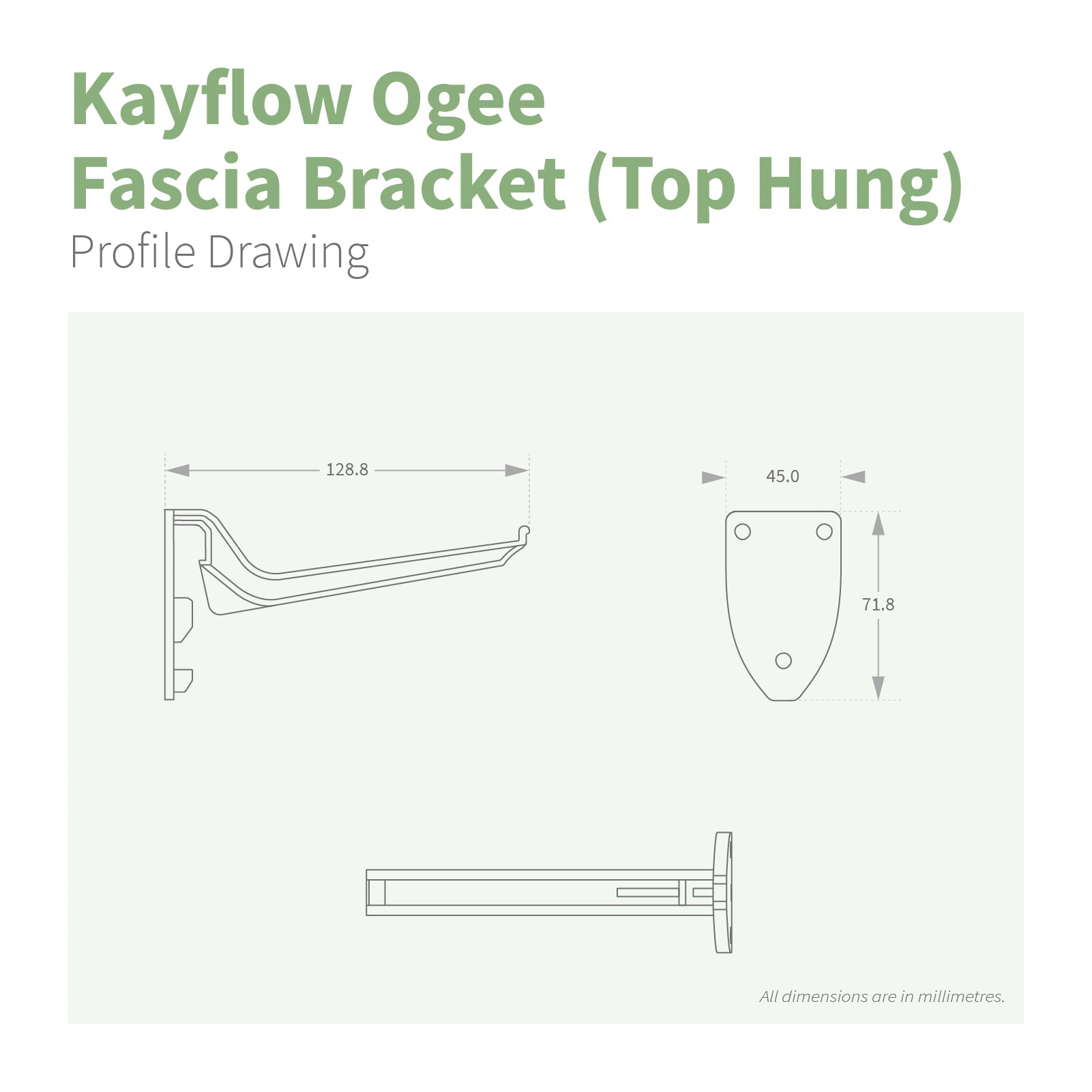

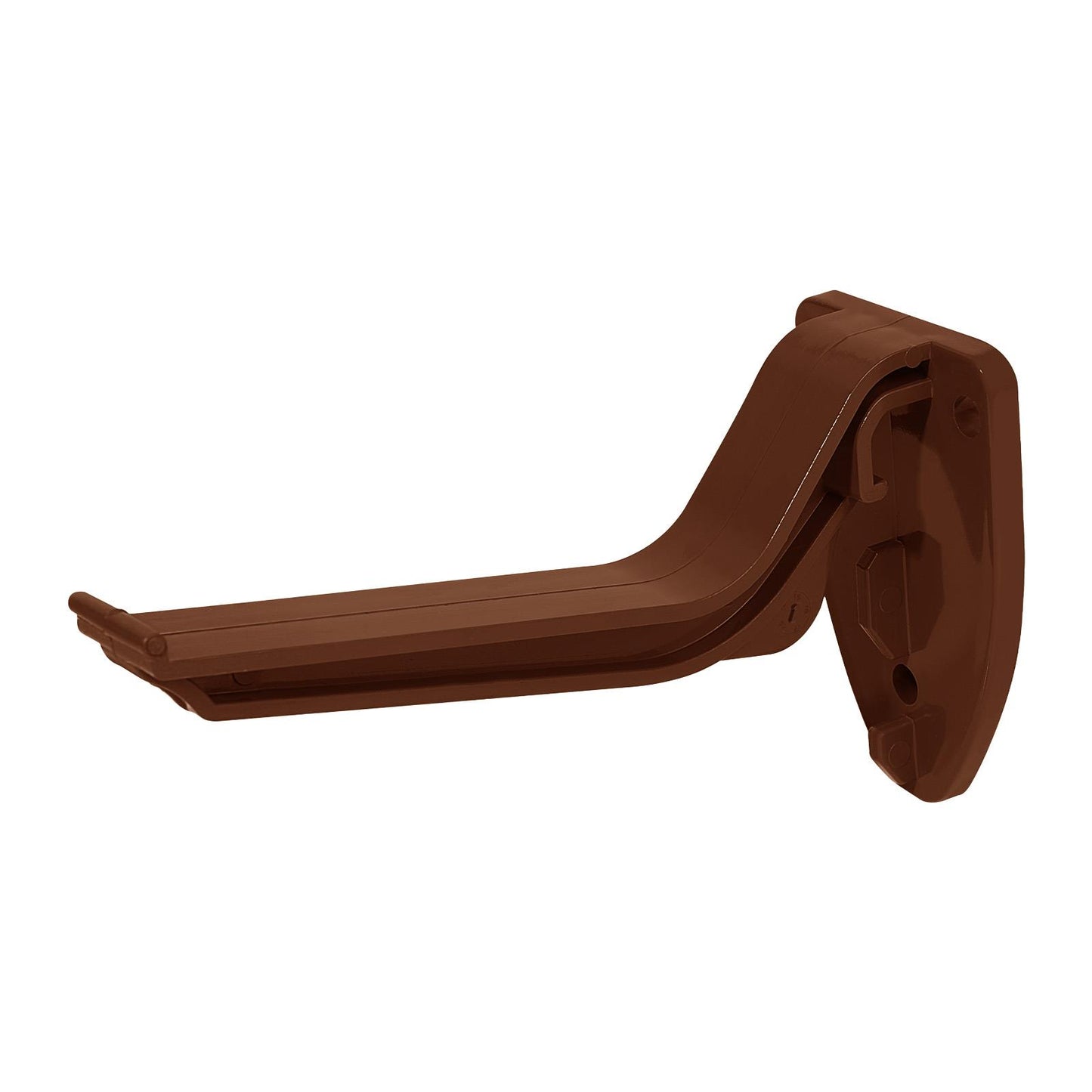

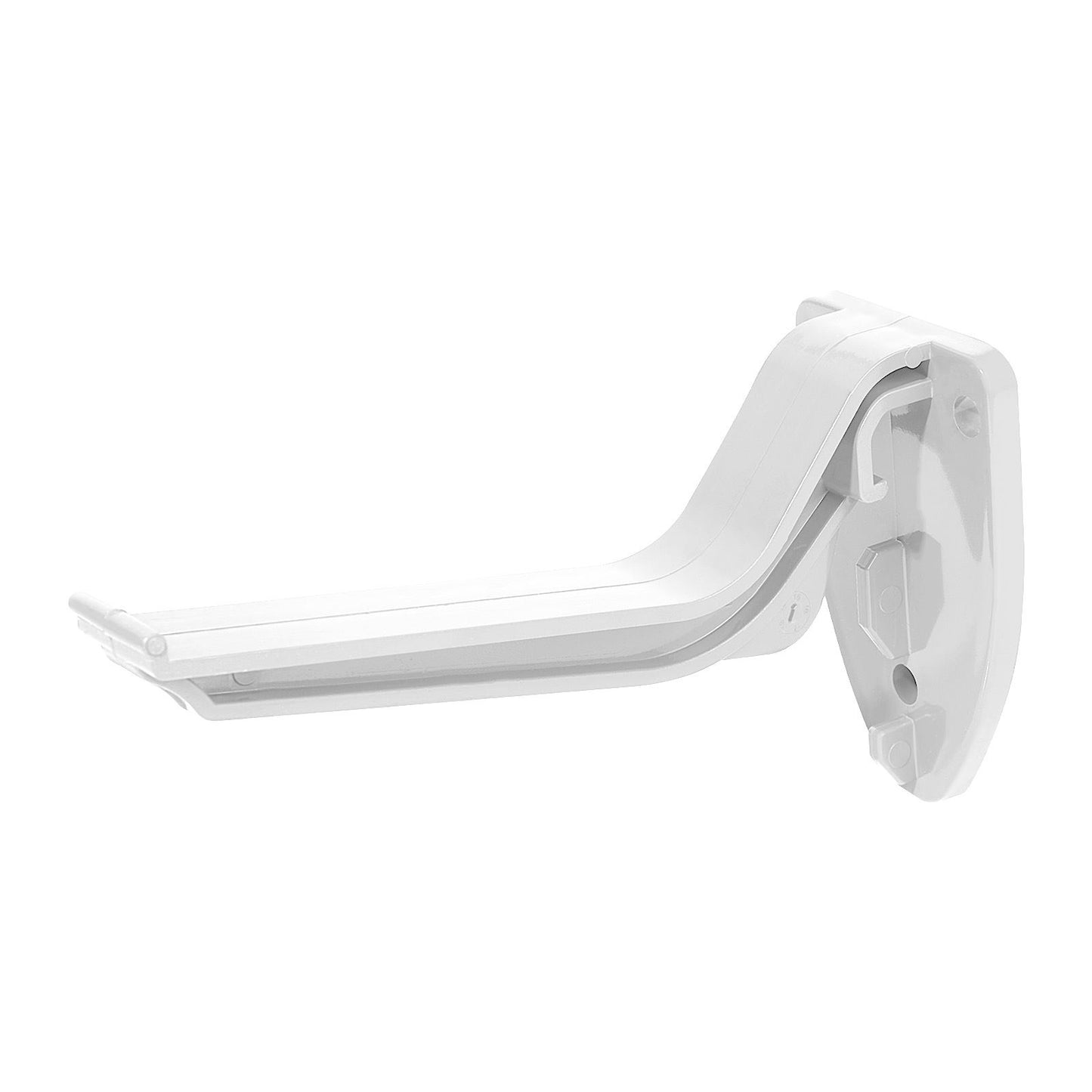

Fascia Bracket (Top Hung)

Screws directly to household fascia board and becomes concealed by the gutter that hangs from it.

Fitting & Usage

Suitable for external rainwater drainage on residential and commercial buildings. Plan downpipe positions directly over existing drains. For gutter quantity, measure building perimeter, round up to nearest metre, and divide by 4. Gutters can be set level (nominal fall up to 3mm/m) or to falls (7mm per 4m length), with the high point as close to the roof as practical and the low point no more than 50mm below the roofline. Fix all outlets and brackets using 2 × 25mm No. 10 stainless steel screws through all fixing holes provided. Remove swarf and chamfer pipe ends after cutting and lubricate jointing surfaces before assembly. Fit a bracket within 150mm either side of all fittings.

Application

Fit outlets directly above drains — use a stop end outlet at run ends and a running outlet for mid-runs
For falls installations, fix the furthest bracket first allowing for the gradient, then tie a string line back to the outlet to set intermediate brackets
For level installations, set all brackets at a consistent height close to the roof
The Ogee system requires fascia brackets spaced a maximum of 800mm apart
Clip gutter lengths into outlets first, then along the bracket run — tilt under the rear clip and press forward under the front clip
Join straight runs with a union bracket screwed to the fascia
At corners, hold the angle fitting in place, mark and cut gutter length
Connect downpipe lengths with pipe sockets facing upstream; fix to the wall with pipe clips at max 1.8m centres using No. 10 s/s screws into suitable wall plugs; use offset bends for obstructions, or a branch or hopper where two outlets feed one downpipe
On long swan necks, add a small grubscrew in a discreet position to prevent slippage
Where connecting to a different gutter system, use an appropriate adaptor
