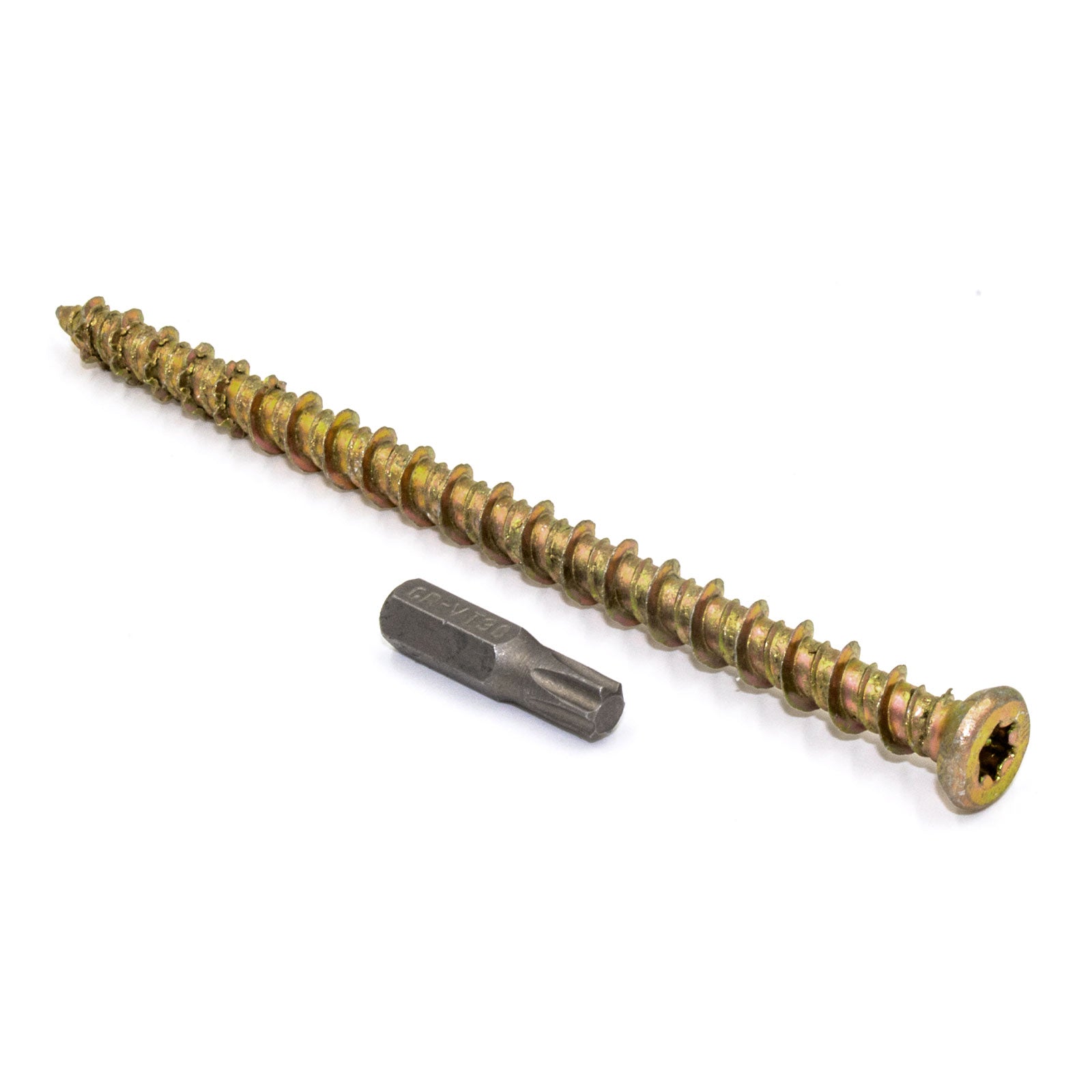

7.5mm StarFix FFT Countersunk Masonry Screws (100 Pack)

7.5mm StarFix FFT Countersunk Masonry Screws (100 Pack)

SKU: RAP-2205-1003
MPN: FFT 7.5 x 122

£9.38

Sale Sold out

Tax included. Shipping calculated at checkout.

Low stock: 2 left

Order within

h m s

for Same Day Despatch

Quantity

Have a question about this product?

View full details

Description

StarFix FFT Self-Tapping Masonry Screws (7.5mm)

Name: 7.5mm StarFix FFT Countersunk Masonry Screws (100 Pack)
Brand: Rapierstar
SKU: RAP-2205-1003
Price: 6.4 GBP
Availability: OutOfStock

(Choice of length. Box of 100)

Like plug or anchor fixings, but quicker and easier!

Box of 100, self-tapping masonry screws for plug-free fixing to brick, concrete and stone. StarFix masonry screws out-perform other plug-less fixings in both performance and durability.

The patented StarForm hi-lo thread create exceptionally strong fixings, quickly and easily. The high thread, cuts into the masonry, whilst the low thread compacts loose material to give better thread engagement. StarFix masonry screws will allow multiple re-fixing, without stripping and compromising the tapped hole.

Features & Benefits

Halves installation time - no plug or anchor needed
Highly secure fixing - excellent resistance to pull-out
Safe and strong - large 7.5mm diameter steel fixing
Lower torque - StarForm thread requires 30% less drive
Optimum drive - T30 gives better grip and less wear
Includes T30 drill bit - T30 gives better grip and less wear

Manufactured by Rapierstar, these electroplated yellow carbon steel screws have a precision T30 star drive, which gives optimum drive efficiency, improving grip and extending bit life. Complies with provision for CE marking and exceeds British and European standards of extended corrosion resistance.

Specification

Measurement	Value
Head Style	Truncated countersunk
Head Diameter	11.3mm ±0.5mm
Shank Diameter	7.5mm
Shank Length	62mm, 82mm, 102mm, 112mm, 122mm, 142mm, 152mm, 182mm, 202mm
Drive Bit	Torx 30
Point	Sharp Point
Shank Material	Carbon Steel
Coating	Electroplated Yellow
Corrosion Protection	BS EN 1670:2007 Service Class 3 acc. To EN 9227:2012
Material Grade	AISI C1018/C1022
Thread Form	Hi-Lo, partial patented ‘StarForm’ cutting thread
Effective Thread Length	Fully-threaded
Application	Fixing wood, metal, or PVCu frames to masonry
Pack Size	100

Fitting & Usage

How to use the 7.5mm StarFix FFT Masonry Screws (100 Pack)

The StarFix self-tapping masonry screws will cut their own thread in pre-drilled pilot holes of 6/6.5mm. Suggested screw-in depth varies depending on type and condition of substrate.

Typical Pull-out Values*

Substrate	Screw-in Depth	Average Pull-out Value
Engineering Brick	40mm	8.8kN
Concrete Block	50mm	14.79kN
London Brick	45mm	11.75kN

* Pull-out figures are typical, ultimate pull-out values depend on condition of material. It is always recommended that condition of the substrate is assessed, and testing is carried out before use.

Ultimate Mechanical Performance

Diameter	Torque to Break	Shear Test Peak Yield
7.5mm	15.69Nm	17kN
