Ultraframe CAPA Replacement Top Cap

Ultraframe CAPA Replacement Top Cap

SKU: ULT-2208-1006
MPN: CAPA601_2.9M

£29.30

Sale Sold out

Tax included. Shipping calculated at checkout.

10+ in stock

Order within

h m s

for Same Day Despatch

Quantity

Have a question about this product?

View full details

Description

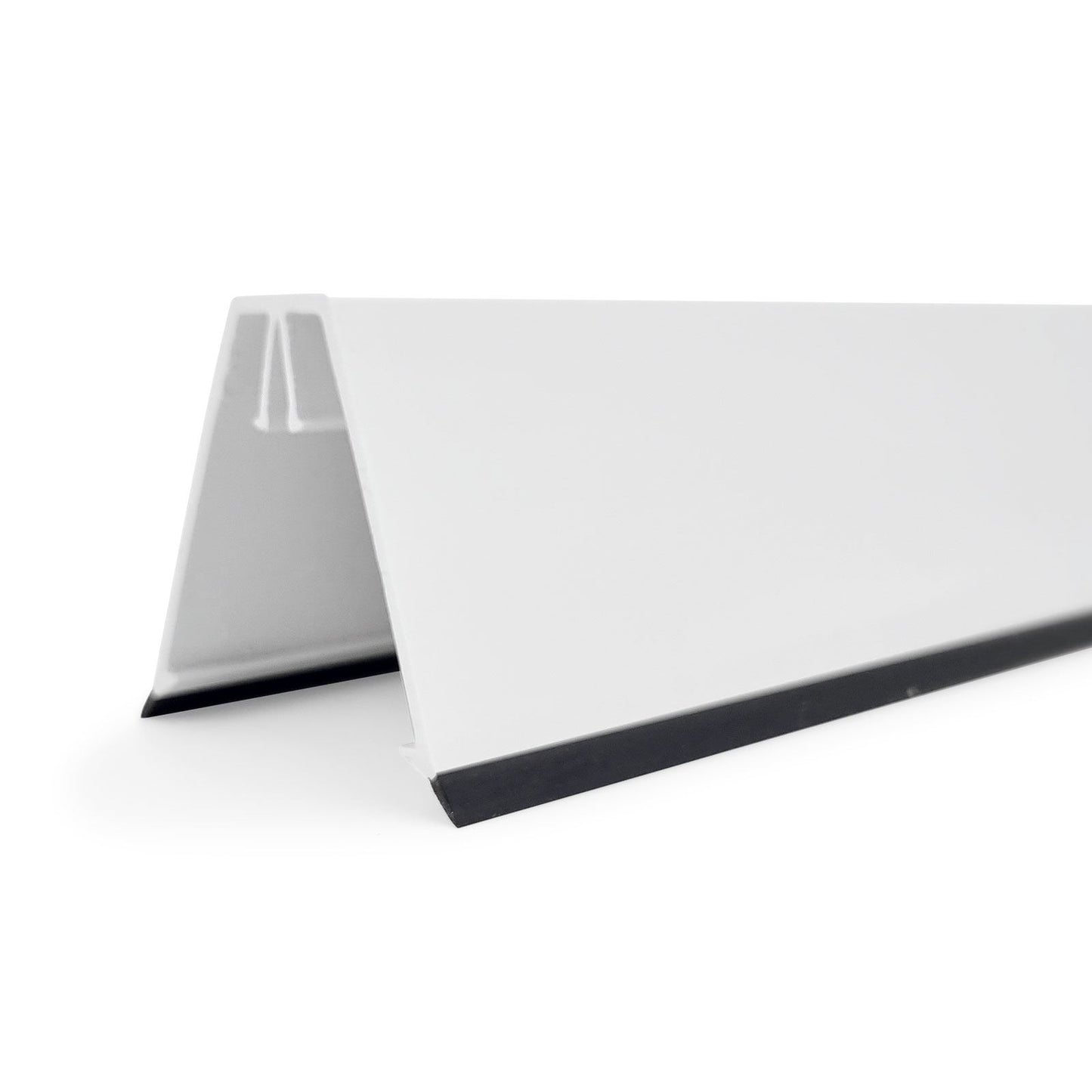

Replacement Ultraframe Glazing Bar Top Caps

Name: Ultraframe CAPA Replacement Top Cap
Brand: Ultraframe
SKU: ULT-2208-1006
Price: 29.3 GBP
Availability: InStock

(Choose capping type, and length)

Solves common leak problems!

Durable single-walled uPVC plastic replacement rafter top caps for older Ultraframe Classic conservatory roofs. Includes capings for intermediate transoms (also suitable for Victorian hips), and Georgian hips.

Conservatory rafter top caps are exposed to some extreme weather conditions, which over time can take their toll. The cappings can loose compression, become cracked, and the rubber that seals the top of the glazing material can break down. Such conditions can lead to water ingress, and leaks within your home. Replacing failed top cappings can be a relatively low-cost solution, that will help you enjoy your room once.

Features & Benefits

Ultraframe quality - products that can be trusted
Durable extrusion - long-lasting PVC-u material
Improved weather seal - flexible coextruded gasket
Choice of Capping - suits victorian and georgian
Easy installation - simple tap-down fitting

The glazing bar top cappings are produced to an exceptional standard with the high quality finish that we expect from Ultraframe, the industry's leading manufacturer with over 1.5 million roofs installed.

IMPORTANT Always check suitability before purchase, as although cappings may appear similar to cappings of other manufacturers, there is no assurance that they will lock securely into other bars, nor that they will provide the required water seal compression.

Specification

Measurement	Value
Material	PVC-u extrusion with coextruded Thermoplastic Elastomer (TPE) gasket
Profile	Chamfered Angle
Length	2m (6ft 7in), 2.9m (9ft 6in), and 4m (13ft 1in)
System Compatibility	Older Ultraframe conservatory roofs, and some Wendland glazing bars. Refer to the table and grphic under Identify Suitability to determine the correct capping before purchase.
Colour	White

>Choosing the Right CAPA Number

Before purchasing, we recommend that you check compatibility. These cappings are manufactured by Ultraframe for their older conservatories, and their Series 5, 6, and 7 glazing bars. To identify your conservatory roof system, refer to any installation paperwork, and compare the profile of your bar and capping. Manufacturer part numbers may also be printed on the underside of the capping.

Identify by Bar and Glazing Type

The following table and graphic will help you to identify the required CAPA number, if you know the bar type and glazing thickness.

Glazing Bar		Glazing Thickness (mm)
Series	Type	10	16	20	24/25	28	32
Series 5	Transom / Victorian Hip	CAPA1
Series 5	Georgian Hip	CAPA3	CAPA4
Series 6	Transom / Victorian Hip		CAPA1	CAPA1
Series 6	Georgian Hip		CAPA5	CAPA3
Series 7	Transom / Victorian Hip		CAPA5	CAPA3	CAPA4	CAPA4	CAPA1
Series 7	Georgian Hip				CAPA6	CAPA6	CAPA5

Identify Ultraframe CAPA type for different series glazing bars

Identify by Side Length

The measurement of an existing capping can help identify the cappings used, but please consider that there can be variance due to expansion and contraction of the material. The length of side angle is the most reliable measurement. Please also consider that changing the glazing thickness, may affect the capping suitability.

Ultraframe CAPA Glazing Bar Top Cap Sizes

Contents

Fitting & Usage

Fitting the Ultraframe Glazing Bar Top Caps

Once cut to length using an electric chop saw, or fine toothed handsaw, the capping can be easily fitted to the aluminium glazing bar upstand, without any special tools. Simply align the end of the capping with the end of the bar, and knock hooked legs of the capping into the barbed aluminium upstand. The upstand features multiple locking points, which accommodate different glazing thicknesses, and allows watertight compression of the top capping flapper seal against the glazing material.

How to Remove Existing Cappings

Removal of existing cappings can be difficult, but there are tools and methods that will help. The top capping legs, which lock into the aluminium glazing bar, will need to be unhooked. The Ultraframe Glazing Bar Capping Removal Tool can really help with this, as it features two vertical blades that insert into the end of the bar to release the legs, and then allow an upwards motion to pull the capping out.

* Long nose pliers, or two flat screwdrivers, can be used in absence of the removal tool. A gasket that may have become stuck to the glazing material can be freed by running a putty knife, or similar, up the length of the capping.
