TapcoSlate Classic Edwardian & Victorian Hip End Cap

TapcoSlate Classic Edwardian & Victorian Hip End Cap

SKU: TAP-2421-1001
MPN: OB5715804

£31.86

Sale

Tax included. Shipping calculated at checkout.

Low stock: 4 left

Quantity

Have a question about this product?

View full details

Description

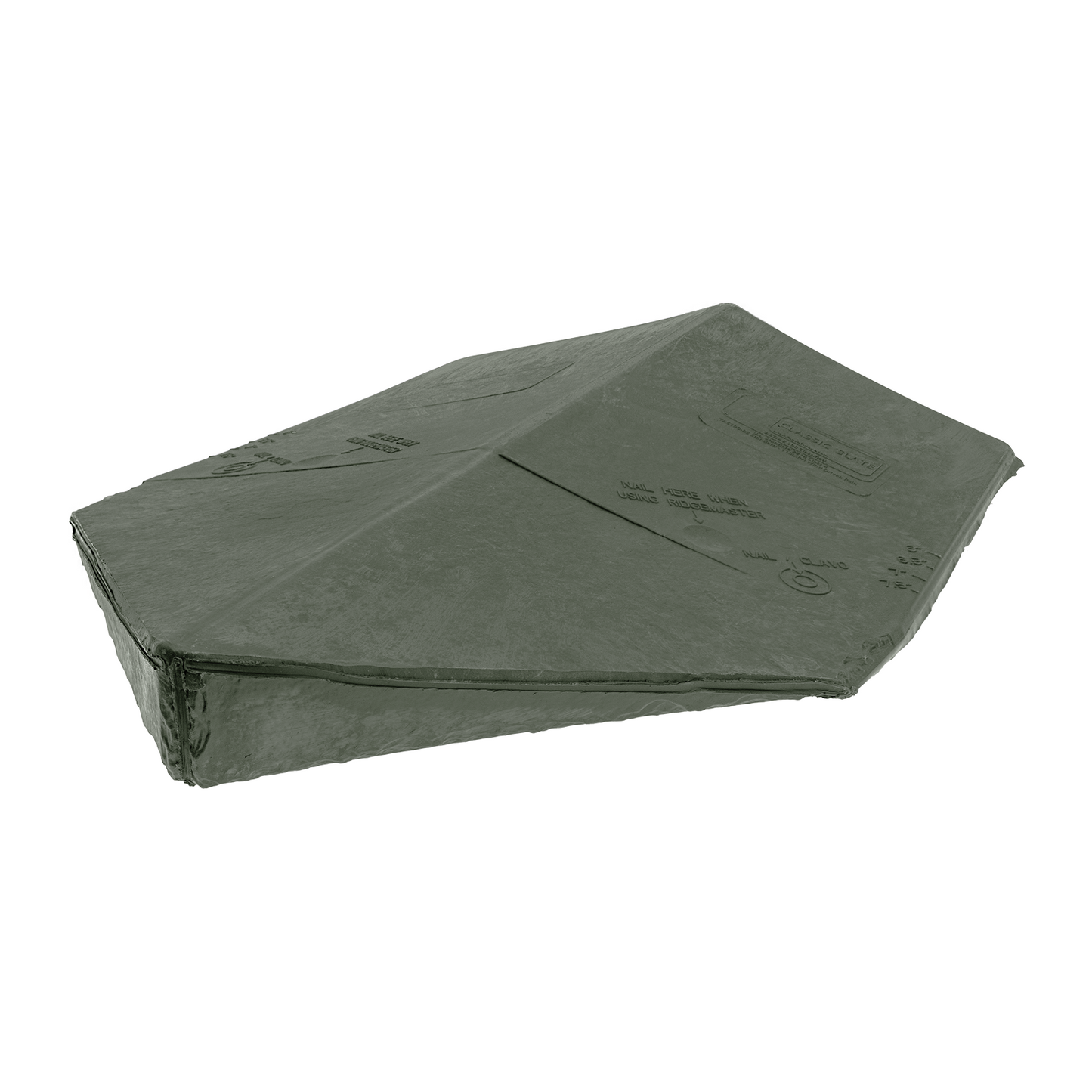

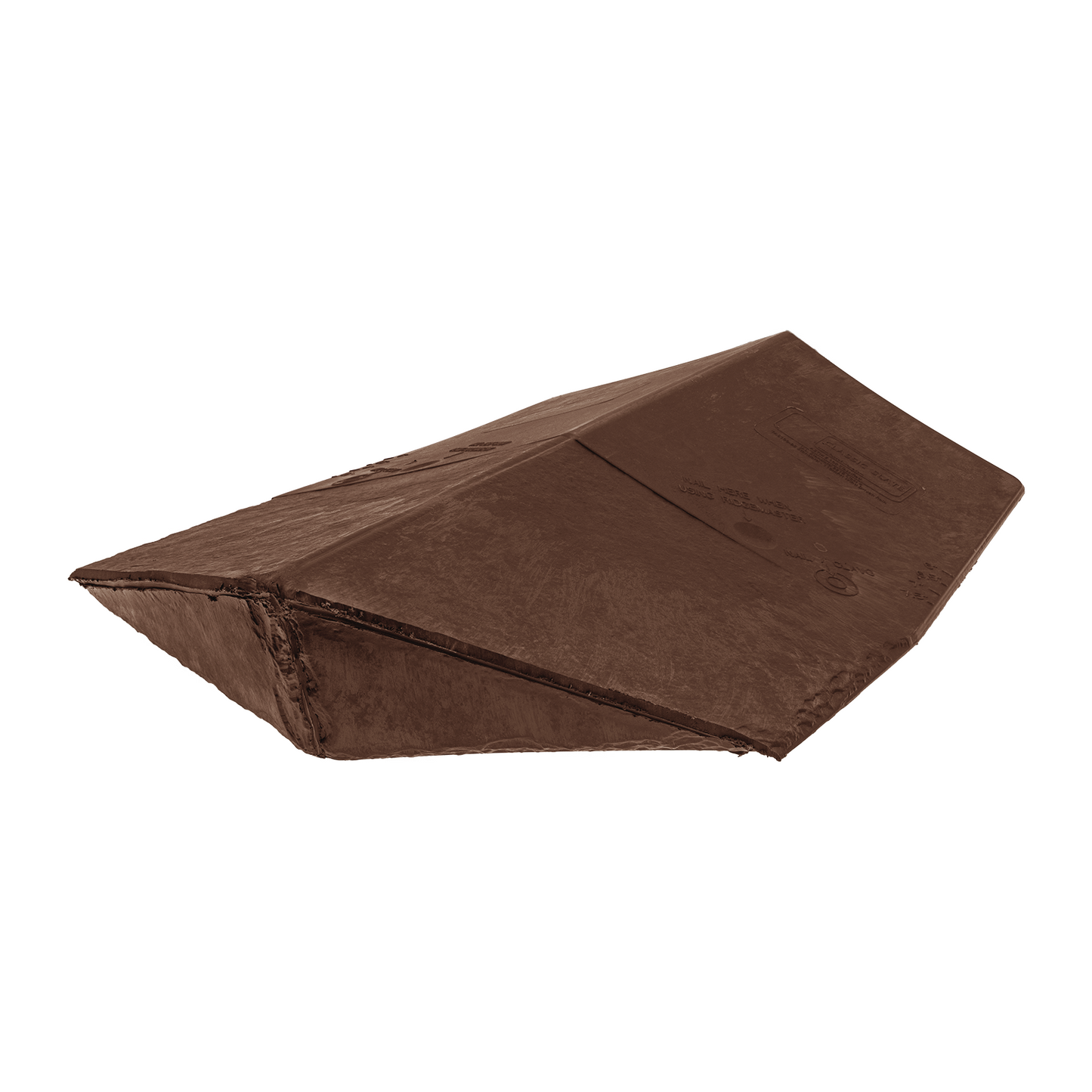

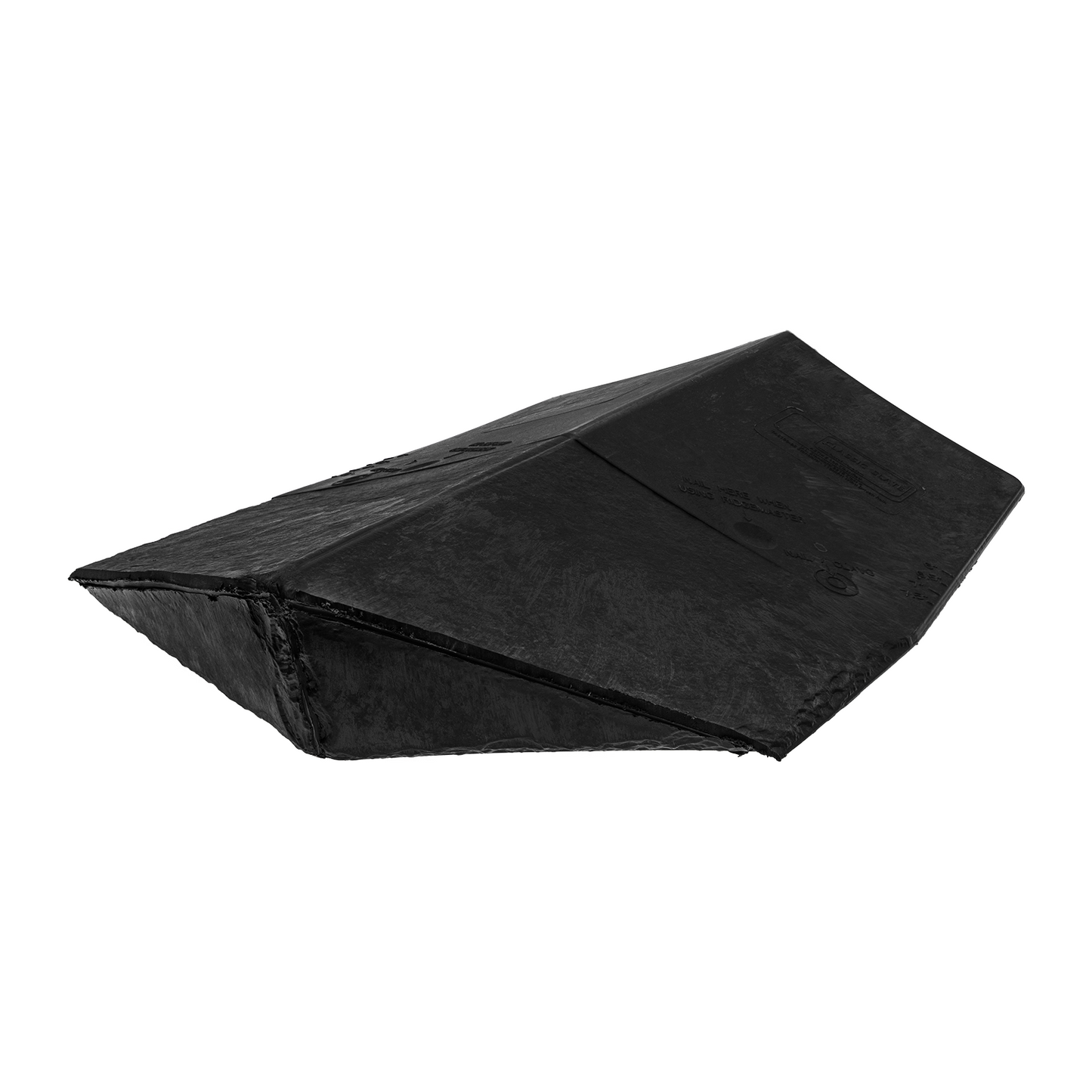

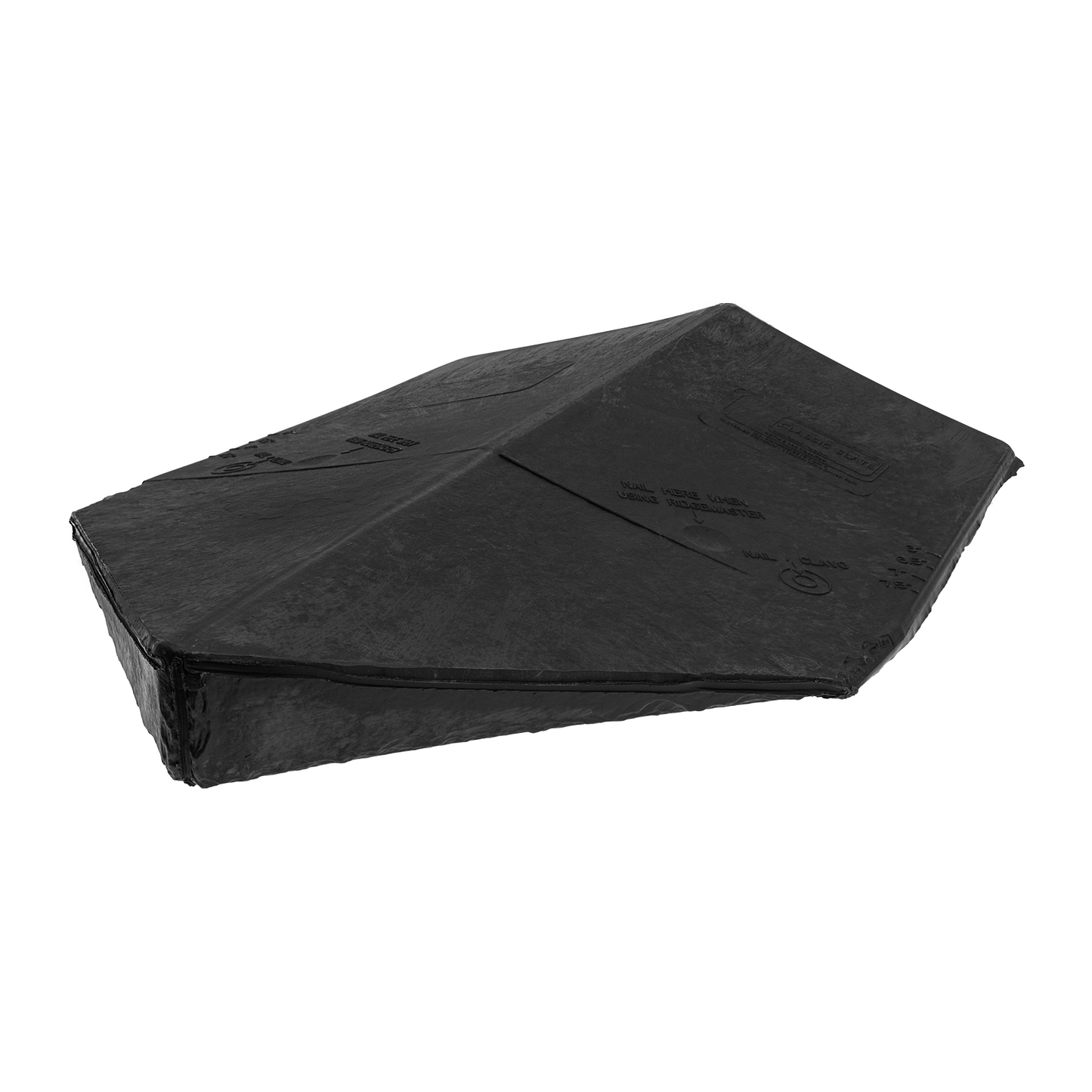

TapcoSlate Classic Edwardian & Victorian Hip End Cap

Name: TapcoSlate Classic Edwardian & Victorian Hip End Cap
Brand: Tapco Slate
SKU: TAP-2421-1001
Price: 31.86 GBP
Availability: InStock

(Choice of colour and angle)

Tailored dry-fix mortar-free finish

Eliminate the need for traditional mortar joints at the base of hip rafters with a high-performance, dry-fix termination. Purpose-made for Edwardian (90°) and Victorian (135°) roof geometries, TapcoSlate Classic Hip End Caps deliver a precise mechanical fit that simplifies installation on complex hip configurations and bay window roofs. The result is a secure, weather-tight seal that protects against water ingress while maintaining a sharp, consistent architectural line across the roof's lower edges.

TapcoSlate Classic is a premium lightweight synthetic roof slate engineered to replicate the character of natural slate while delivering the durability of modern composite materials. Suitable for both new build and refurbishment projects, it provides a low-maintenance roofing solution that combines authentic stone aesthetics with exceptional strength and long-term weather resistance.

Features & Benefits

Style-specific – neatly seals and closes Edwardian (90°) and Victorian (135°) hips at the eaves
Virtually indestructible – Class 4 impact rated; won't crack or break if dropped or walked on
High performance – 110 mph wind resistance, UV inhibitors, and watertight down to 12° pitches
Rapid dry-fix install – pre-marked guides and easy-to-cut composite for fast, tool-friendly fitting
Ultra-lightweight – ideal for conservatories and lighter timber structures at just 12 kg/m²
Authentic slate look – cast from real slate moulds without the weight or fragility of stone
40-year warranty – long-term manufacturer cover automatically applied upon delivery
Fully certified – BBA, UKTA, and ETA tested for fire safety, wind, and weather performance

Applications

Residential houses
Barn conversions
Extensions
Garden rooms
Heritage-style developments
Sheds
Bird baths

Did you know? TapcoSlate tiles are produced from 16 unique moulds, recreating the natural variation of genuine slate across the roof.

Specification

Technical Information

Measurement	Value
Colour	Pewter Grey (804), Stone Black (801), Brick Red (709), Chestnut Brown (712), Red Rock (809), Plum (706), Olive Green (814)
Size	450mm x 320mm x 45mm (Edwardian) 445mm x 300mm x 72mm (Victorian)
Weight	500g (Edwardian) 640g (Victorian)
Material	Recyclable blend of limestone and polypropylene
Batten Sizes	50mm × 25mm treated roofing battens (minimum)
Pitch	12° to 70°
Fixing	Large 10mm diameter head, galvanised 1.2" (30mm) by 0.1" (2.5mm) steel nails or 1.2" (30mm) by 0.14" (3.5mm) outdoor Phillips bugle screws (using hammer/screwdriver or nail/screw-gun). Longer 2" (50mm) nail or outdoor Phillips bugle screw required for fixing ridges and hips. Corrosion resistant fasteners are always recommended, especially in coastal areas. In Scotland we recommend the use of StainlessSteel nails for fixing. 7.1mm diameter nail heads are recommended when using a nail gun.
Cutting	Fine-toothed handsaw, jigsaw, circular saw, or sharp utility blade (score and break)
Storage/Temperature	Must be conditioned at a temperature no lower than 7° for 24 hours prior to use. May be installed in temperatures as low as 0° but must be hand fastened. Tapco recommends fastening with a pneumatic gun in temperatures above 7°
Warranty	40-year manufacturer warranty
Expected Lifespan	Estimated service life exceeding 75 years

Ratings & Certification

Measurement	Value
Freeze–Thaw Resistance	No damage after 300 freeze–thaw cycles
Water Absorption	No measurable weight gain
Water Permeability	Impermeable
UV Resistance	ASTM G155 Xenon Arc accelerated weathering – 2000 hours with no degradation
Impact Rating	Class 4 (UL 2218)
Wind Resistance	Up to 110mph (Miami Dade TAS-110)
Wind-Driven Rain	EN 15601 compliant; tested down to 12° pitch
Fire Rating	BROOF(t4) to EN 13501-5; BS 476-3 EXT.S.AA / EXT.S.AC
Certifications	BBA Certificate 08/4603, ETA-20/0913, UKTA-0836-22/6064, CE and UKCA marking

Contents

Fitting & Usage

The hip end on a TapcoSlate Classic roof is finished using a cut-to-size-and-shape Classic hip tile at the eaves. Hip caps run at a definitive 6" (152mm) exposure throughout, with the final piece cut and shaped to complete the hip end cap weather-tightly.

Preparation

On felt & batten roofs, lay a 24" (600mm) wide strip of underlay over the full hip from eave to ridge, overlapping standard underlay on either side. Fix tiling battens either side of the hip rafter, and fit slating battens flush to these. Confirm the eaves course is in place before fitting the final hip piece.

Application

Maintain a strict 6" (152mm) exposure on all hip caps throughout — this must not be exceeded
Fix all hip caps using minimum 2" (51mm) nails or screws, one either side, through the cap below
Hold the hip cap by the faced side when fixing to avoid pivoting
Cut the final eaves piece to size and angle using a fine-toothed handsaw, jigsaw, circular saw, or sharp utility blade — TapcoSlate cuts without splintering
Nail the shaped eaves piece to the hip rafter and tiling battens; on a boarded roof, fix to a timber fillet
Cover all exposed fastener heads with butyl-based sealant — do not use silicone

Health & Safety

Use appropriate access equipment and follow working-at-height regulations
Caps and slates can be slippery when wet — take care during installation
Below 7°C, hand fasten only — a pneumatic nail gun below this temperature will cause cracking and webbing

Additional Remarks

The minimum number of hip caps per linear metre is 6 at the definitive 6" exposure — do not over-expose
Improper fixing can compromise the roof system and voids the manufacturer's warranty
Stainless steel nails are recommended in coastal areas and in Scotland
