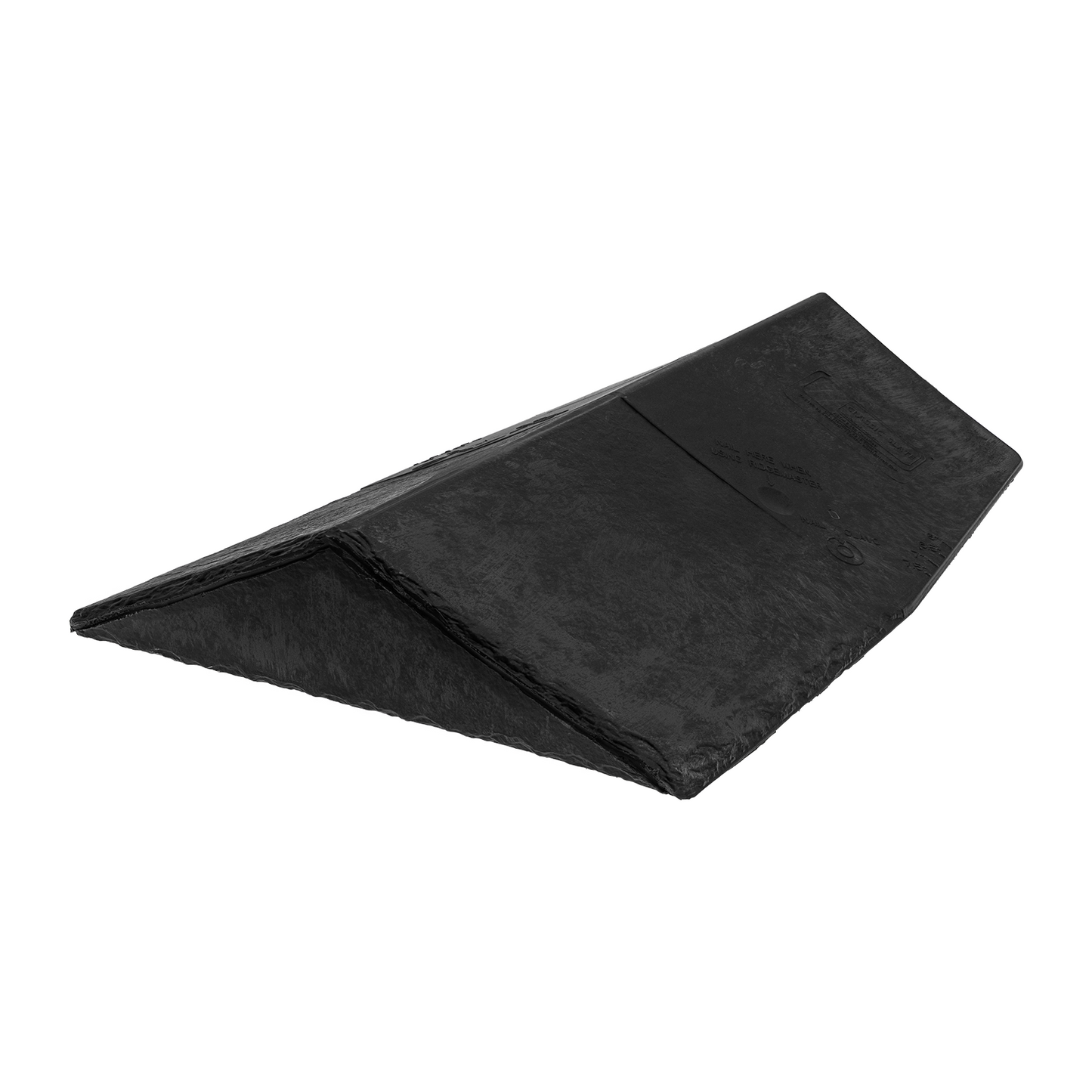

TapcoSlate Classic Ridge End Cap

TapcoSlate Classic Ridge End Cap

SKU: TAP-2423-1001
MPN: OB56/25AREC561

£31.86

Sale

Tax included. Shipping calculated at checkout.

9 in stock

Quantity

Have a question about this product?

View full details

Description

TapcoSlate Classic Ridge End Cap

Name: TapcoSlate Classic Ridge End Cap
Brand: Tapco Slate
SKU: TAP-2423-1001
Price: 31.86 GBP
Availability: InStock

(Choice of colour and pitch)

Precision-fused watertight gable protection

Precision-engineered by heat-fusing a ridge cap with a slate tile section, TapcoSlate Classic Ridge End Caps create a single integrated unit designed specifically to finish the gable end of a slate ridge. Eliminating complex on-site cutting and shaping, the pre-formed design ensures a consistent, watertight termination along the ridgeline. As a high-performance dry-fix alternative to mortar-finished ends, it protects the roof perimeter against wind uplift and driving rain while maintaining a clean, uniform ridge profile.

TapcoSlate Classic is a premium lightweight synthetic roof slate engineered to replicate the character of natural slate while delivering the durability of modern composite materials. Suitable for both new build and refurbishment projects, it provides a low-maintenance roofing solution that combines authentic stone aesthetics with exceptional strength and long-term weather resistance.

Features & Benefits

Gable-end protection – watertight finish for open ridges; impervious to wind uplift and leaks
Virtually indestructible – Class 4 impact rated; won't crack or break if dropped or walked on
High performance – 110 mph wind resistance, UV inhibitors, and watertight down to 12° pitches
Rapid dry-fix install – pre-marked guides and easy-to-cut composite for fast, tool-friendly fitting
Ultra-lightweight – ideal for conservatories and lighter timber structures at just 12 kg/m²
Authentic slate look – cast from real slate moulds without the weight or fragility of stone
40-year warranty – long-term manufacturer cover automatically applied upon delivery
Fully certified – BBA, UKTA, and ETA tested for fire safety, wind, and weather performance

Applications

Residential houses
Barn conversions
Extensions
Garden rooms
Heritage-style developments
Sheds
Bird baths

Did you know? TapcoSlate tiles are produced from 16 unique moulds, recreating the natural variation of genuine slate across the roof.

Specification

Technical Information

Measurement	Value
Colour	Pewter Grey (804), Stone Black (801)
Size	445mm x 290mm x 70mm (25-29°) 445mm x 275mm x 80mm (30-34°)
Weight	820g (25-29°) 840g (30-34°)
Material	Recyclable blend of limestone and polypropylene
Batten Sizes	50mm × 25mm treated roofing battens (minimum)
Pitch	12° to 70°
Fixing	Large 10mm diameter head, galvanised 1.2" (30mm) by 0.1" (2.5mm) steel nails or 1.2" (30mm) by 0.14" (3.5mm) outdoor Phillips bugle screws (using hammer/screwdriver or nail/screw-gun). Longer 2" (50mm) nail or outdoor Phillips bugle screw required for fixing ridges and hips. Corrosion resistant fasteners are always recommended, especially in coastal areas. In Scotland we recommend the use of Stainless-Steel nails for fixing. 7.1mm diameter nail heads are recommended when using a nail gun.
Cutting	Fine-toothed handsaw, jigsaw, circular saw, or sharp utility blade (score and break)
Storage/Temperature	Must be conditioned at a temperature no lower than 7° for 24 hours prior to use. May be installed in temperatures as low as 0° but must be hand fastened. Tapco recommends fastening with a pneumatic gun in temperatures above 7°
Warranty	40-year manufacturer warranty
Expected Lifespan	Estimated service life exceeding 75 years

Ratings & Certification

Measurement	Value
Freeze–Thaw Resistance	No damage after 300 freeze–thaw cycles
Water Absorption	No measurable weight gain
Water Permeability	Impermeable
UV Resistance	ASTM G155 Xenon Arc accelerated weathering – 2000 hours with no degradation
Impact Rating	Class 4 (UL 2218)
Wind Resistance	Up to 110mph (Miami Dade TAS-110)
Wind-Driven Rain	EN 15601 compliant; tested down to 12° pitch
Fire Rating	BROOF(t4) to EN 13501-5; BS 476-3 EXT.S.AA / EXT.S.AC
Certifications	BBA Certificate 08/4603, ETA-20/0913, UKTA-0836-22/6064, CE and UKCA marking

Contents

Fitting & Usage

The TapcoSlate Classic Ridge 90° End Cap closes and weatherseals the open end of a ridge run at a gable. Available in pitch ranges of 25–29°, 30–34°, and 35–40°. It is fixed in the same manner as standard ridge caps and receives a standard Classic Ridge Cap over the top in the standard fixing position.

Preparation

Select the correct pitch variant before ordering. Ensure the ridge cap run is complete and that end battens and/or truss material are sound before fitting. Where the roof pitch falls outside the available ranges, use the alternate cut-slate method described below.

Application

Fix the end cap to battens using two 3" (76mm) galvanised or stainless steel clout nails or outdoor Phillips Bugle screws
Place a standard Classic Ridge Cap over the end cap at the correct exposure — maximum 7½" (191mm), or minimum 6" (152mm) in high-wind/driving-rain locations
Fix through the cap below using two fixings, one either side; cover exposed fastener heads with butyl-based sealant
If no pre-formed cap suits the pitch, cut a standard TapcoSlate to a triangle or diamond shape, nail to end battens/truss, and seal with butyl or bitumen sealant — alternatively bond with strong epoxy glue per manufacturer's instructions

Health & Safety

Use appropriate access equipment and follow working-at-height regulations
At gable positions, maintain a safe working distance from the roof edge at all times
Caps can be slippery when wet — take care during installation

Additional Remarks

Do not use silicone sealant at any joint — use butyl or bitumen only, as silicone will invalidate the warranty
Do not leave the ridge run open overnight — fit end caps or temporary weatherproofing at the close of each working day
Do not use red chalk when setting out — blue chalk only, as red chalk can stain the product
