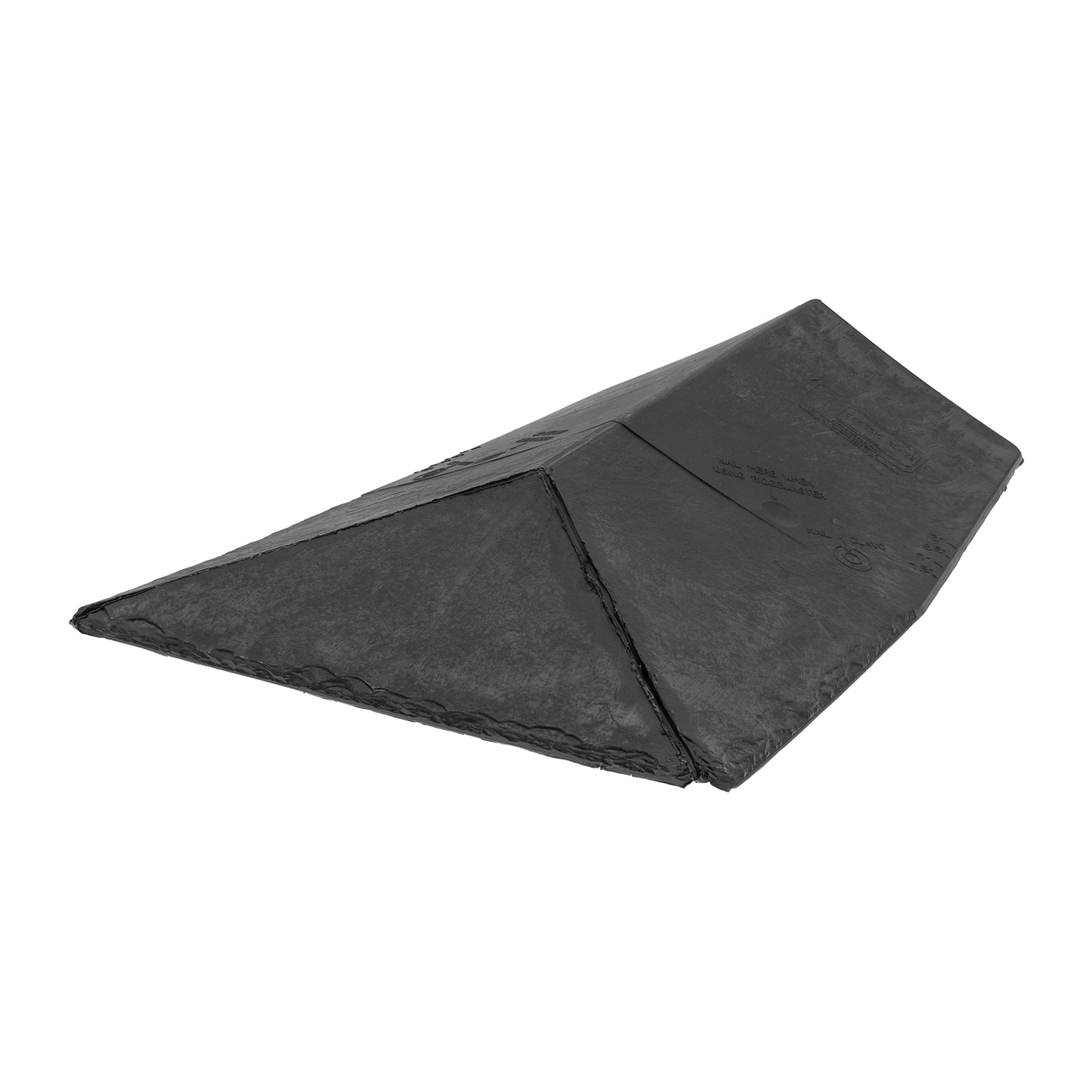

TapcoSlate Classic Ridge-to-Hip Junction

TapcoSlate Classic Ridge-to-Hip Junction

SKU: TAP-2420-1001
MPN: OB56/14ARHC561

£40.92

Sale

Tax included. Shipping calculated at checkout.

10 in stock

Quantity

Have a question about this product?

View full details

Description

TapcoSlate Classic Ridge-to-Hip Tile

Name: TapcoSlate Classic Ridge-to-Hip Junction
Brand: Tapco Slate
SKU: TAP-2420-1001
Price: 40.92 GBP
Availability: InStock

(Choice of colour and pitch)

Simplified 3-way weatherproofing for complex intersections

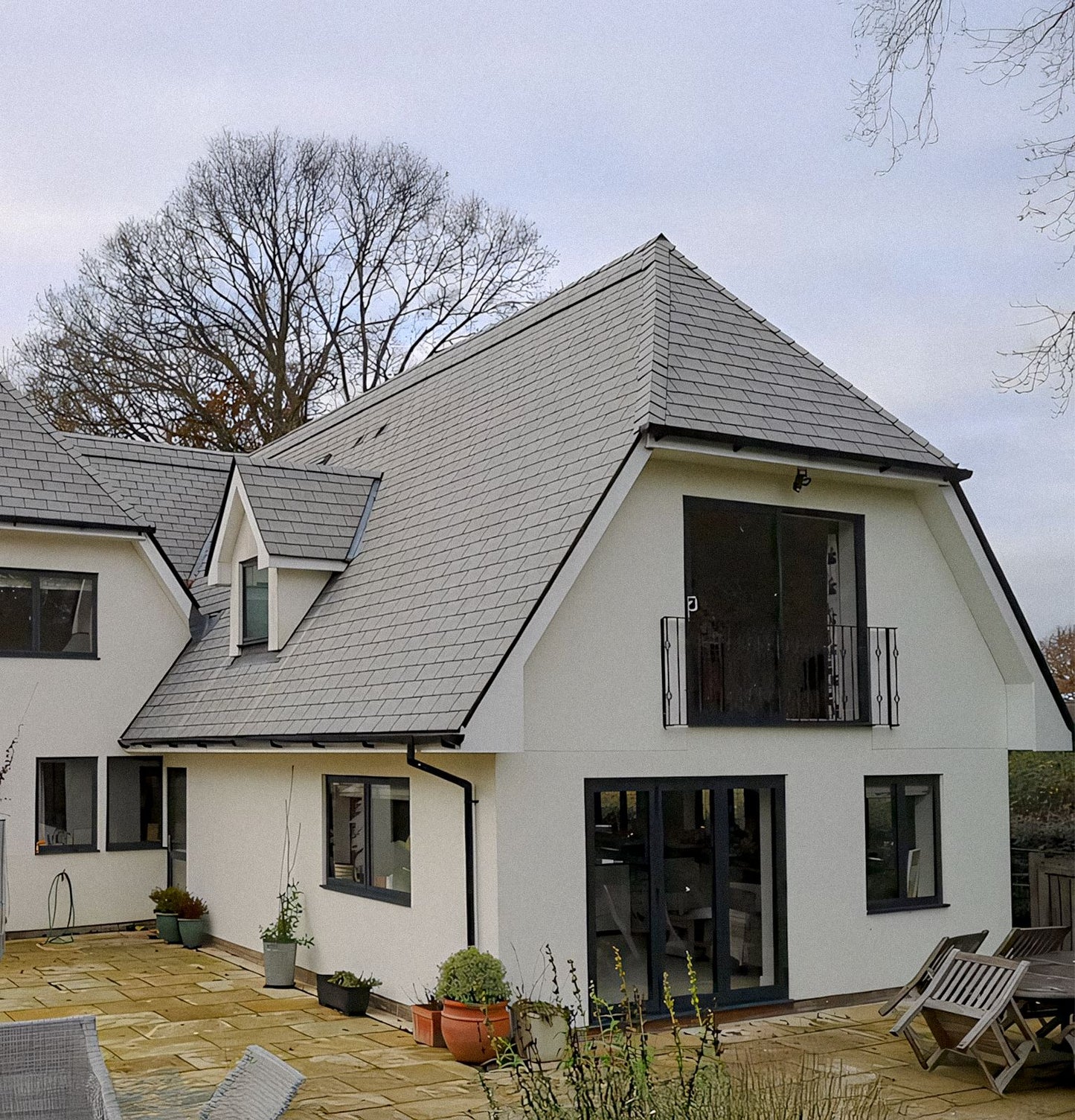

Simplify complex roof geometry with a dedicated TapcoSlate Classic Ridge-to-Hip Cap where the main ridge meets two hip rafters. Ideal for Edwardian and Georgian hipped roof designs, it removes the need for complex mitring, cutting, or forming at one of the most awkward and demanding points of the roof. The seamless unit creates a precise, fully weatherproof intersection, ensuring consistent alignment of the ridge and hips while delivering a professional finish without traditional lead work or mortar construction.

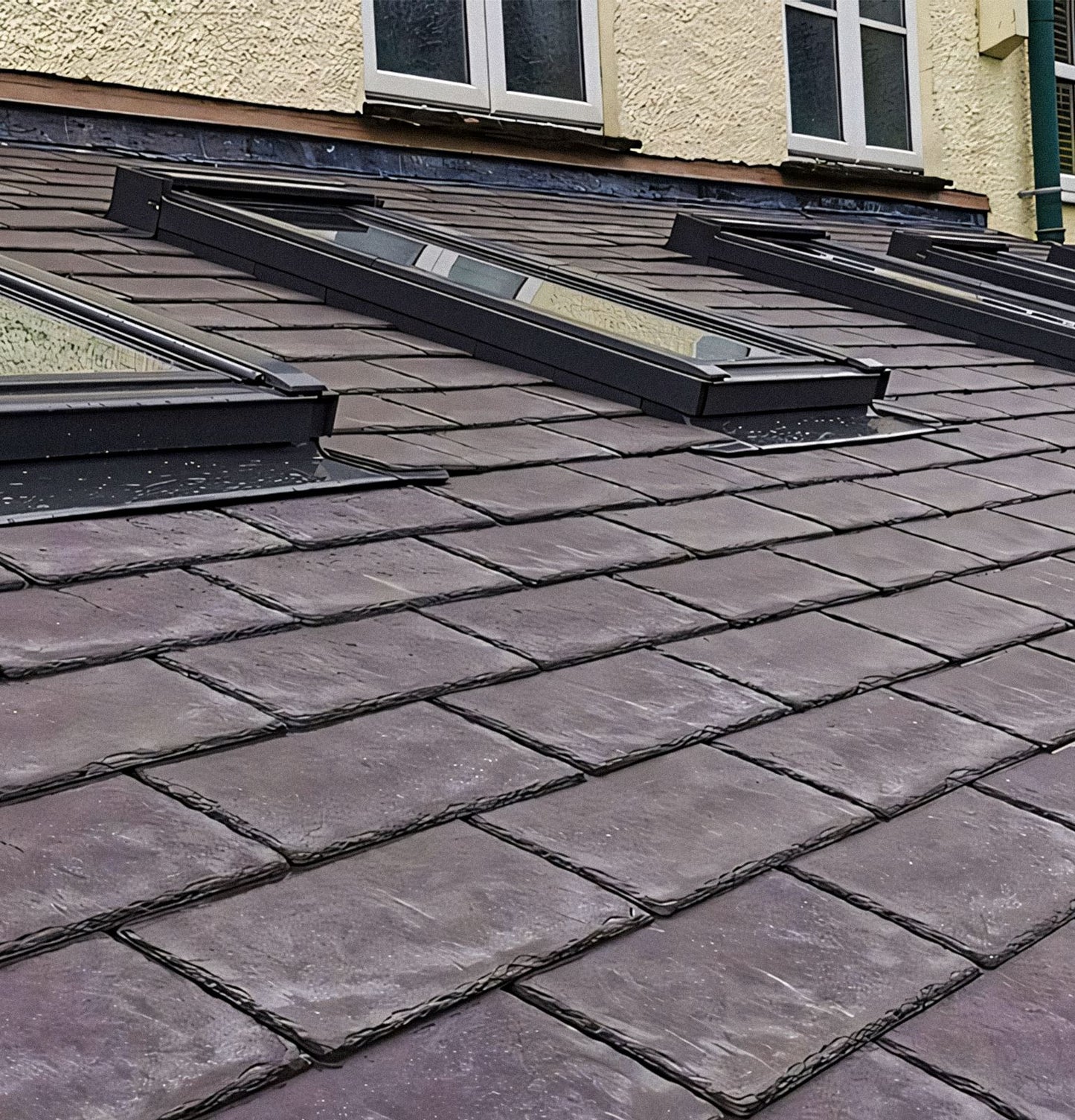

TapcoSlate Classic is a premium lightweight synthetic roof slate engineered to replicate the character of natural slate while delivering the durability of modern composite materials. Suitable for both new build and refurbishment projects, it provides a low-maintenance roofing solution that combines authentic stone aesthetics with exceptional strength and long-term weather resistance.

Features & Benefits

3-way junction – watertight ridge-to-hip cap designed for Edwardian and Georgian roofs
Virtually indestructible – Class 4 impact rated; won't crack or break if dropped or walked on
High performance – 110 mph wind resistance, UV inhibitors, and watertight down to 12° pitches
Rapid dry-fix install – pre-marked guides and easy-to-cut composite for fast, tool-friendly fitting
Ultra-lightweight – ideal for conservatories and lighter timber structures at just 12 kg/m²
Authentic slate look – cast from real slate moulds without the weight or fragility of stone
40-year warranty – long-term manufacturer cover automatically applied upon delivery
Fully certified – BBA, UKTA, and ETA tested for fire safety, wind, and weather performance

Applications

Residential houses
Barn conversions
Extensions
Garden rooms
Heritage-style developments
Sheds
Bird baths

Did you know? TapcoSlate tiles are produced from 16 unique moulds, recreating the natural variation of genuine slate across the roof.

Specification

Technical Information

Measurement	Value
Colour	Pewter Grey (804), Stone Black (801)
Size	445mm x 300mm x 45mm (14-27°) 445mm x 290mm x 50mm (18-23°) 445mm x 285mm x 60mm (24-30°)
Weight	720g (14-27°) 780g (18-23°) 760g (24-30°)
Material	Recyclable blend of limestone and polypropylene
Batten Sizes	50mm × 25mm treated roofing battens (minimum)
Pitch	12° - 70°
Fixing	Large 10mm diameter head, galvanised 1.2" (30mm) by 0.1" (2.5mm) steel nails or 1.2" (30mm) by 0.14" (3.5mm) outdoor Phillips bugle screws (using hammer/screwdriver or nail/screw-gun). Longer 2" (50mm) nail or outdoor Phillips bugle screw required for fixing ridges and hips. Corrosion resistant fasteners are always recommended, especially in coastal areas. In Scotland we recommend the use of Stainless-Steel nails for fixing. 7.1mm diameter nail heads are recommended when using a nail gun.
Cutting	Fine-toothed handsaw, jigsaw, circular saw, or sharp utility blade (score and break)
Storage/Temperature	Must be conditioned at a temperature no lower than 7° for 24 hours prior to use. May be installed in temperatures as low as 0° but must be hand fastened. Tapco recommends fastening with a pneumatic gun in temperatures above 7°
Warranty	40-year manufacturer warranty
Expected Lifespan	Estimated service life exceeding 75 years

Ratings & Certification

Measurement	Value
Freeze–Thaw Resistance	No damage after 300 freeze–thaw cycles
Water Absorption	No measurable weight gain
Water Permeability	Impermeable
UV Resistance	ASTM G155 Xenon Arc accelerated weathering – 2000 hours with no degradation
Impact Rating	Class 4 (UL 2218)
Wind Resistance	Up to 110mph (Miami Dade TAS-110)
Wind-Driven Rain	EN 15601 compliant; tested down to 12° pitch
Fire Rating	BROOF(t4) to EN 13501-5; BS 476-3 EXT.S.AA / EXT.S.AC
Certifications	BBA Certificate 08/4603, ETA-20/0913, UKTA-0836-22/6064, CE and UKCA marking

Contents

Fitting & Usage

The TapcoSlate Classic Angled Ridge-to-Hip Junction is a pre-formed accessory providing a weathertight transition where a ridge meets a hip. Available in pitch ranges of 14–17°, 18–23°, and 24–30°. When used correctly, a separate lead saddle is not required.

Preparation

Select the correct pitch variant before ordering. Mitre and cut the tops of hip caps to fit neatly against the junction unit before final fixing. On felt & batten roofs, confirm tiling battens are fixed either side of the hip rafter and that slating battens are flush to these.

Application

Fix the junction unit to battens using two 3" (76mm) galvanised or stainless steel clout nails or outdoor Phillips Bugle screws
Place a standard Classic Ridge Cap over the junction unit at the correct exposure and fix through using two fixings, one either side
Cover exposed fastener heads with butyl-based sealant — do not use silicone as this will invalidate the warranty
Nail and screw heads can be disguised with bitumen paint, colour-matched screw caps, or black nail tacks

Health & Safety

Use appropriate access equipment and follow working-at-height regulations
Hold ridge and hip caps by the faced side when fixing to avoid pivoting
Caps can be slippery when wet — take care during installation

Additional Remarks

Also suitable for 3-way applications on Edwardian conservatories
Where a DIY intersection is made instead, a lead saddle must be fitted to weatherproof the joint — this is not required when using the pre-formed accessory
Use butyl or bitumen sealant only — silicone will not adhere and invalidates the warranty
