| Measurement | Value |
|---|---|
| Material | Die Cast Zinc (Backplate, Handle) - PVD Gold, Polished Chrome, Satin Chrome Aluminium (Backplate, Handle) - White, Anthracite Grey, Black Nylon and ABS (Mouldings) Passivated mild steel bar (Spindle) |

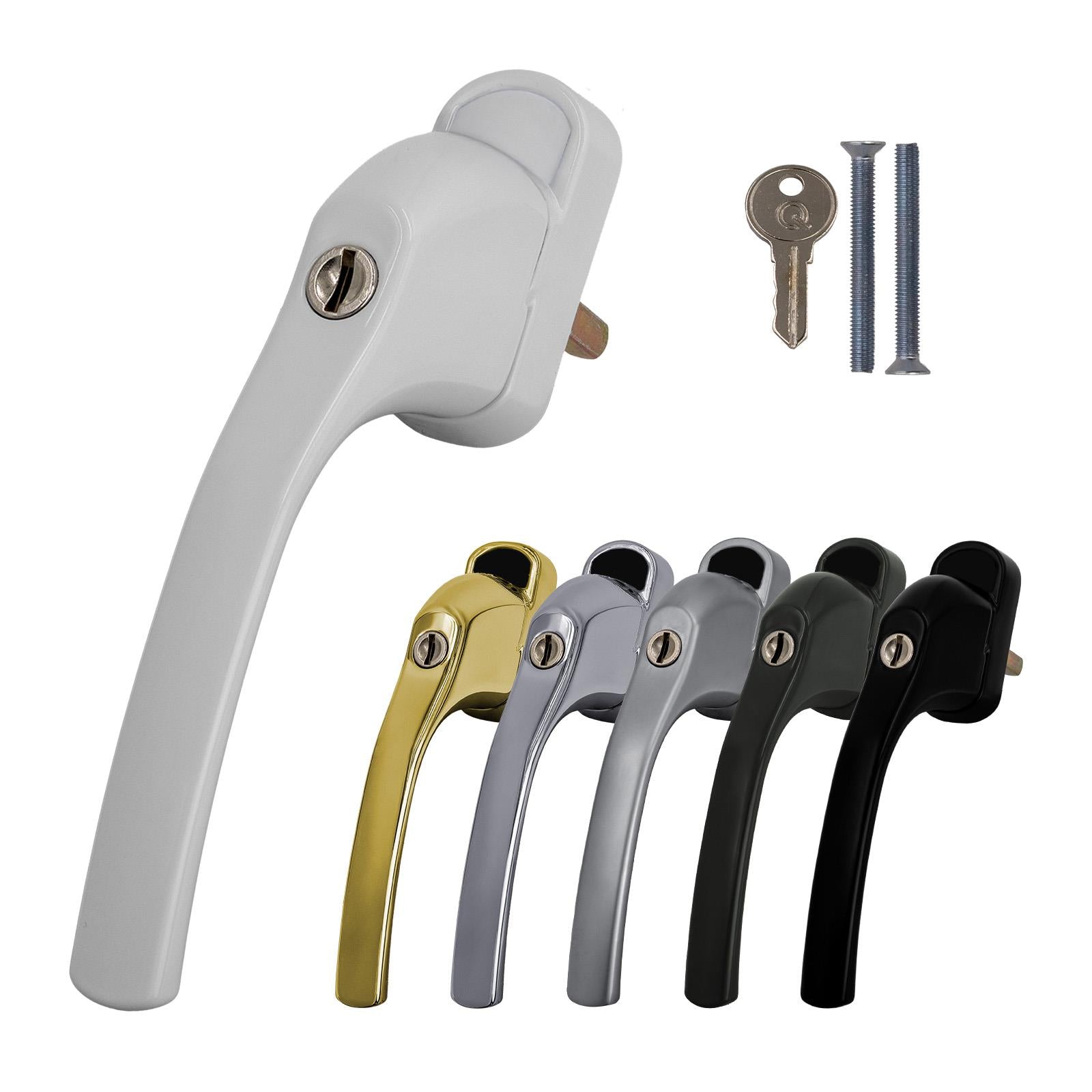

| Finish | White, Black, Anthracite Grey, PVD Gold, Polished Chrome, Satin Chrome |
| Backplate size (l x w x d) | 64mm x 31mm x 13mm |
| Fixing screw positions | 43mm (centre-to-centre) |
| Spindle length (fixed) | 40mm (croppable) |
| Spindle Thickness | 7mm |
| Overall length | 170mm (handle and backplate) |
| Overall projection from sash (when installed) | 61mm |
| Overall width | 31mm |
| Guarantee | 20-year surface |

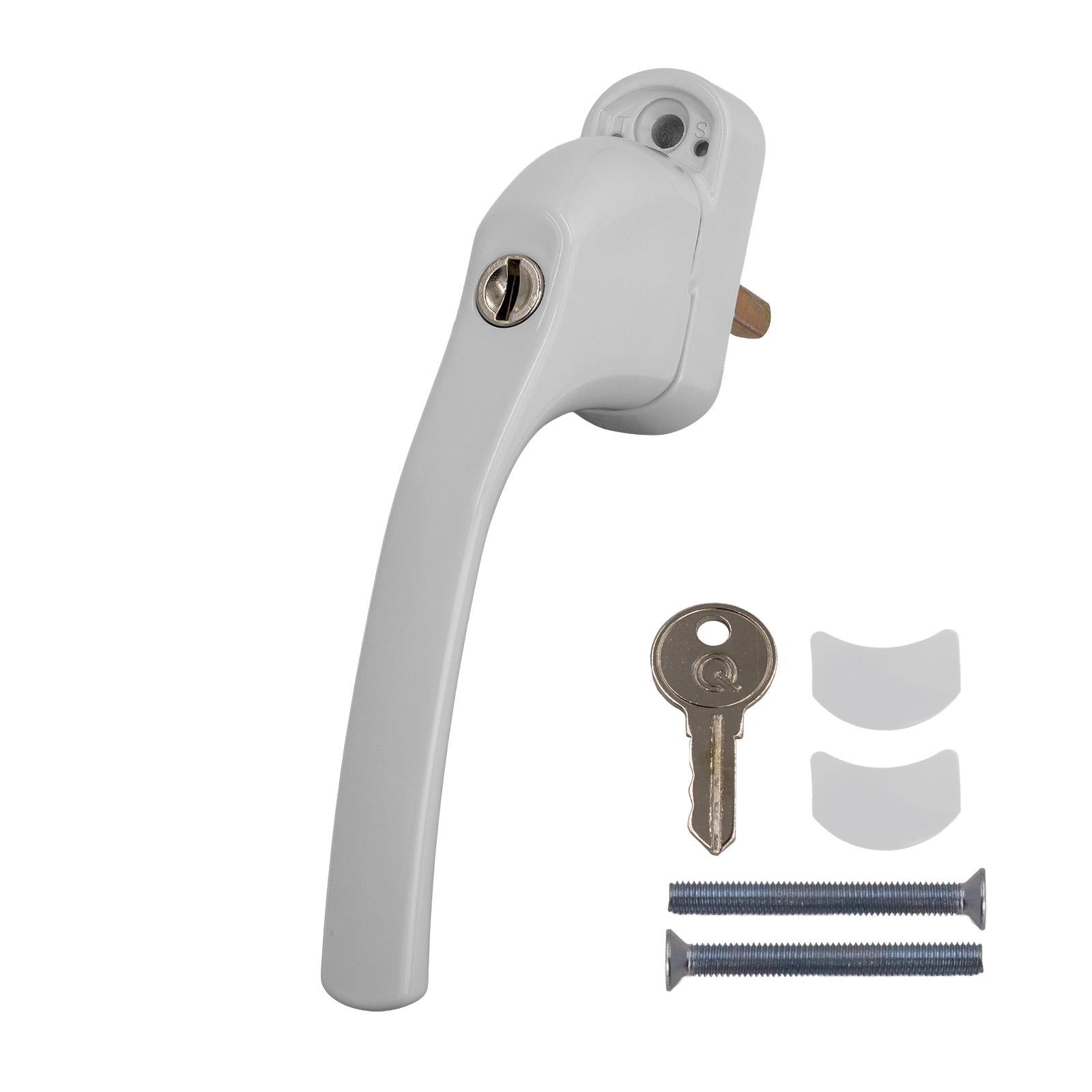

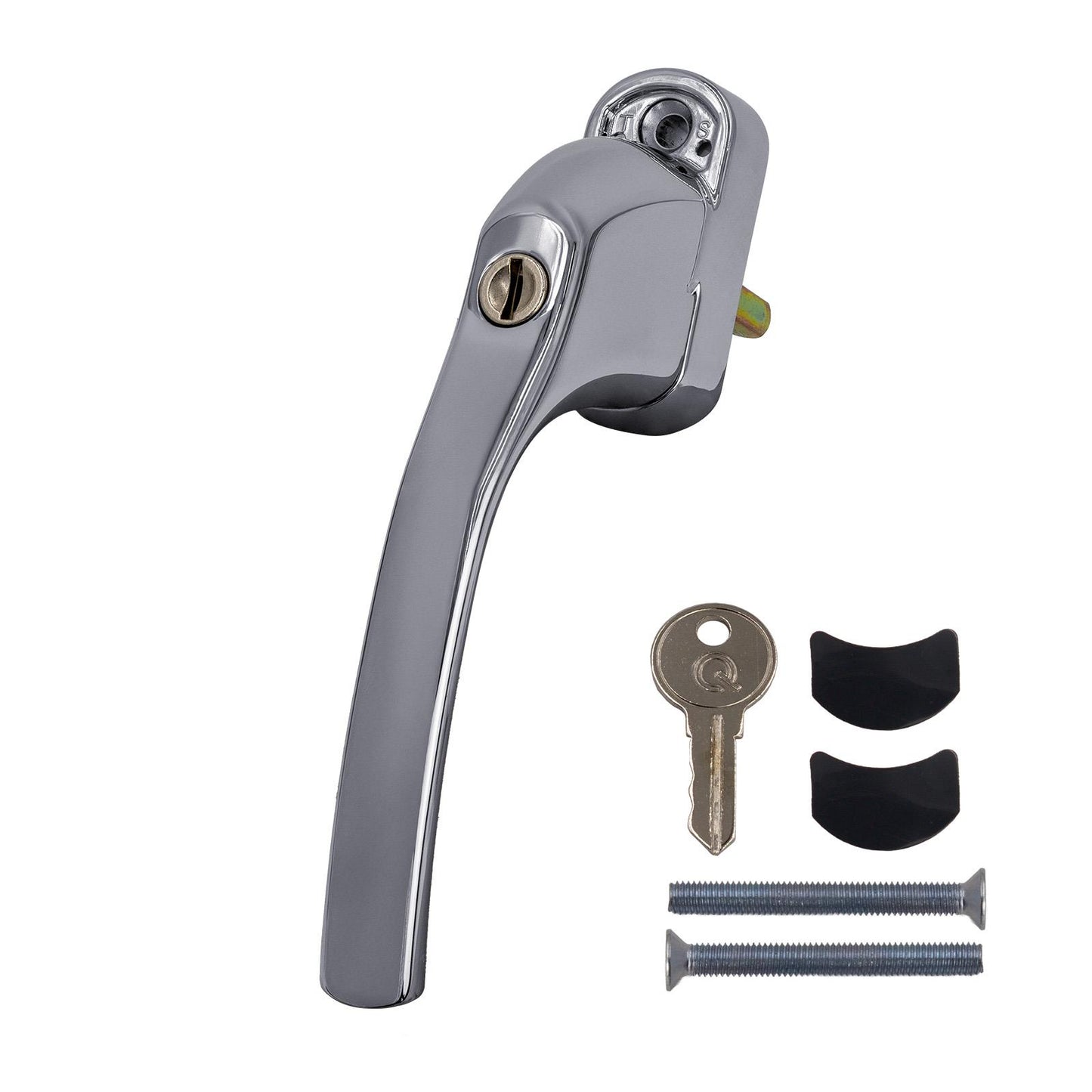

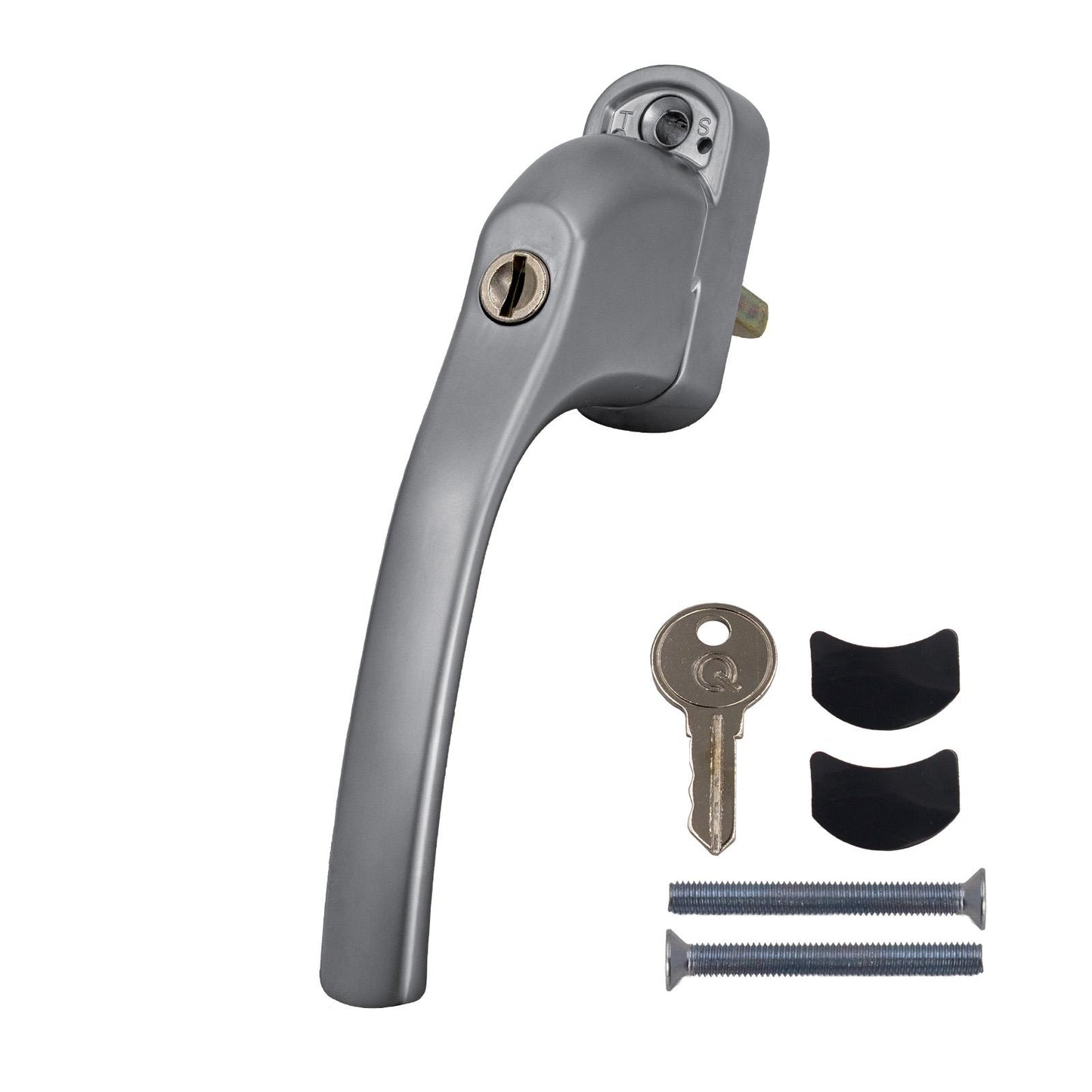

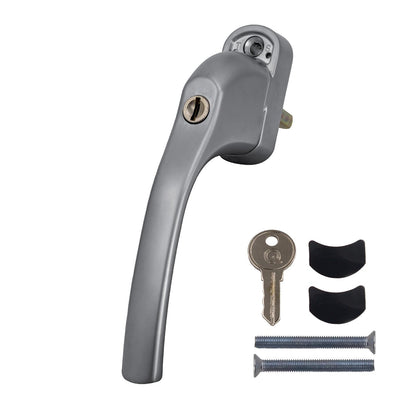

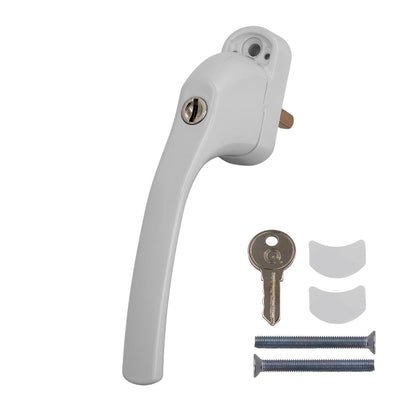

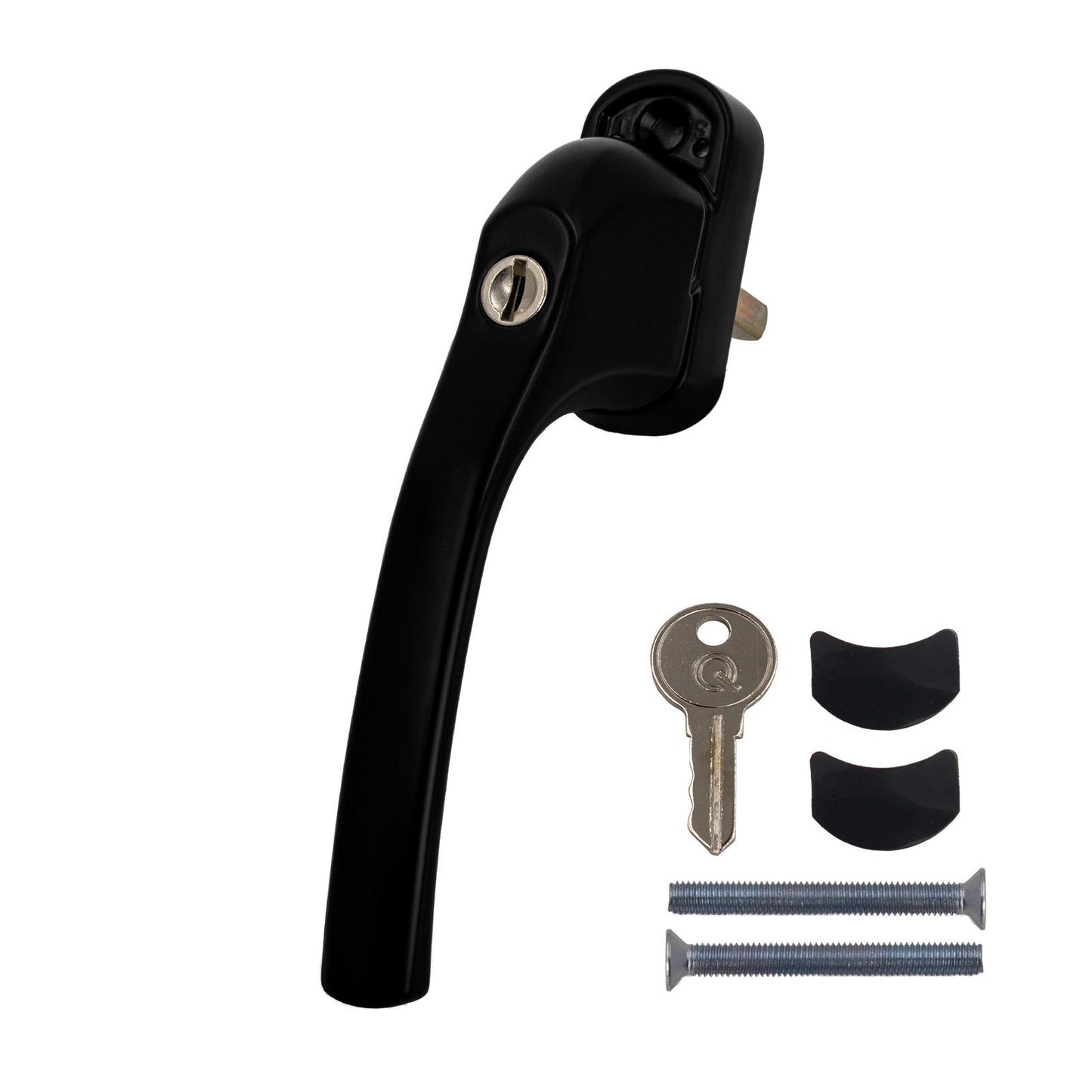

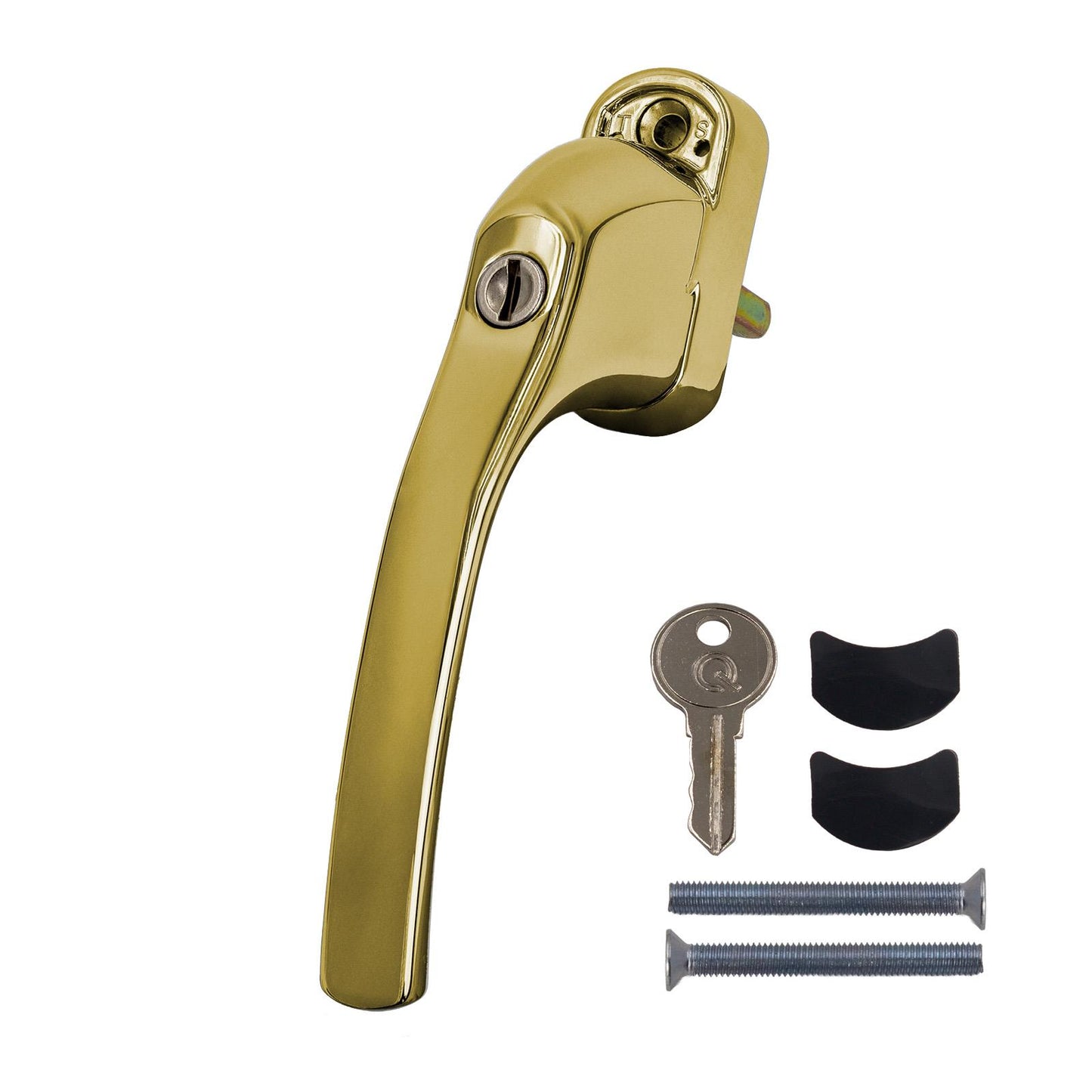

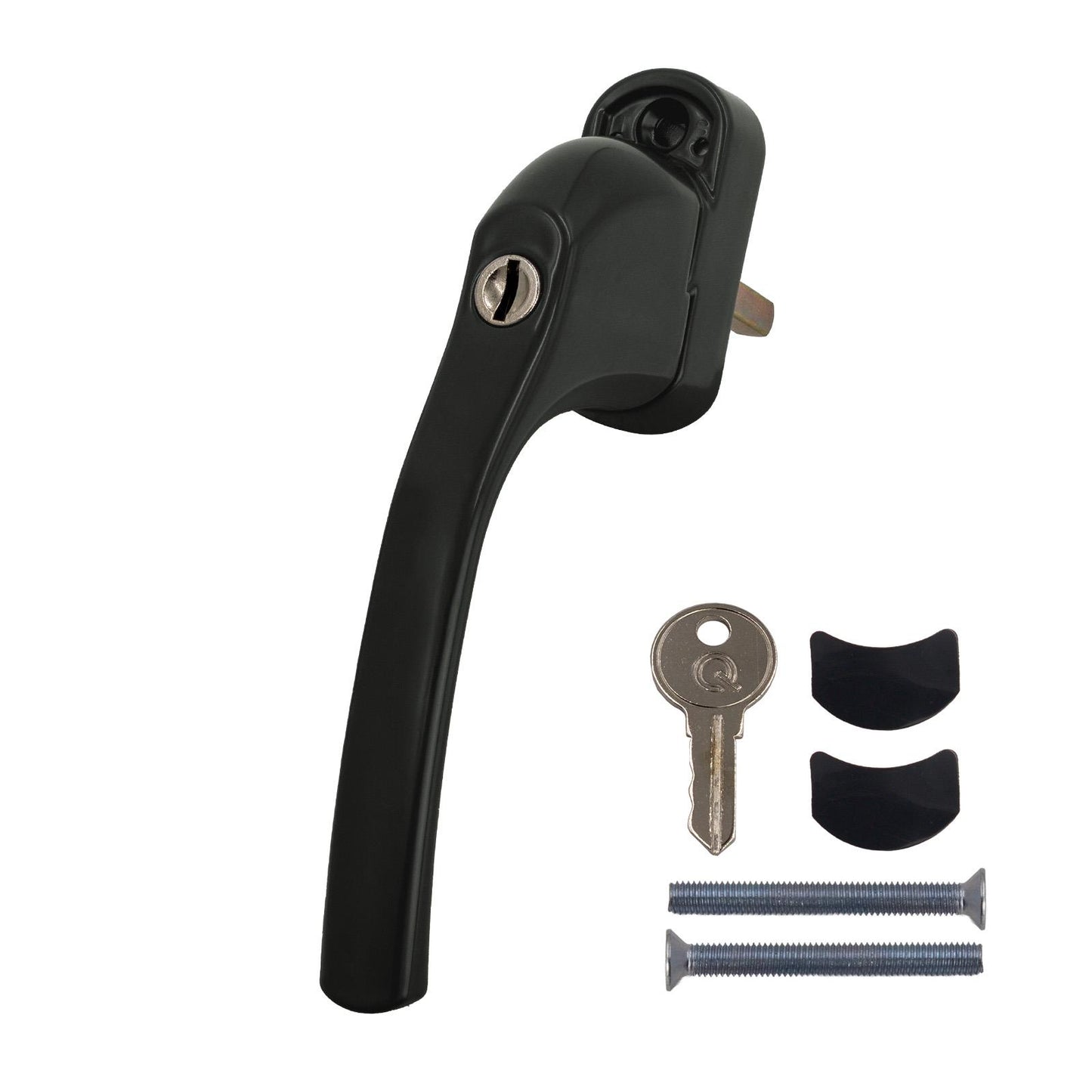

greenteQ Alpha Tilt & Turn Window Handle
greenteQ Alpha Tilt & Turn Window Handle
SKU: VBH-2416-1001
MPN:
2QTT0061
Regular price
£3.94
Regular price
Sale price
£3.94
Unit price
per
Tax included.
Shipping calculated at checkout.
85 in stock
Couldn't load pickup availability
Description
greenteQ Alpha Tilt & Turn TBT Key-Locking uPVC Window Handle
Effortless tilt and turn control
Robust, high-performance window handle for PVC-u, timber, and aluminium tilt & turn casement windows. Dual-action operation allows hopper-style tilt ventilation and full side-hung inward opening for easy cleaning and reliable emergency egress. Includes key deadlock and tilt-safe function for enhanced security and child safety.
Strong construction ensures smooth, reliable operation of complex multi-point locking mechanisms. Supplied with a croppable 40mm spindle, the handle fits both modern tilt-before-turn and older turn-first windows via invertible backplate. Ergonomic inline lever suits left or right openings, delivering a sleek, contemporary profile suitable for residential and commercial applications.
Features & Benefits
- 4 settings – unlocked, tilt-safe, fully locked, and turn-first mode
- Turn-first compatible – invertible backplate suits older windows
- Non-handed – fits left- and right-opening windows
- Wide compatibility – suitable for AGB, Roto, Siegenia, and MACO T&T systems
- Quick, easy installation – includes key, screws, and snap-fit cover caps
- Robust – smooth, reliable operation for everyday use
- Corrosion resistant – 20-year surface guarantee
- Child-safe – tilt-safe function prevents full sash opening
- Secured by Design approved – backed by UK Police Service initiative

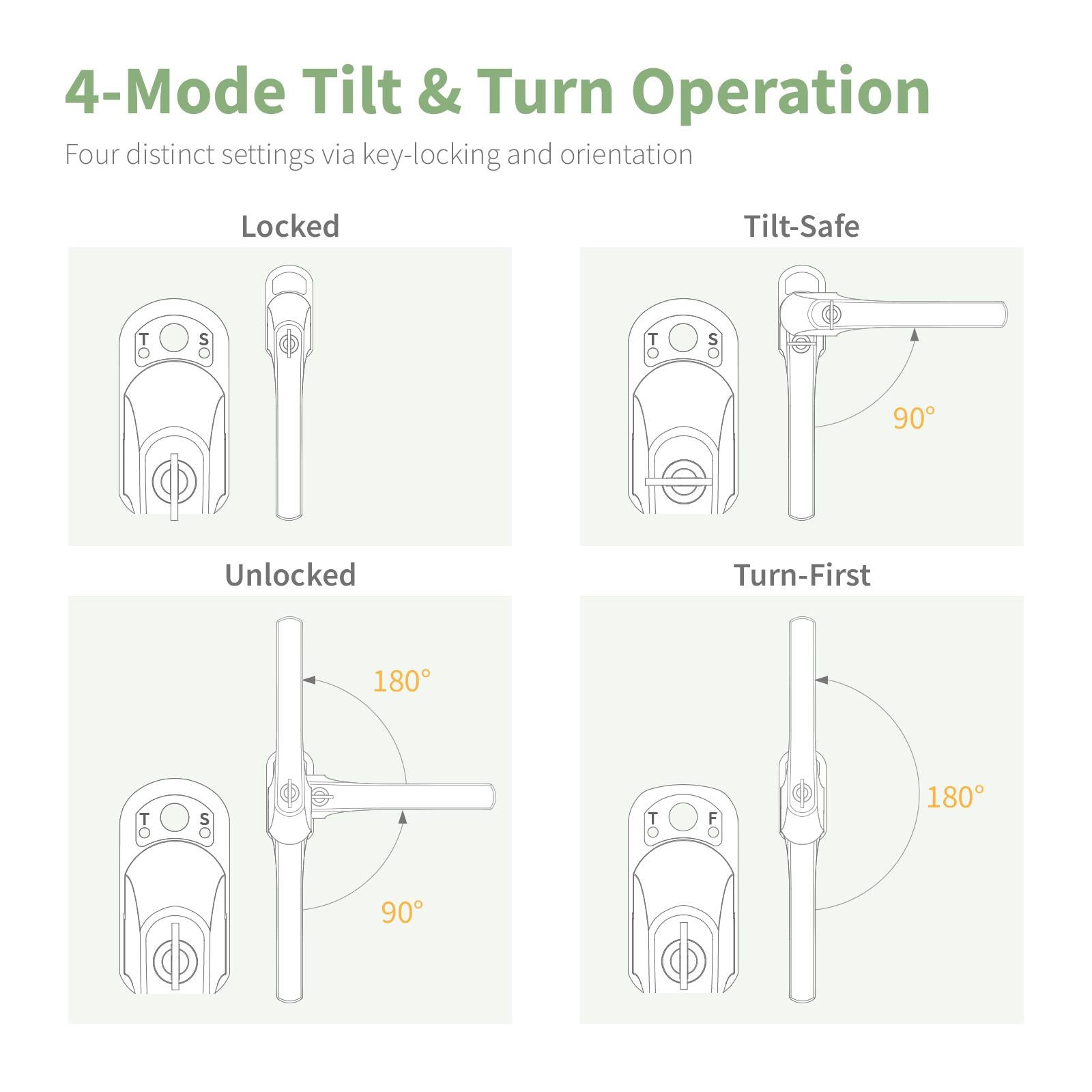

4-Mode Opeartion
-
Fully Locked (Key turned 180°)
The handle is locked and the window cannot open in any position. For maximum security when the property is empty. -
Tilt Safe (Key turned 90°; backplate shows TS)
The handle opens to the tilt position only – ideal for secure ventilation. The window cannot fully open, preventing accidental falls. -
Unlocked (Key at 0°; backplate shows TS)
The handle moves freely from closed to tilt and then to turn, allowing for full sash egress. -
Turn-First Mode (Inverted backplate shows TF)
Designed for older turn-first windows. The handle must be turned the full 180° to operate.
Did you know? TBT handles look similar to standard Espagnolette handles but are built much more robustly. Espag handles operate simple side- or top-hung windows with a single action, while TBT handles must drive a complex, multi-point locking system to deliver two distinct opening modes—tilt and turn. The result? A stronger handle engineered to handle significantly more friction and force, every day.
