Universal Concealed Window Restrictor Kit

Universal Concealed Window Restrictor Kit

SKU: KOR-2376-1001
MPN: RST42011_95_115_145

£4.90

Sale Sold out

Tax included. Shipping calculated at checkout.

10+ in stock

Order within

h m s

for Same Day Despatch

Quantity

Have a question about this product?

View full details

Description

Universal concealed restrictor for peace of mind

Universal Concealed uPVC Window Restrictor

Name: Universal Concealed Window Restrictor Kit
Brand: Kore
SKU: KOR-2376-1001
Price: 4.9 GBP
Availability: InStock

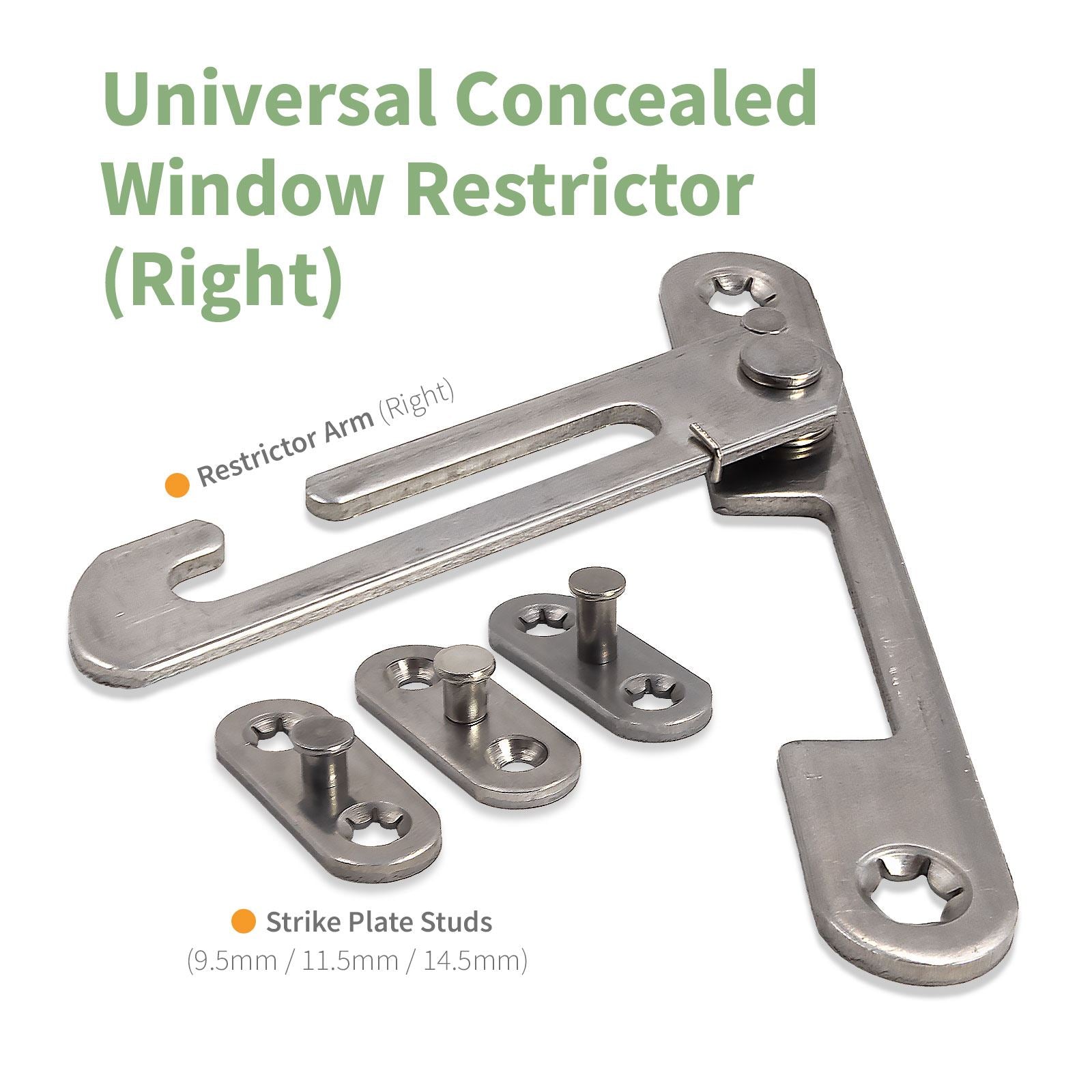

(Choice of handedness)

Safe, smart ventilation for every window

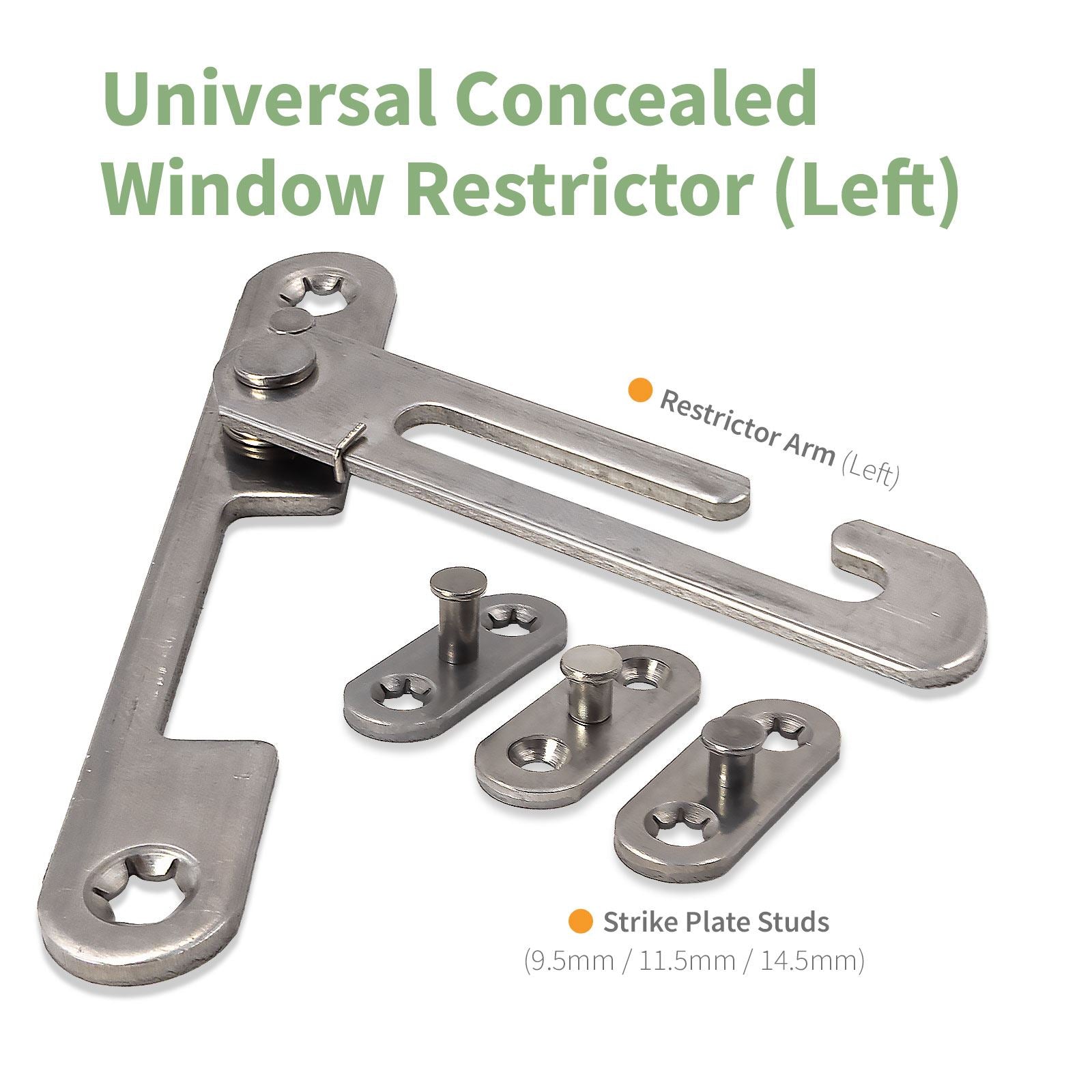

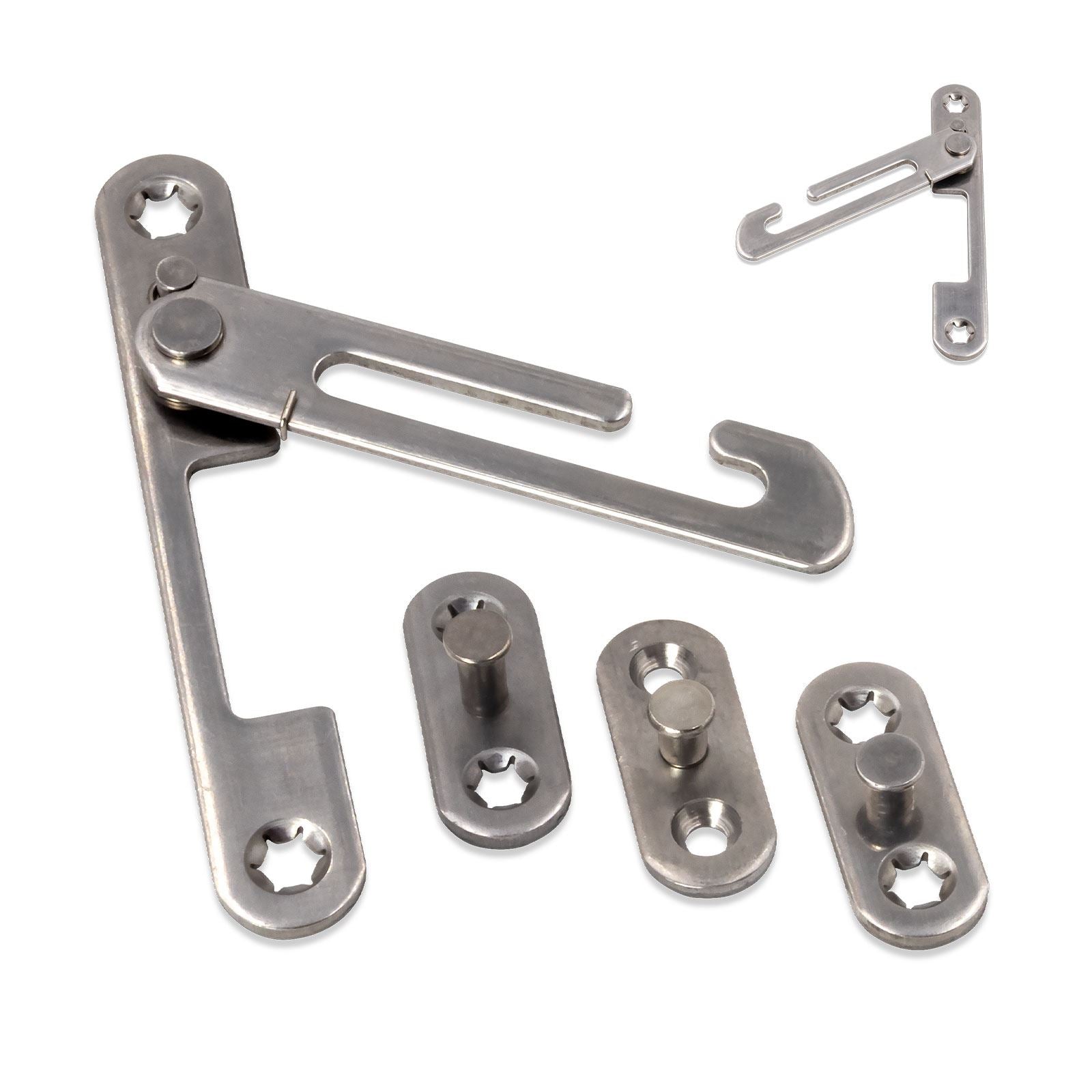

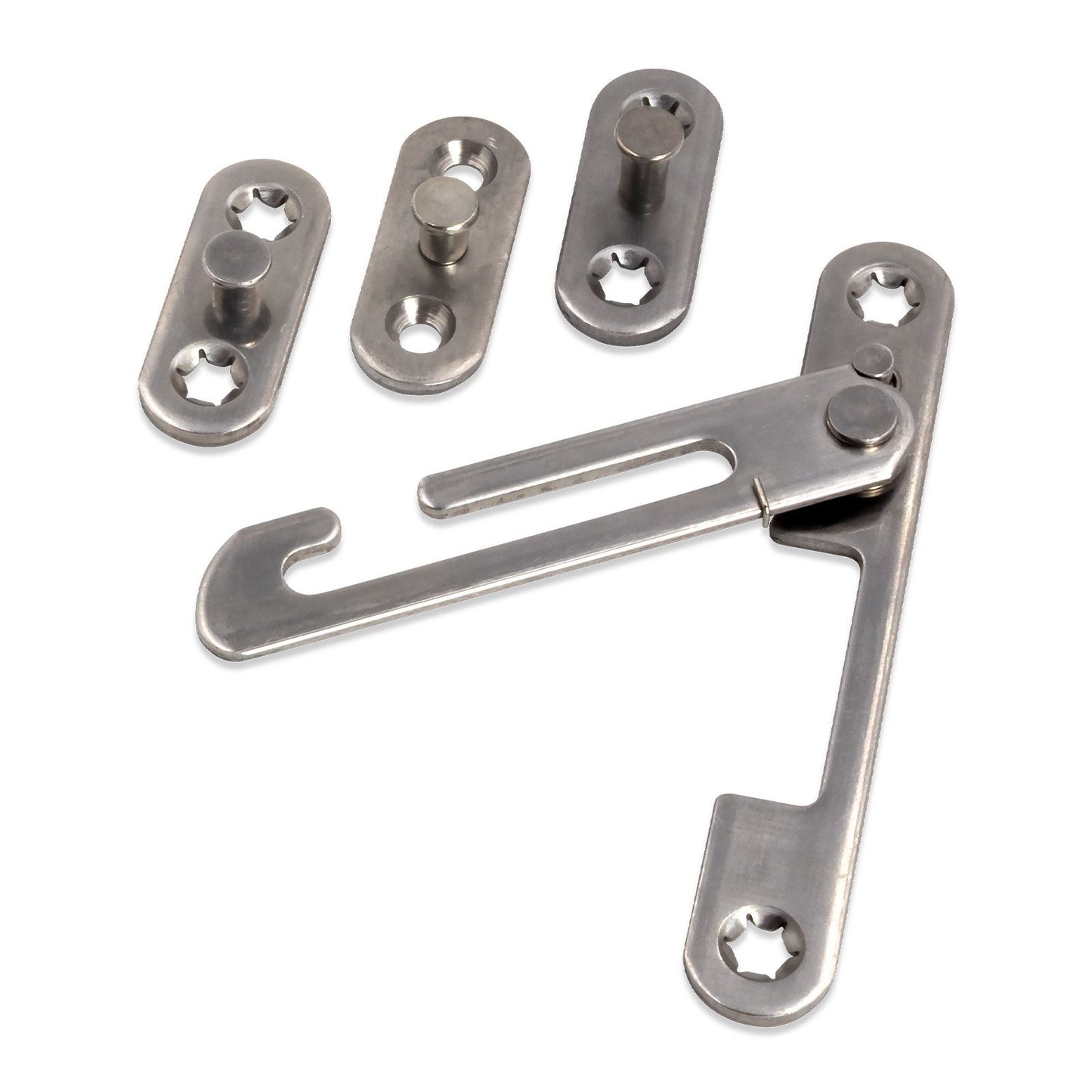

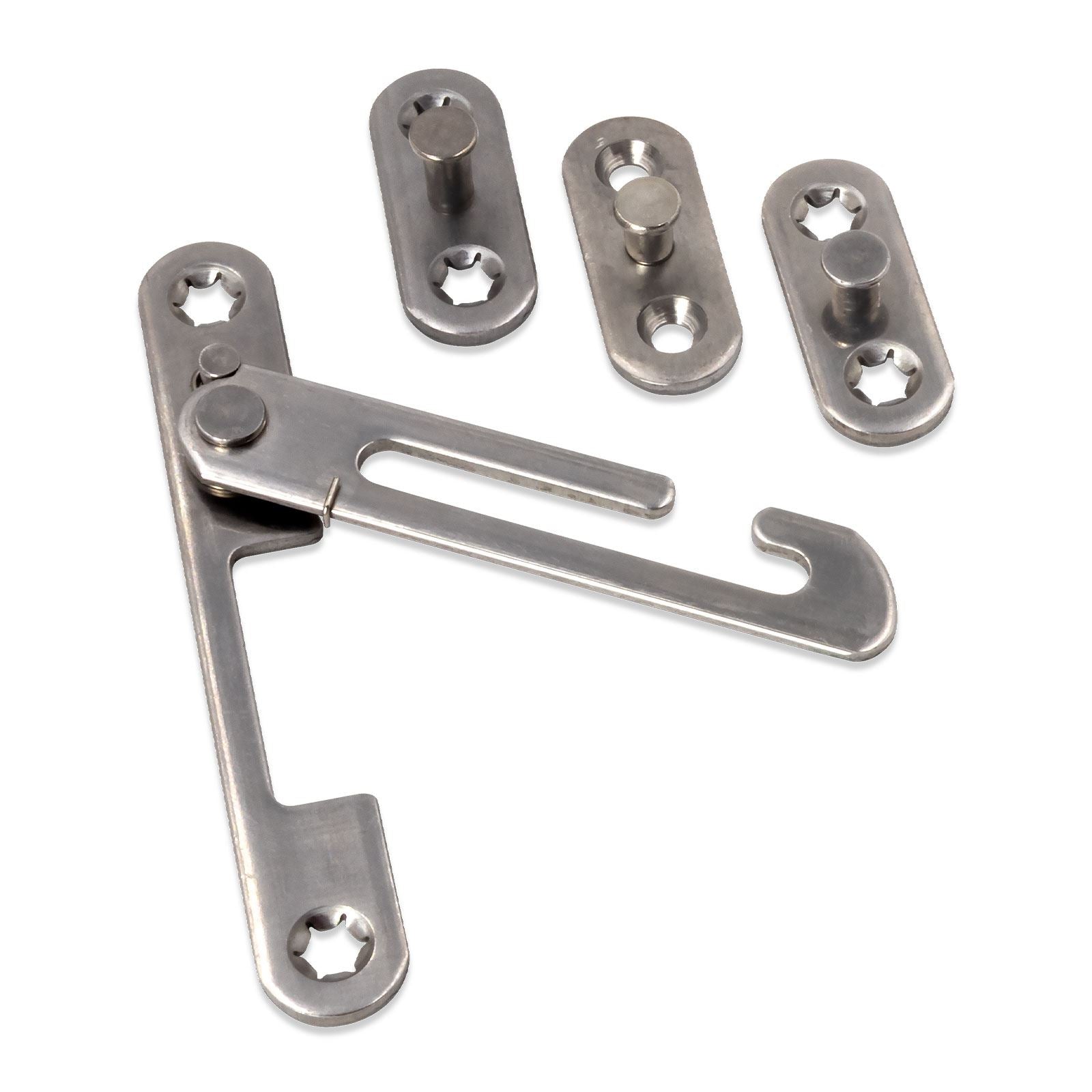

High quality, stainless steel concealed window restrictor that fits most PVC-u, timber, and aluminium windows. Spring-loaded, autolocking mechanism, capable of limiting sash opening to 89mm and ensuring robust and reliable child safety for ultimate peace of mind. Choice of left and right-handed restrictor arm and supplied with three strike plate stud options for universal fitting.

Fits discreetly between frame and sash on side-hung and top-hung casement windows, delivering effective restriction without compromising the aesthetics of the window. Allows windows to be opened for ventilation, whilst keeping the room secure, and the vulnerable protected. The releasable arm enables unrestricted opening when required – ideal for emergencies, cleaning, and deep ventilation.

Features & Benefits

Universal – widely compatible and supplied with all stud options
Durable – strong stainless steel construction
DIY friendly – simple to fit to new and existing windows
Concealed design – no visible hardware on window face
Quick release – easy, tool-free unrestricted opening
Auto-locking – consistent and reliable restriction
Child safe – capable of limiting opening to 89mm
Quality assured – complies to BS 6375-2:1987

Did you know? Around 4,000 children each year are injured from falls out of windows. Installing a simple window restrictor can help prevent these accidents while keeping rooms safely ventilated.

Specification

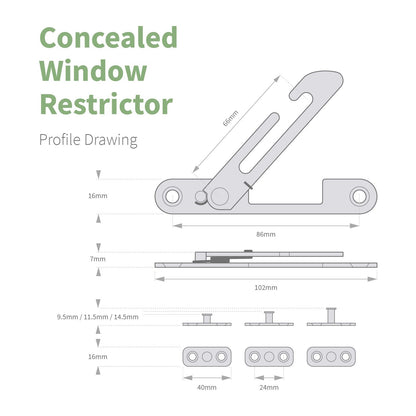

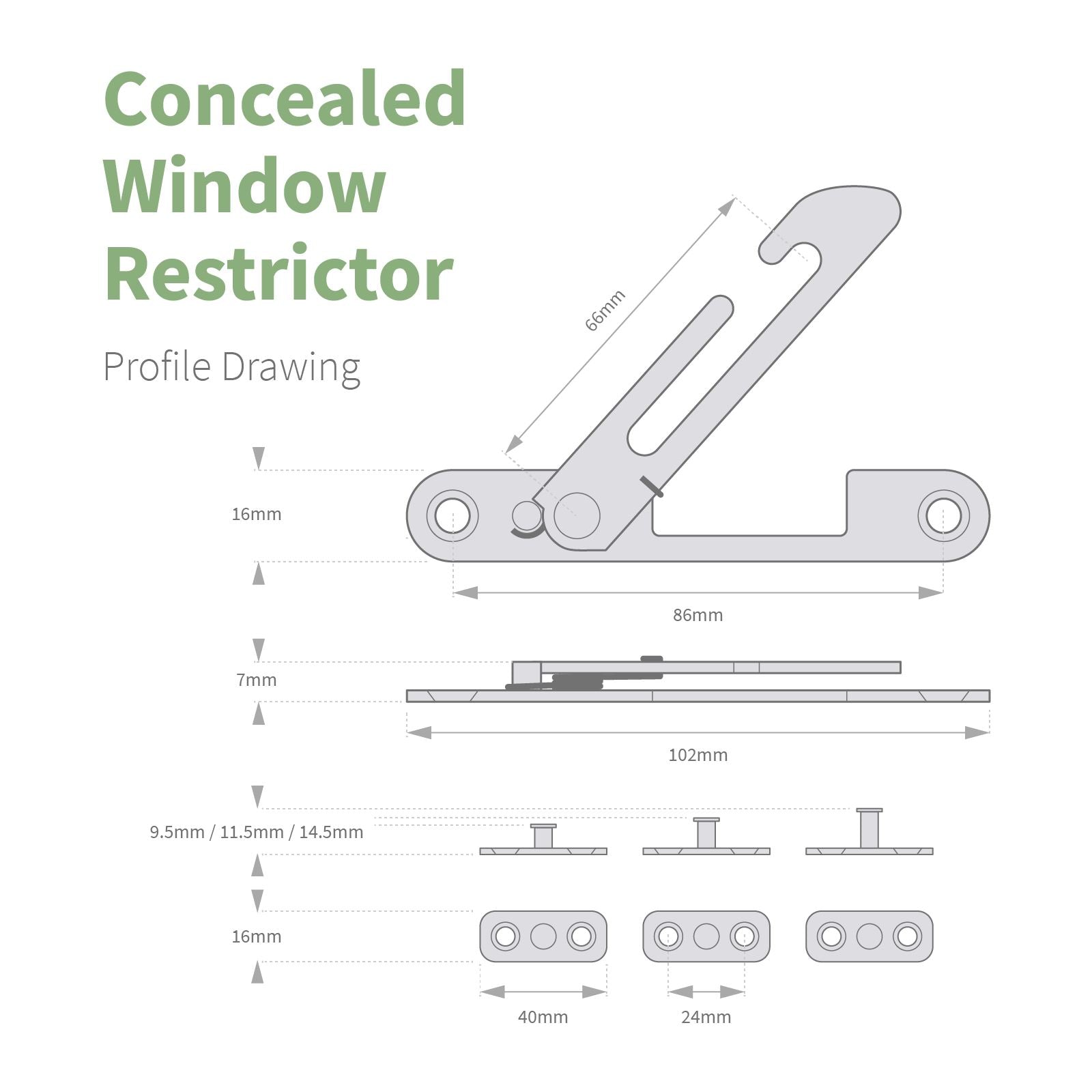

Measurement	Value
Arm Size (H × W × D)	102 × 16 × 7 mm
Stud Sizes (H × W × D)	9.5 mm stud – 40 × 16 × 9.5 mm 11.5 mm stud – 40 × 16 × 11.5 mm 14.5 mm stud – 40 × 16 × 14.5 mm
Material	Stainless Steel
Finish	Brushed / Satin Stainless Steel
Compatibility	Suitable for 13 mm and 17 mm friction hinge stack heights
Window Type	Top-hung and side-hung uPVC windows
Operation	Spring-loaded, self-engaging restrictor arm
Handing	Available in Left or Right Hand (select correct version before fitting)
Installation	Concealed fit – suitable for new installs or retrofitting

Contents

Fitting & Usage

Installation Guide – Concealed Safety Window Restrictor

Before You Begin

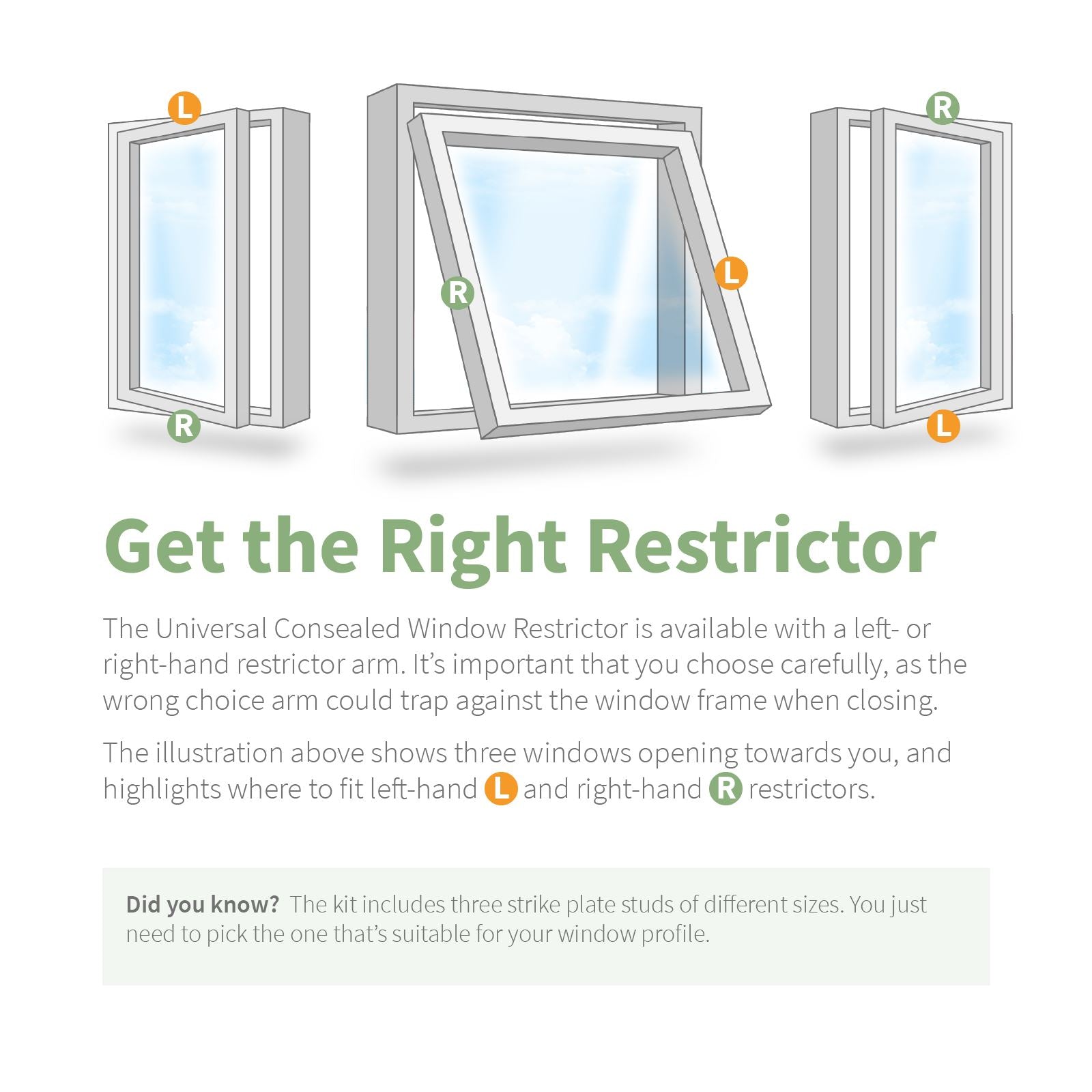

Select the correct hand – use the diagram to choose left or right.
Choose the correct stud size for the friction hinge stack height:
- 13mm stack = 9.5mm stud
- 17mm stack = 14.5mm stud
- If unknown, use 11.5mm (standard)
Ensure the sash and frame are clean before fitting.

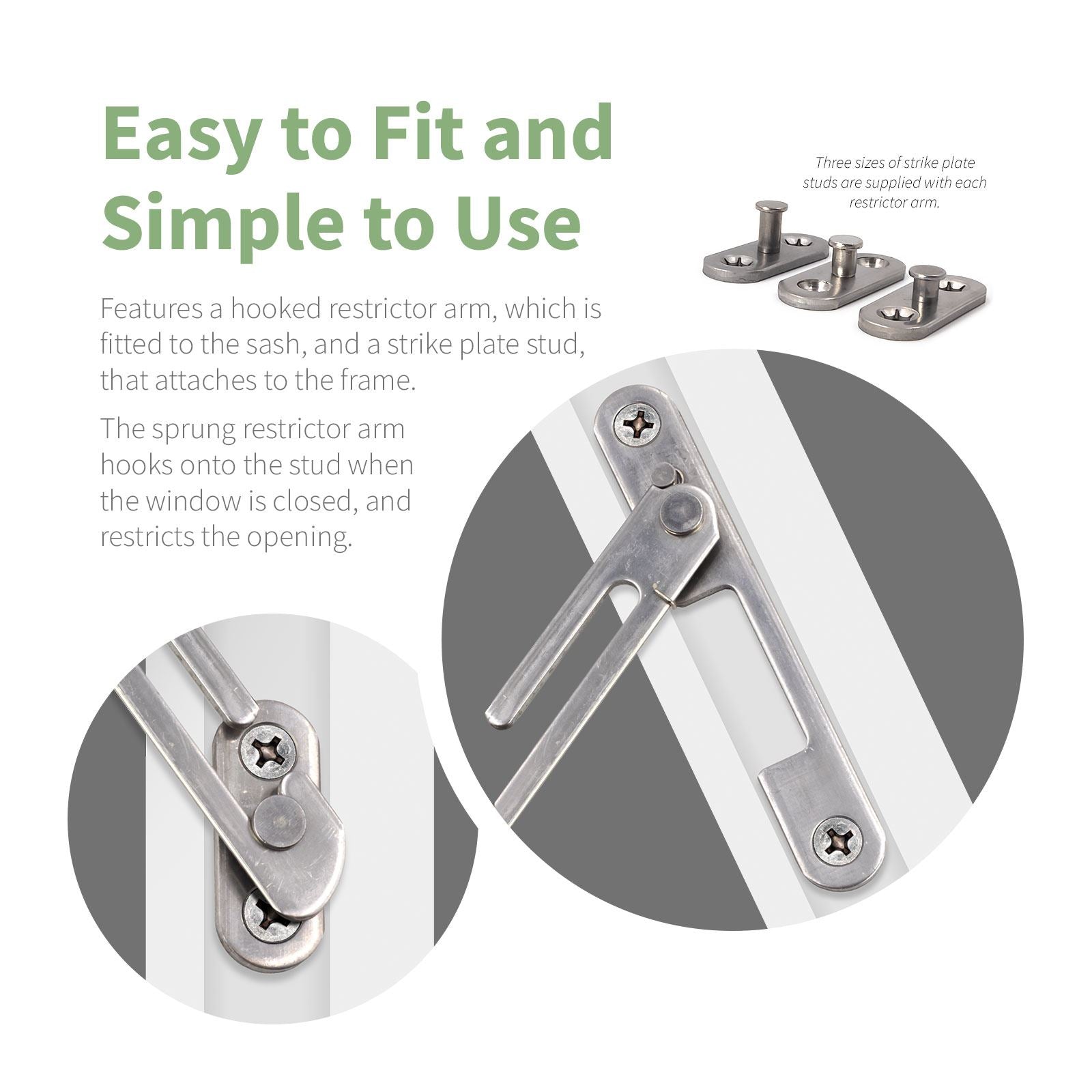

Step 1: Fit the Restrictor Arm (on the Sash)

Position the restrictor arm in the sash euro groove, ensuring alignment with where the stud will sit.
Open and close the sash to check clearance and smooth operation.
Adjust the arm’s position so the sash opens to your chosen limit – typically no more than 100mm for safety. For a wider opening, move the restrictor further along the sash.
Mark fixing points, drill two pilot holes, and secure the arm using suitable screws.
Check the arm moves freely and the spring-loaded action engages smoothly.

Step 2: Fit the Restrictor Stud (on the Frame)

With the window open, mark where the restrictor arm meets the outer frame hinge channel.
Drill pilot holes, then fix the chosen stud securely in place, keeping it level and flush.

Step 3: Engage and Test

Close the sash to engage the restrictor.
Reopen to test restricted movement – the arm should prevent the sash from opening beyond the set point.
To release, press the arm inward toward the sash before opening fully.
Repeat a few times to confirm smooth operation.

Final Checks

Ensure all screws are tight and secure.
Confirm restriction and hinge movement are smooth.
Wipe away any debris or swarf.
