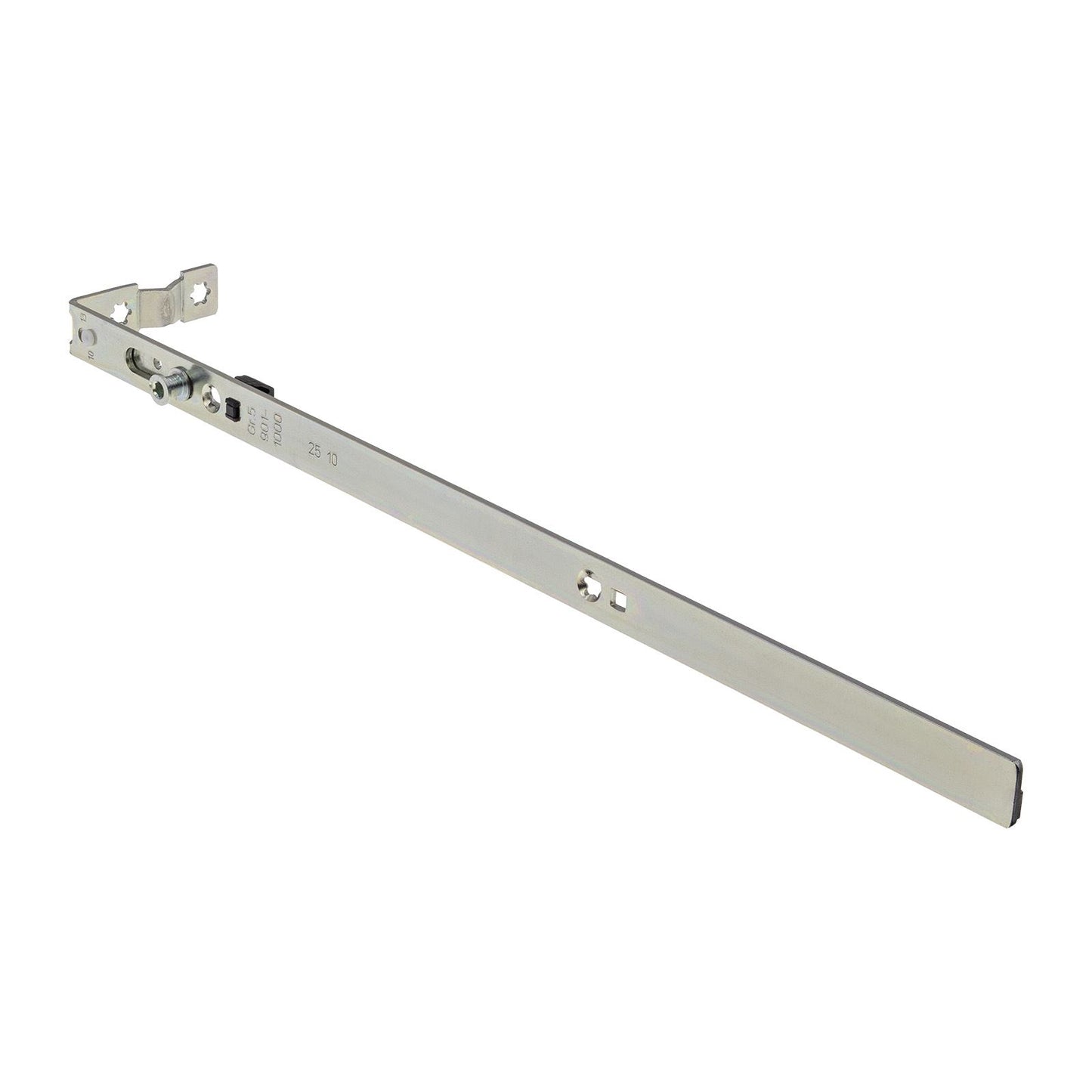

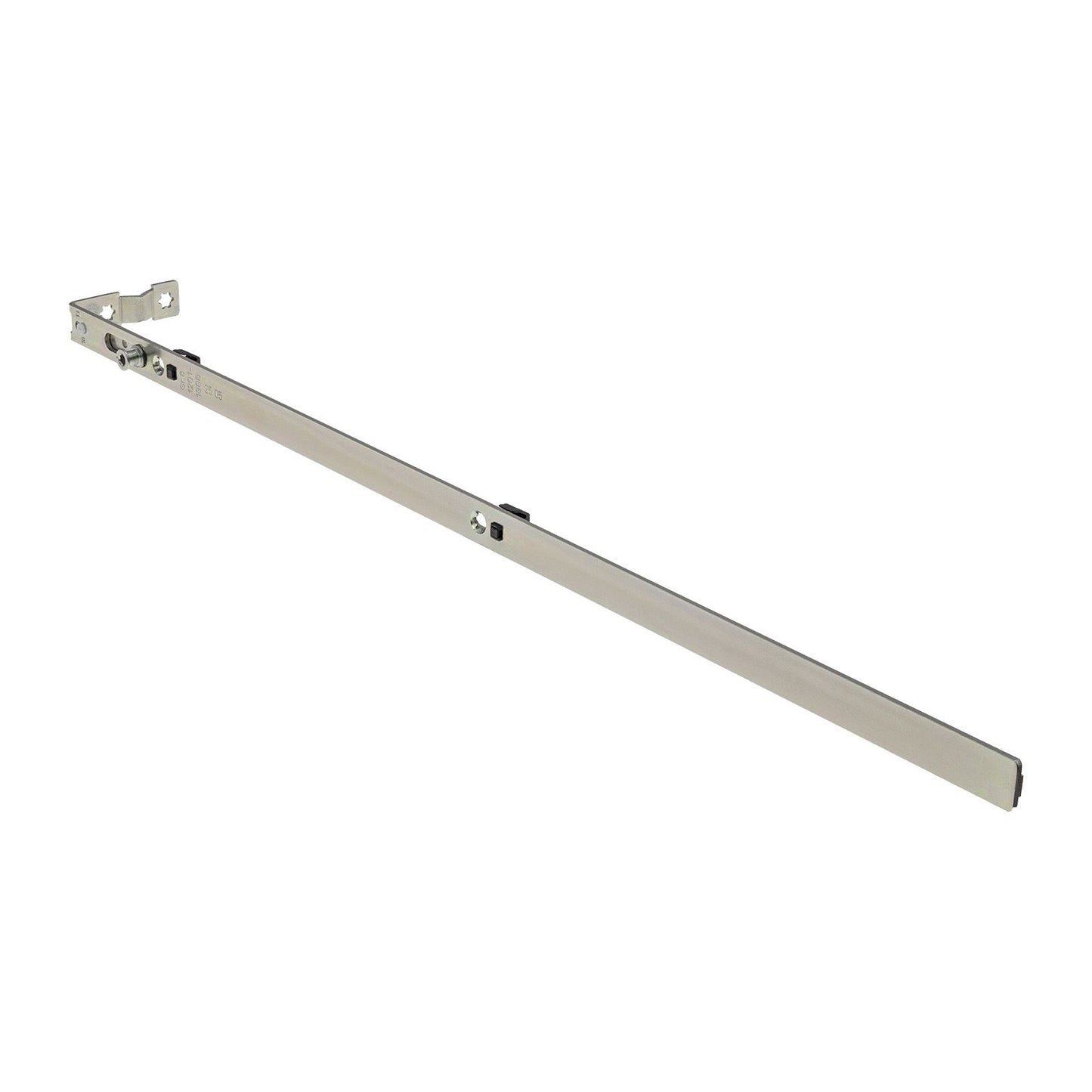

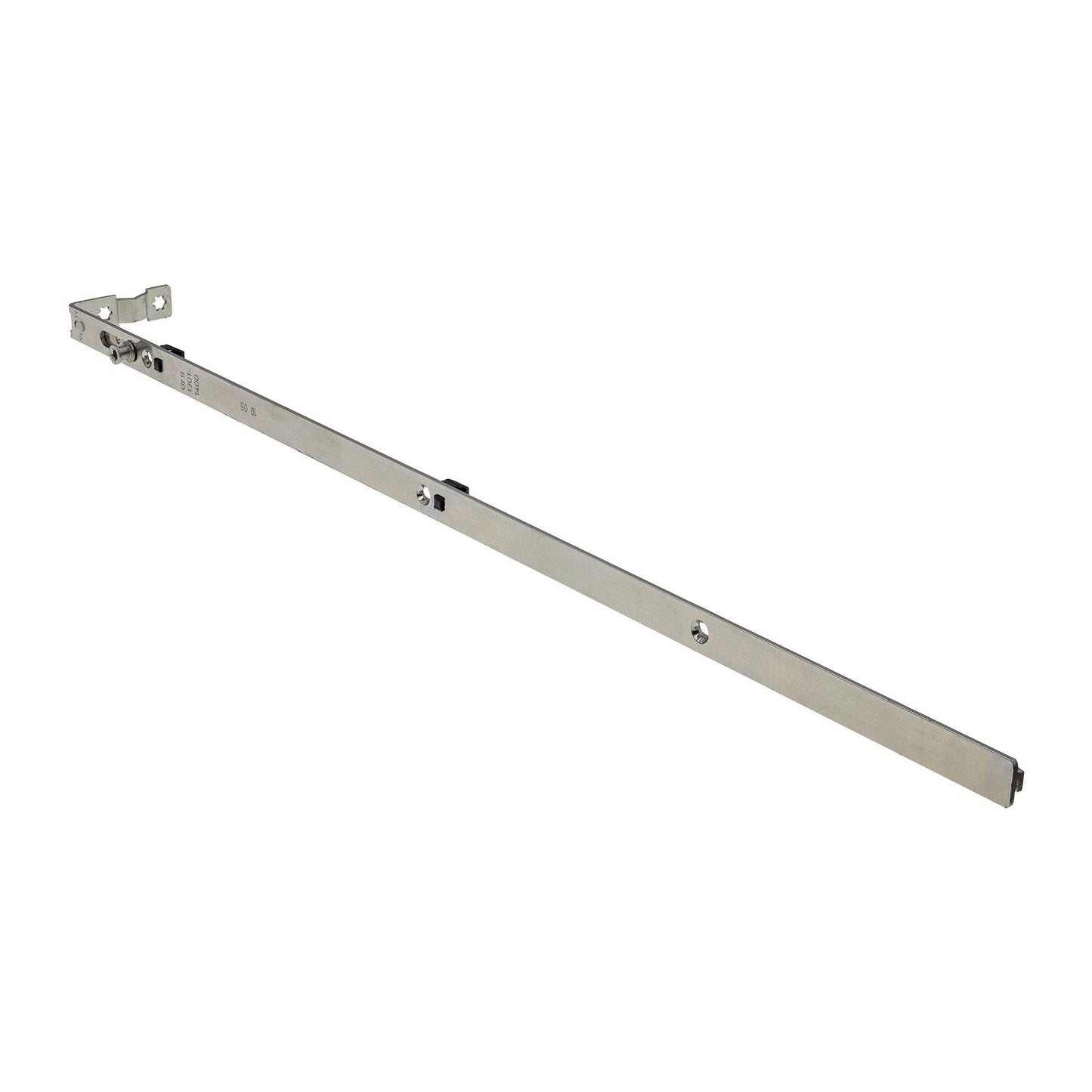

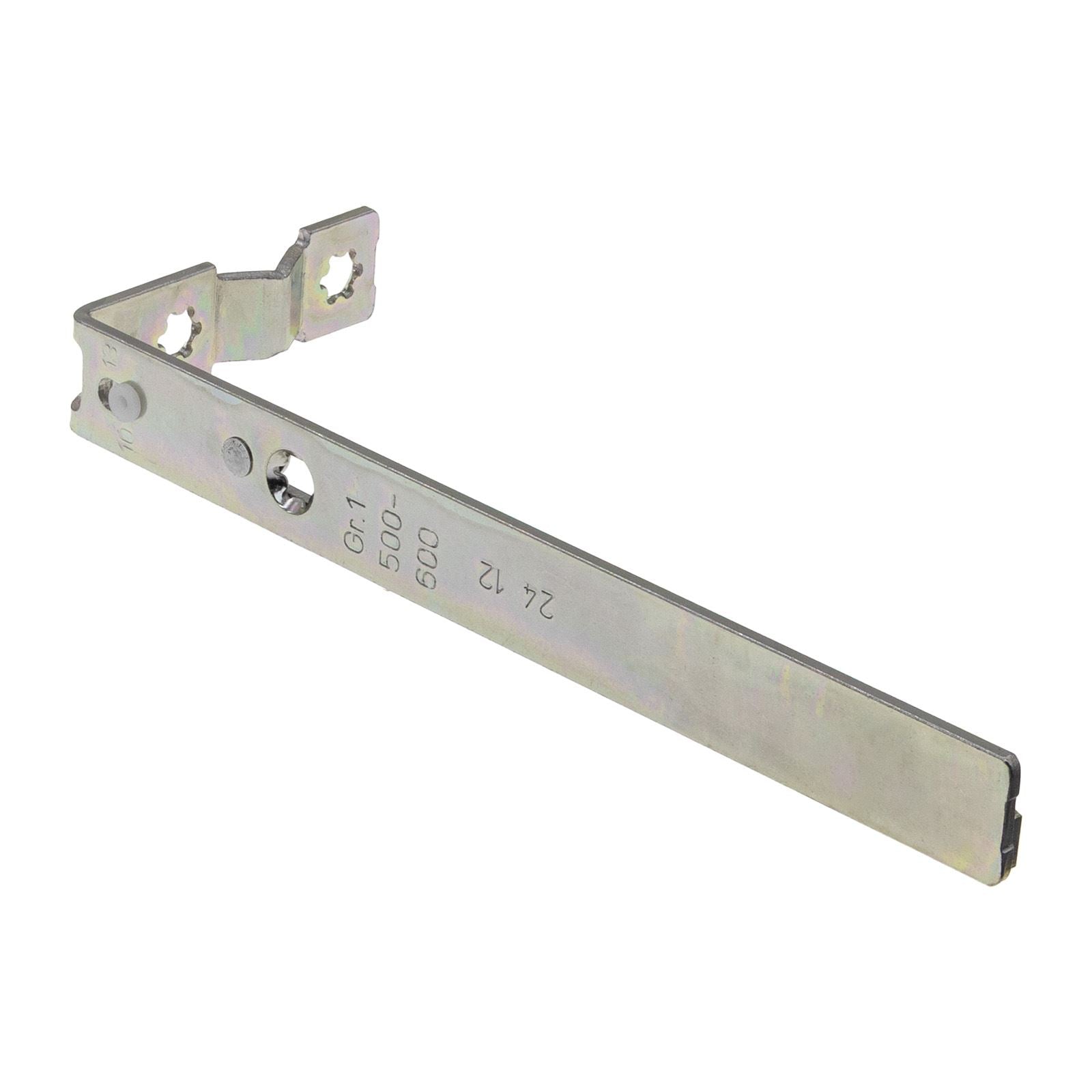

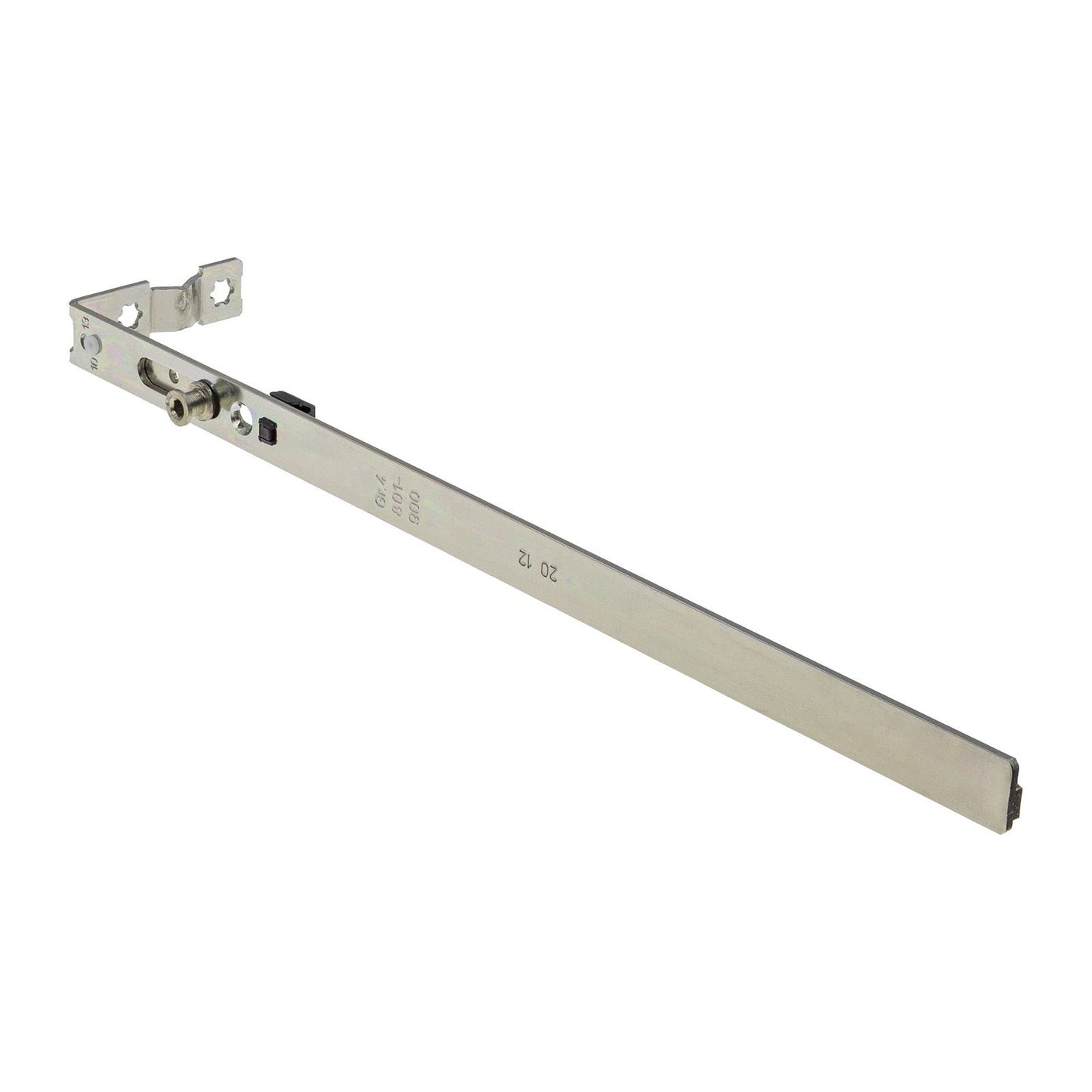

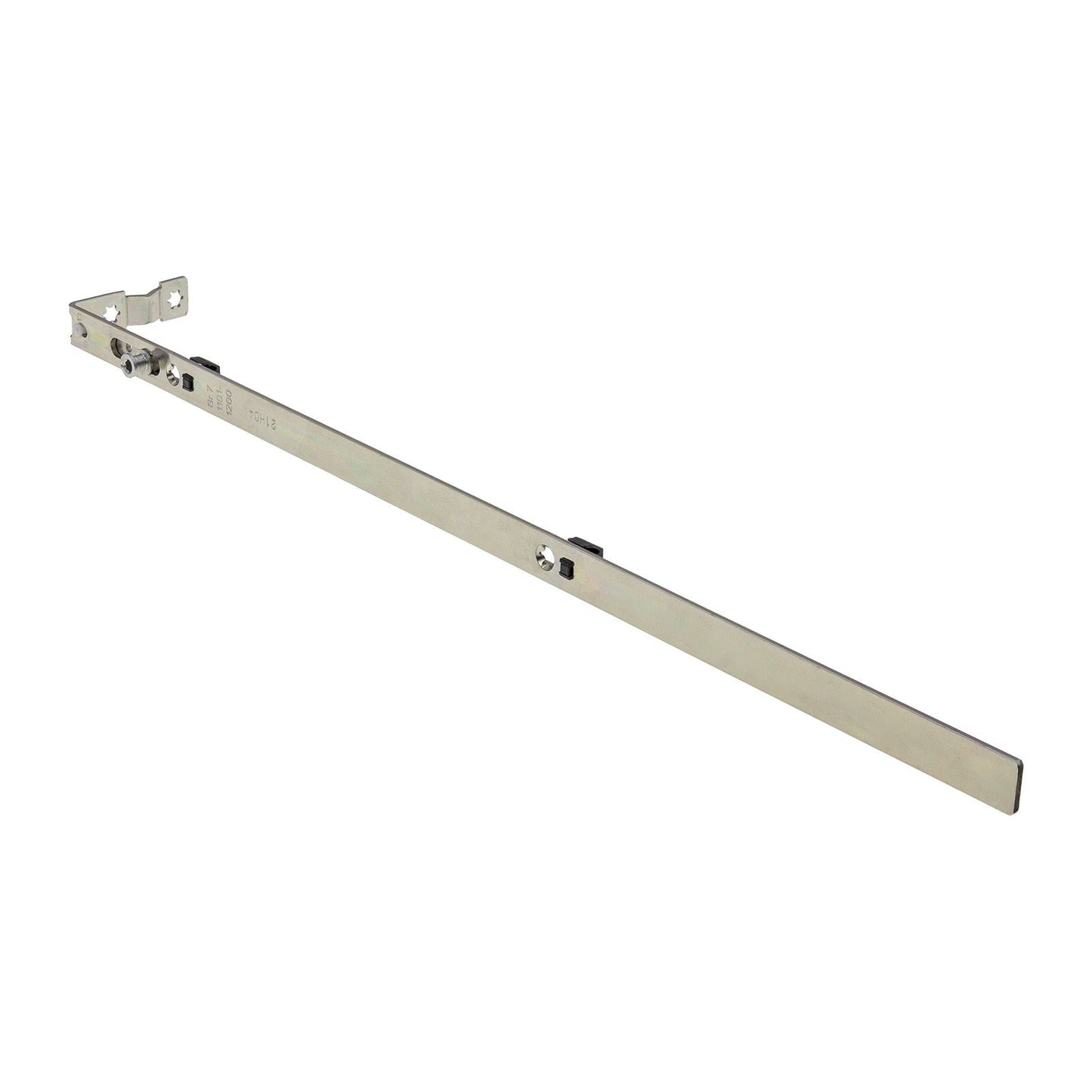

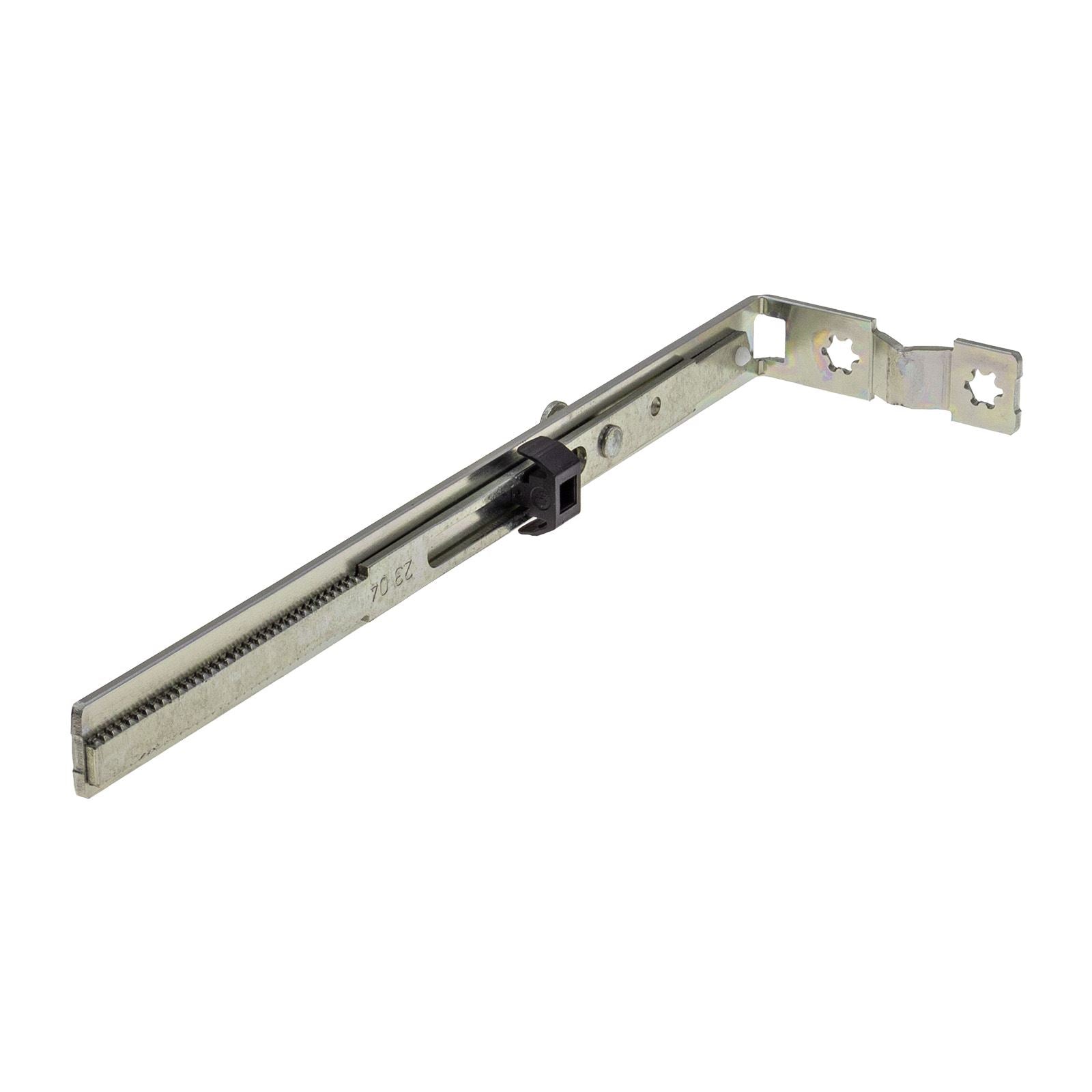

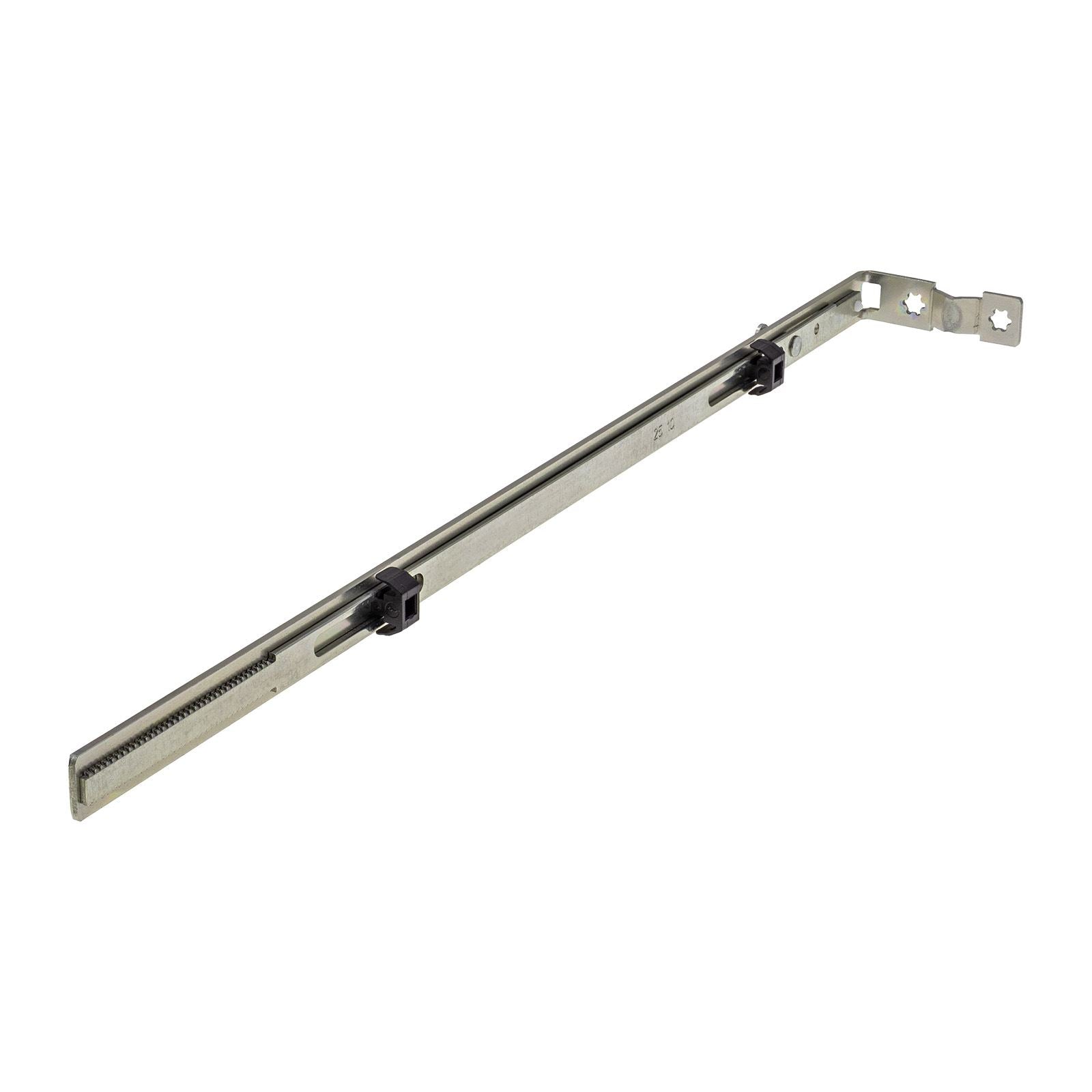

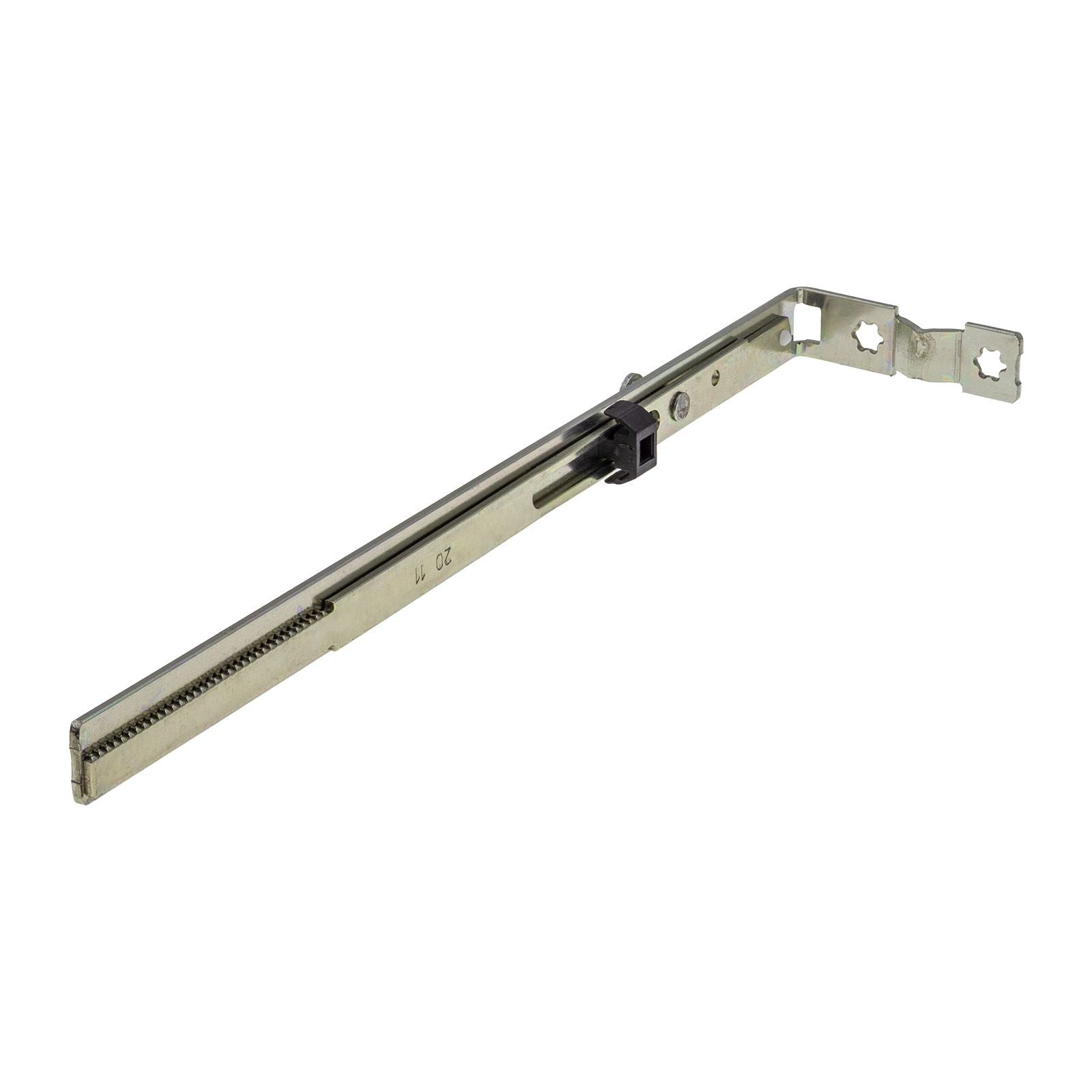

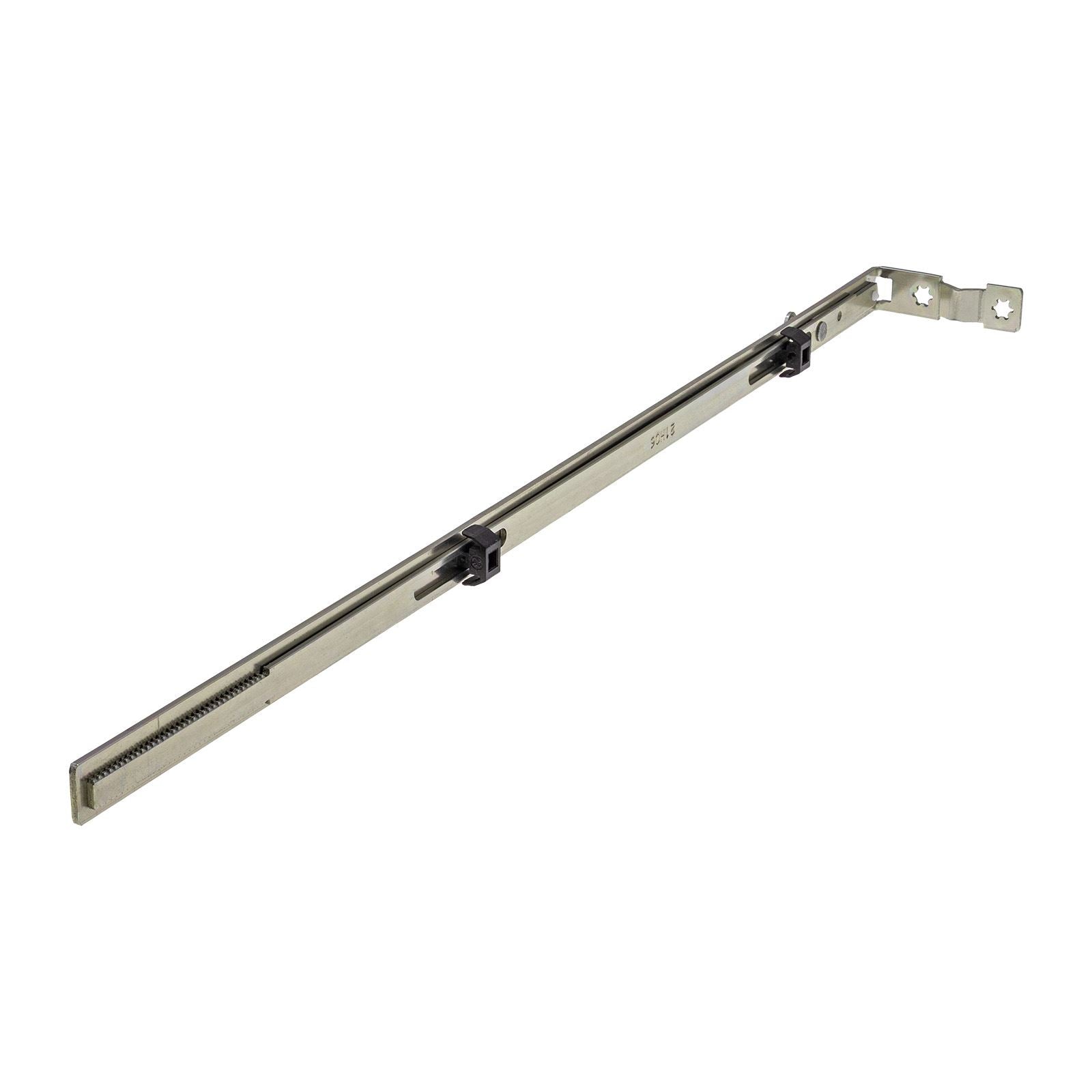

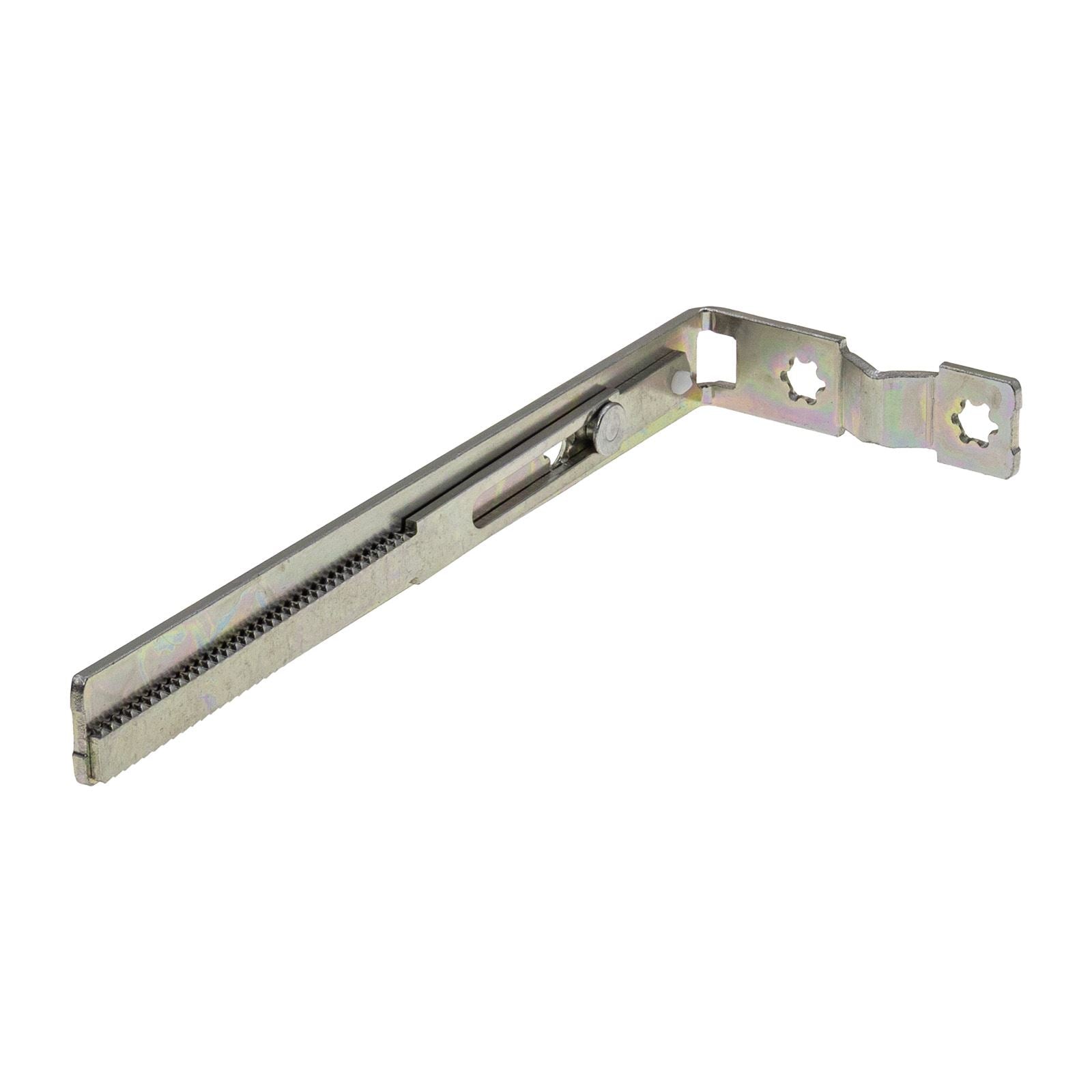

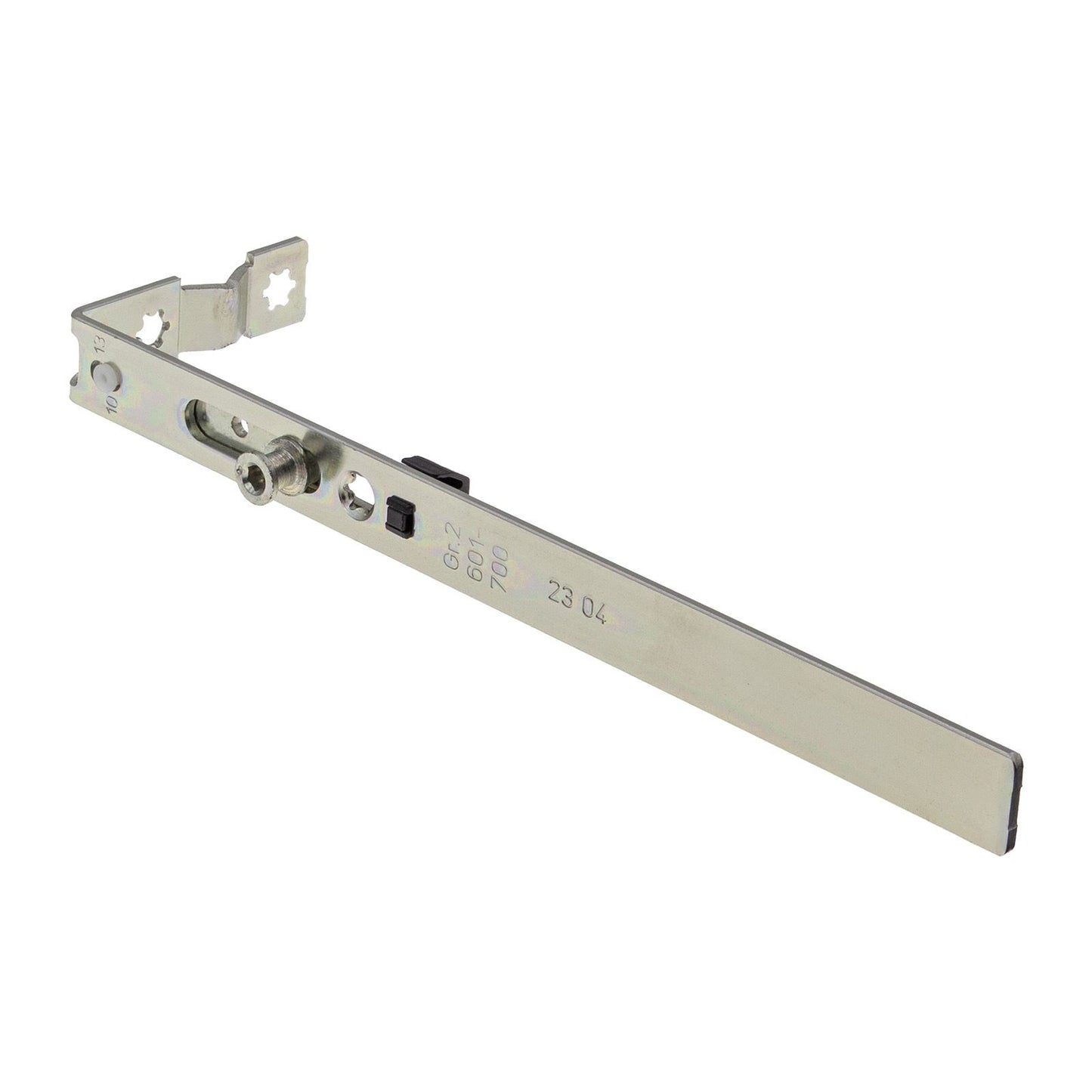

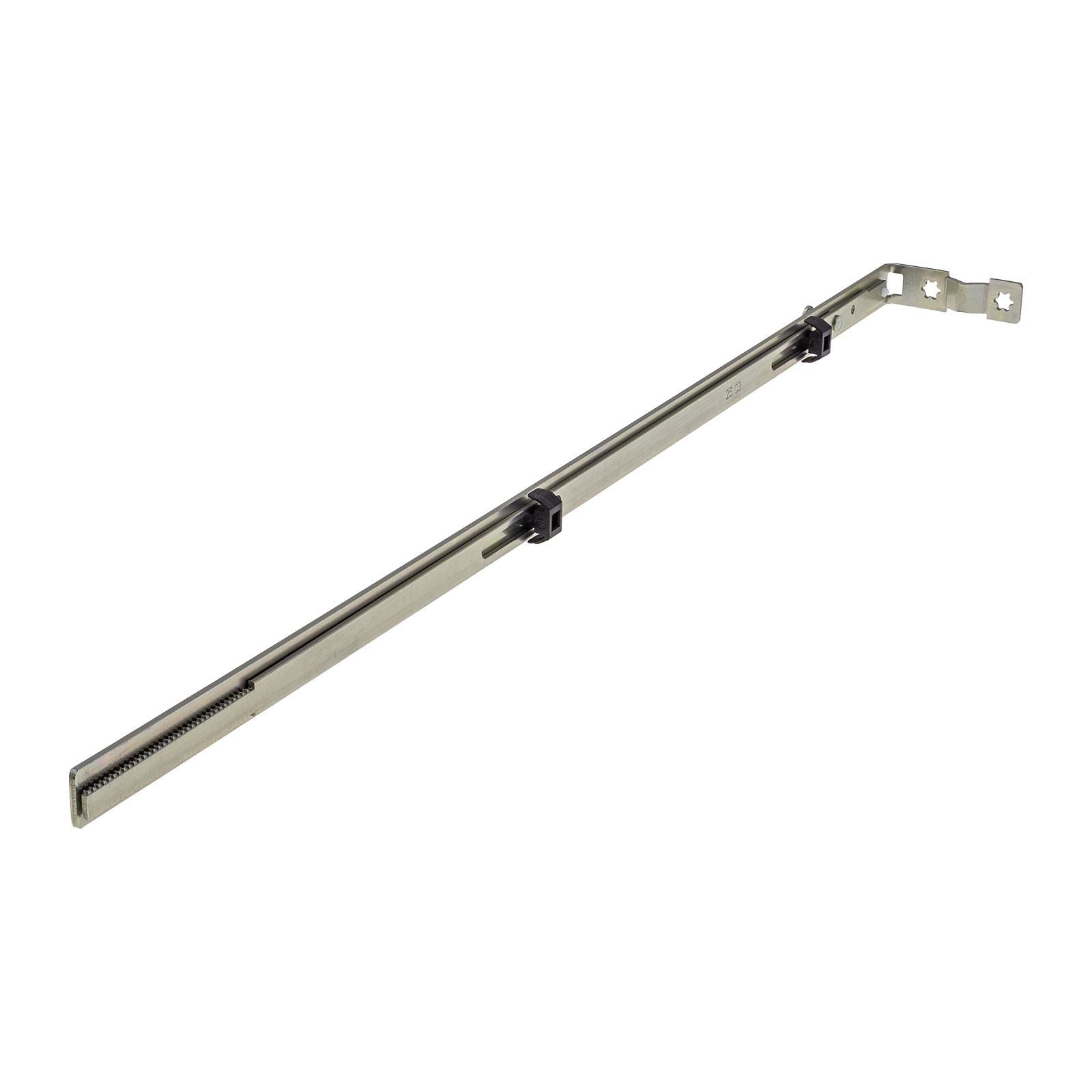

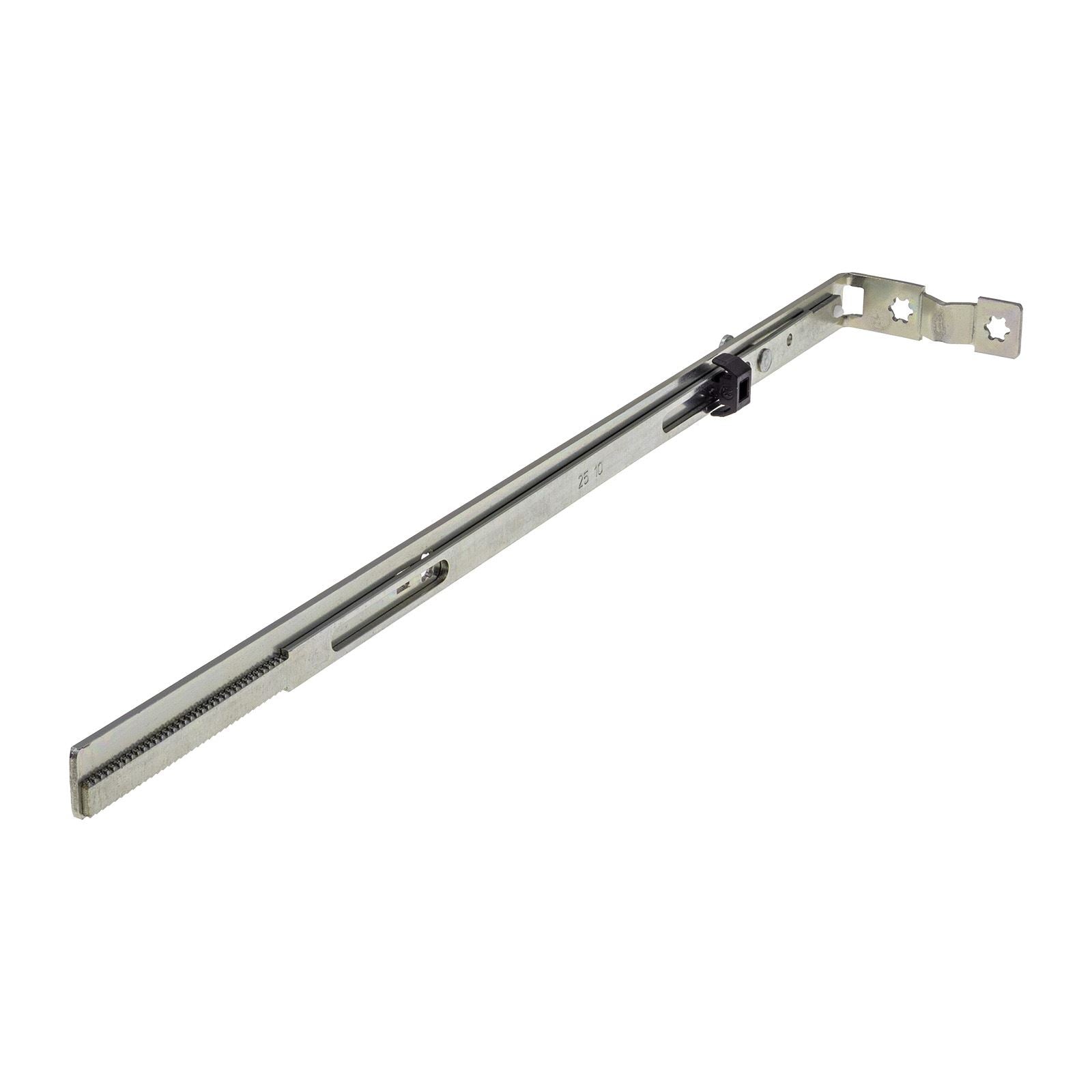

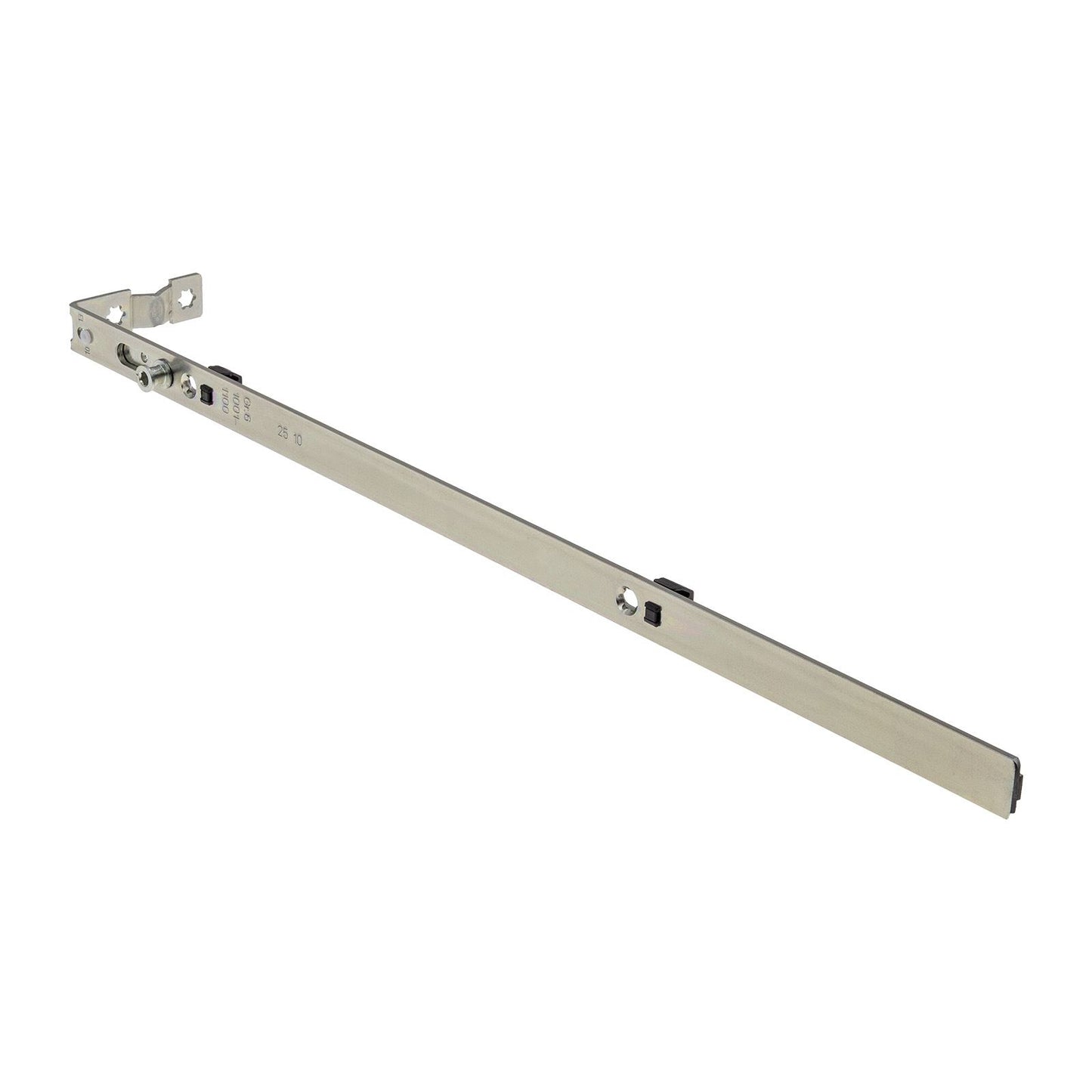

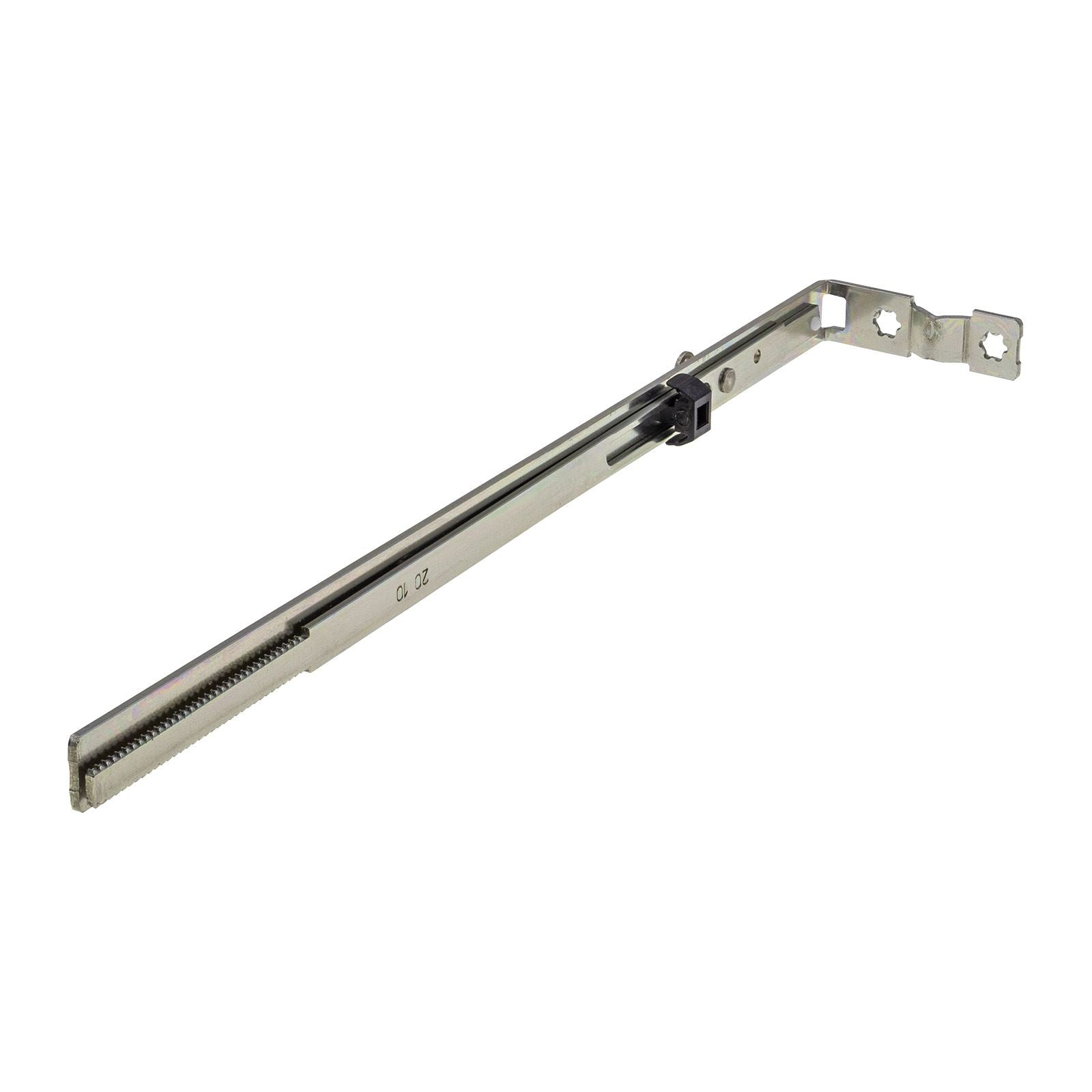

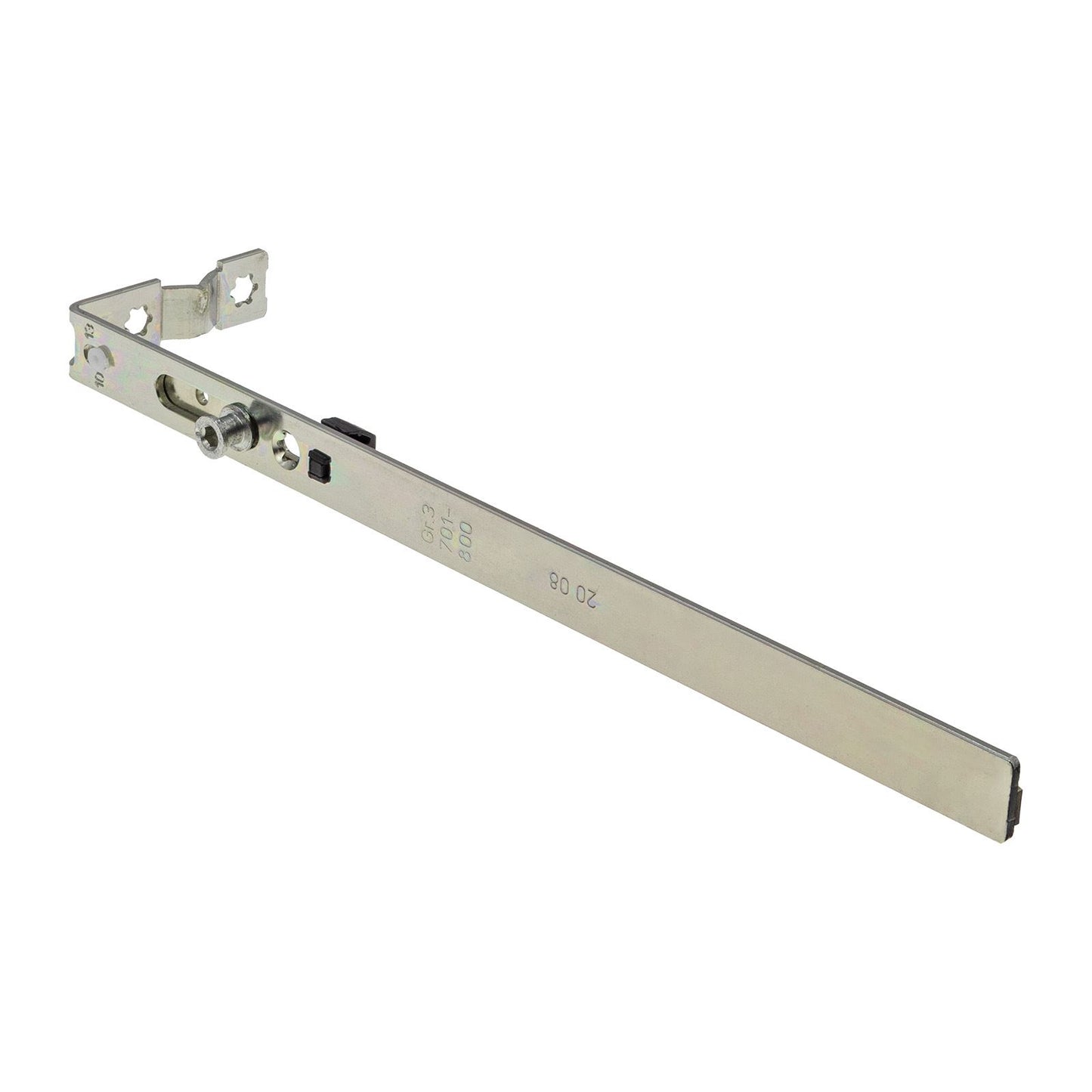

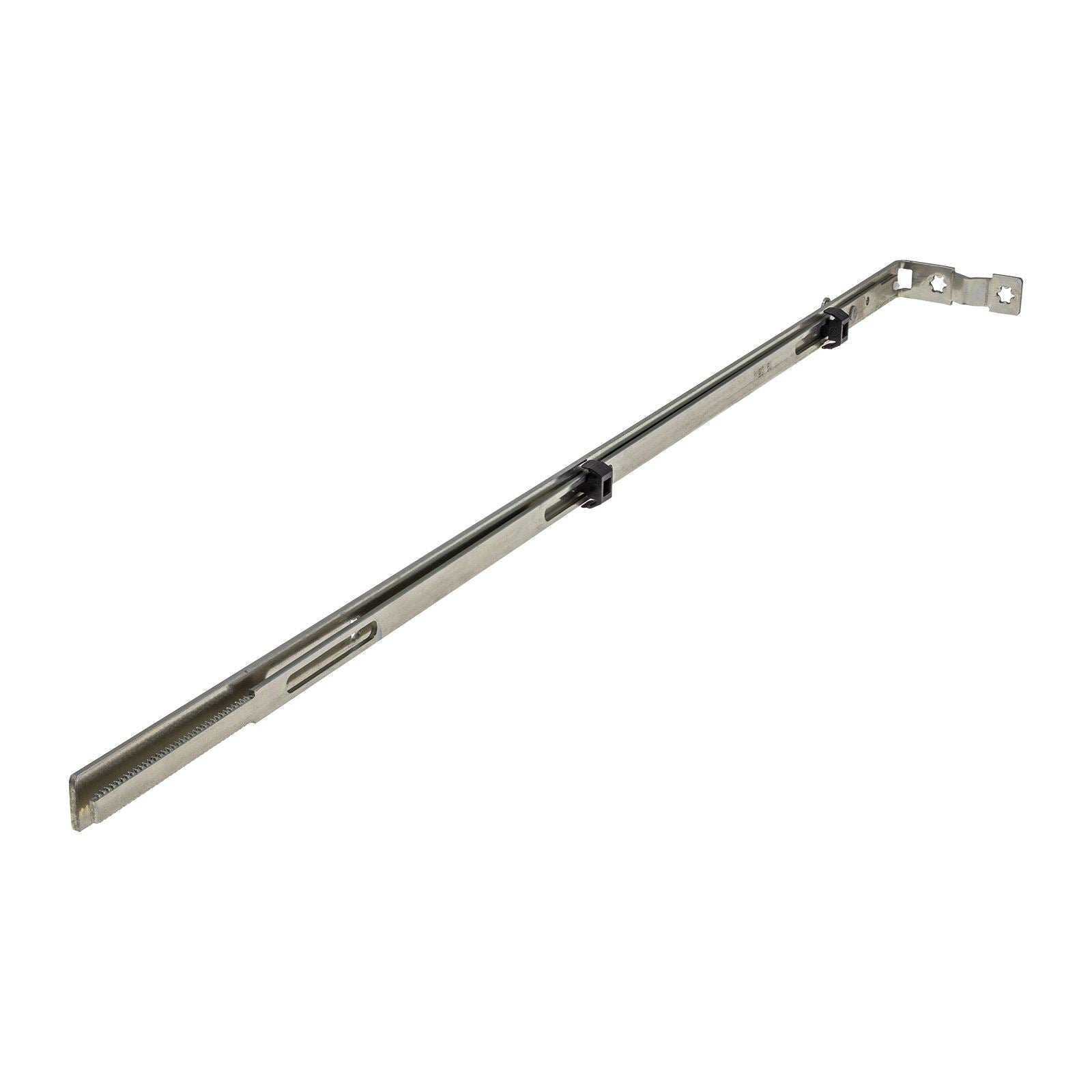

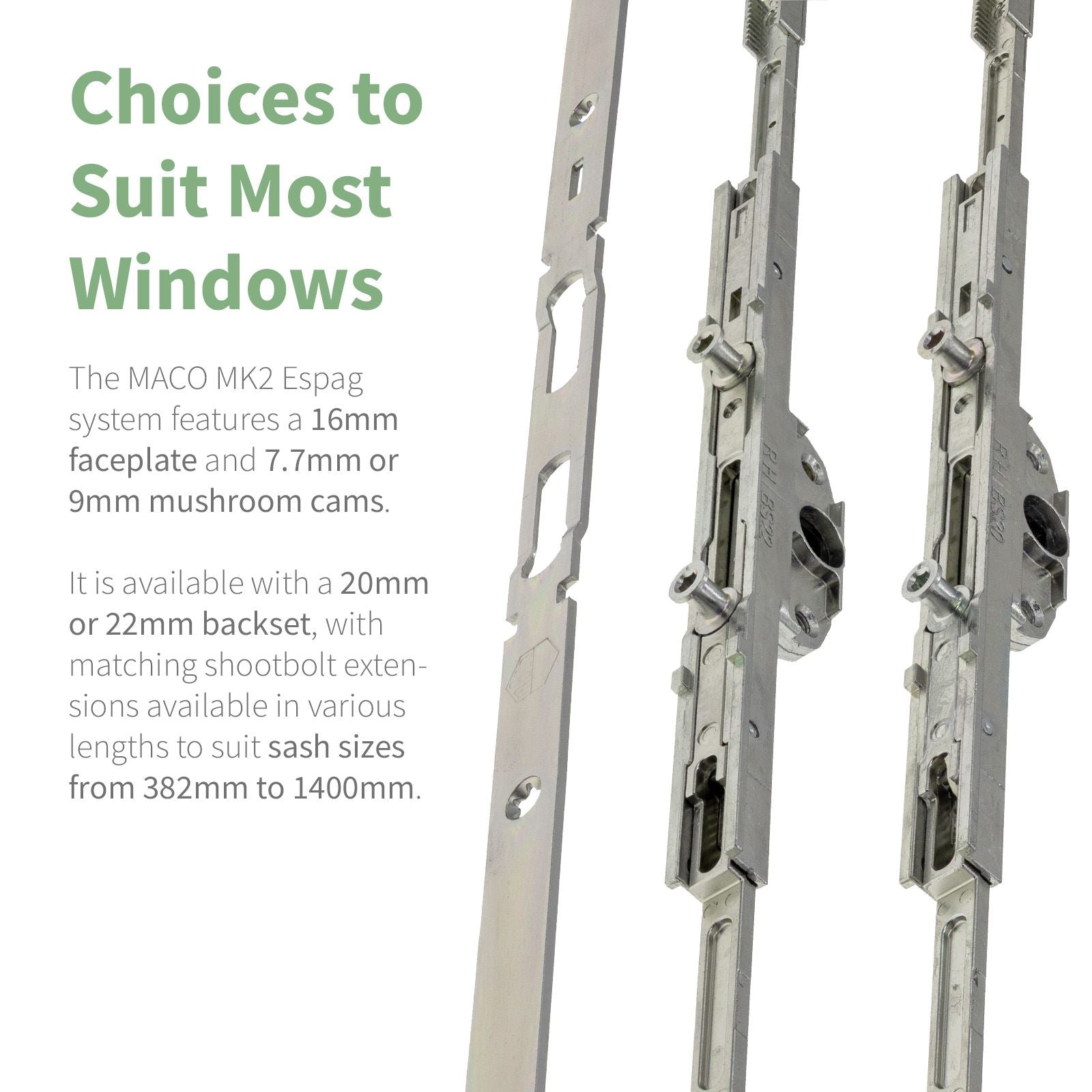

MACO MK2 Shootbolt Espag Extension (Non-Croppable)

MACO MK2 Shootbolt Espag Extension (Non-Croppable)

SKU: MAC-2430-1001
MPN: 58140

£3.78

Sale

Tax included. Shipping calculated at checkout.

37 in stock

Quantity

View full details

Description

MACO MK2 Shootbolt Extension Rods for Espag Window Lock Non Croppable

Name: MACO MK2 Shootbolt Espag Extension (Non-Croppable)
Brand: MACO
SKU: MAC-2430-1001
Price: 3.78 GBP
Availability: InStock

(Choice of length and cam height)

Zero-Cut Security

Non-croppable extension rods for quick installation on standard sash sizes from 500mm to 1400mm, delivering high-security locking. Part of the Maco MK2 (Mach II) espagnolette system, with Eurogroove clips to hold extensions securely in place and compatibility with non-croppable gearboxes.

Designed for side- and top-hung, outward-opening uPVC, aluminium, and timber windows. Available in a range of lengths with 7.7mm or 9mm mushroom cams. Manufactured from high-quality mild steel with advanced Silverlook-Evo surface protection for enhanced durability, ensuring smooth operation and reliable, PAS 24-compliant multi-point locking.

Features & Benefits

Rapid Installation – Fixed-length components for standard-sized frames eliminate the need for manual cutting
Precision Sizing – Available in 50mm increments (150mm–550mm) to ensure an exact fit for sashes ranging from 500mm to 1400mm
Weather Seal Compression – Features eccentric mushroom cams with +/- 1mm adjustment
PAS 24 & SBD Approved – Fully compliant with the highest UK security standards when used as part of the MACO MK2 system
Extreme Corrosion Resistance – Silverlook-Evo finish exceeds Grade 5 (600+ hours salt spray) for excellent weather durability
Low-Friction Operation – Precision-engineered for smooth operation and long service life
Multi-Frame Compatibility – Designed for standard 16mm Eurogrooves in uPVC, timber, and aluminium window profiles
10-Year Guarantee – Eligible for the MACO Secure Plus scheme, offering peace of mind and insurance excess cover

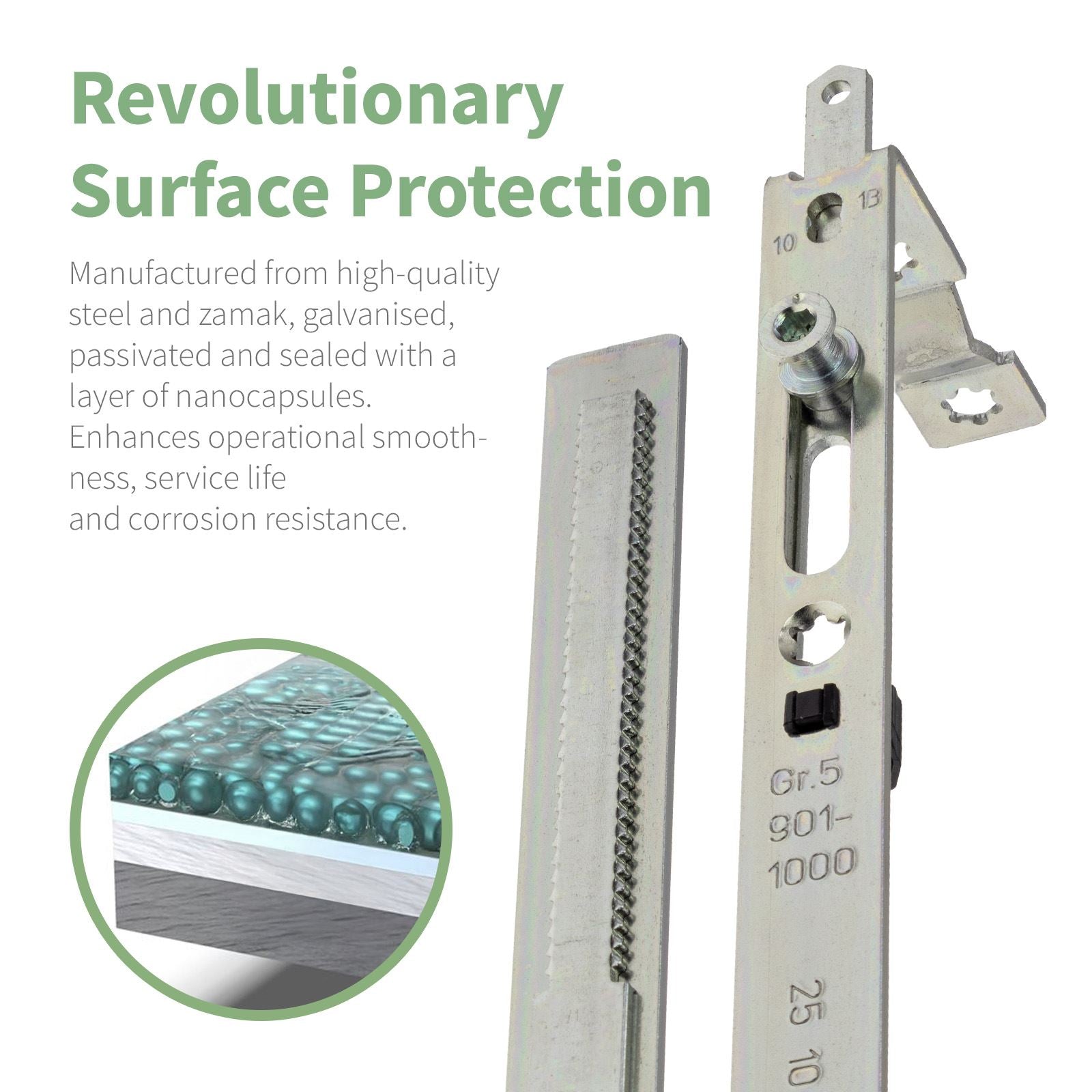

Did you know? The Silverlook-Evo finish features integrated nano-capsules that provide a "self-healing" effect. If the surface is scratched, these microscopic capsules rupture to release a protective film that migrates to reseal the gap. This acts like an immune system for your hardware, stopping oxidation and rust before they can start.

Specification

Technical Information

Specification	Detail
Cam Height	7.7mm or 9mm
Cam Type	Mushroom
Cam Adjustment	±1mm (using 4mm Allen key)
Shootbolt Adjustment	10–13mm
Faceplate Width	16mm
Eurogroove Compatibility	Standard 12mm and shallower eurogrooves
Material Specification	Faceplate: Mild Steel to DIN 1624 Mushroom cams: Machine steel to DIN 1651 Shootbolt components: Zinc diecast (Zamac Z410) to DIN 1743
Coating	Silverlook-Evo: high corrosion resistance, self-healing, salt spray tested up to 600 hours (EN 1670 Grade 5)
Performance	Tested to PAS 24 enhanced security requirements, 7.6kN load, 40,000 life cycles; exceeds BS7950:1997 standards
Window Compatibility	Outward-opening uPVC, timber, and aluminium casement windows
Handle Compatibility	Standard espagnolette handles with 7mm square spindle and 43mm fixing centres
Recommended Fixings	4mm / No.8 countersunk screws (espag to sash), M5 machine screws (handle to espag)
Guarantee	MACO Secure Plus 10-year guarantee, including up to £1,000 insurance excess cover

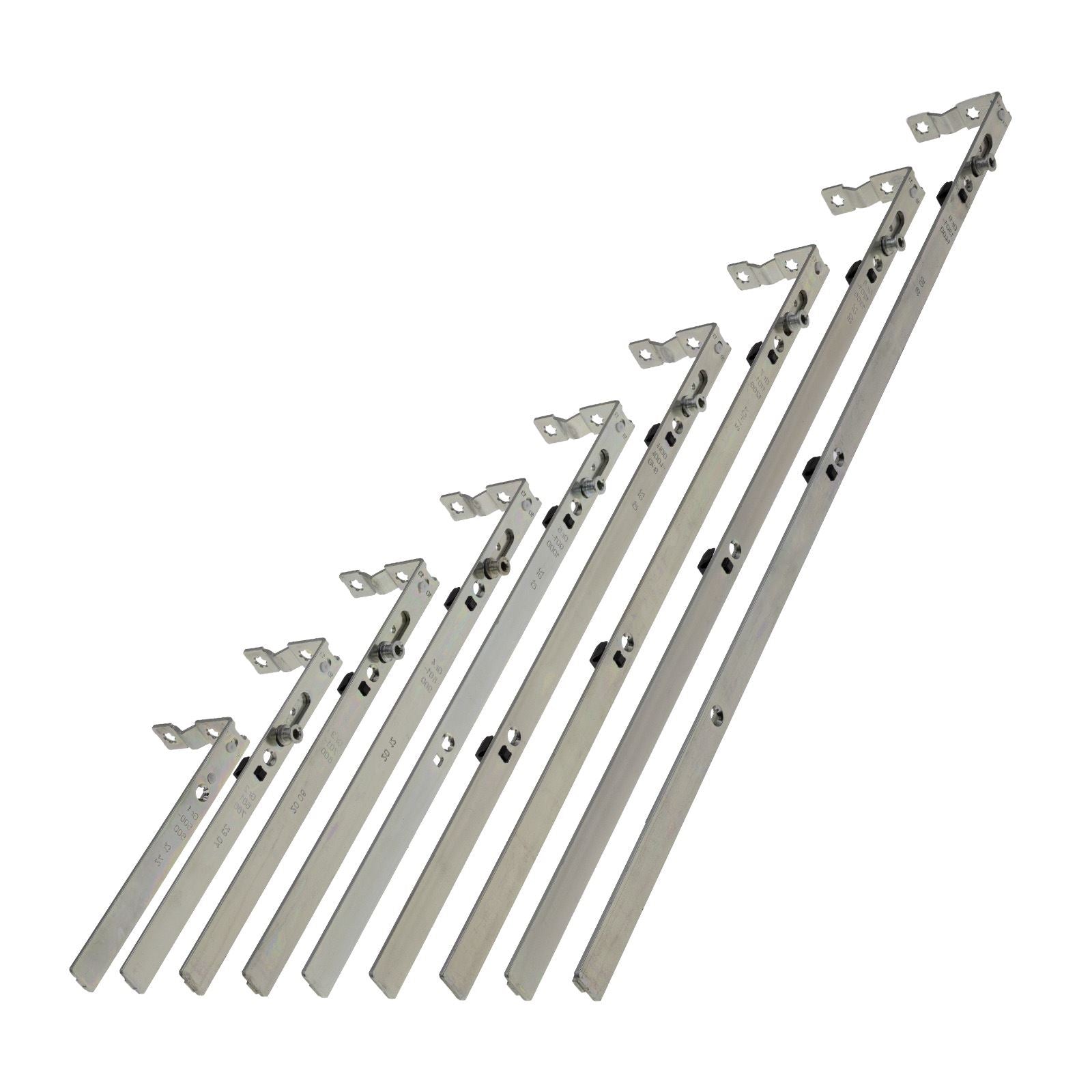

Shootbolt Extension Rod Specifications

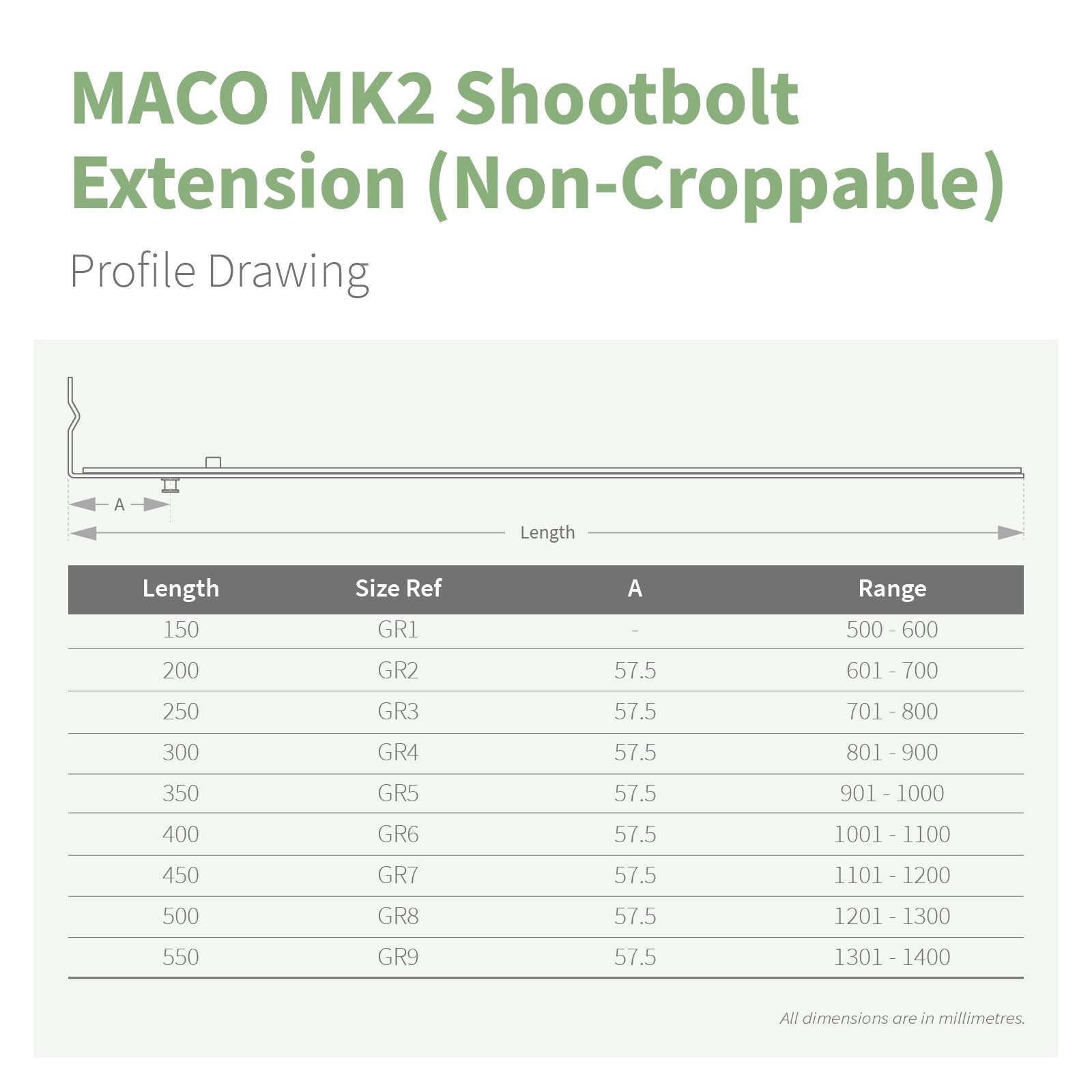

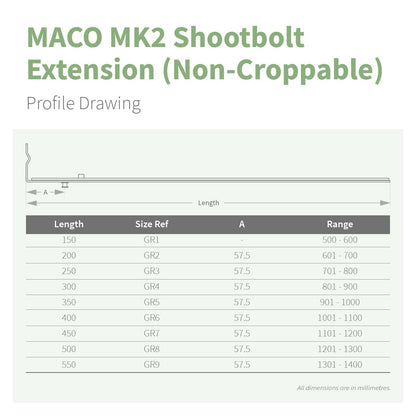

Manufacturer Code	Size Reference	Faceplate Length	Sash Rebate (mm)	Faceplate Width (mm)	Mushroom Cams	Cam Height (mm)
MAC58140	GR1	150mm	500–600	16	0	N/A
MAC58141	GR2	200mm	601–700	16	1	7.7
MAC58142	GR3	250mm	701–800	16	1	7.7
MAC58143	GR4	300mm	801–900	16	1	7.7
MAC58144	GR5	350mm	901–1000	16	1	7.7
MAC58145	GR6	400mm	1001–1100	16	1	7.7
MAC58146	GR7	450mm	1101–1200	16	1	7.7
MAC58147	GR8	500mm	1201–1300	16	1	7.7
MAC58148	GR9	550mm	1301–1400	16	1	7.7
MAC58149	GR2	200mm	601–700	16	1	9
MAC58150	GR3	250mm	701–800	16	1	9
MAC58151	GR4	300mm	801–900	16	1	9
MAC58152	GR5	350mm	901–1000	16	1	9
MAC58153	GR6	400mm	1001–1100	16	1	9
MAC58154	GR7	450mm	1101–1200	16	1	9
MAC58155	GR8	500mm	1201–1300	16	1	9
MAC58156	GR9	550mm	1301–1400	16	1	9

Contents

Fitting & Usage

Identify the Existing Lock Type and Size

Before installing the MACO MK2 (Mach II) Shootbolt Espagnolette system, confirm the following compatibility requirements:

System Type – Choose Croppable (cut-to-size flexibility) or Non-Croppable (fixed length, faster installation).
Backset Size – 20mm or 22mm (measured from the faceplate to the centre of the spindle hole).
Cam Height – 7.7mm or 9mm to match existing keeps and ensure correct compression.
Sash Size Range – Non-croppable: 500mm–1400mm, Croppable: 382mm–1400mm.
Eurogroove Compatibility – Standard 16mm groove width; profile-dependent groove depth (typically 12mm or shallower).

Fitting the MACO MK2 Shootbolt Espagnolette

Tools required: screwdriver, tape measure, pencil, drill (if new fixing points are required), and hacksaw or bolt cutters (croppable versions only).

Remove Handle – Open the sash, remove screw covers, and remove handle and spindle.
Remove Existing Lock – Undo all faceplate fixings and carefully extract the existing espagnolette system.
Fit Gearbox – Position the new gearbox in the sash cavity and ensure correct orientation before fixing.
Fit Extensions – If installing a croppable system, dry fit first, then mark and cut rods to length ensuring correct engagement with keeps.
Fix Gearbox and System – Secure gearbox and faceplate using appropriate countersunk screws (No.8 / 4mm).
Refit Handle – Reinstall spindle and refit handle using M5 machine screws.
Test Operation – Confirm smooth cam travel, full shootbolt engagement, and correct alignment with keeps.

Adjustments

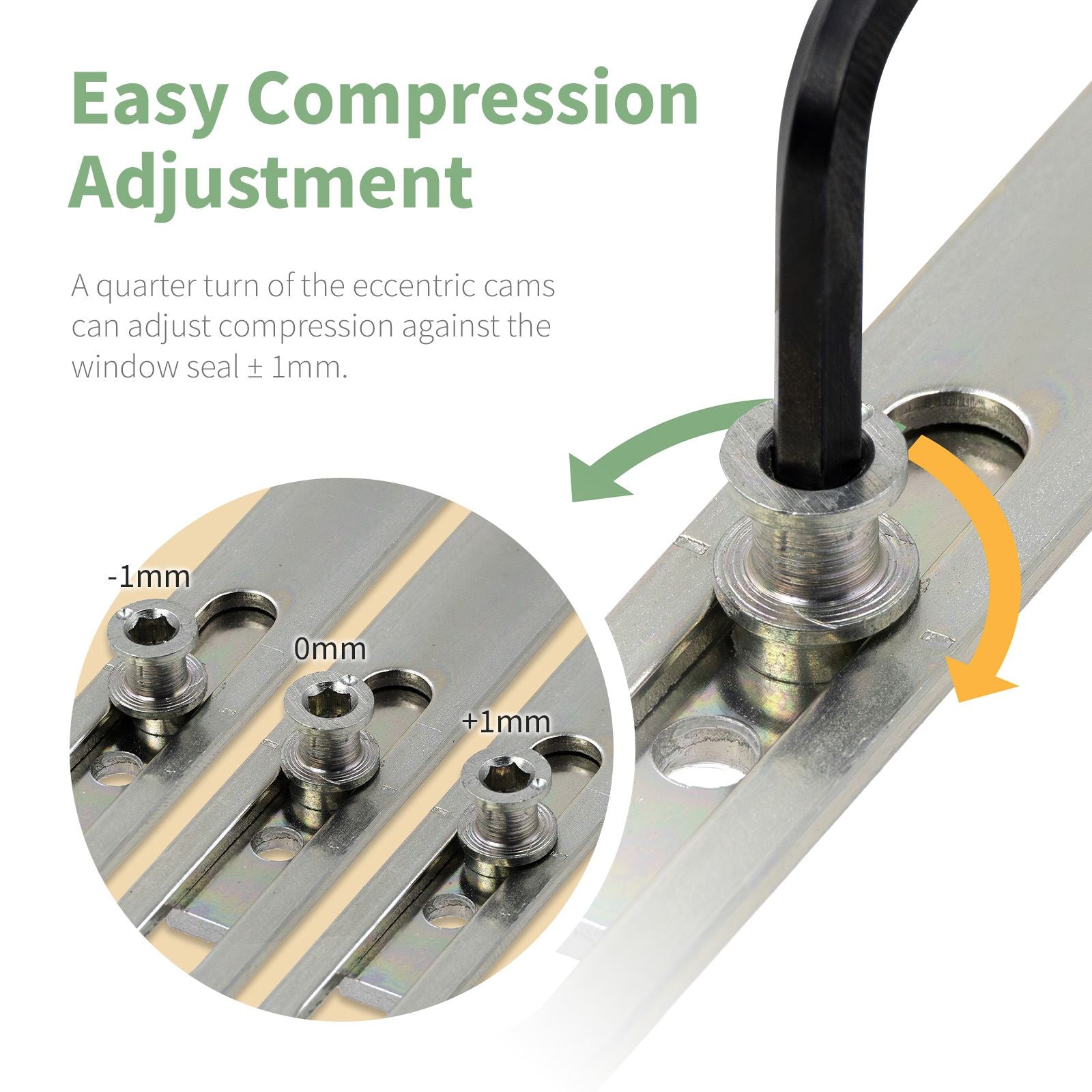

Compression (Mushroom Cams) – Rotate the eccentric cams with a 4mm Allen key (±1mm) to fine-tune the weather seal.
Shootbolt Throw – Selectable 10mm or 13mm throw on the extensions ensures secure engagement with the striker plates.
