Cockspur Striker Plate Wedges

Cockspur Striker Plate Wedges

SKU: TRU-2216-1010
MPN: TRU-2216-1010

£3.04

Sale

Tax included. Shipping calculated at checkout.

150 in stock

Quantity

View full details

Description

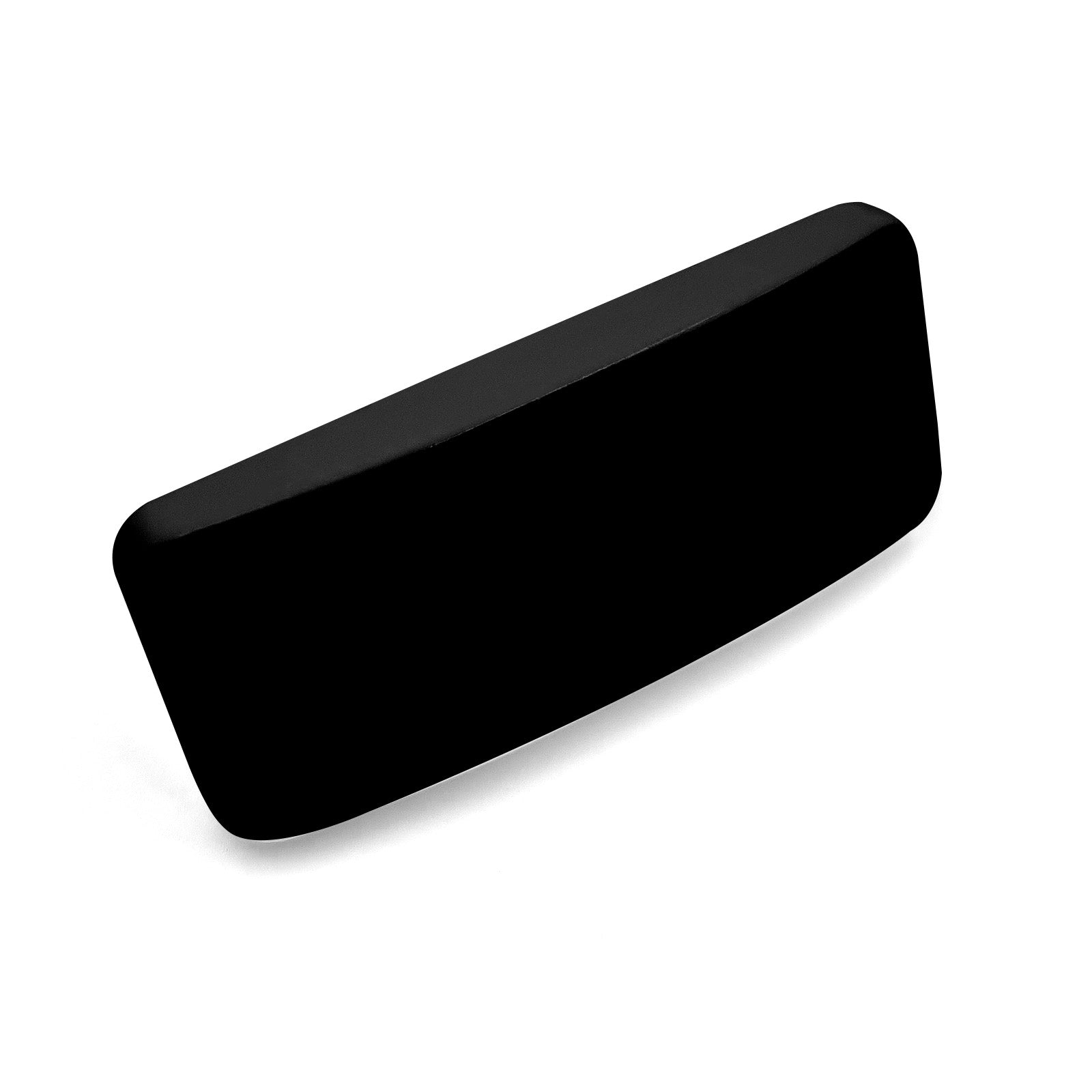

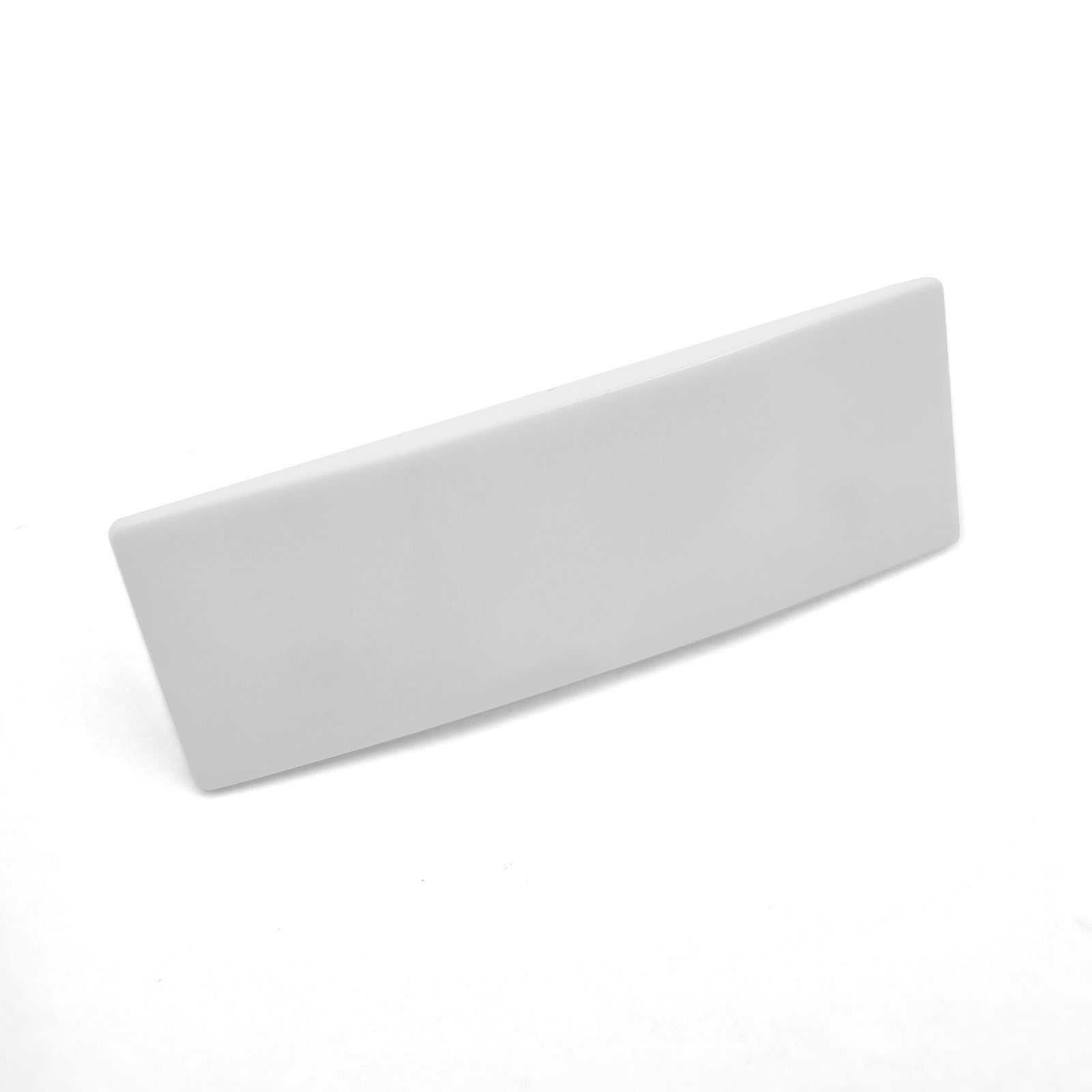

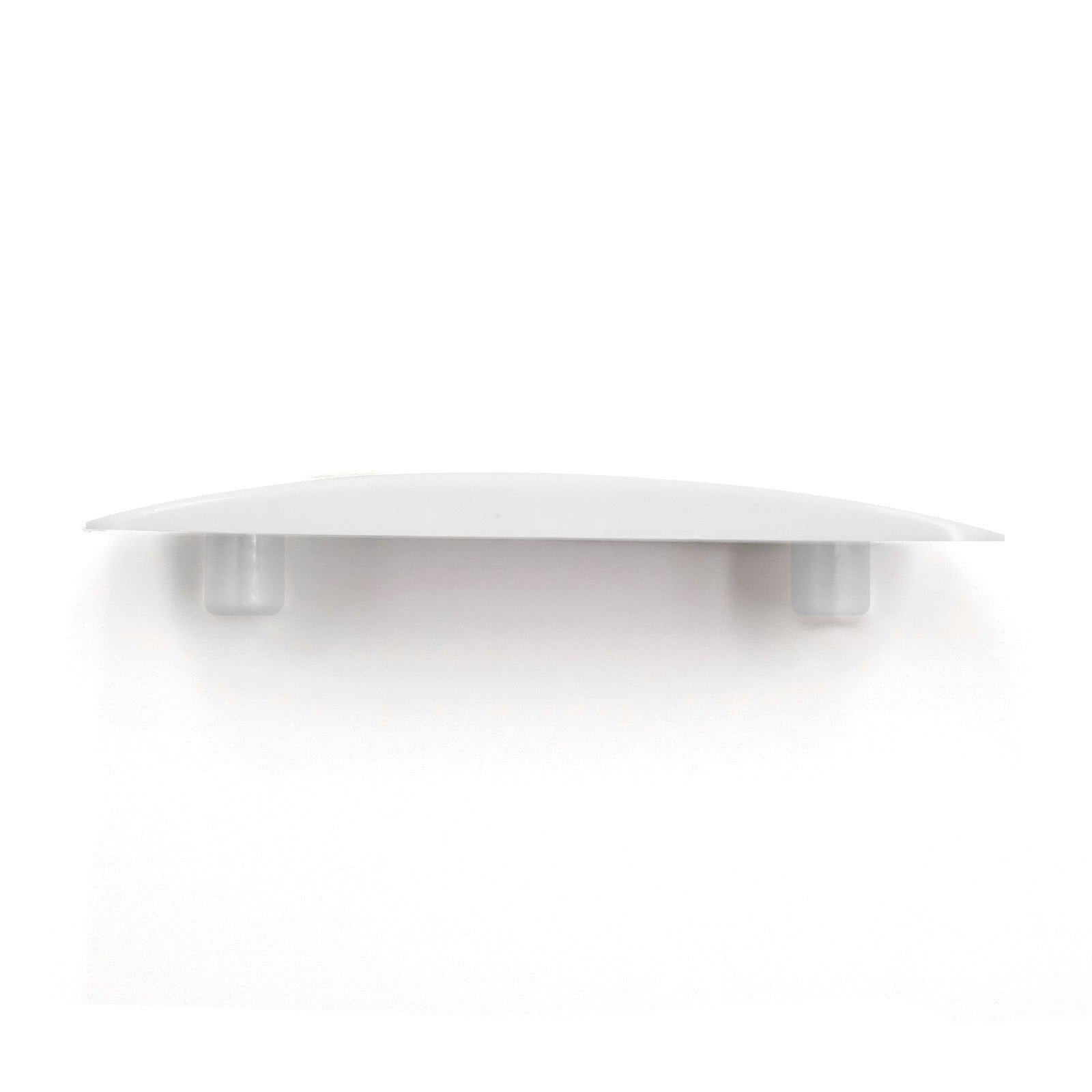

Pack of Cockspur Window Handle Striker Plate Wedges

Name: Cockspur Striker Plate Wedges
Brand: TruMAX
SKU: TRU-2216-1010
Price: 3.04 GBP
Availability: InStock

(Choice of colour and thickness)

Improves insulation and security!

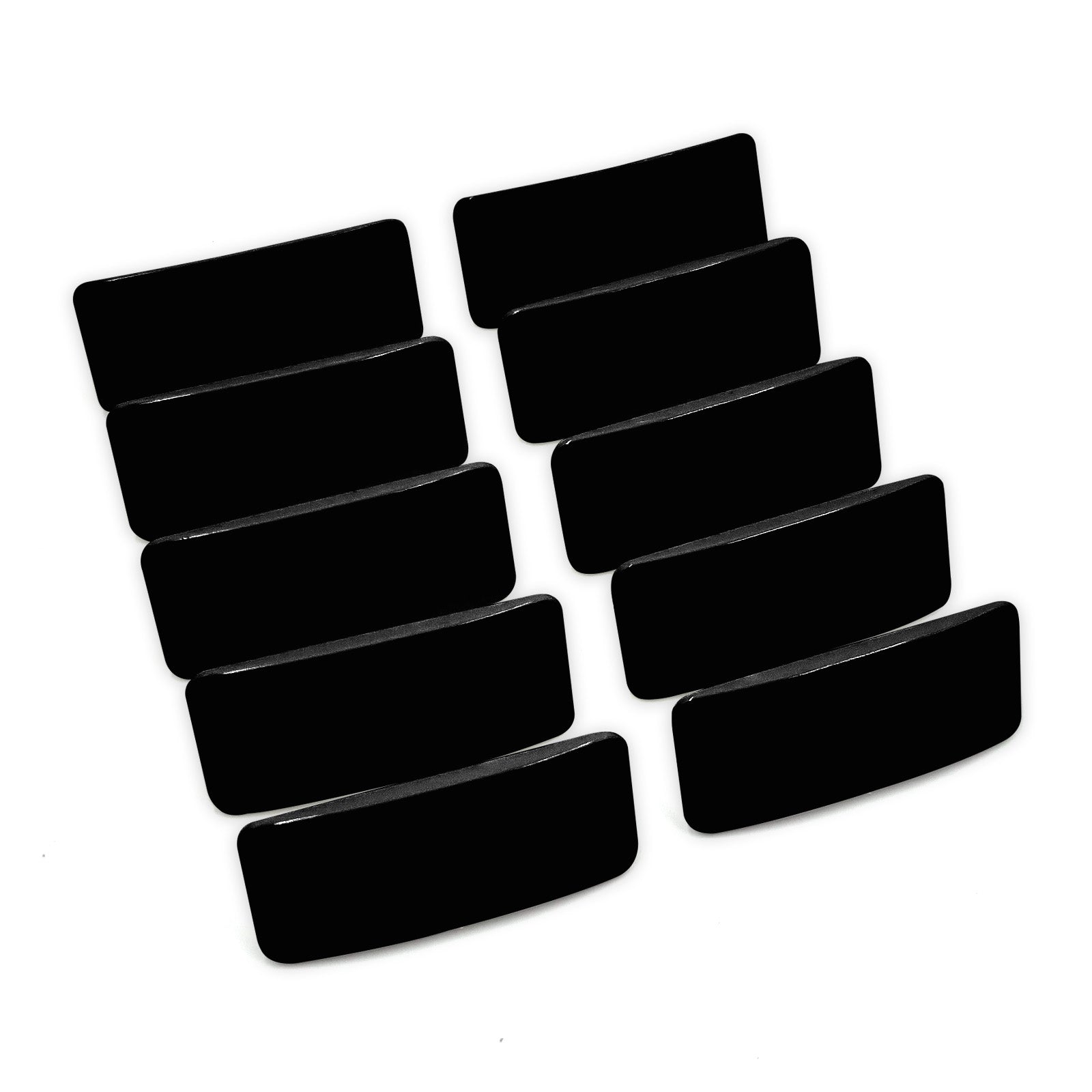

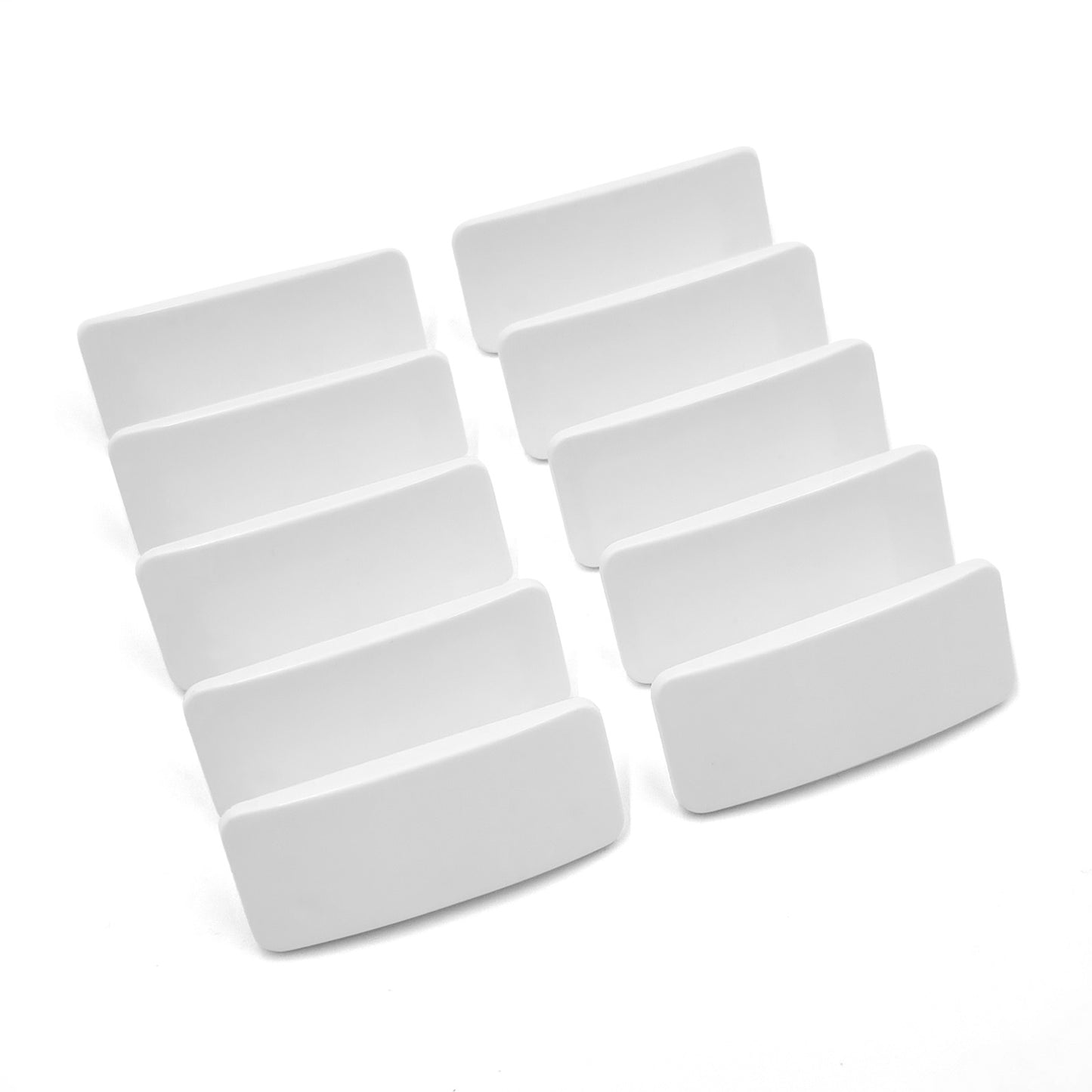

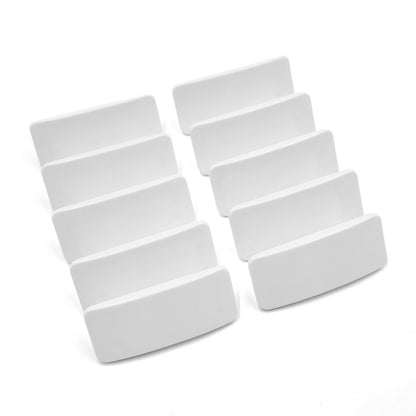

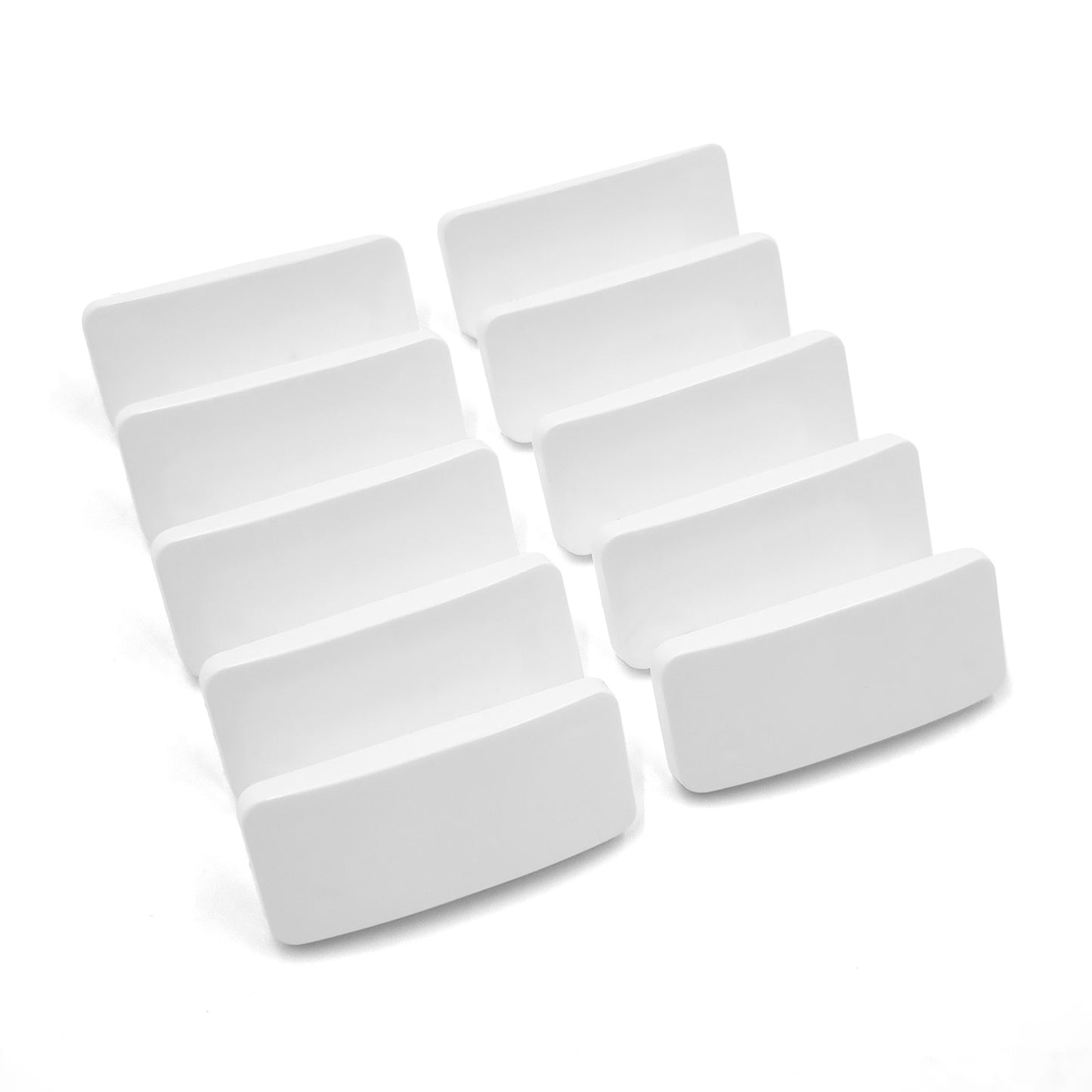

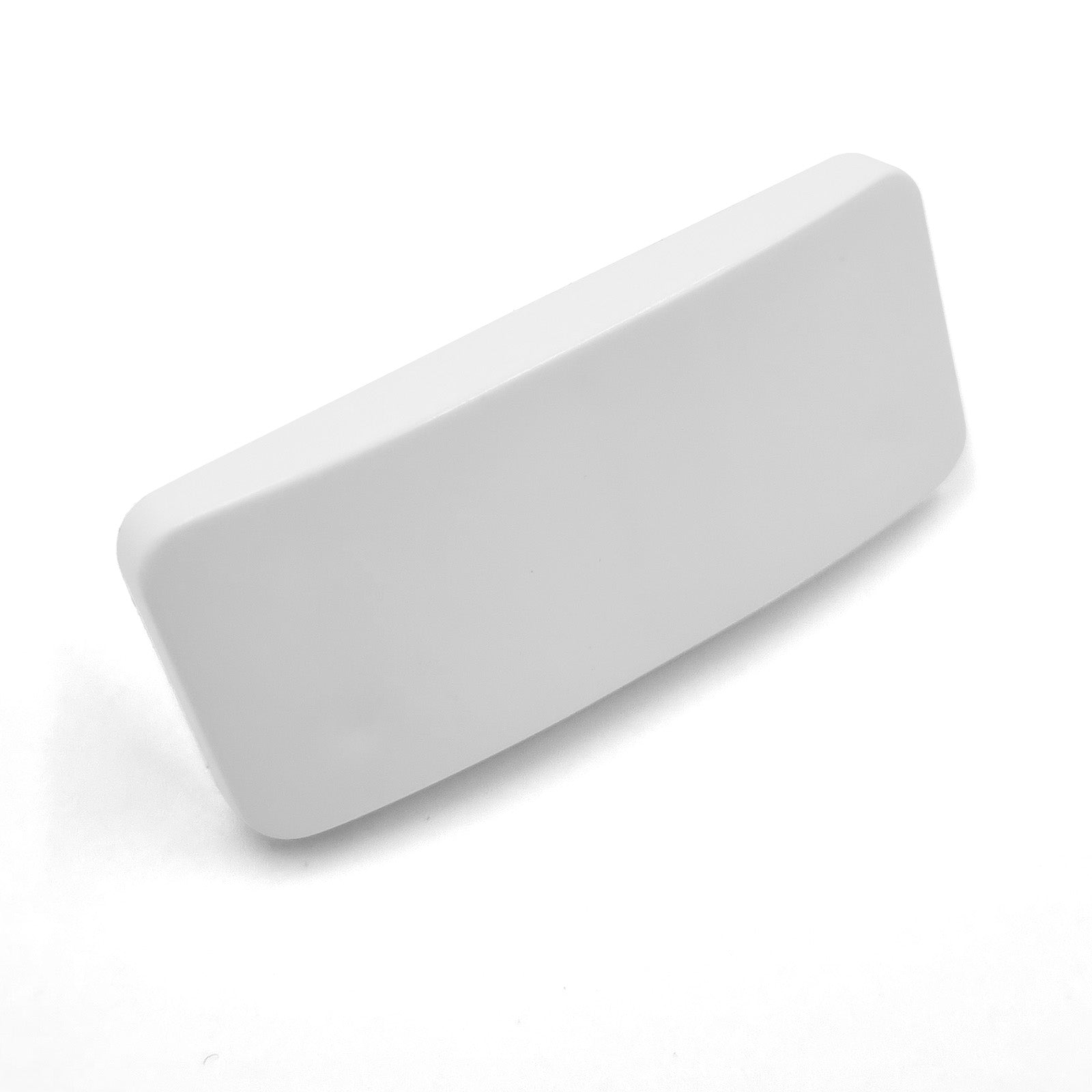

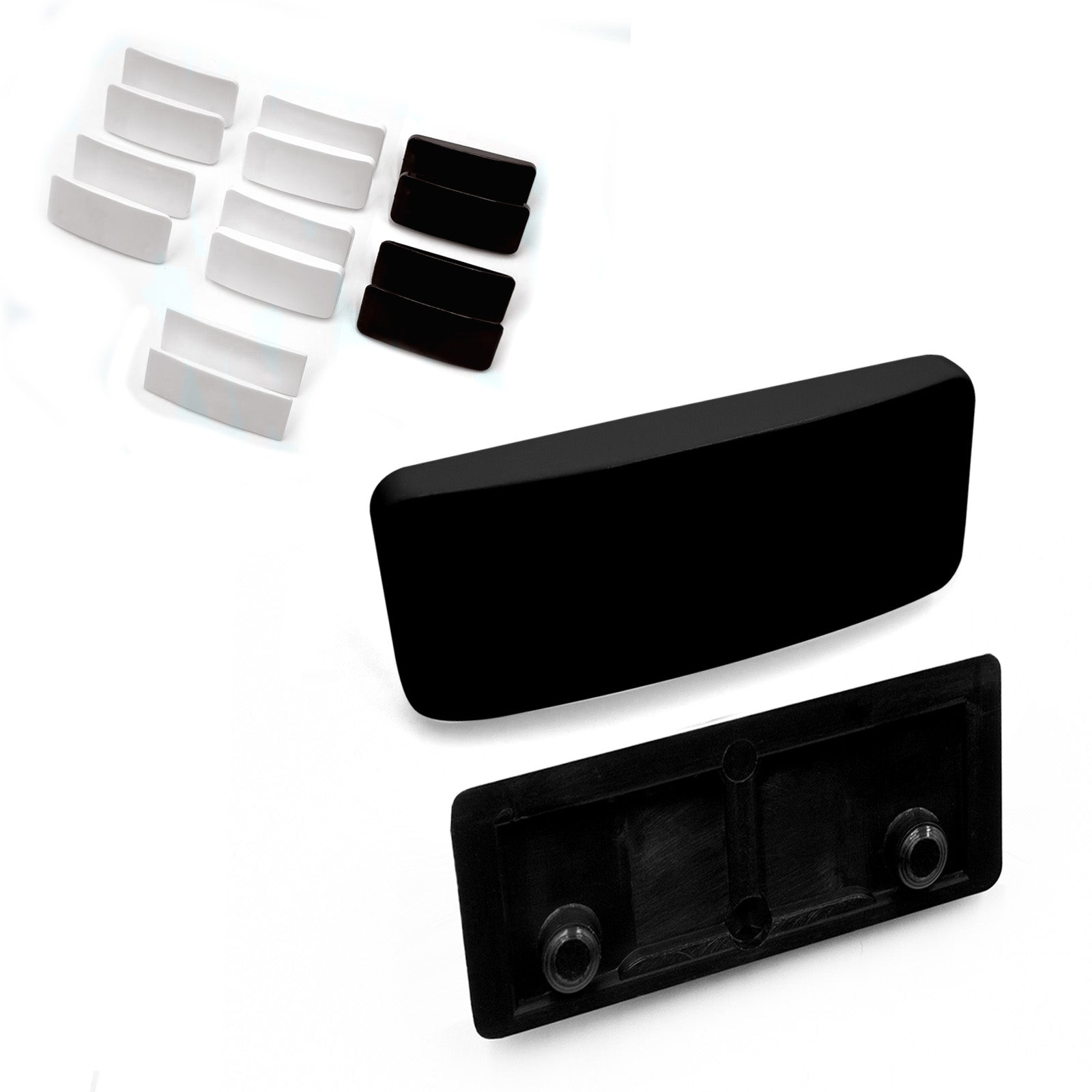

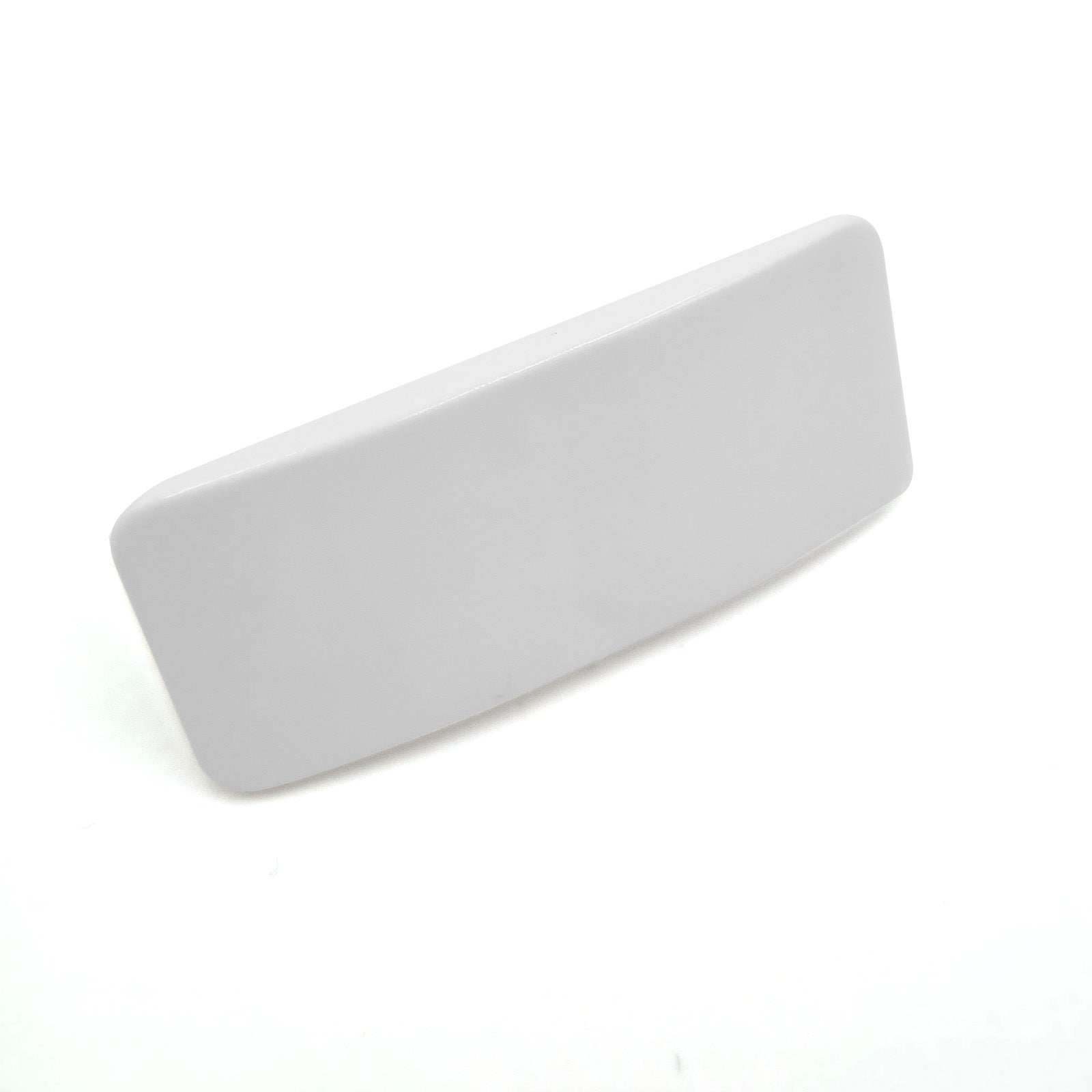

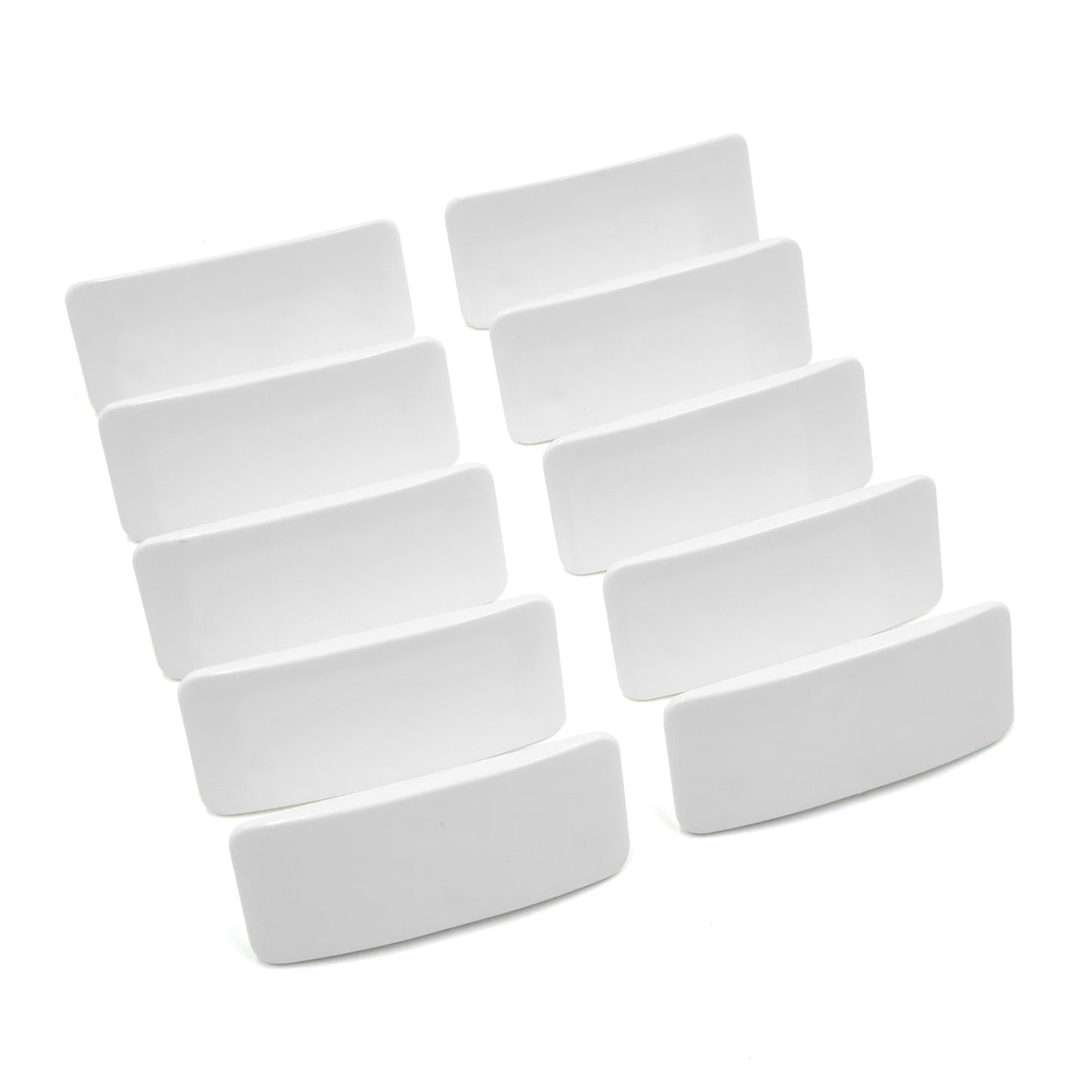

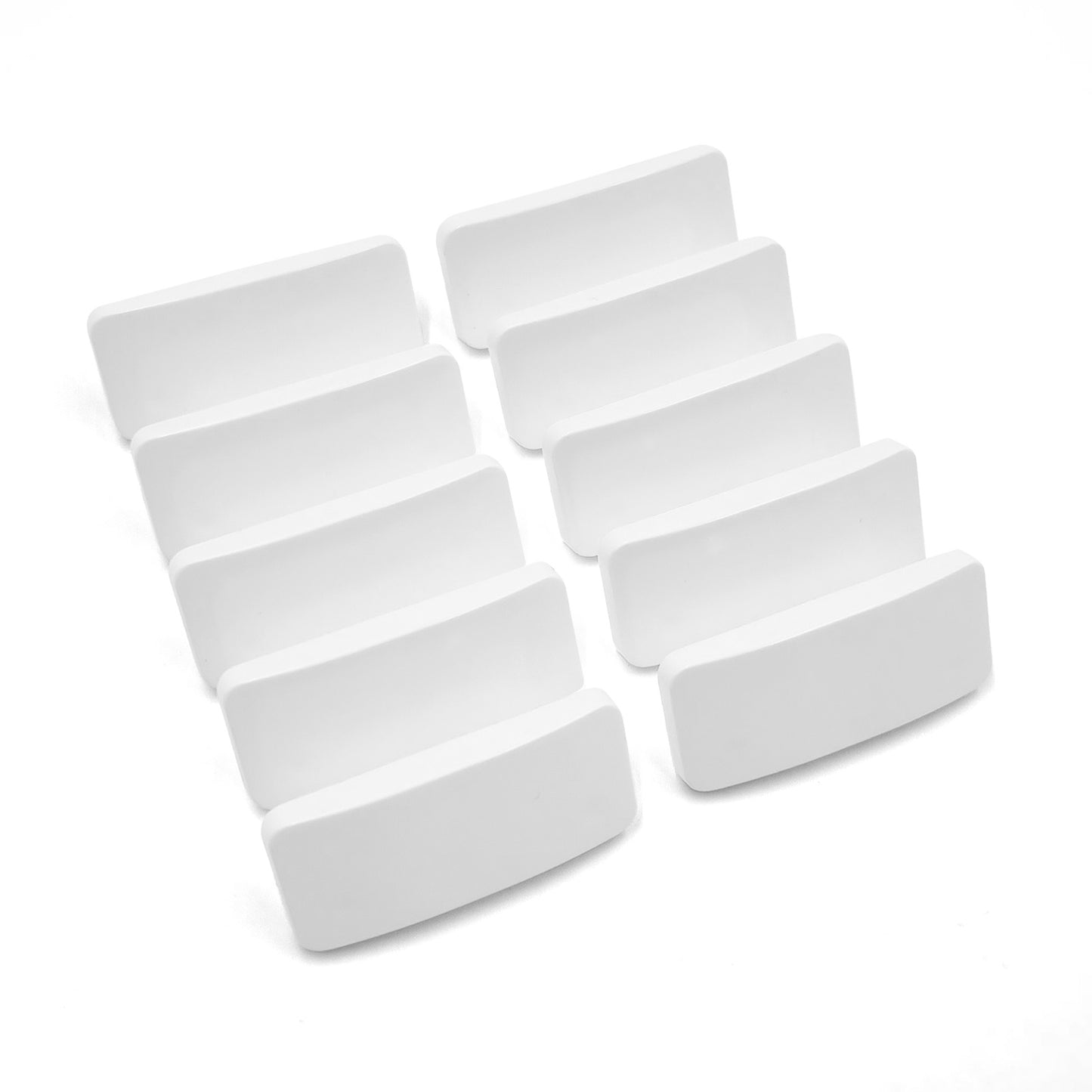

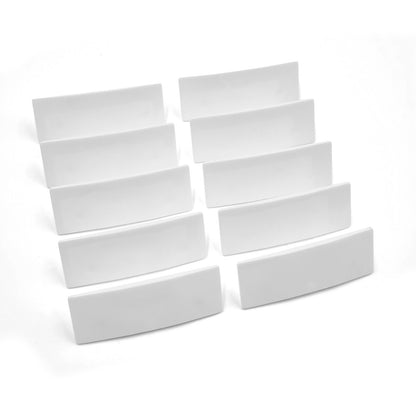

Simple and effective UV-stable striker plates for cockspur handles on uPVC, aluminium, and some timber windows. Seal and secure your windows, with these easy-fit durable plastic wedges. Variety Pack contains 14 wedges (two of each colour and size), with individual colour/size options offered in packs of 10.

Designed to fix on the frame under the nose of a closed cockspur handle, wedges remove any slack, to help pull the window shut, and lock out cold and draughts.

Features & Benefits

Strong and Durable - UV-stable plastic material
Quick and Easy Fitting - simply push fits into holes
Improves Insulation - increases compression to lock out cold
Aids Security - tight closure protects against forced entry
Wide range available - choice of colour and wedge size

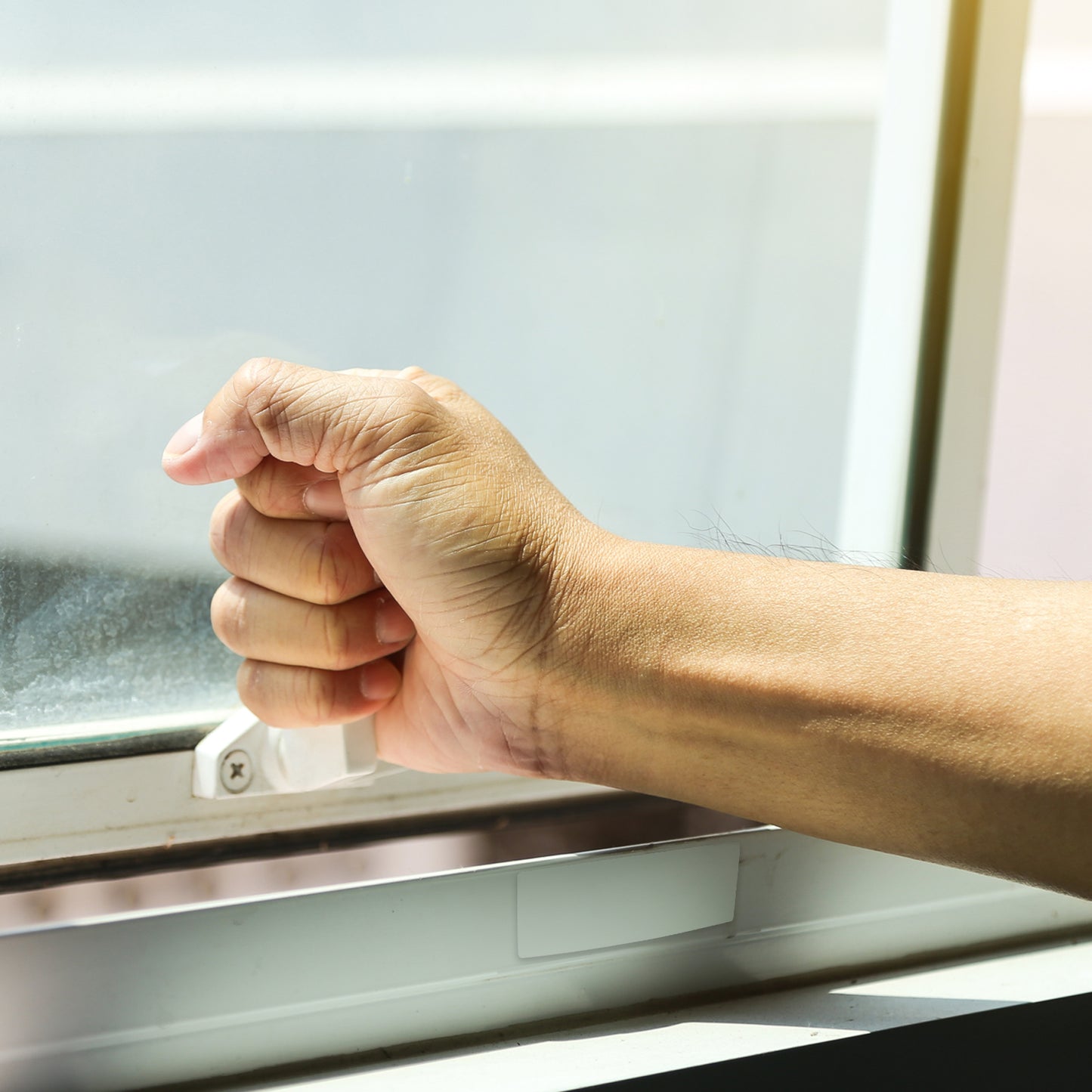

Commonly found on older uPVC and aluminium windows without an internal locking mechanism, cockspur window handles feature a spur (or nose) that closes onto the window frame, or a wedge mounted to the frame.

DID YOU KNOW? Choosing the optimal wedge thickness for your window, and replacing existing wedges for slightly thicker ones, can be a simple way to improve the quality of its seal.

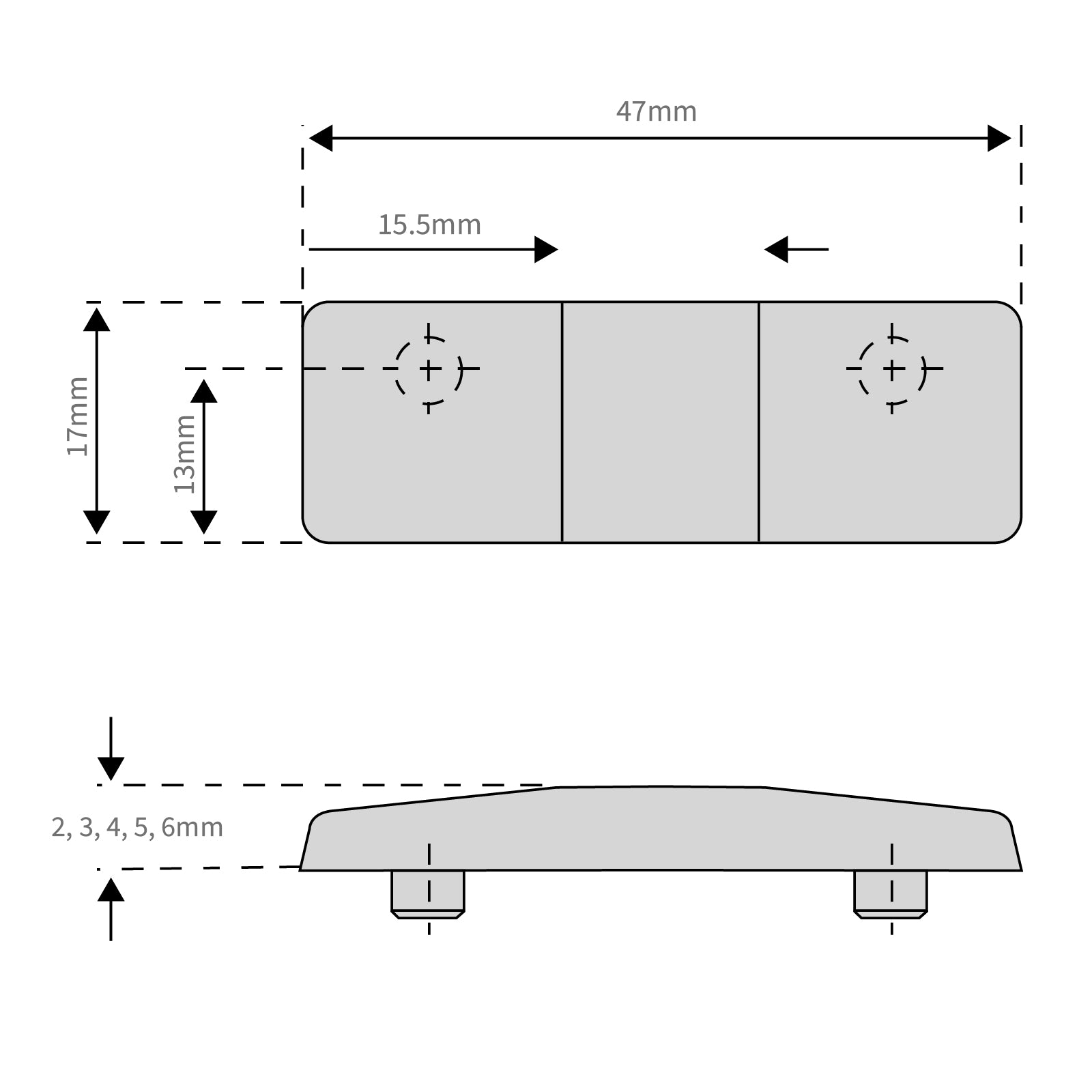

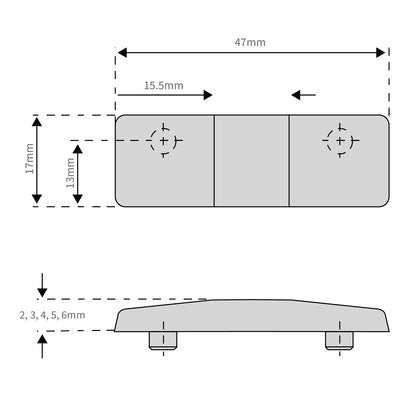

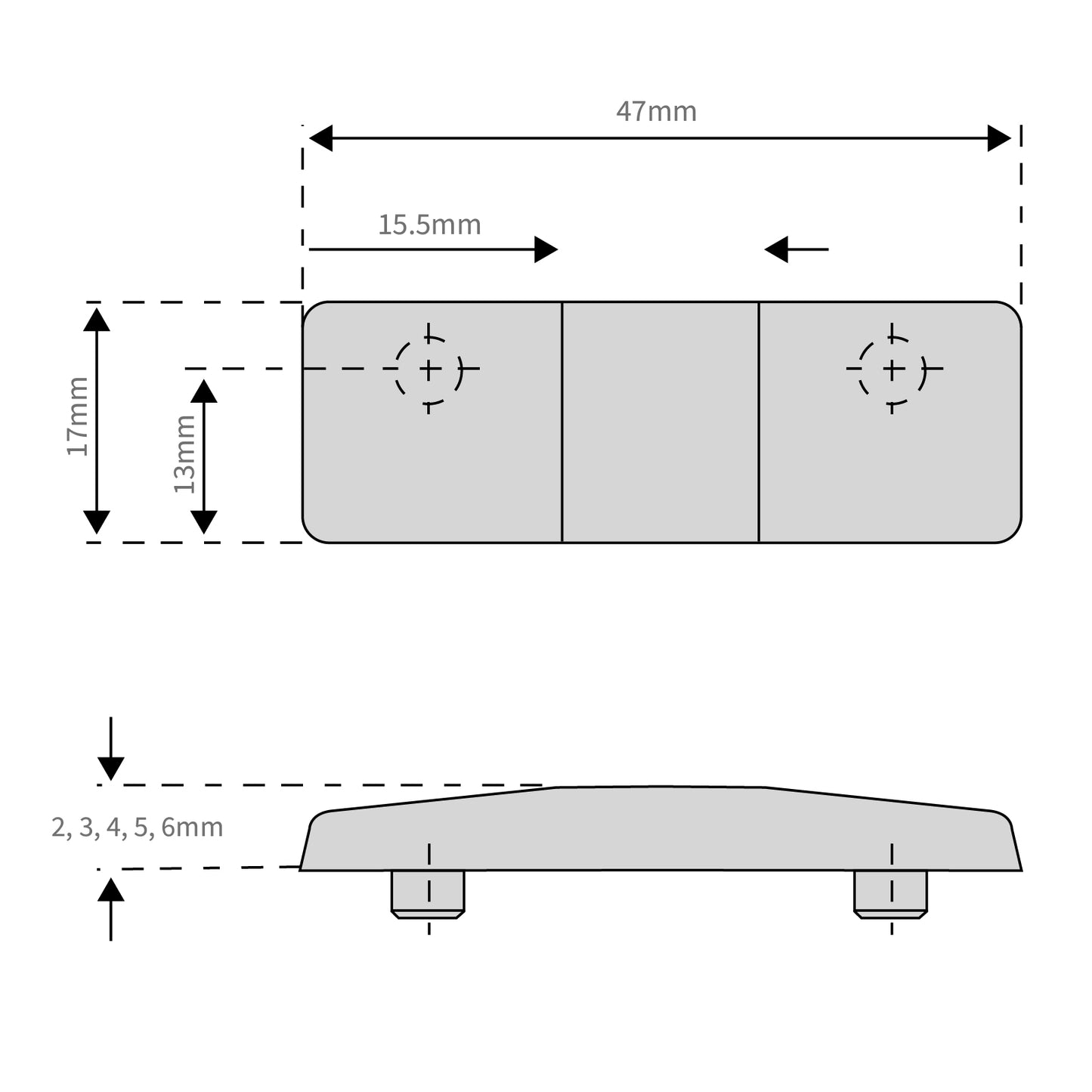

Specification

Measurement	Value
Material	UV-stable plastic
Colour	White, Black, Mixed (Variety Pack)

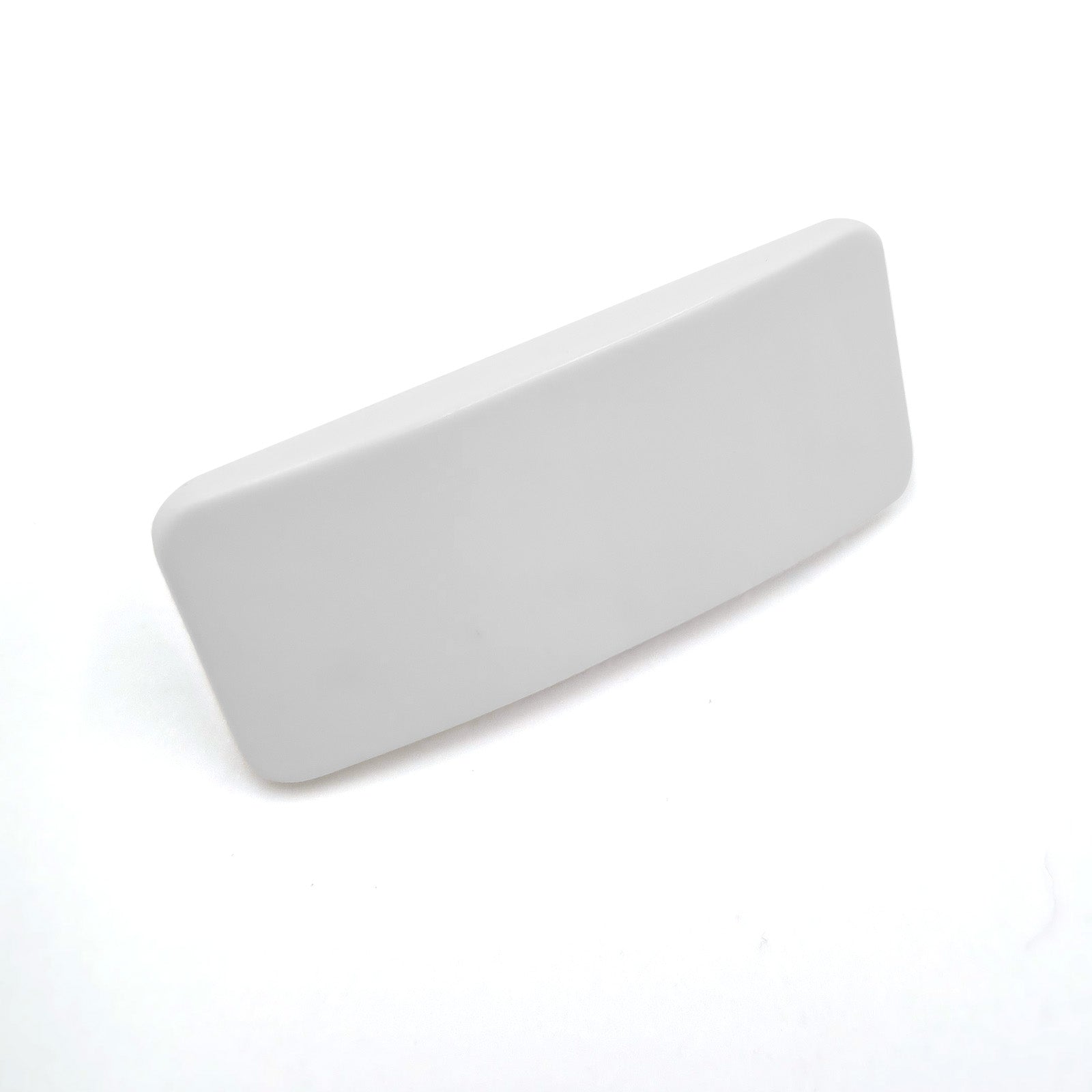

Wedge Length	47mm
Wedge Width	17mm
Wedge Thickness	2mm, 3mm, 4mm, 5mm, and 6mm

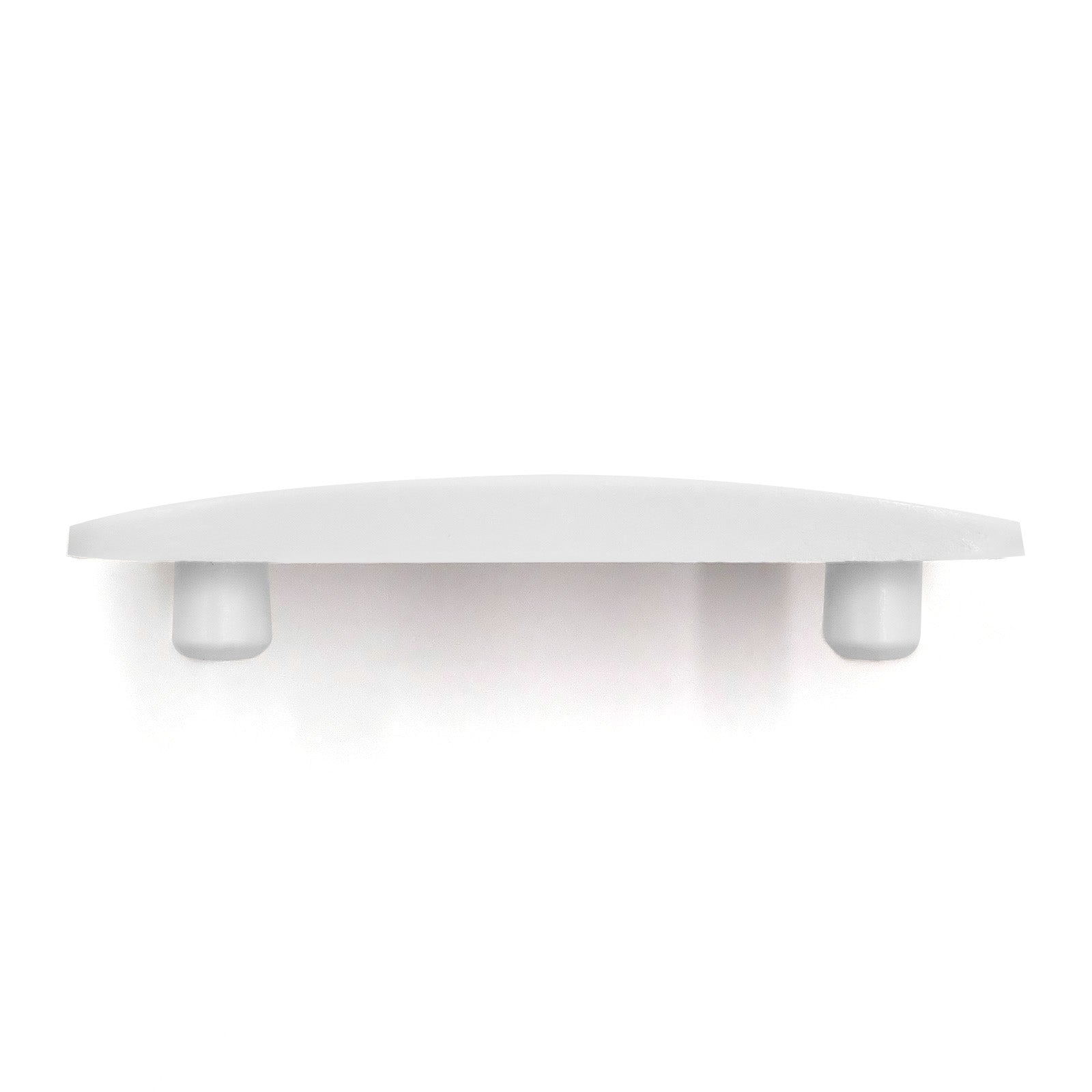

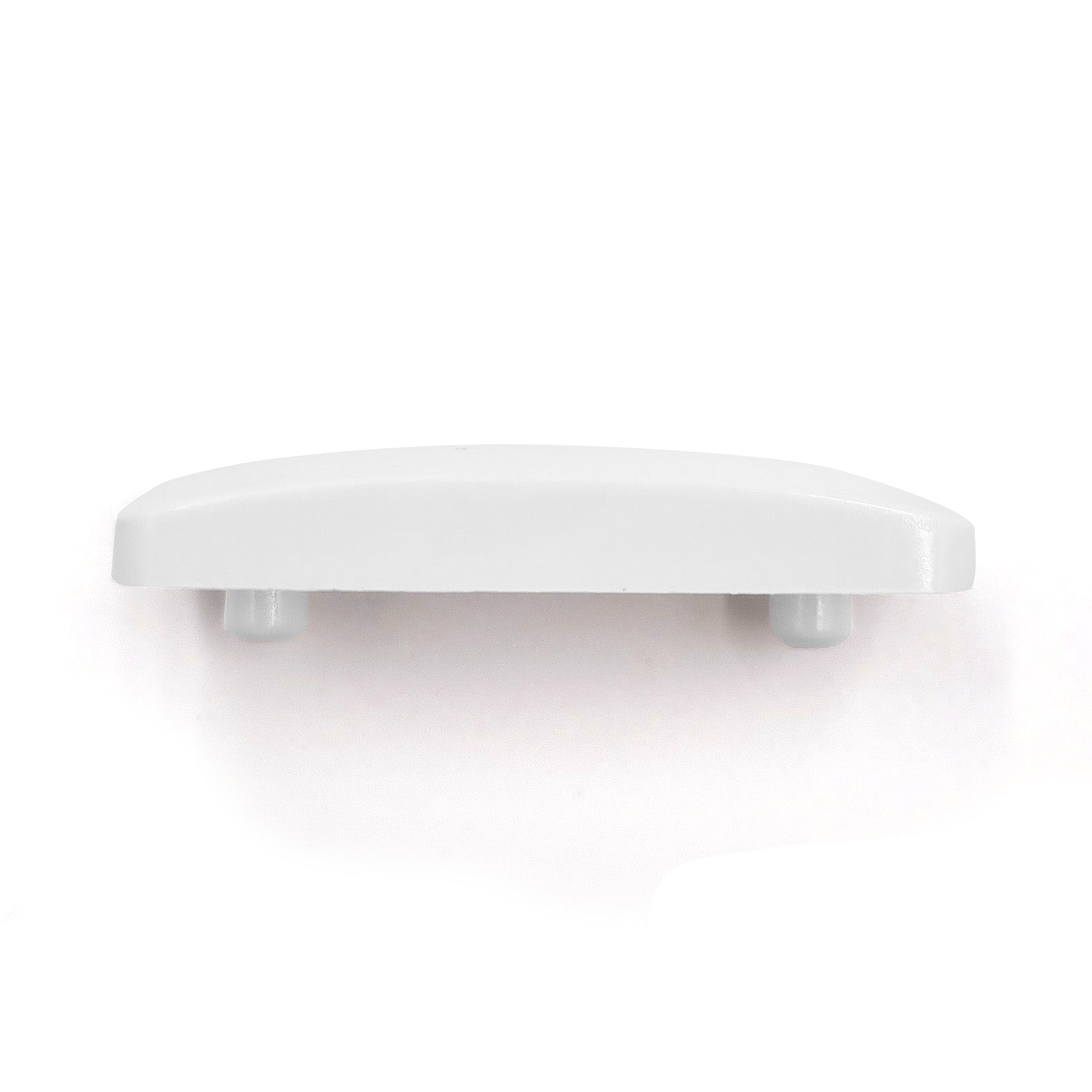

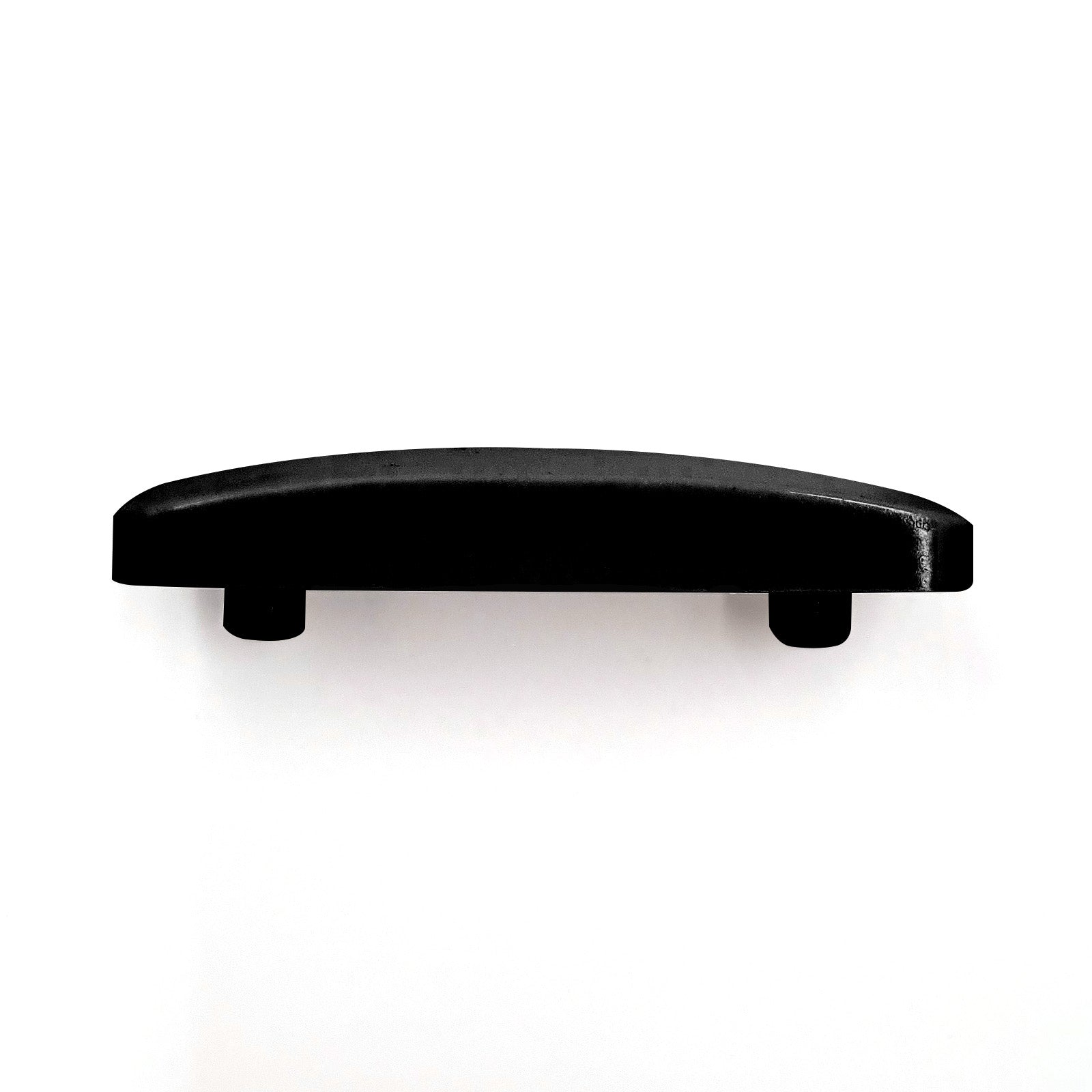

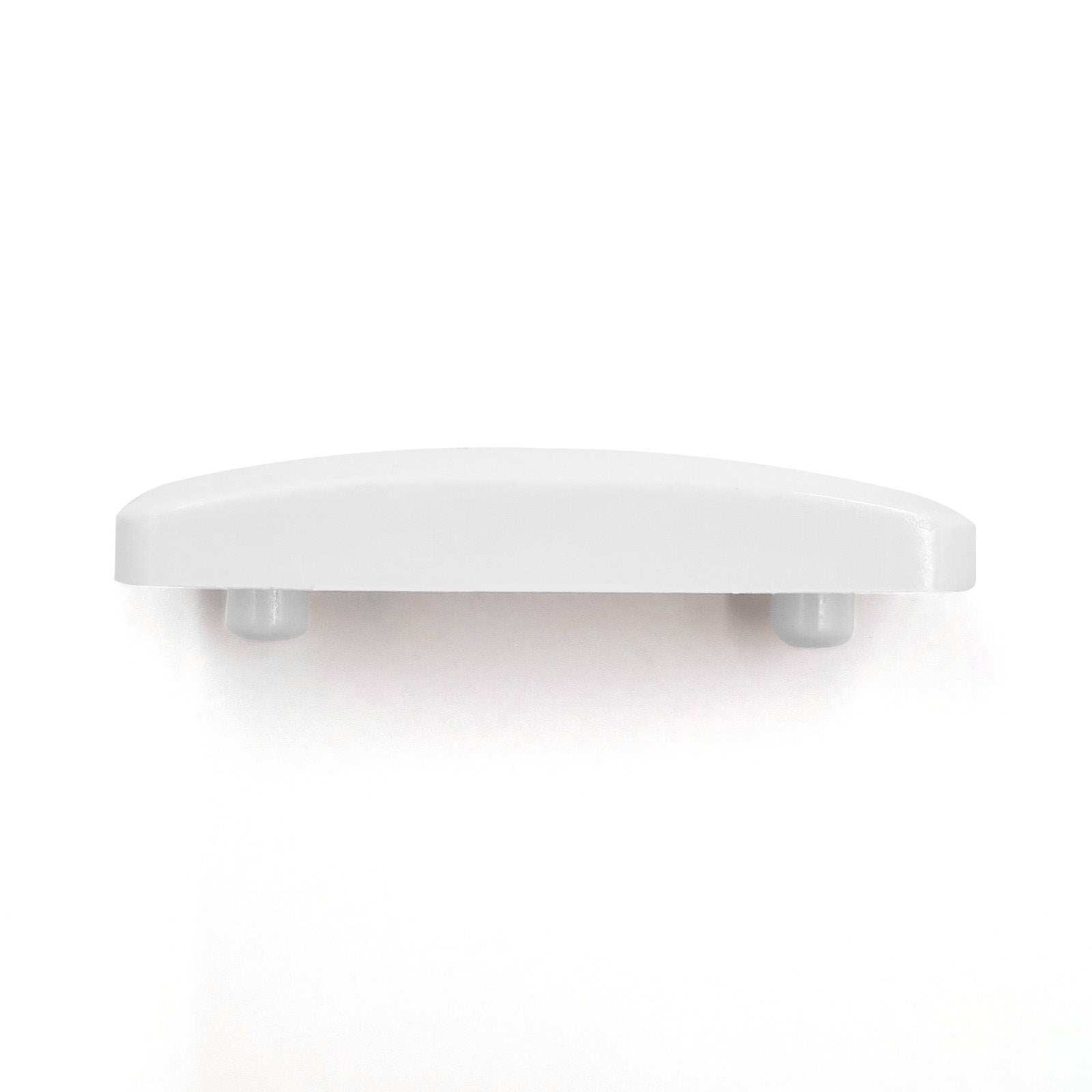

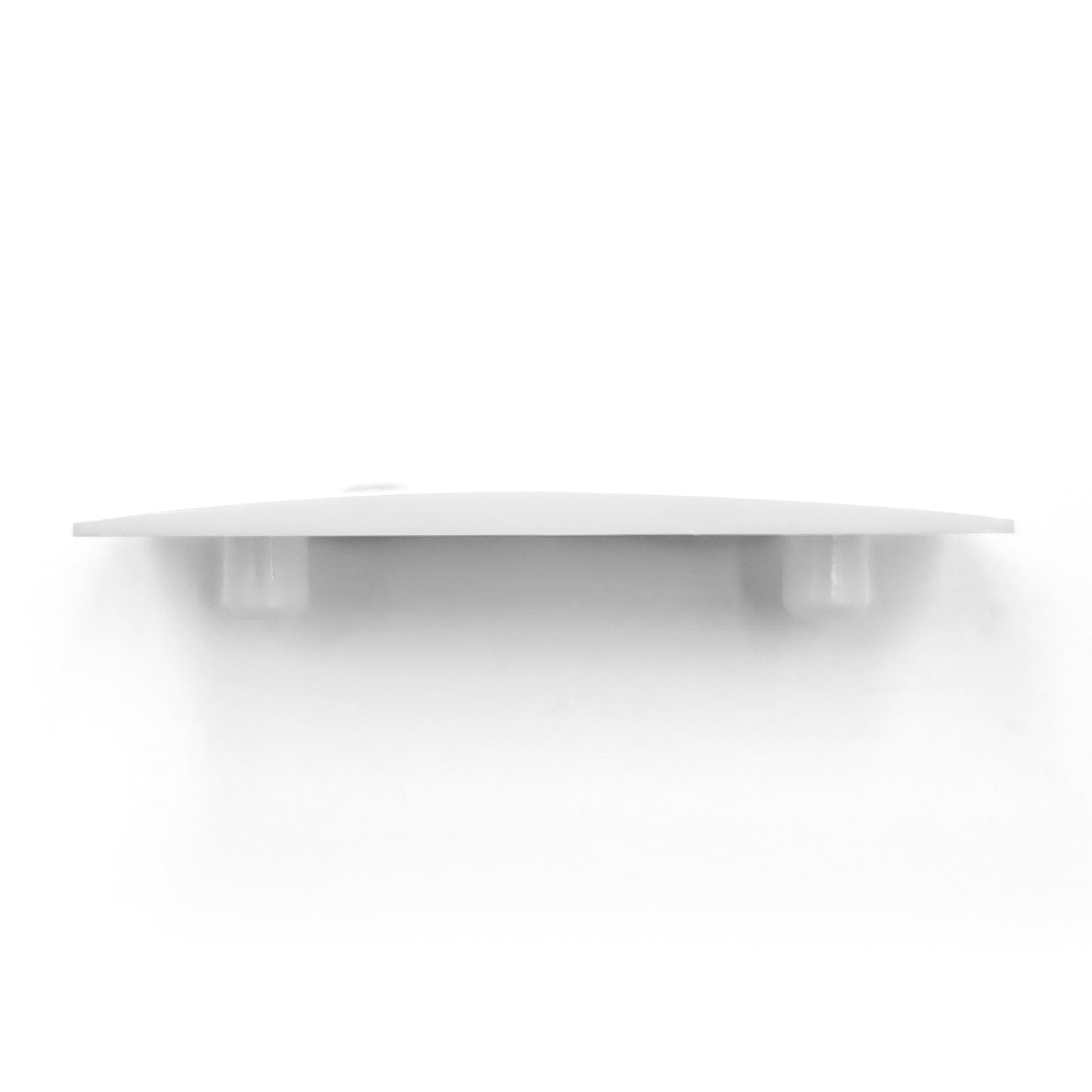

Fixings	2 studs (32mm centres)

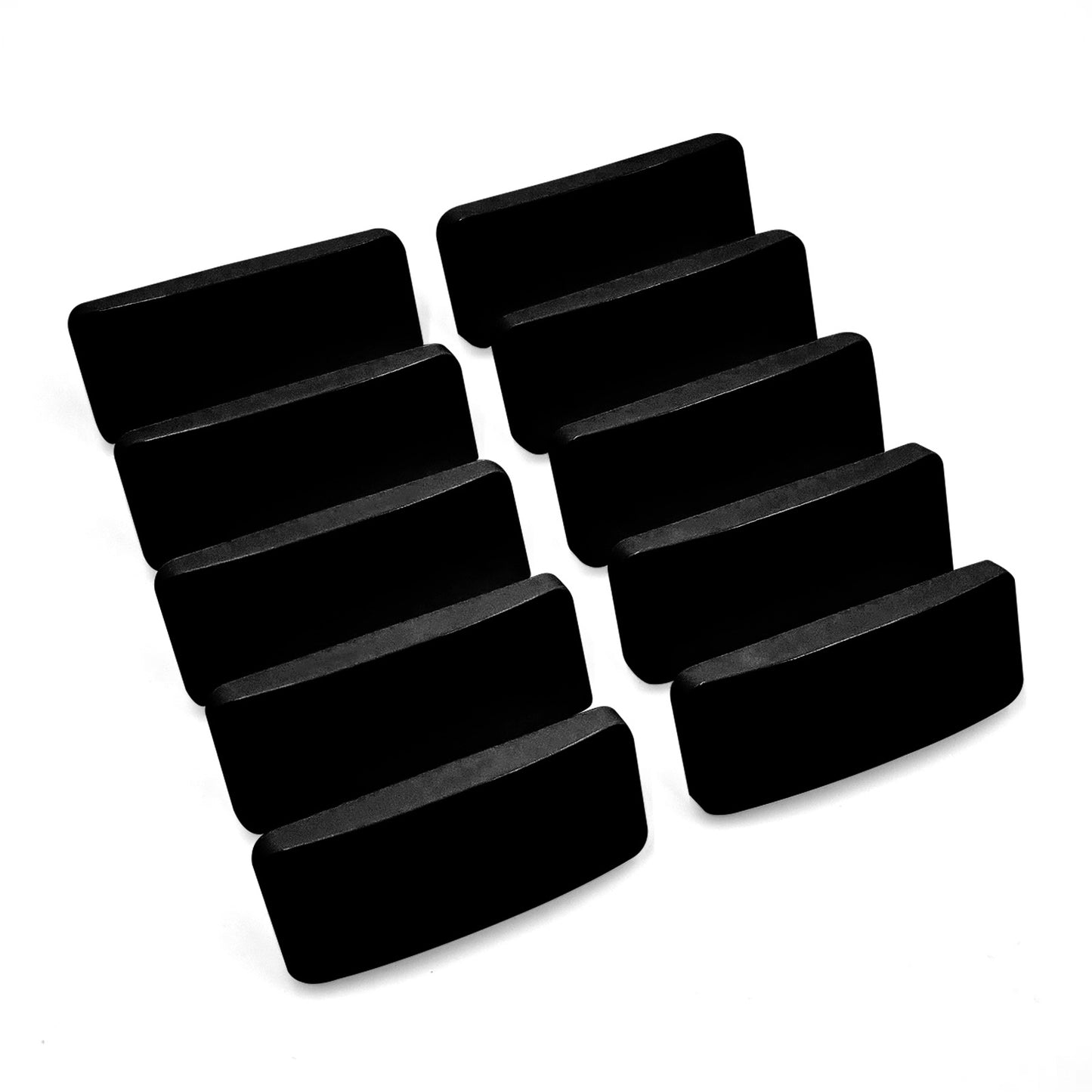

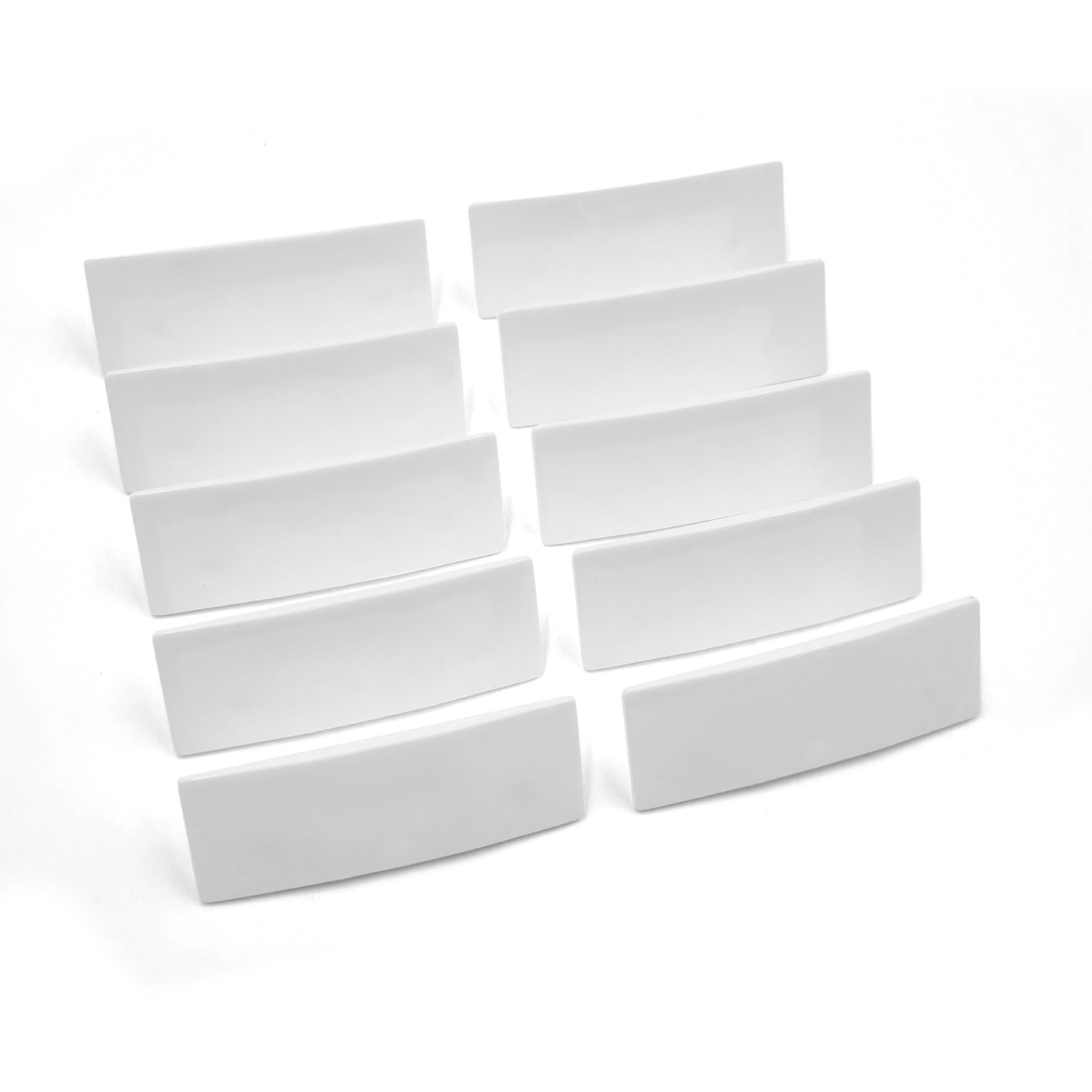

Pack Sizes	10 (individual size and colour) 14 (Variety Pack)

Determine Wedge Size

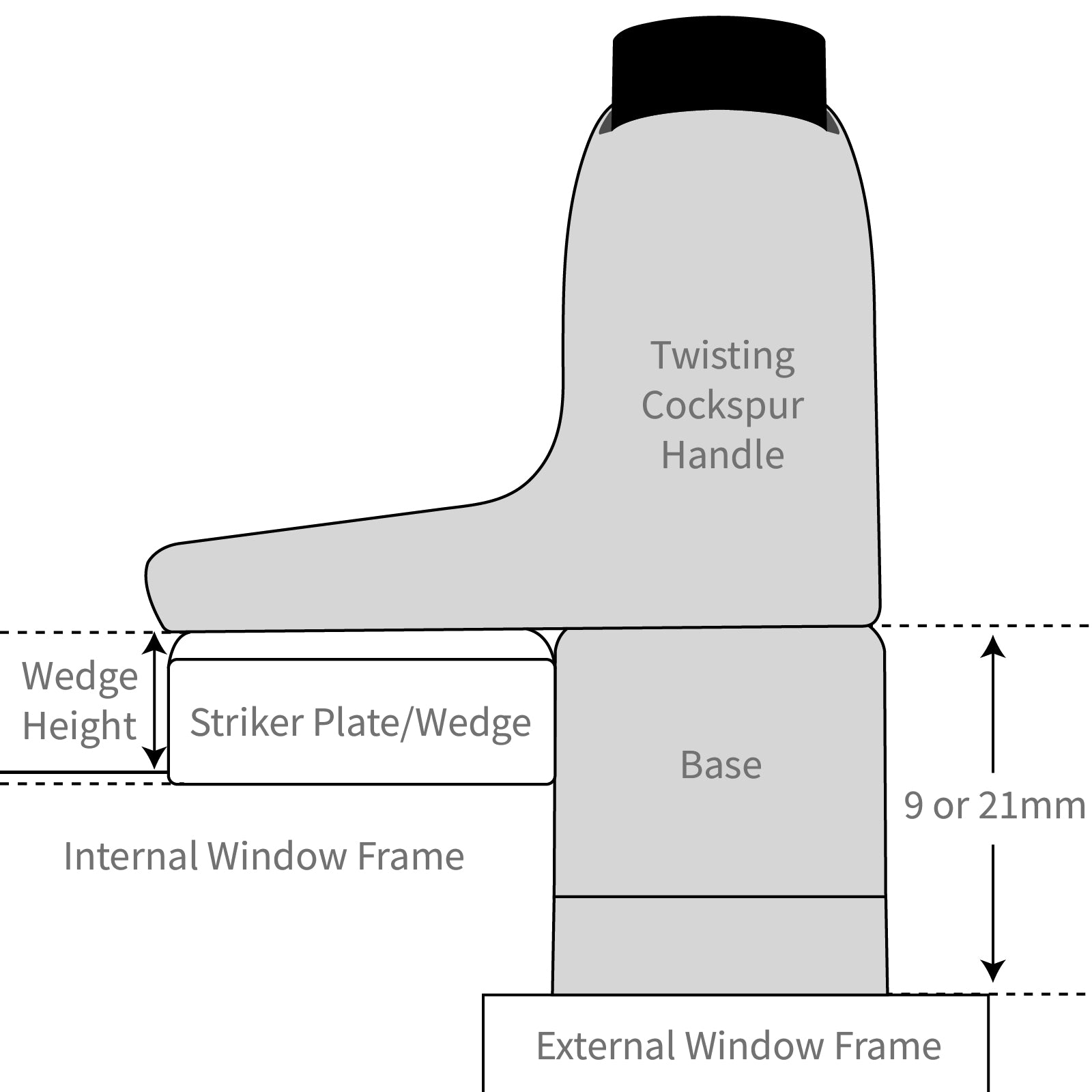

If your handles are fitted, and your aim is to create a tighter closure of the window, then you need only measure the gap between the frame and the underside of the spur when the window is closed.

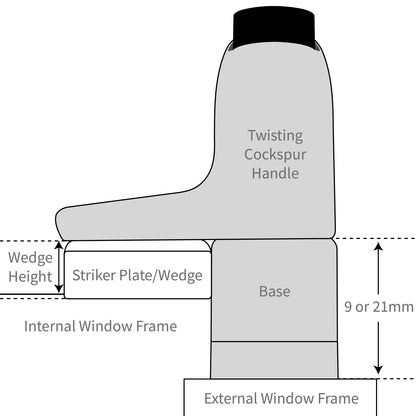

Otherwise, you should measure the Step Height, from the internal face of the window sash to the internal face of the frame. This can be done by placing a straight edge (such as a debit card) across the face of the frame, and measuring to the straight edge using a steel rule or tape measure. Then compare this to your handle size, which is likely to be either 9mm or 21mm. Deduct the Step Height from the handle size, to get the required wedge size. A Step Height of 17mm with a handle size of 21mm will require a 4mm wedge.

Contents

Fitting & Usage

Using the Cockspur Striker Plate Wedges

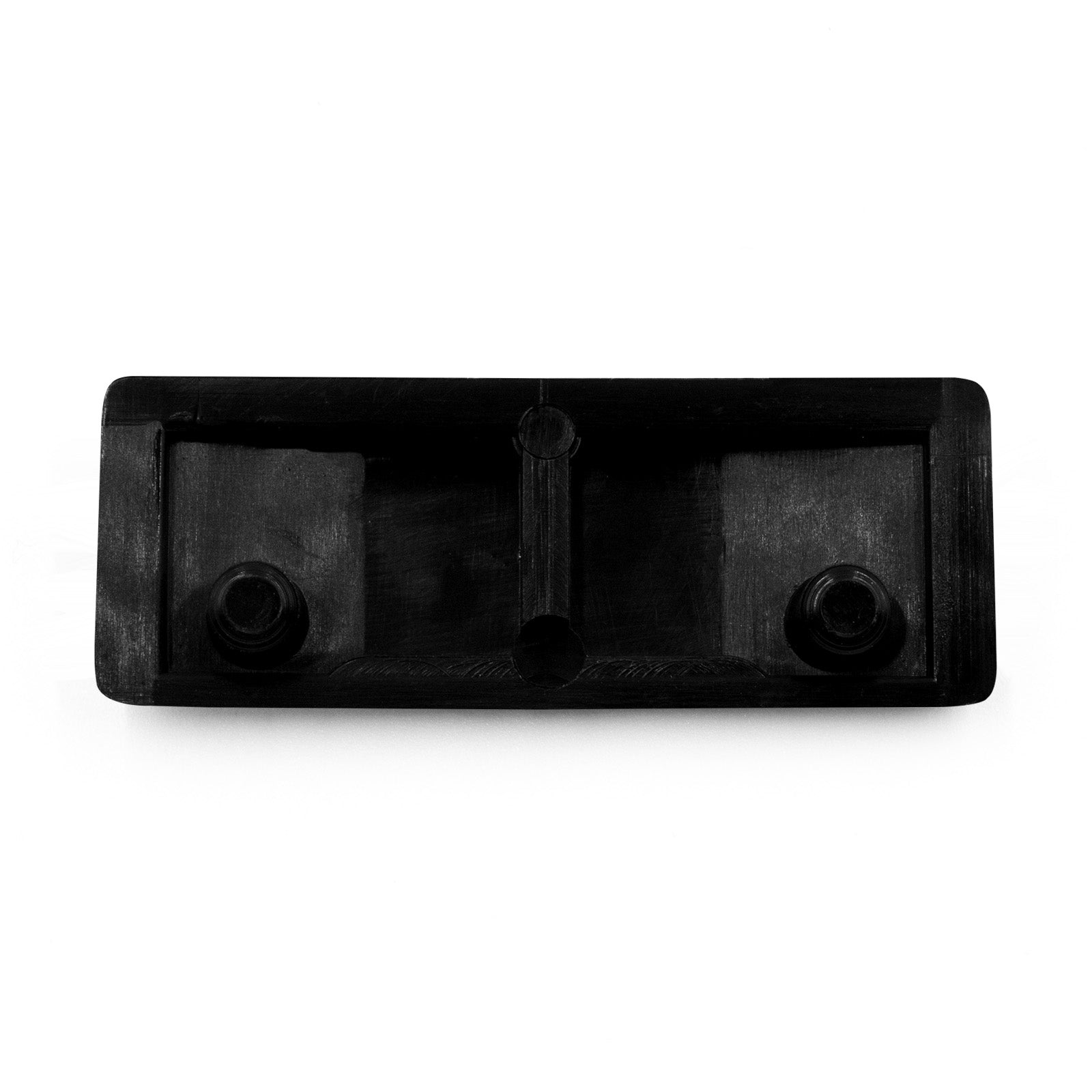

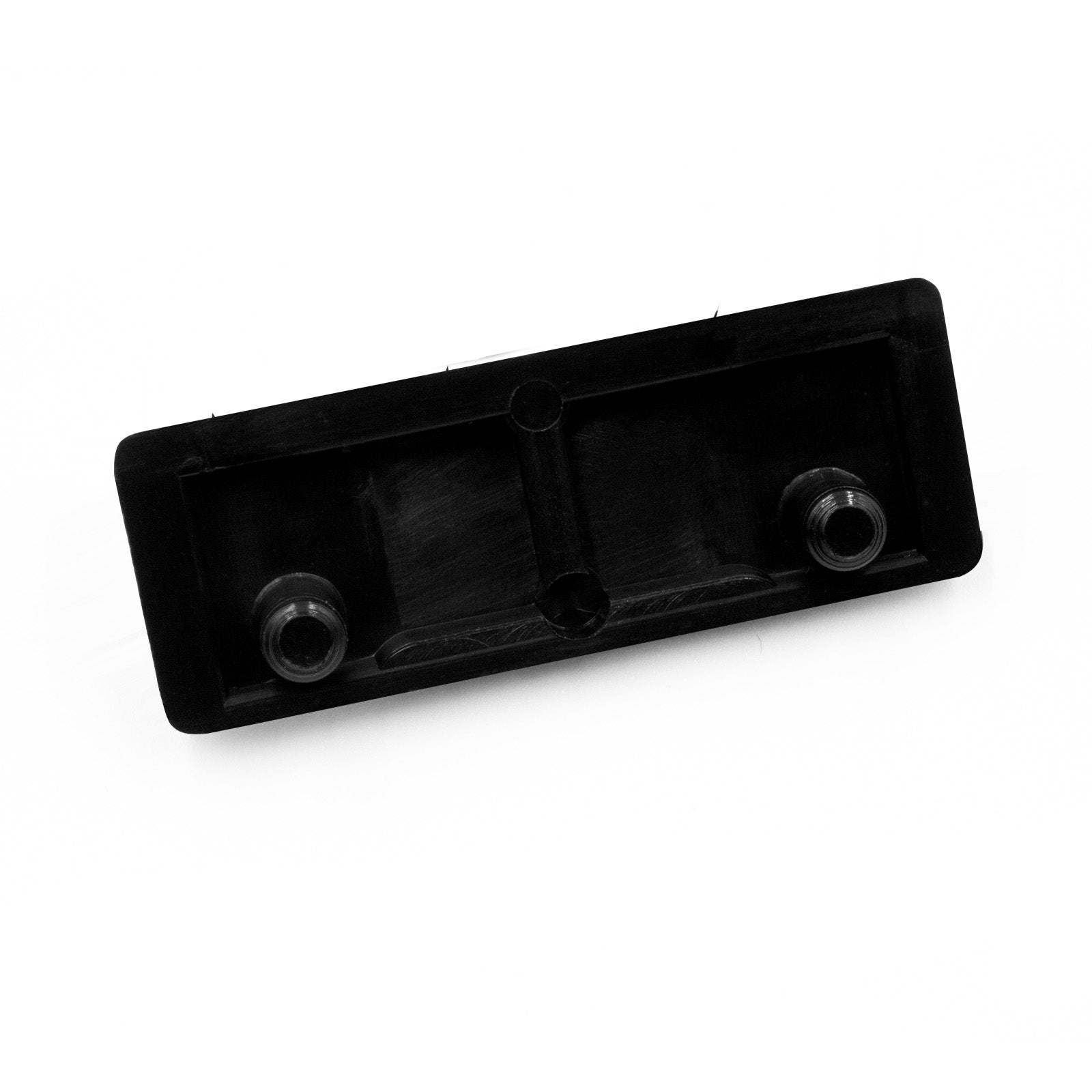

Remove any existing striker plate wedges from the frame, and decide whether the existing holes can be reused. If they can, apply a small amount of superglue to the studs on the underside of the wedge, and push into place.

If you are installing wedges where no appropriate fixing hole exists, and you have already determined the thickness of wedge required, then follow these step-by-step instructions:

Position the wedge centrally to the spur when the window is pulled closed, and mark where the striker plate will sit on the window frame under the nose.
Drill two 5mm pilot holes parallel with the edge of the frame with a centre-to-centre gap of 32mm.
Apply a small amount of superglue to the studs on the underside of the wedge, and push into place.
