EasyRidge F Long and Short Hip Clips

EasyRidge F Long and Short Hip Clips

SKU: EAS-1705-1001
MPN: ET/HIPCLIP

£11.27

Sale

Tax included. Shipping calculated at checkout.

35 in stock

Quantity

View full details

Description

Easy-Trim Hip Tile Clips

Name: EasyRidge F Long and Short Hip Clips
Brand: Easy-Trim
SKU: EAS-1705-1001
Price: 11.27 GBP
Availability: InStock

(20 Long & 20 Short Clips)

Secures cut tiles along the hip!

Corrosion-free metal hip tile clips designed to mechanically secure small cut tiles along the hip line. Hips are often exposed to greater wind pressure than the main roof, making cut tiles especially vulnerable to uplift and slippage. Each pack contains 20 long (J-profile) clips and 20 short (C-profile) clips; used together they support the underside of the cut tile and anchor its head at the interlock, helping to keep tiles in place and resist wind uplift.

Conforming to NHBC recommendations for cut-tile fixing and BS 5534:2014 Annex A, these clips provide a durable mechanical fix. The long clips can be nailed to the hip batten or hooked over the tile batten, while the short clips grip the head of the cut tile against its neighbour. They work with Easy-Trim Ridge F Hip Accessory Kits or other dry-fix ridge systems to deliver a secure, standards-compliant hip detail.

Features & Benefits

Secure Mechanical Fixing - Prevents wind uplift, slippage and shifting of vulnerable cut tiles
Reliable Performance - Designed specifically for the higher wind exposure of hip lines
Standards Compliant - Meets NHBC recommendations and BS 5534:2014 Annex A for cut-tile fixing
Long-Term Durability - Corrosion-free metal that won’t rust or weaken over time
Easy to Fit - Simple nail and clip installation with no special tools required
Compatible with Dry Fix Systems - Works with Easy-Trim Ridge F kits and other dry-fix solutions

Did you know? Roofing specifications such as BS 5534 and NHBC guidance require mechanical fixing of cut tiles in many situations, particularly at hips where nailing is impractical. These clips provide the secure mechanical restraint needed for compliance.

Overview Video

Specification

Technical Information

Measurement	Value
Material	Corrosion-free metal
Dimensions (L x W x H)	Long: 165 × 10 × 30 mm Short: 30 × 10 × 30 mm
Profile	Long: J-profile Short: C-profile
Quantity	20 long & 20 short (40 total)
Coverage	20 tiles
Standards	Complies with NHBC recommendations and BS 5534:2014 Annex A

Contents

What you get

Easy-Trim Dry Fix Ridge F Long Tail Clips

Long Tail Clips (x20)

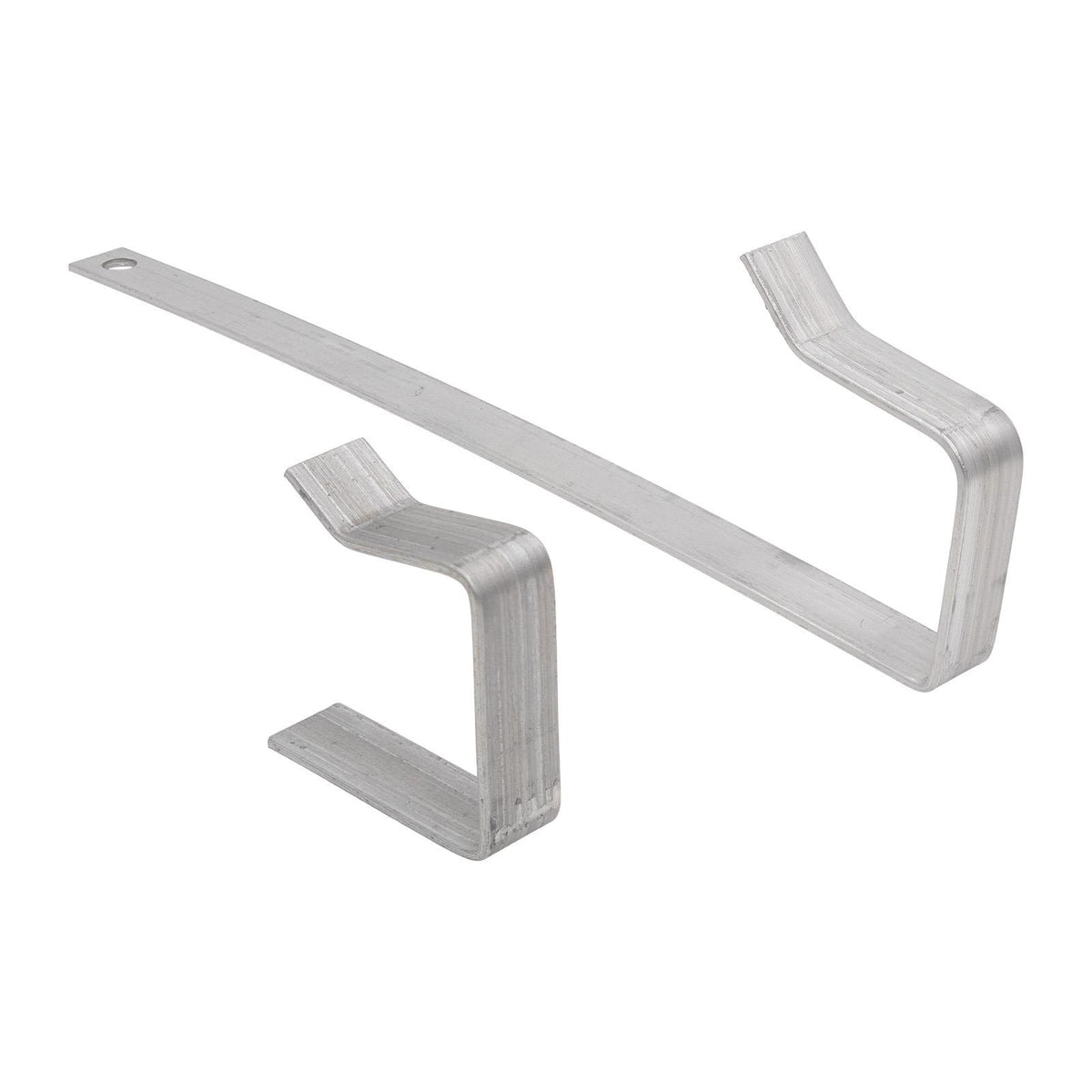

Supports the underside of cut tiles to prevent dropping and pivoting at hip or valley. These 165mm long J-profile clips can be nailed through their fixing hole to hip battens, or simply hooked over tile batten.

Easy-Trim Dry Fix Ridge F Short Head Clips

Short Head Clips (x20)

Anchors the head of cut tiles where they lap with secure adjacent tiles. These short C-profile clips simply slide over the intersection to grip the pair firmly. Also suitable for use where long tail clips can't be used.

Fitting & Usage

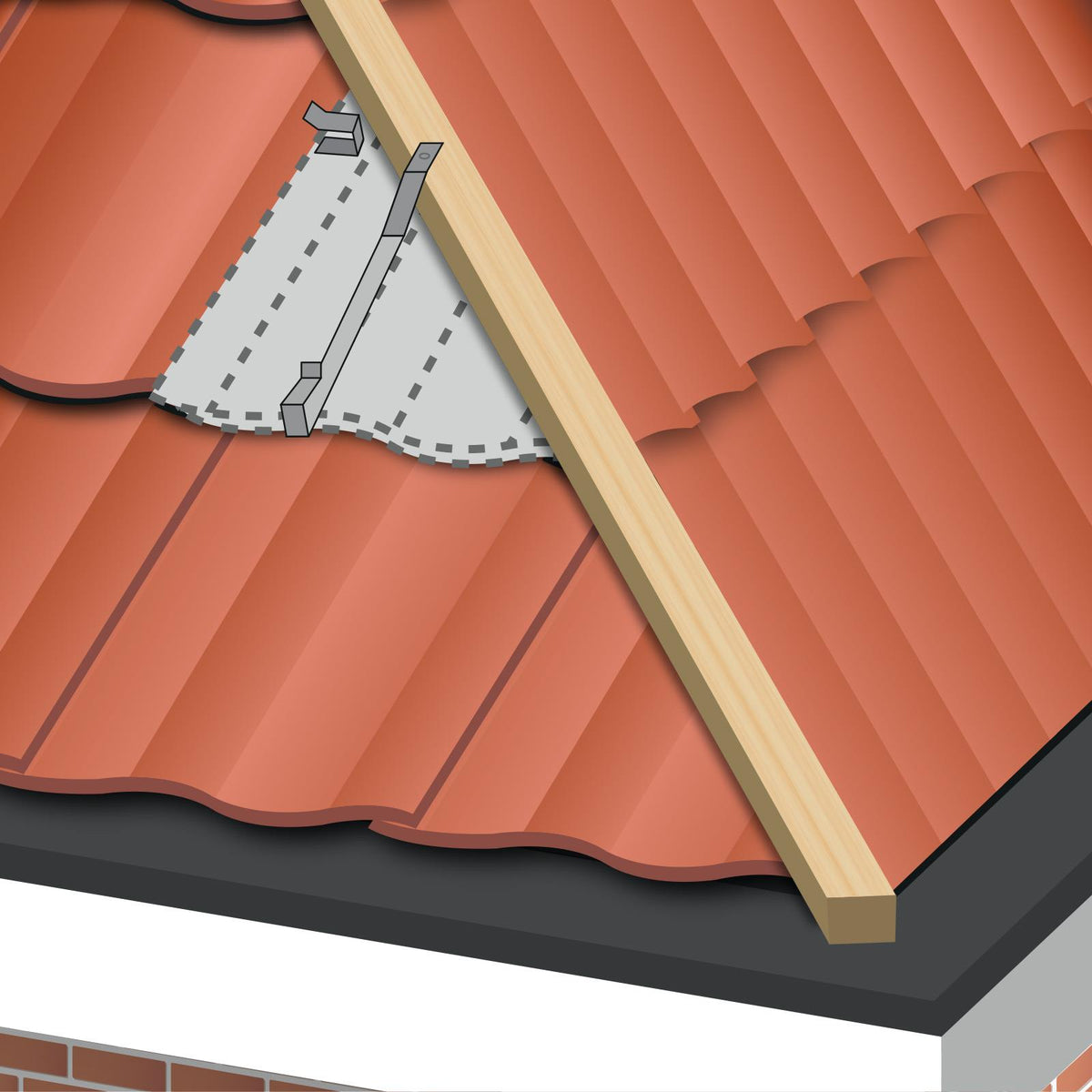

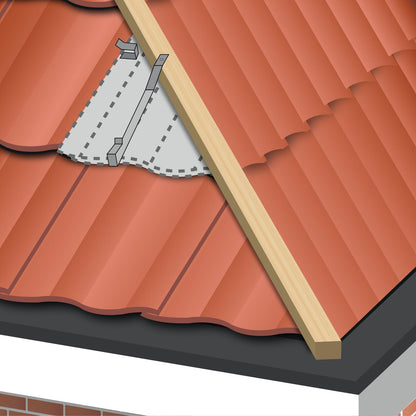

Easy-Trim Hip Tile Clips mechanically secure small cut tiles along the hip where wind uplift and insufficient support from adjacent tiles can leave them vulnerable to movement or damage. Long clips support the underside of cut tiles, while short clips secure the top of the cut tile at the interlock with the adjoining tile.

Preparation

Mark and cut the roof tiles so they fit neatly and consistently along the hip line
Ensure the hip area is fully prepared with battens along the hip before fitting the clips

Fitting Long Tail Clips

Position the long tail clip over the hip batten and secure it through the fixing hole using a stainless steel nail or screw
Slide the cut tile into the base of the clip so it is supported from below
Check the tile is correctly aligned and maintains the required head lap with the course below
Where fixing to a batten is not possible, the clip can be bent and hooked over the tile batten

Fitting Short Head Clips

Fit the short head clip over the top end of the cut tile
Attach it to the adjoining tile at the interlock so the two tiles are gripped firmly

Checking & Completion

Check each cut tile is held securely and does not move or rattle
Repeat the process for each course along the hip
Check the cuts align to give a neat finish and adjust the clips as necessary
Continue with fitting the dry fix hip system
