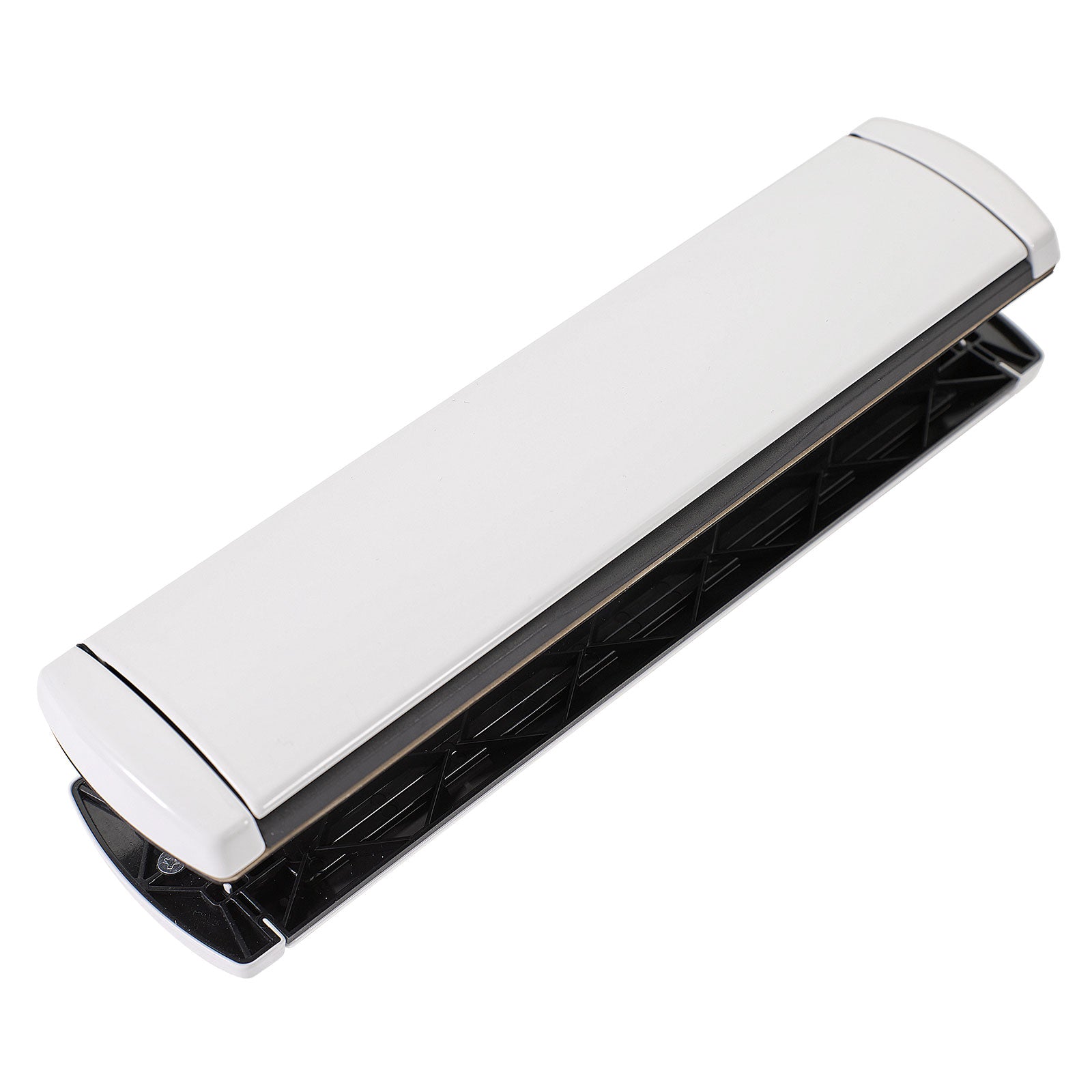

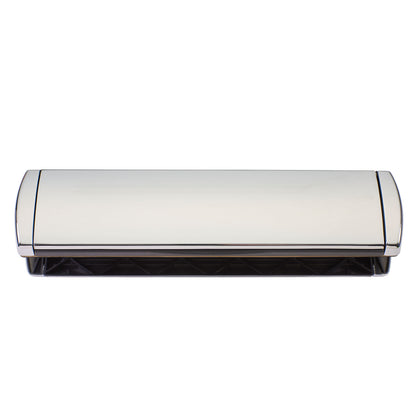

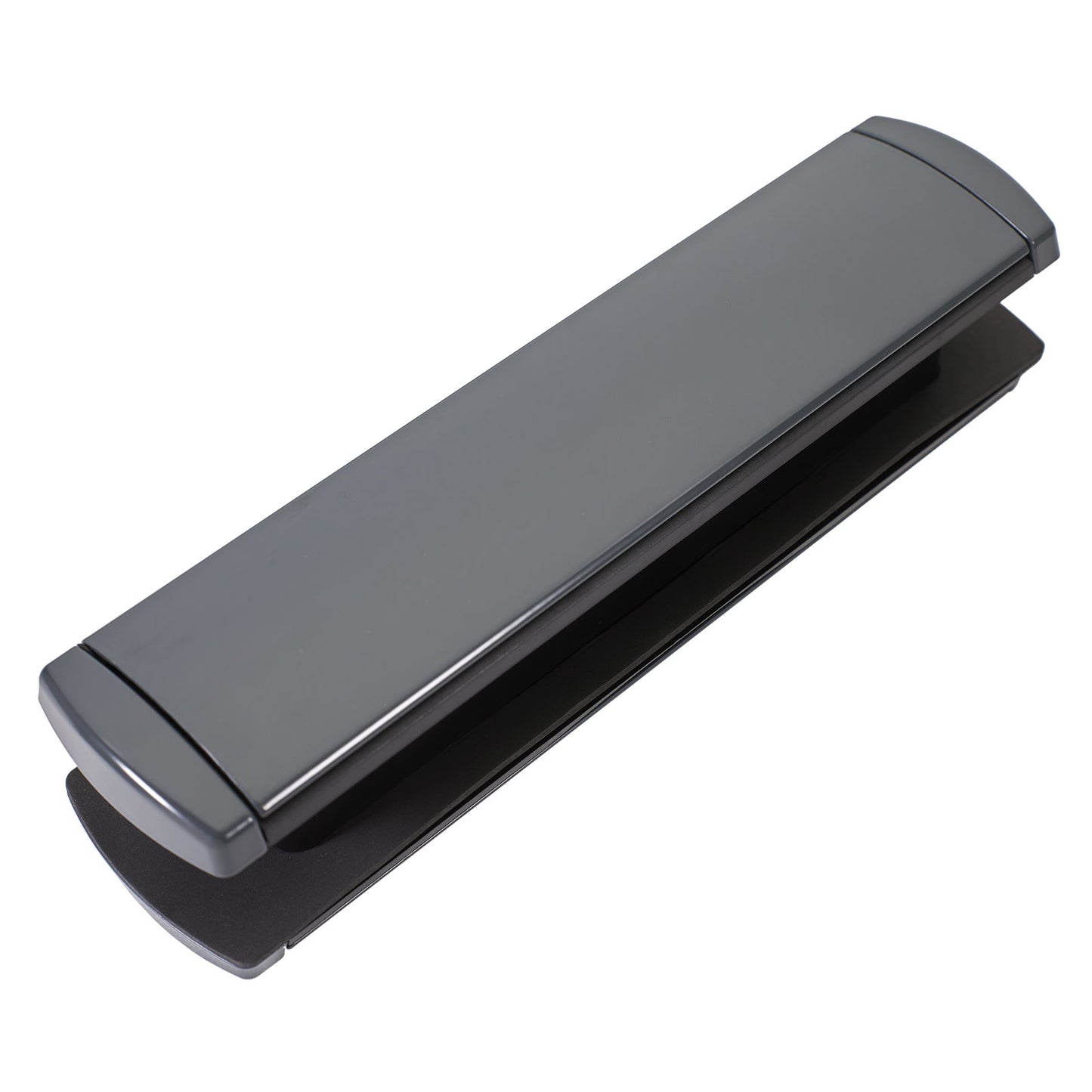

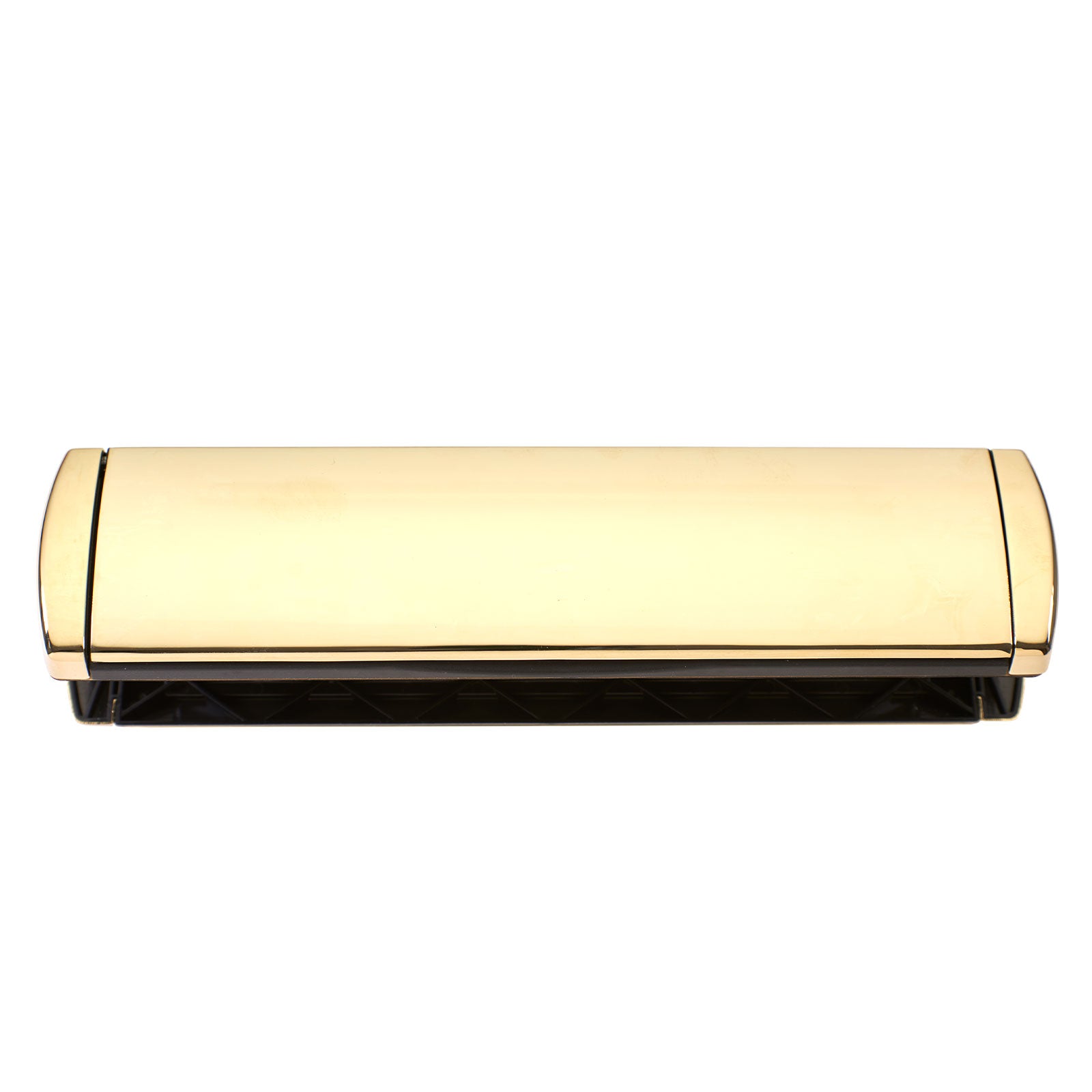

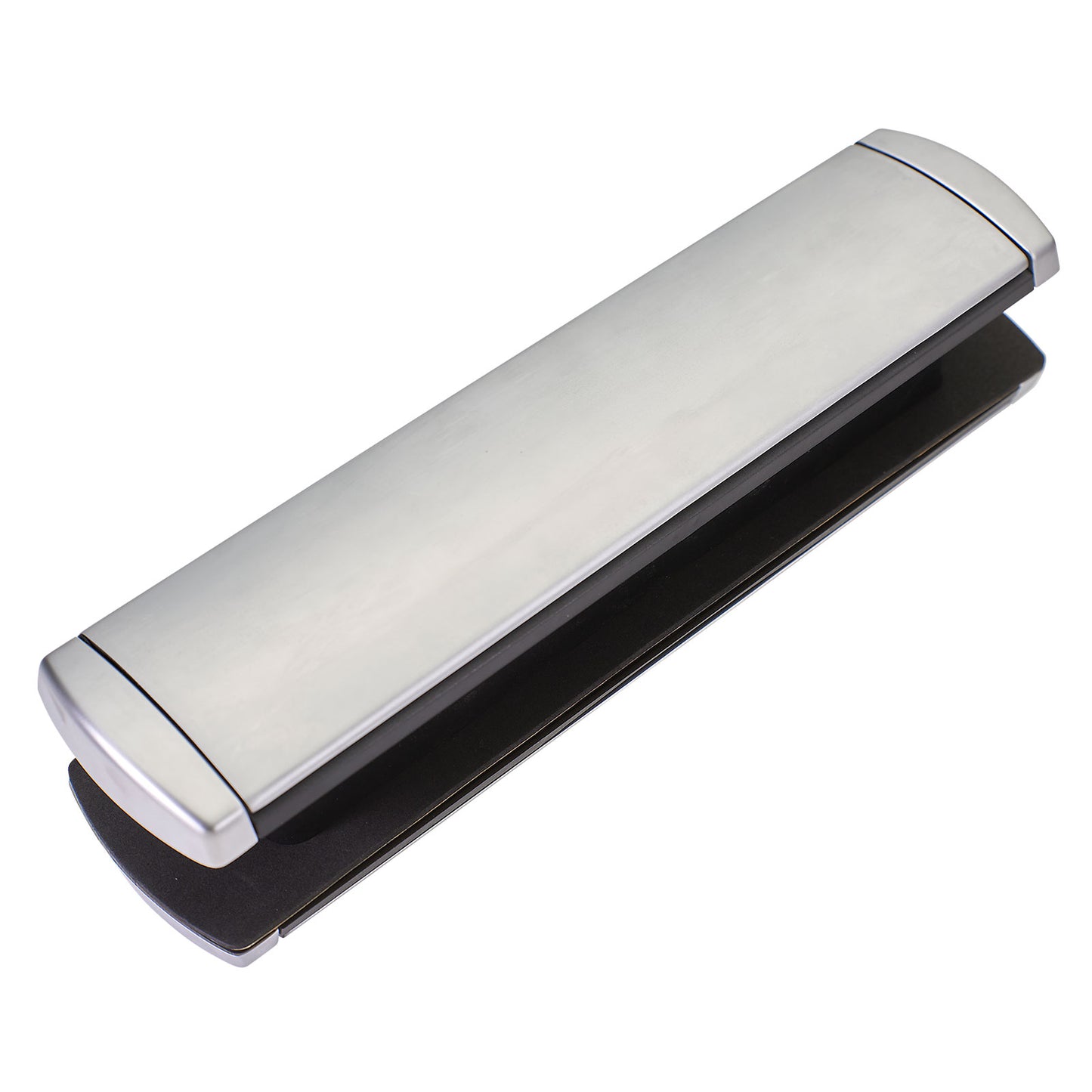

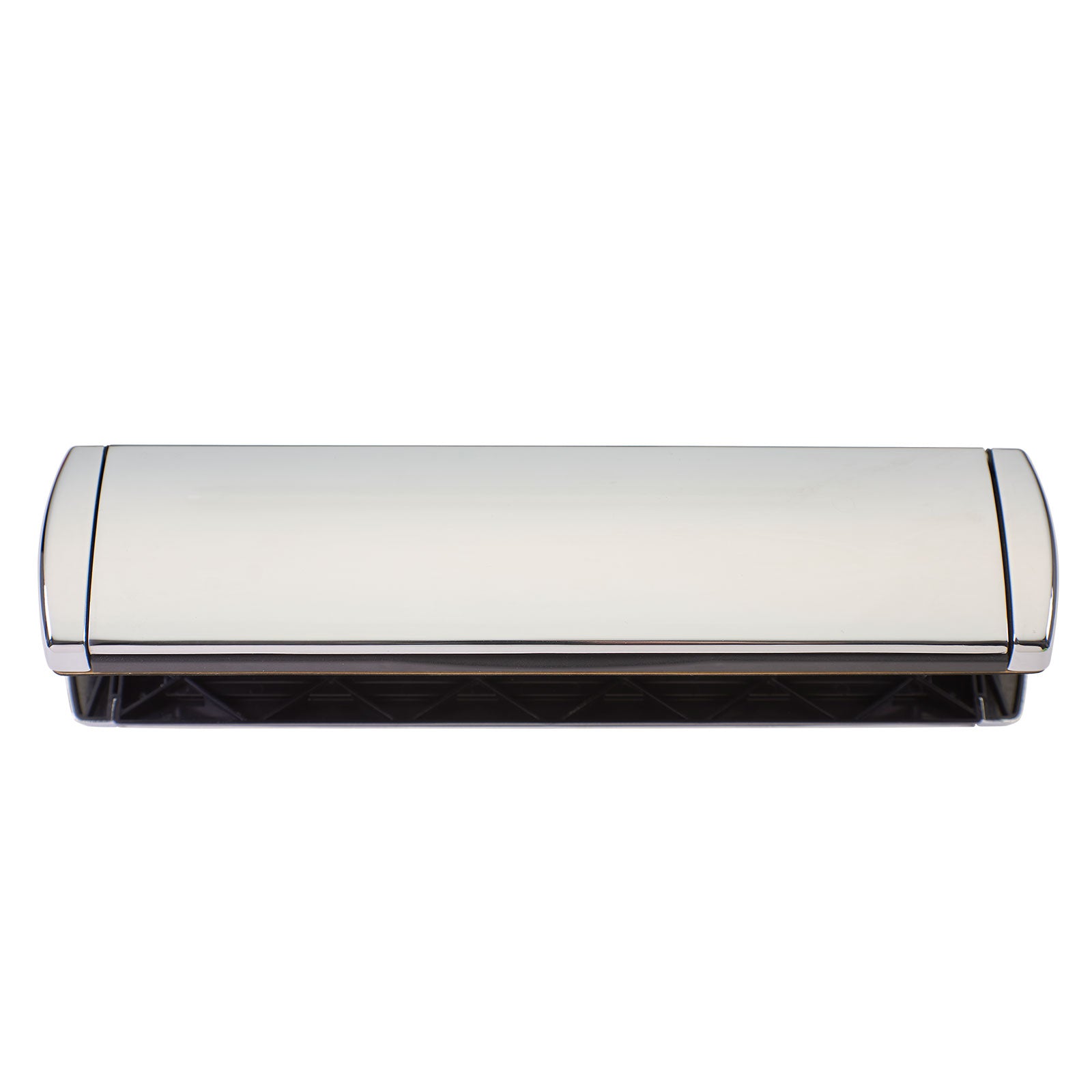

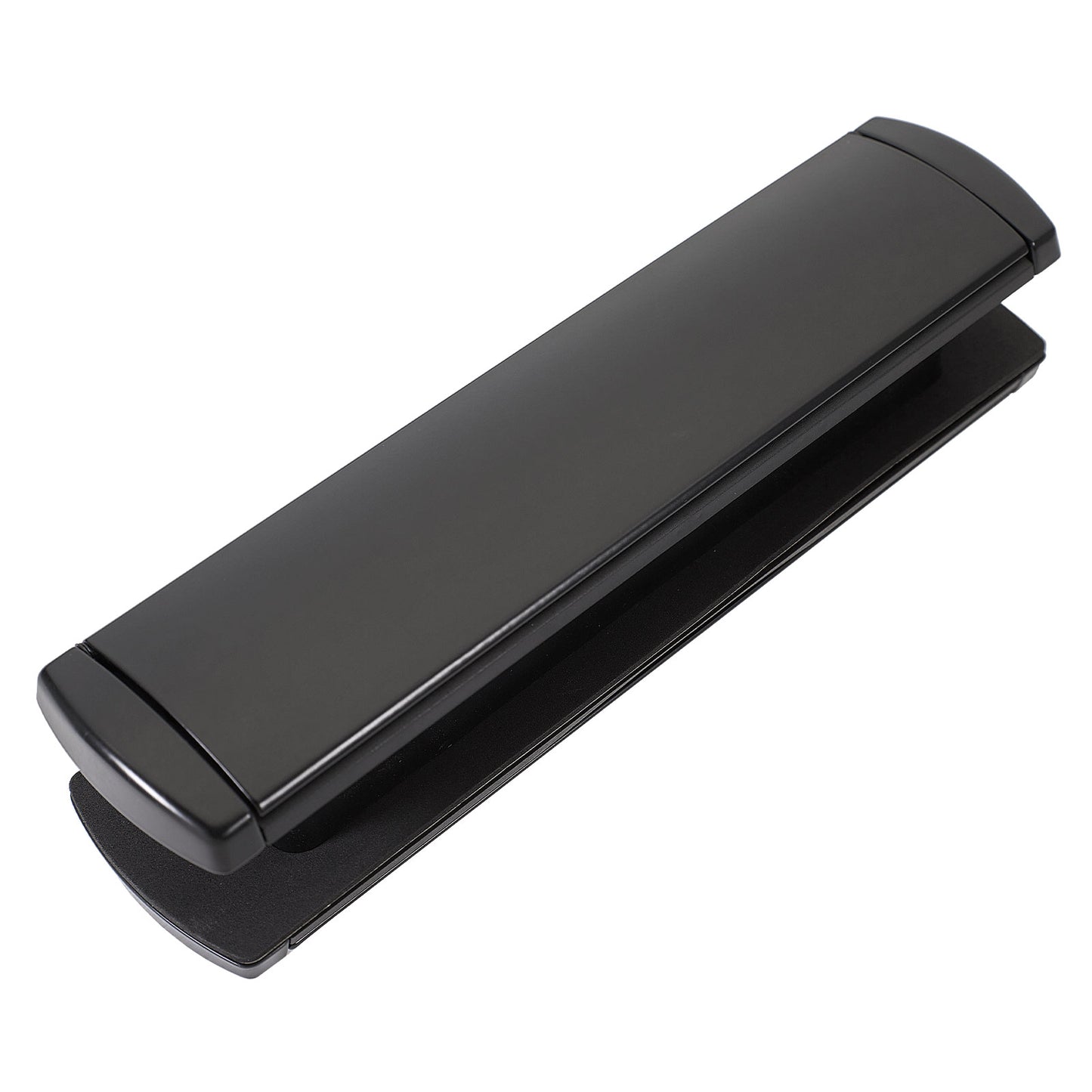

Omega Premium 12" Letterplate

Omega Premium 12" Letterplate

SKU: VBH-2133-1001
MPN: 2QBX0061

£13.99

Sale

Tax included. Shipping calculated at checkout.

7 in stock

Quantity

Have a question about this product?

View full details

Description

12" Omega Premium Letterplate

Name: Omega Premium 12" Letterplate
Brand: greenteQ
SKU: VBH-2133-1001
Price: 13.99 GBP
Availability: InStock

(Choice of colour and finish)

New sleek contemporary styling!

Complete premium 12" letterplate with sleek contemporary styling and highly durable finish. Hardwearing greenteQ body with a nylon brush to inside flap and weather seal to the outside. Features a telescopic sleeve that means easy fitting to uPVC, composite or timber doors between 40mm and 80mm thick.

The outer frame and flap features a rubber weather seal and cushioned closing action, while the inside includes a nylon brush to reduce draughts. Both inside and outside flaps open to almost 180° to allow easier posting of larger items with a cushioned closing action.

Features & Benefits

Modern contemporary style - sleek finish inside and out
Wide opening flap - near 180° for easy posting
Fully sealed - water tightness tested
Sound dampening bumpers - improved soundproofing
Insulating brush strip - reduces cold and draughts
Fixings supplied - stainless steel screws
10 Year mechanical guarantee - a product you can trust

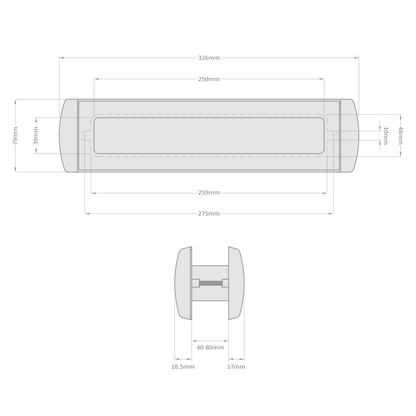

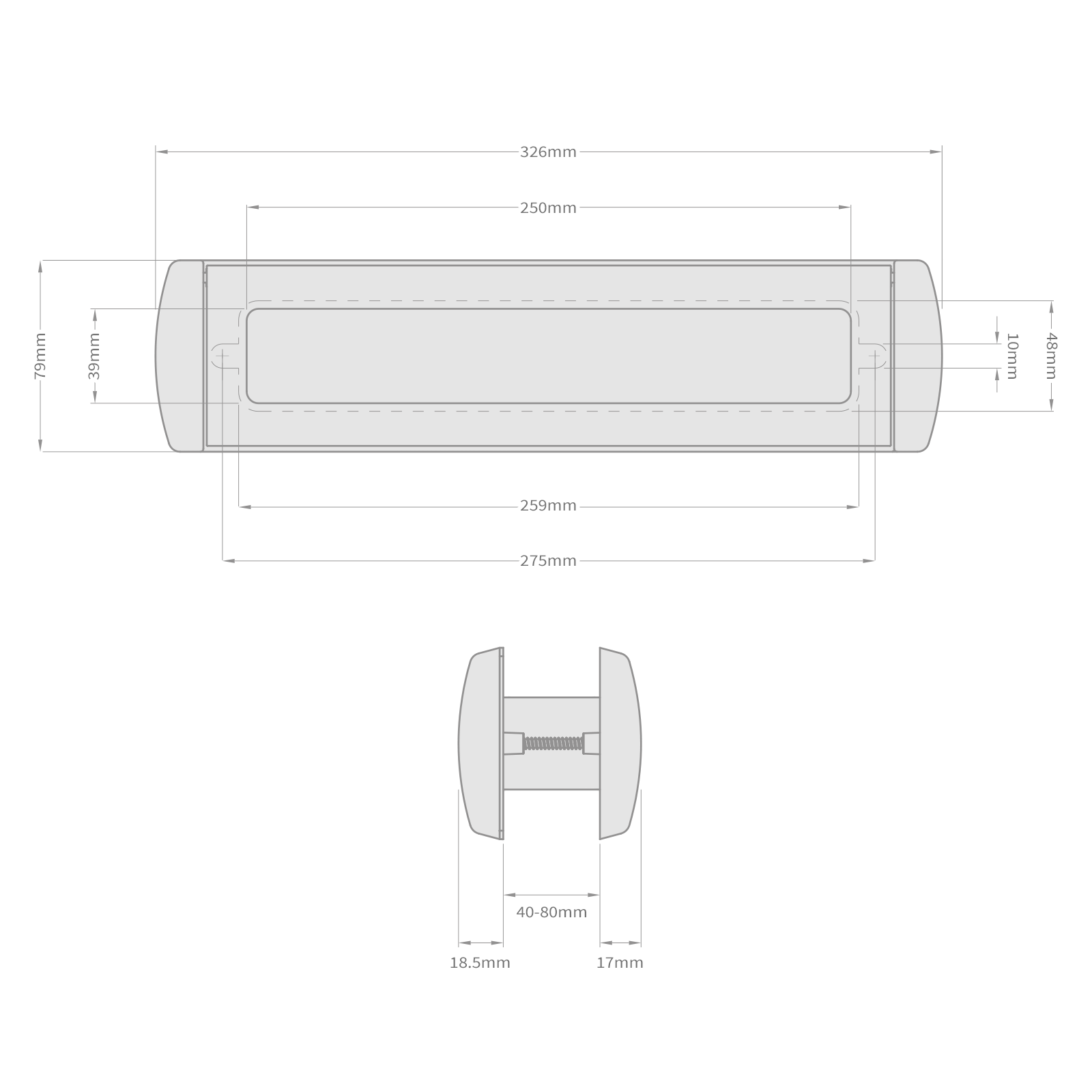

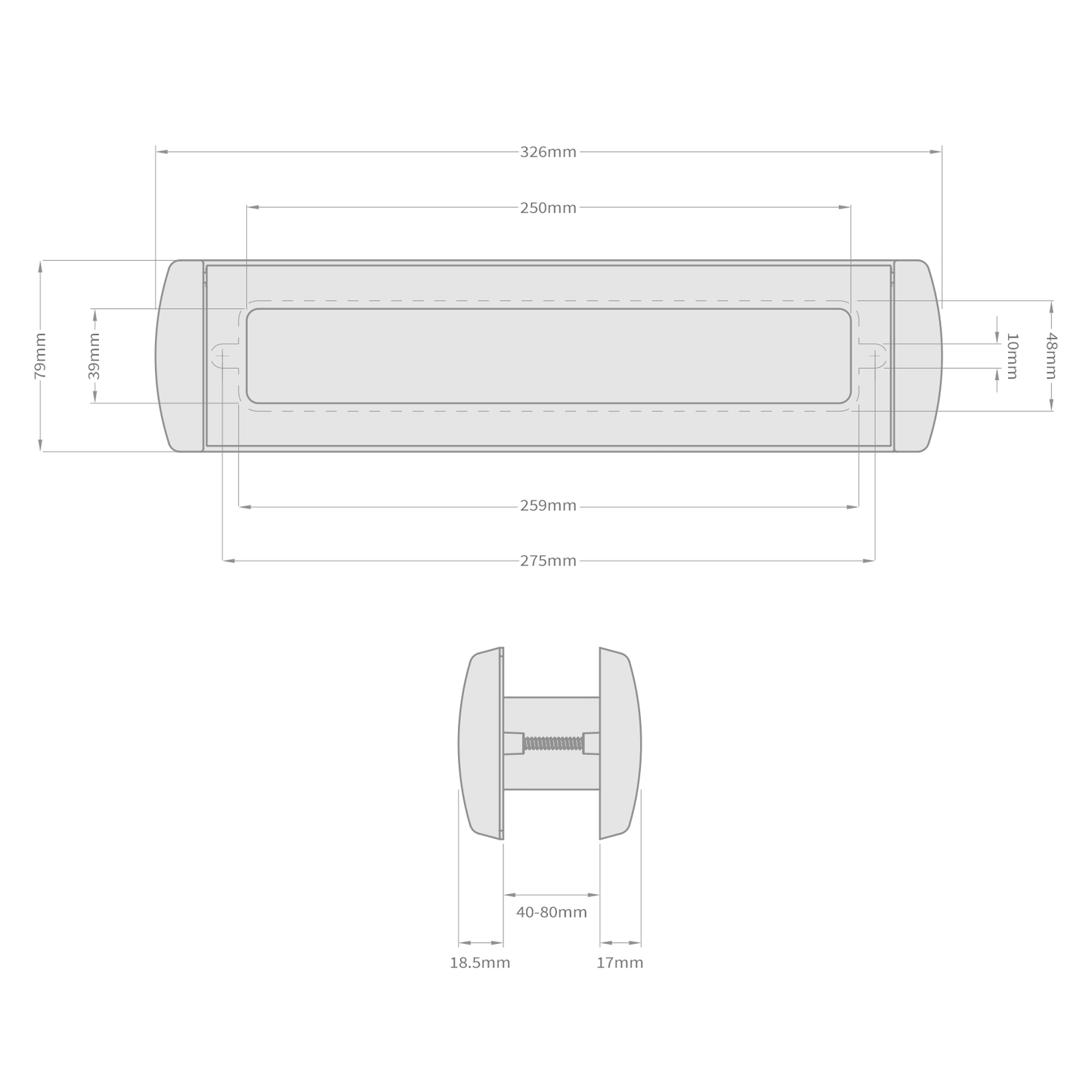

Dimensions of the new Omega 12

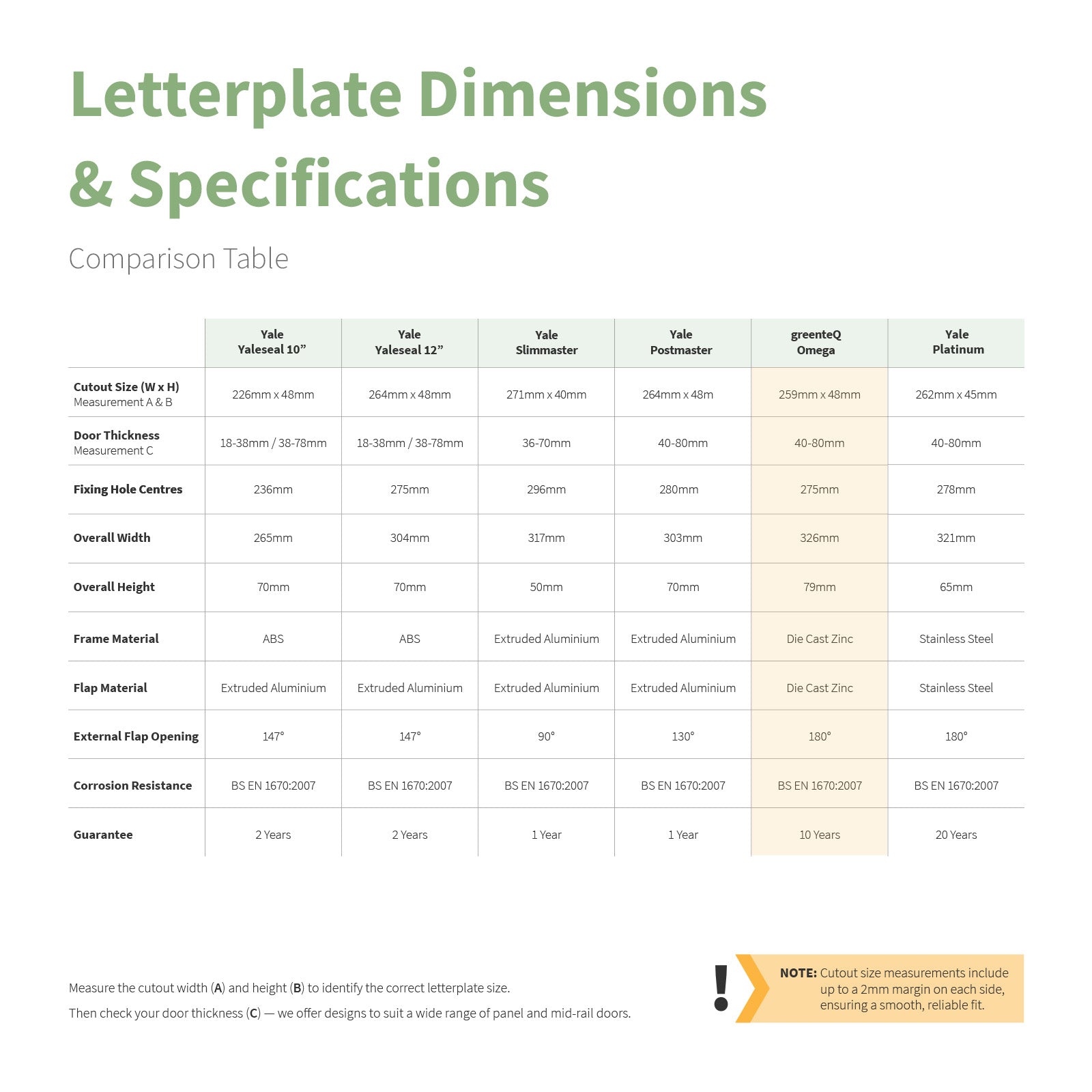

Specification

Measurement	Value
Brand	greenteQ
Range	Omega
Backplate Width	326mm
Backplate Height	79mm
Backplate Depth	18.5mm (outside with gasket) and 17mm (inside)
Post Opening (w x h)	250mm x 39mm
Compatibility	40-80mm thick doors and mid-rails
Door Aperture (w x h)	259mm x 48mm
Fixing Space	275mm
Material	Die-cast Zinc

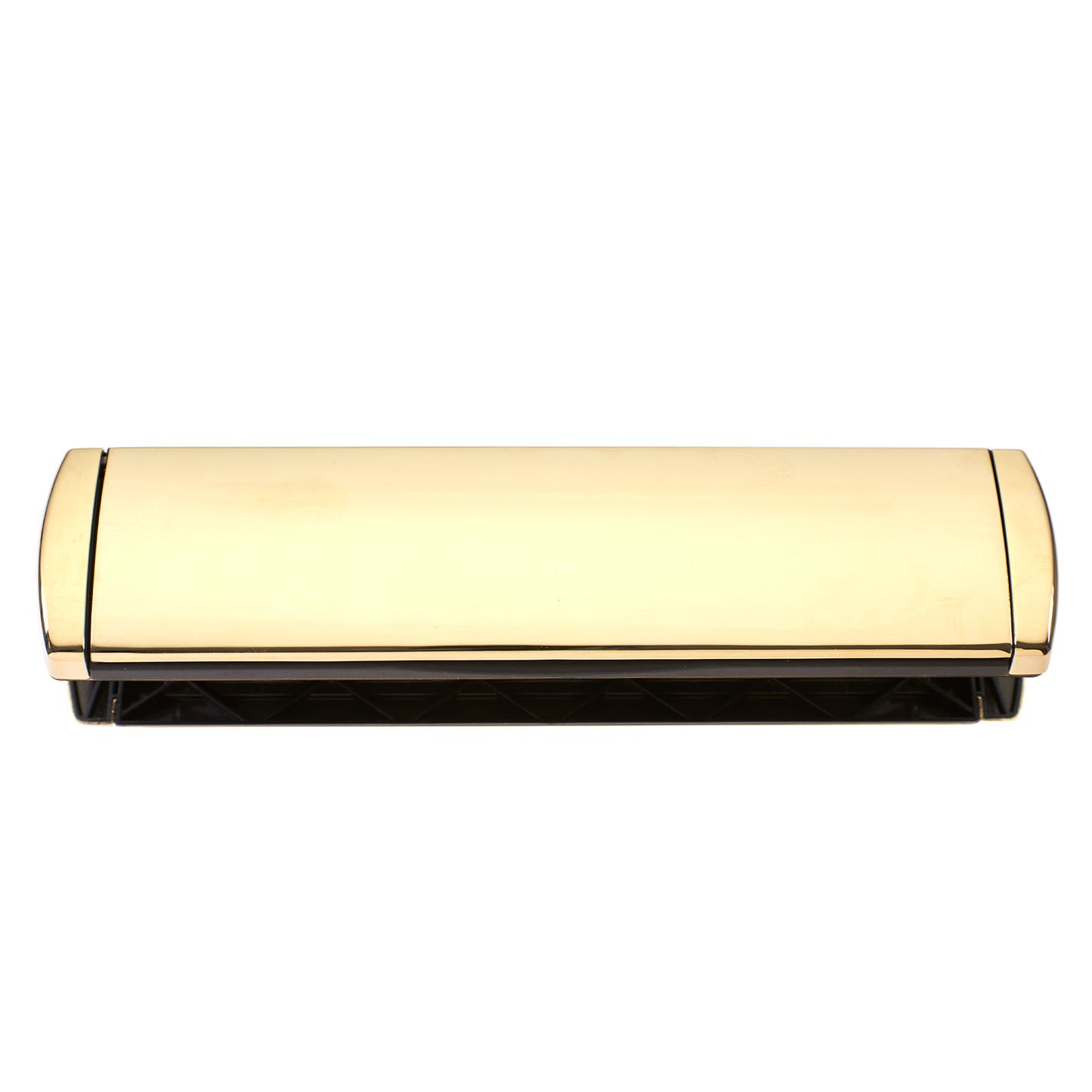

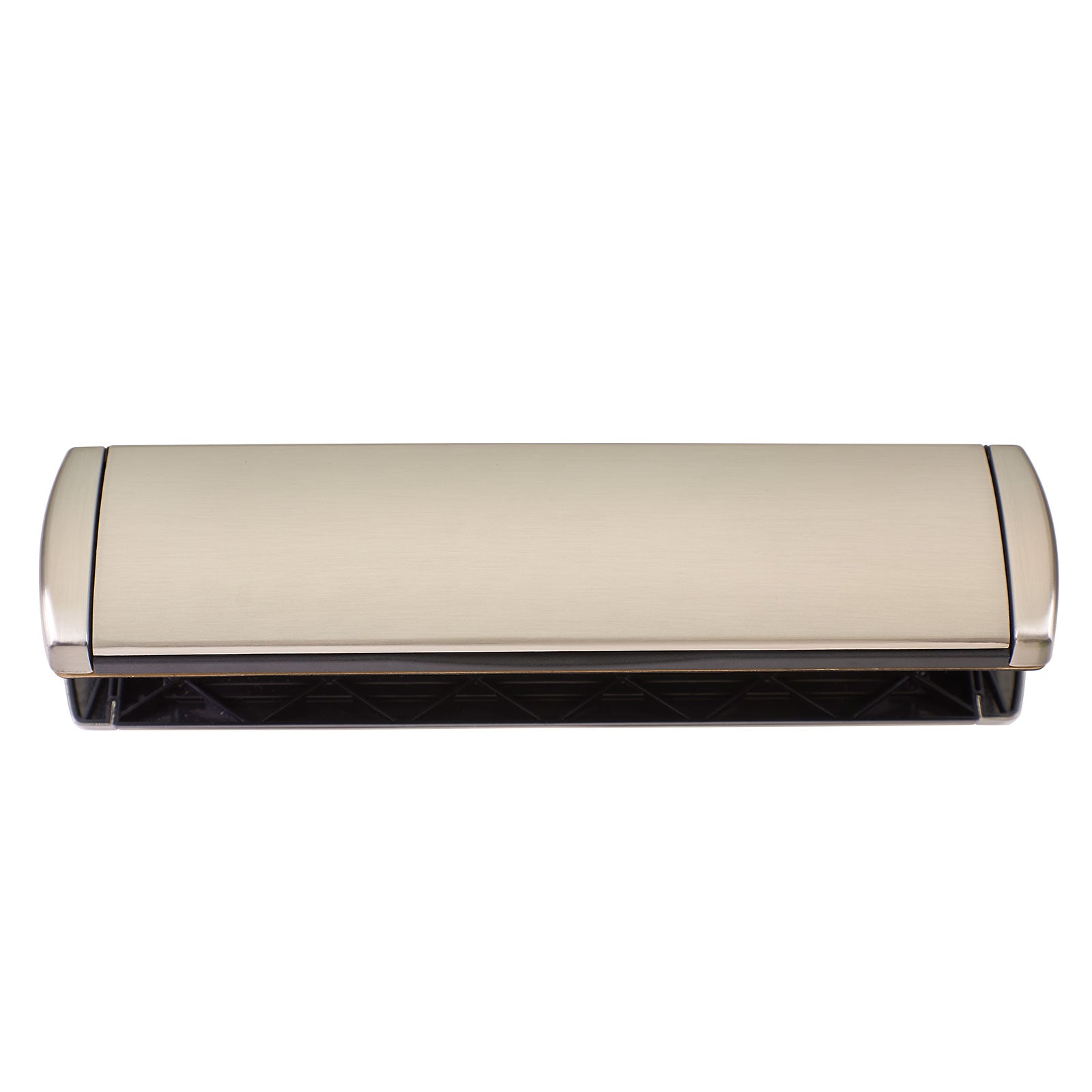

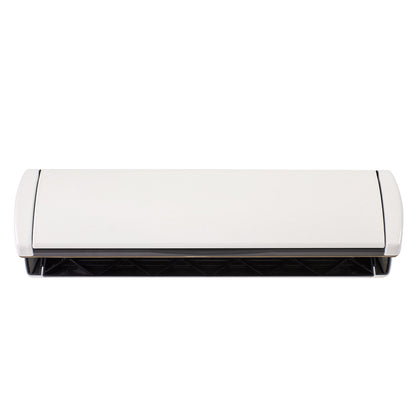

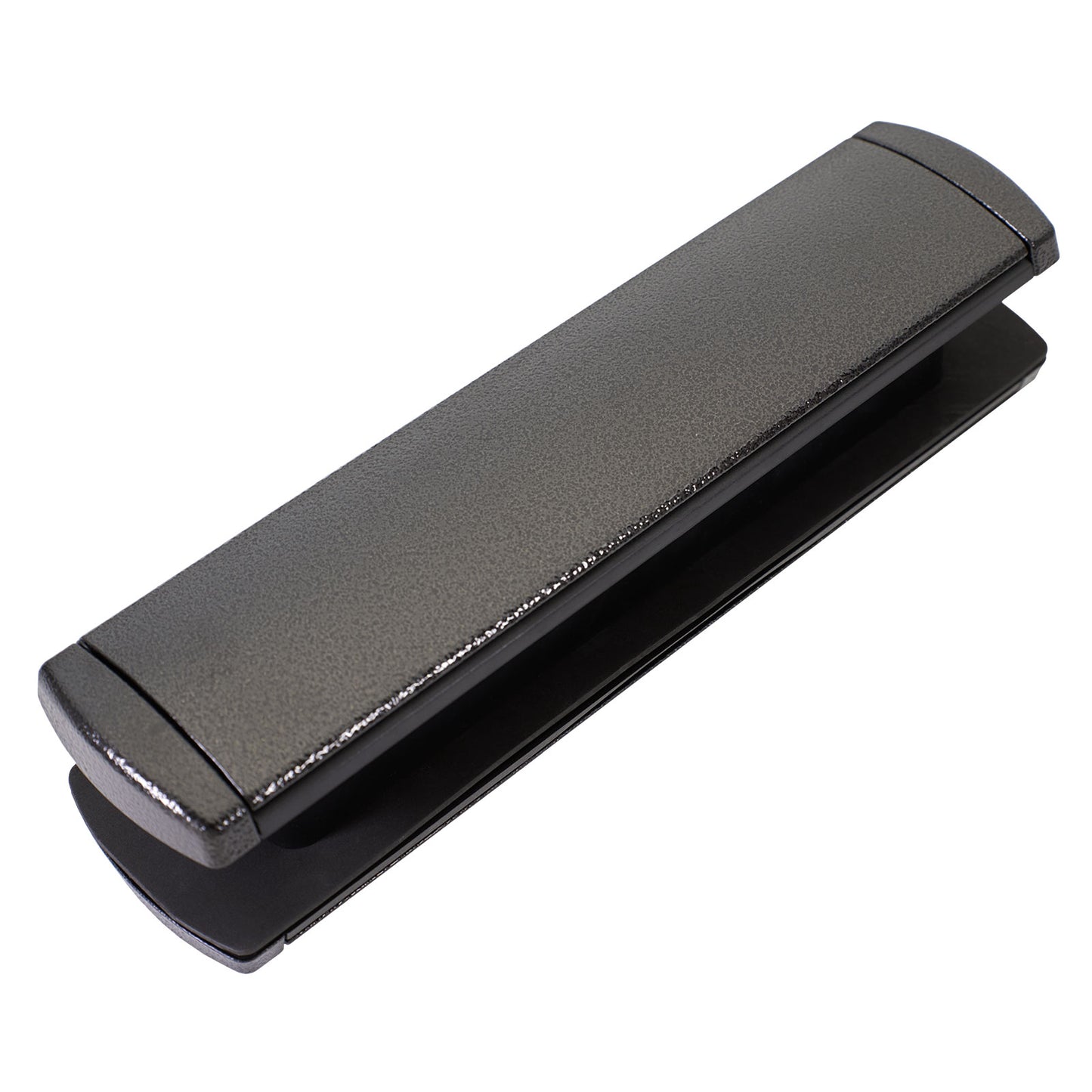

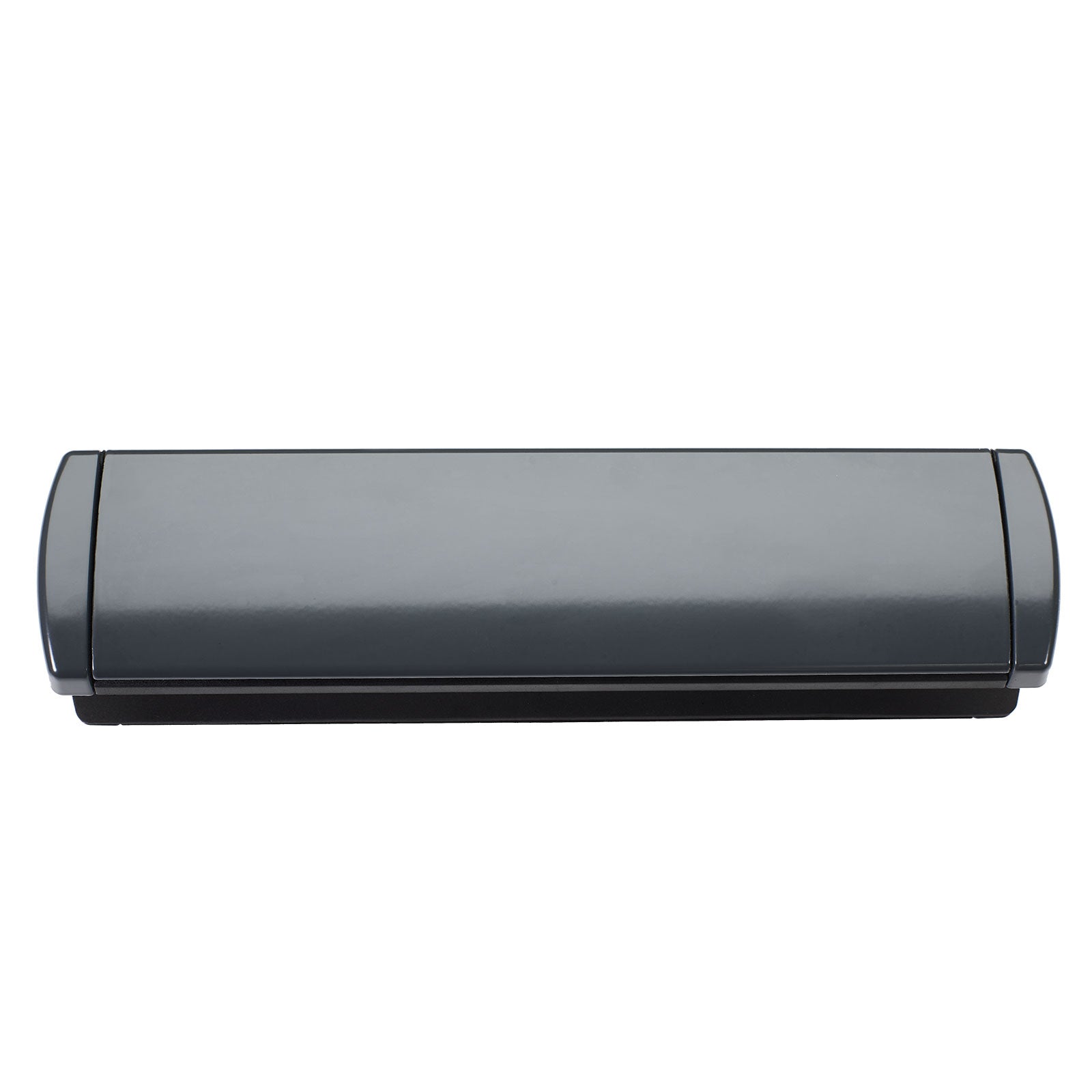

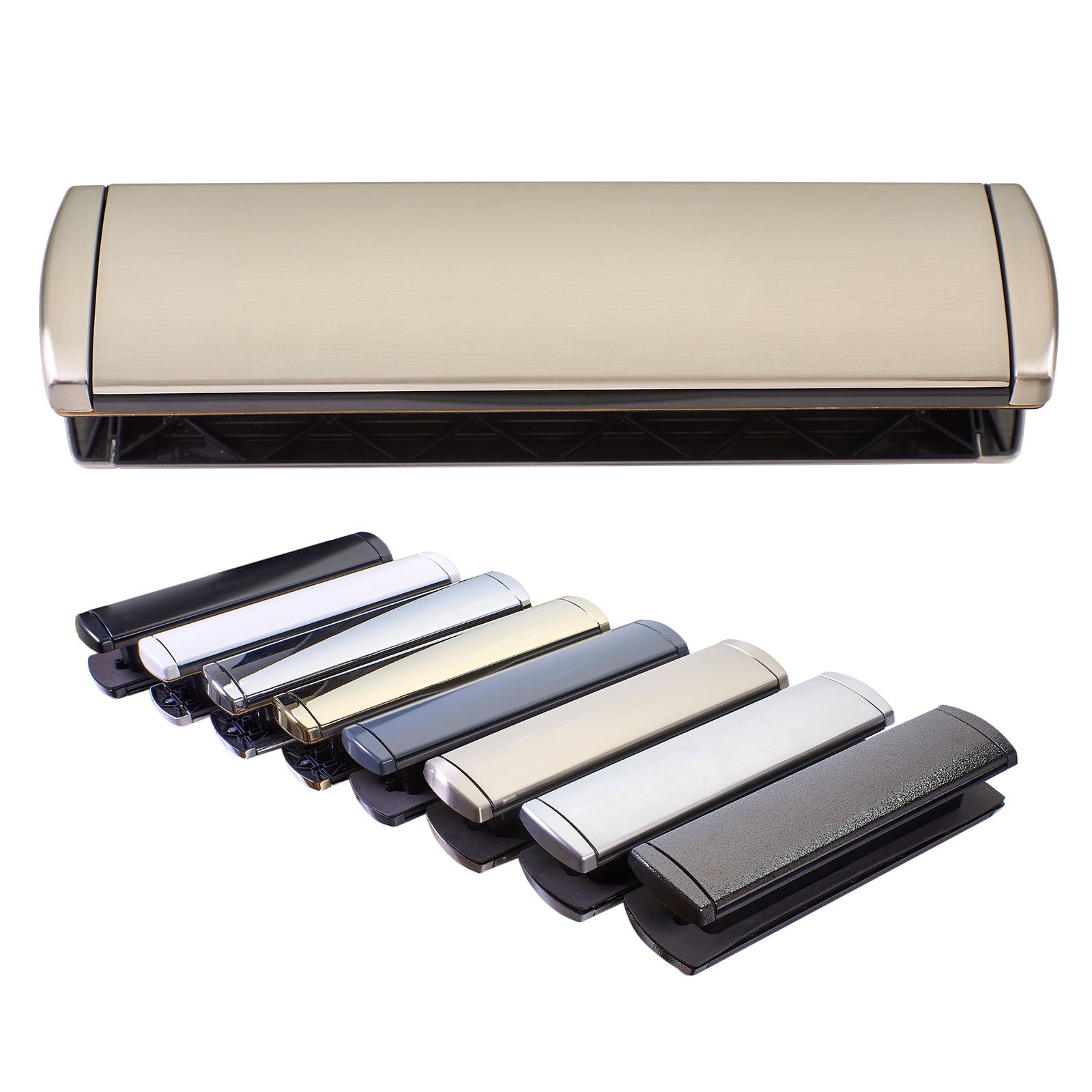

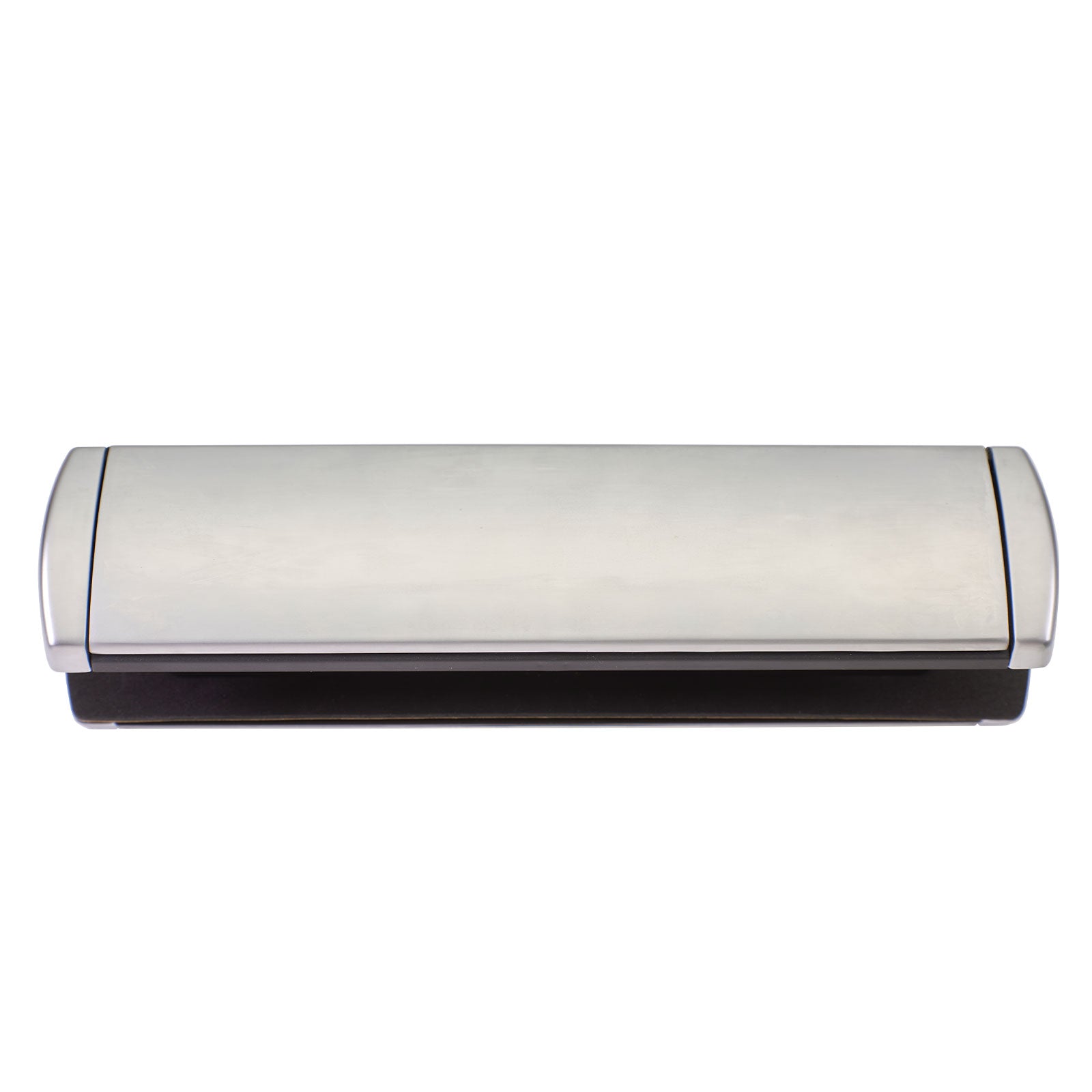

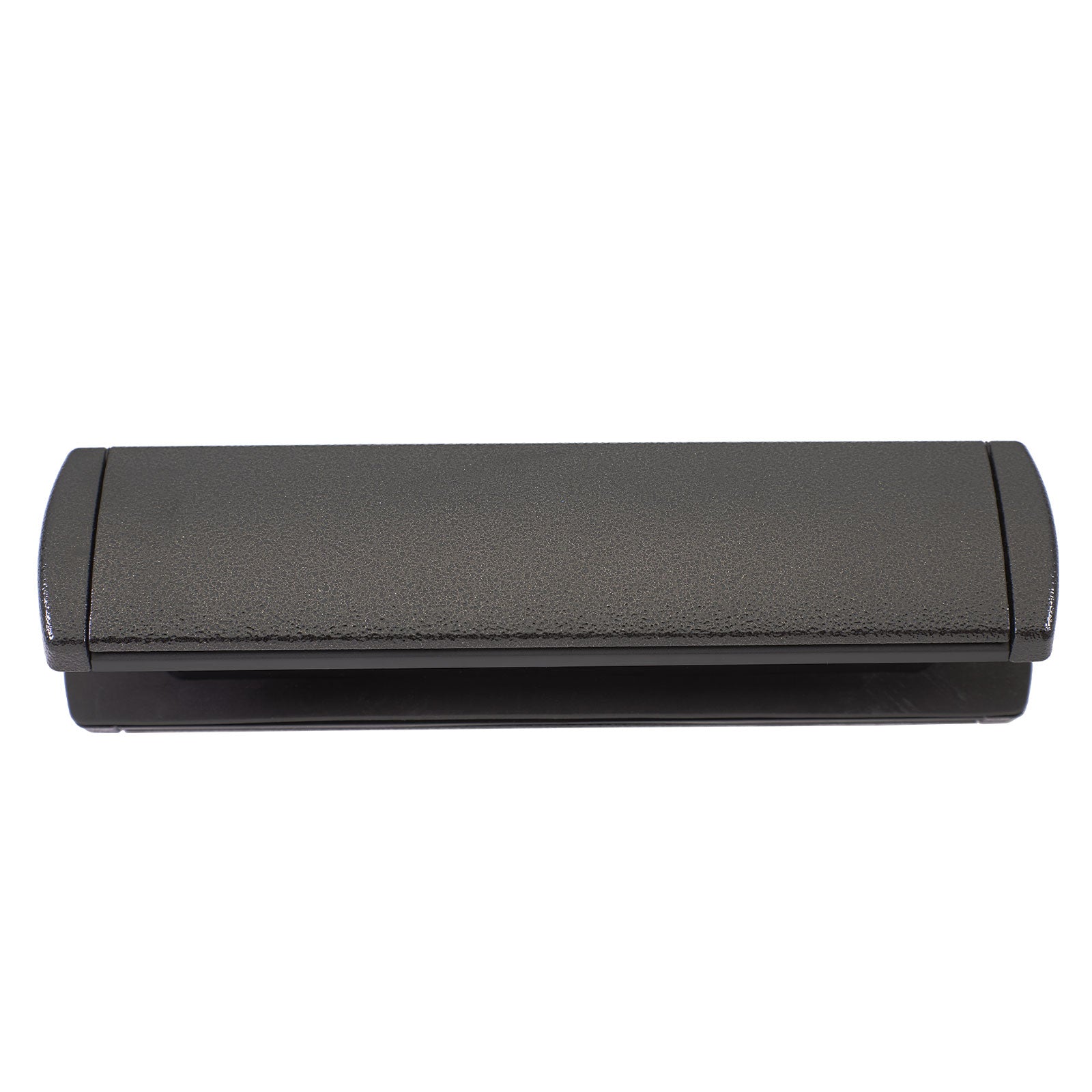

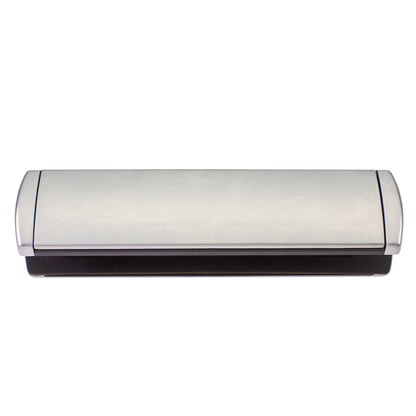

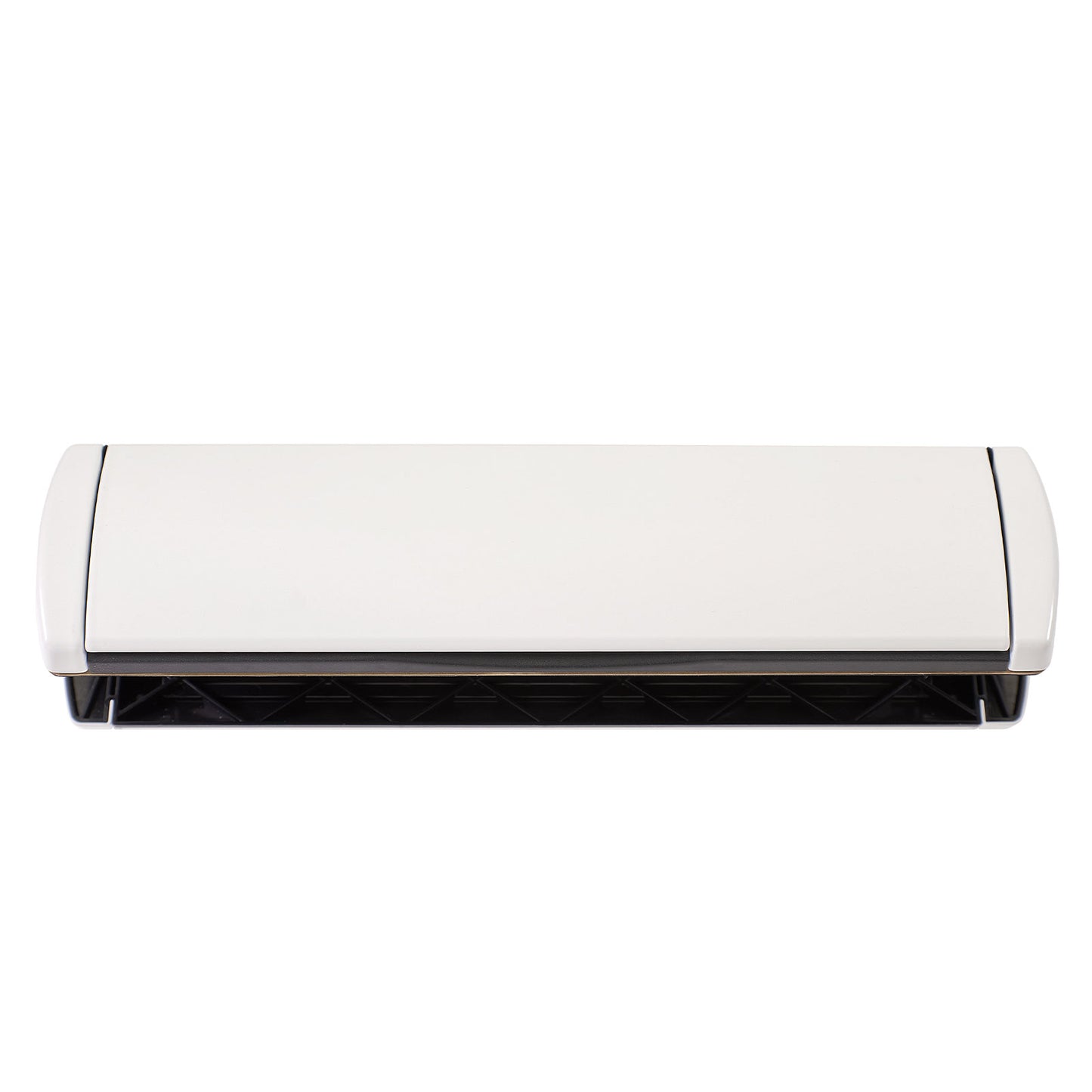

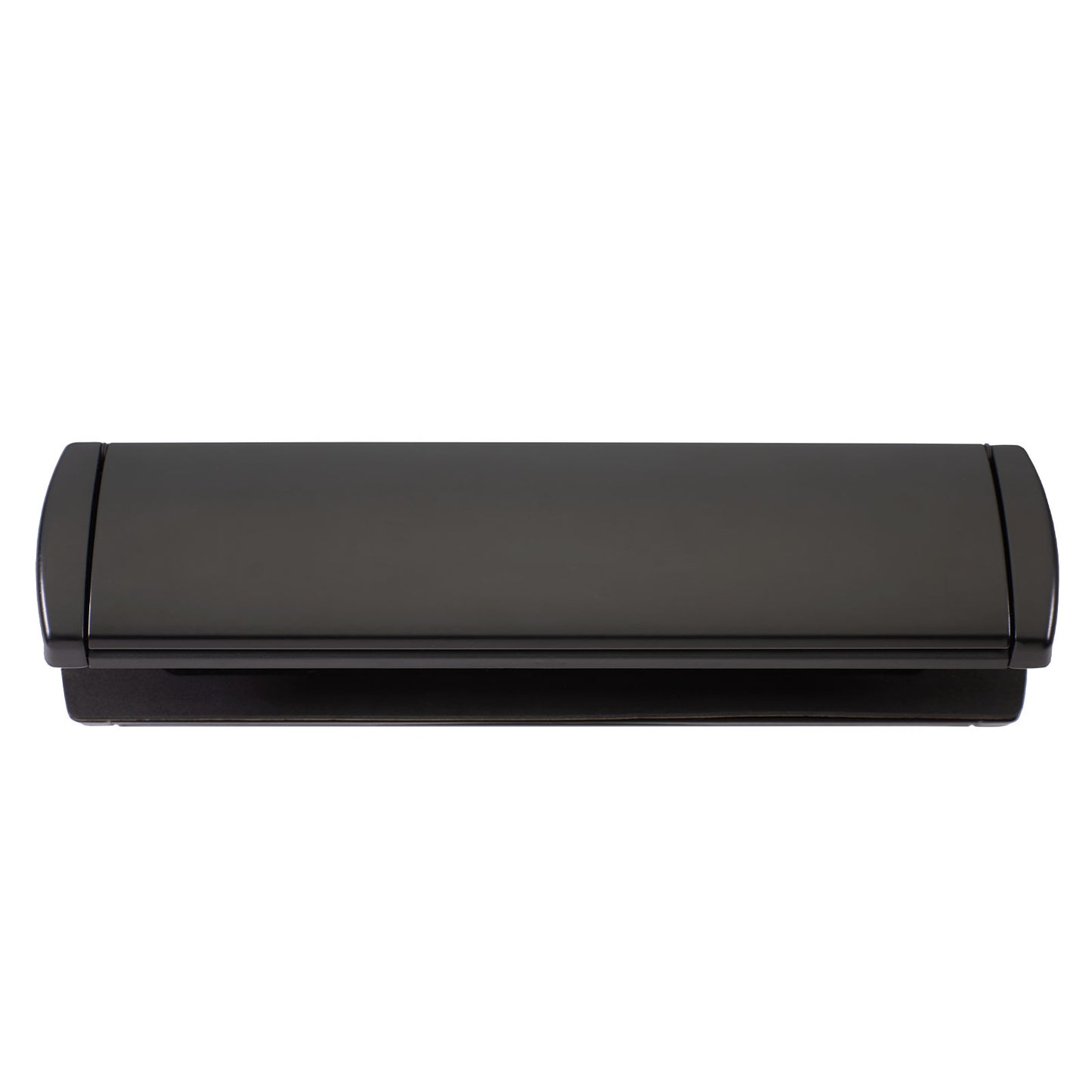

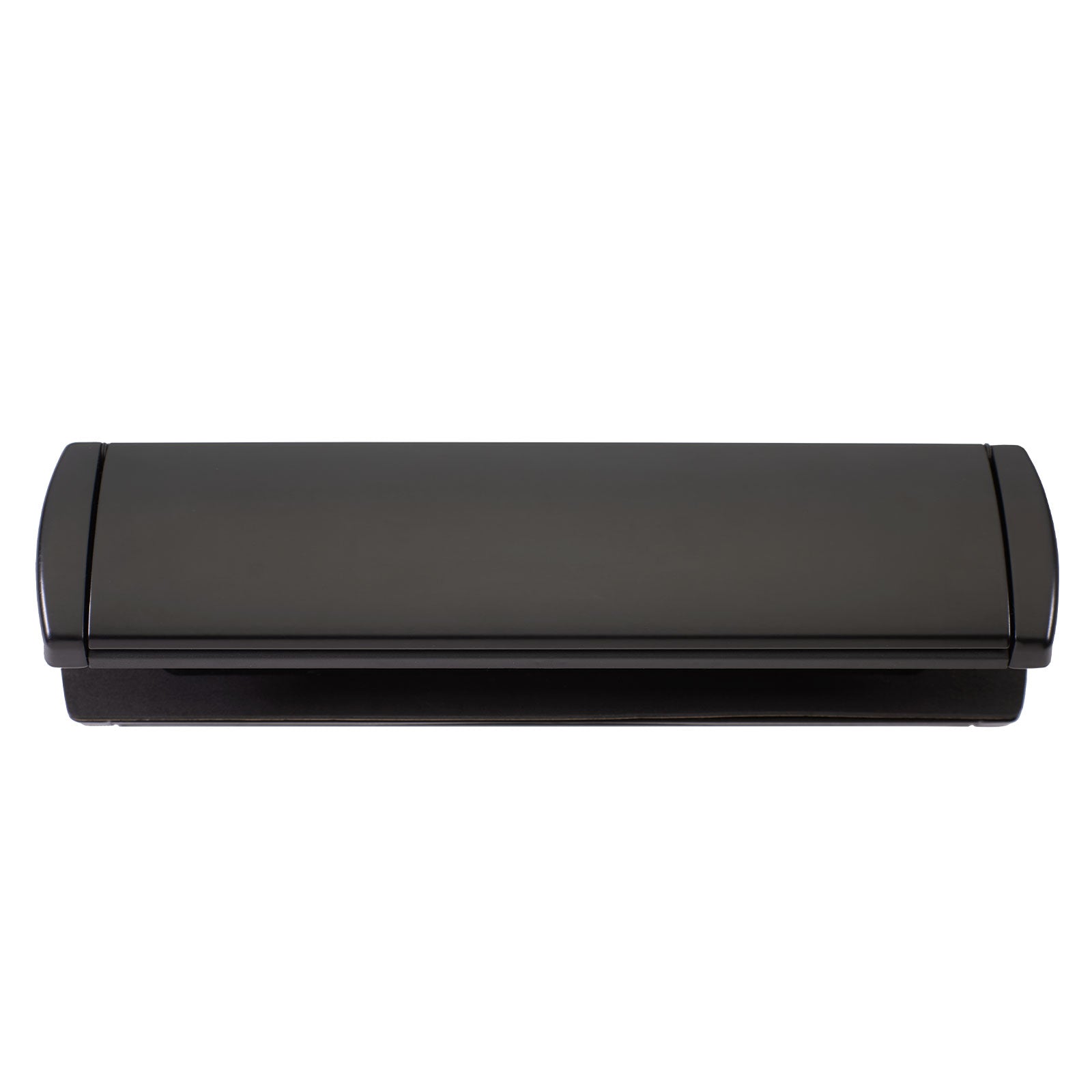

Finishes	White, Anthracite Grey, Black, Antique Black, Gold (PVD), Chrome (Polished), Chrome (Satin), Enduro Steel
Accreditation	Exceeds 480 hours salt spray testing (BS EN 1670 Grade 5)
Guarantee	10 Year mechanical

Contents

What you get

Letterplates are sold as complete units, which include internal and external fittings, which connect with telescopic sleeve, and fixings screws.

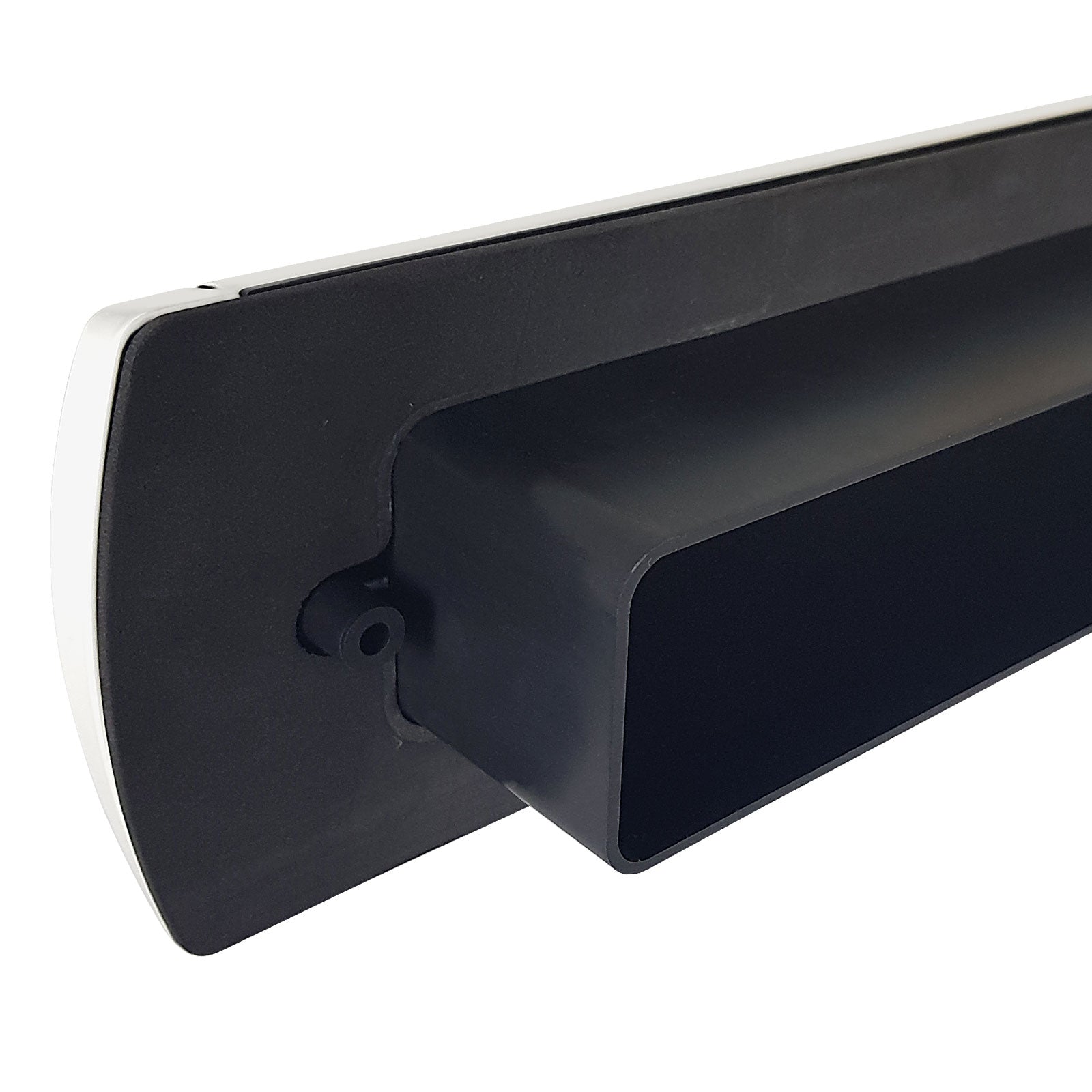

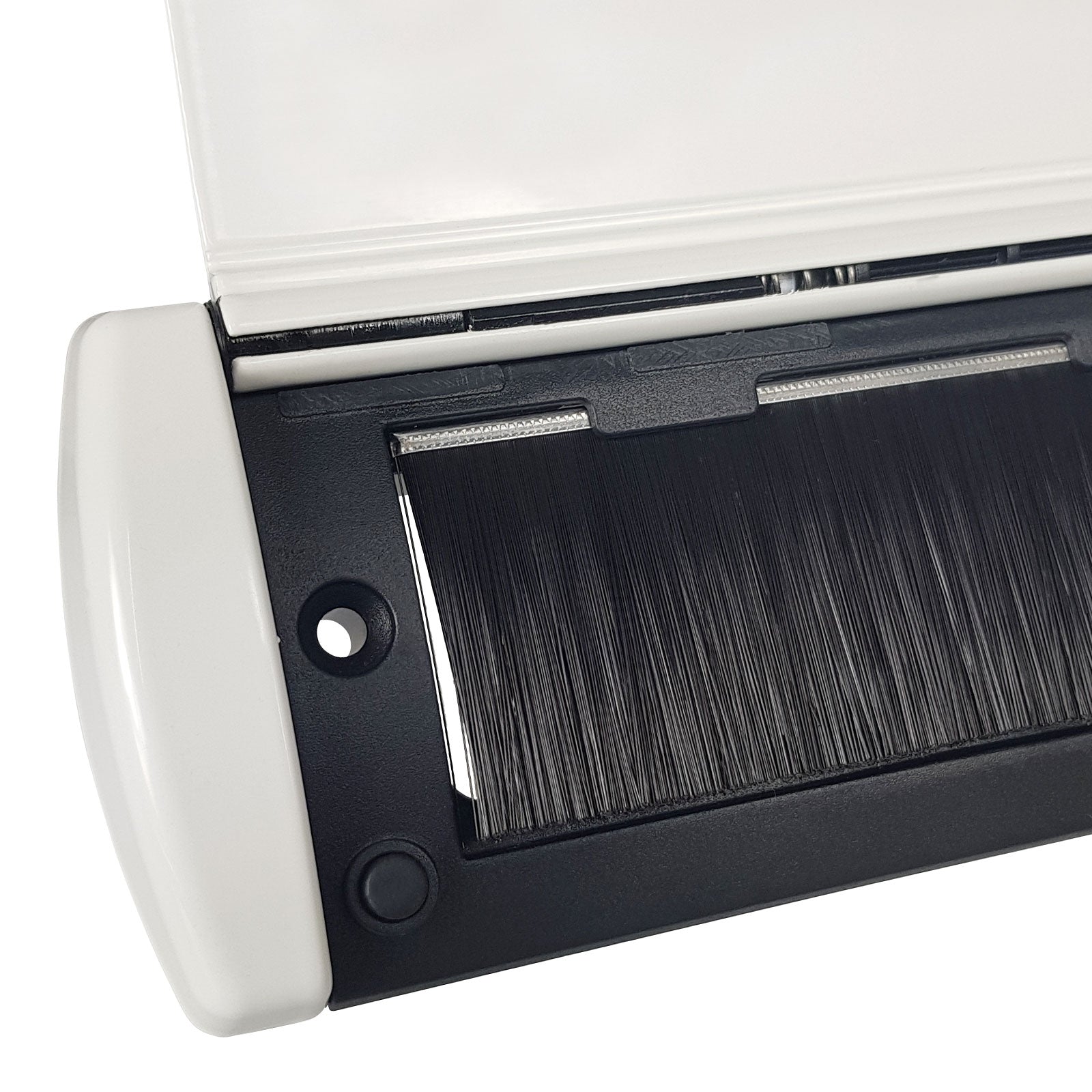

Internal Letterplate	Plastic nylon and metal frame with sleeve, full length brushes and open screw ports. Sprung metal flap.

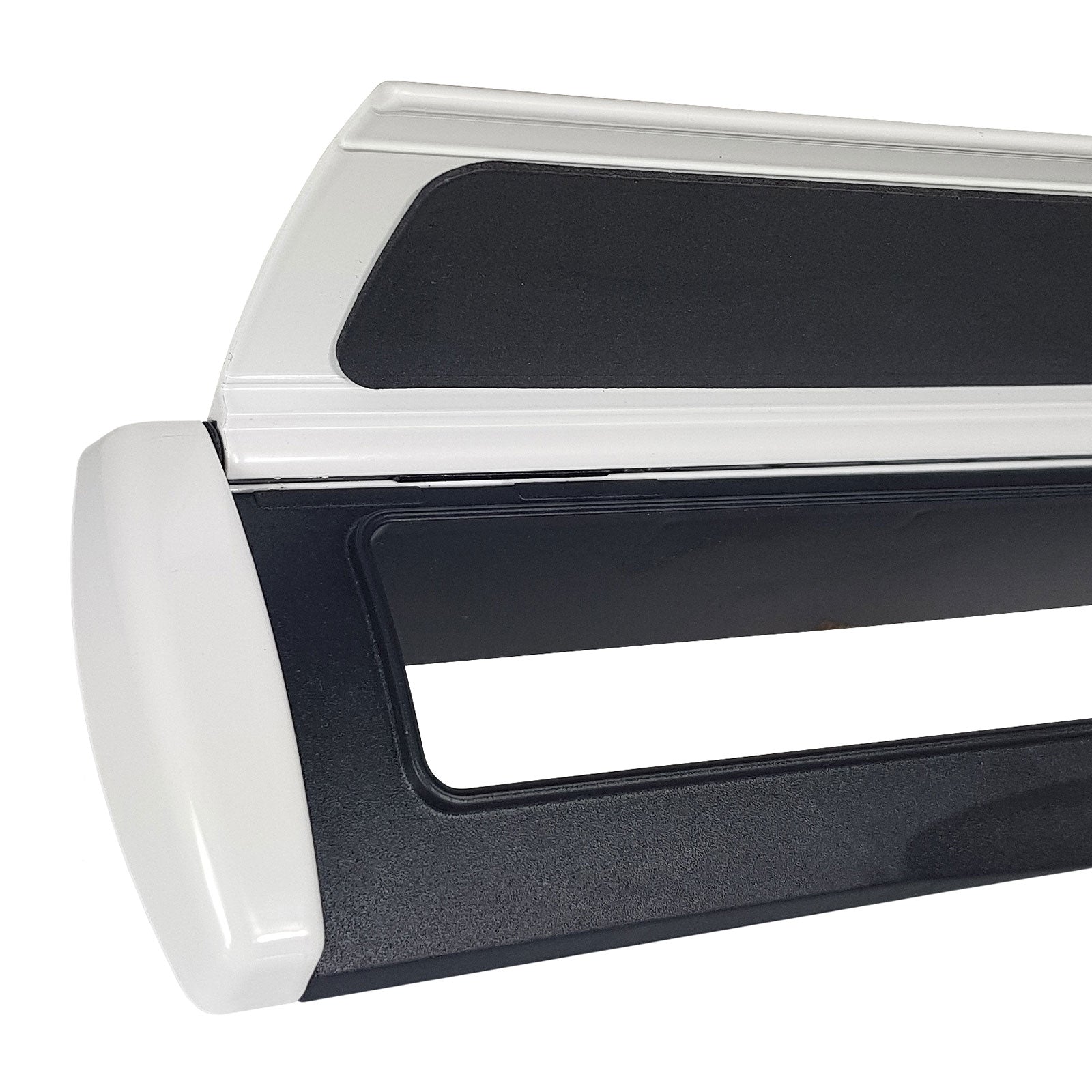

External Letterplate	Plastic nylon and metal frame with receiving screw ports, and finger hook groove for opening. Sprung metal flap with aperture gasket.
Fixings	Stainless steel screws for securing internal letterplate to outside. Alternative screw sizes provided; two 60mm screws for use on thin doors, and two 80mm screws for thicker doors.

Fitting & Usage

Fitting the Omega Premium 12" Letterplate

We recommend that an aperture of 259mm x 48mm be cut out of the door when fitting the Omega 12" letterplate.

When creating the aperture, it may be helpful to use the sleeve of the inside letterplate as a template to trace round with a pencil. A junior hacksaw can then be used to cut around the pencil line to produce the correct size cut-out. A hole can be drilled inside of the line to provide a starting point to cut.

Fit the plate with the open screw ports and nylon brush to the inside of the door, and the other plate to the outside.

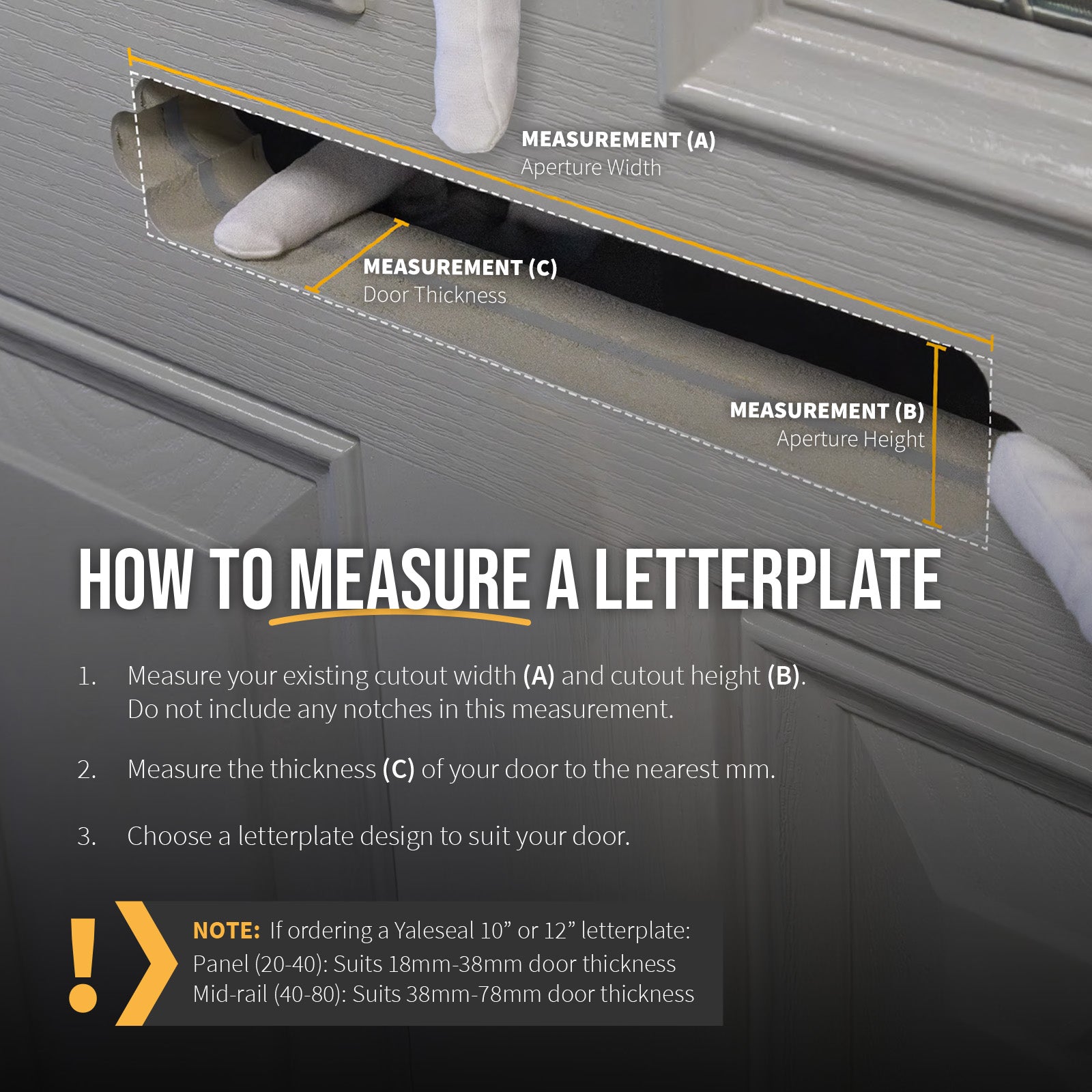

Measuring Guide
