Shiplap Reinforced Door Panel

Shiplap Reinforced Door Panel

SKU: HUR-2471-1001
MPN: SHIC790X960-24

£45.08

Sale

Tax included. Shipping calculated at checkout.

Low stock: 2 left

Quantity

View full details

Description

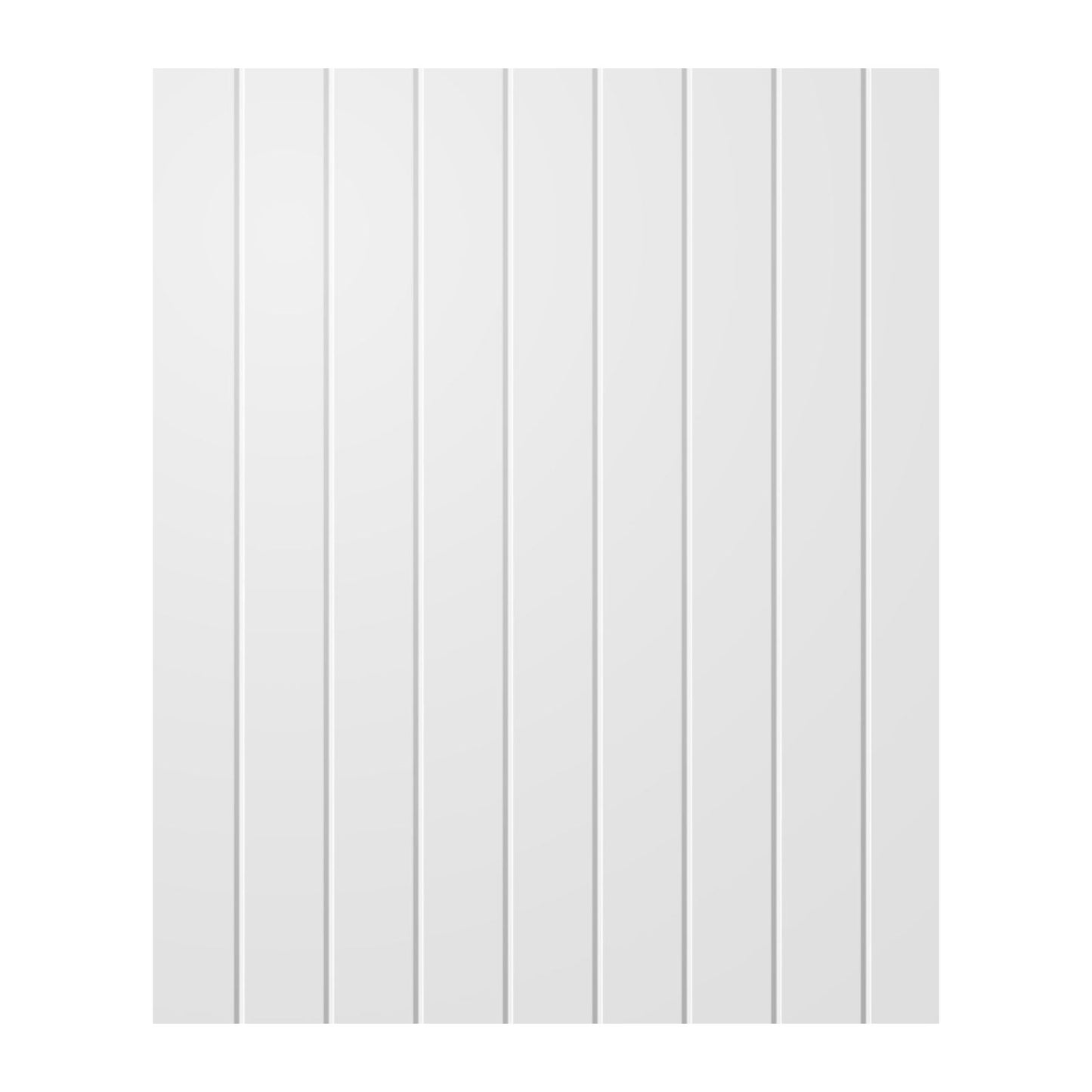

Shiplap Reinforced PVC-u Infill Panel

Name: Shiplap Reinforced Door Panel
Brand: Hurst Plastics
SKU: HUR-2471-1001
Price: 45.08 GBP
Availability: InStock

(Choice of size and thickness)

Overlapped appearance, with single panel strength!

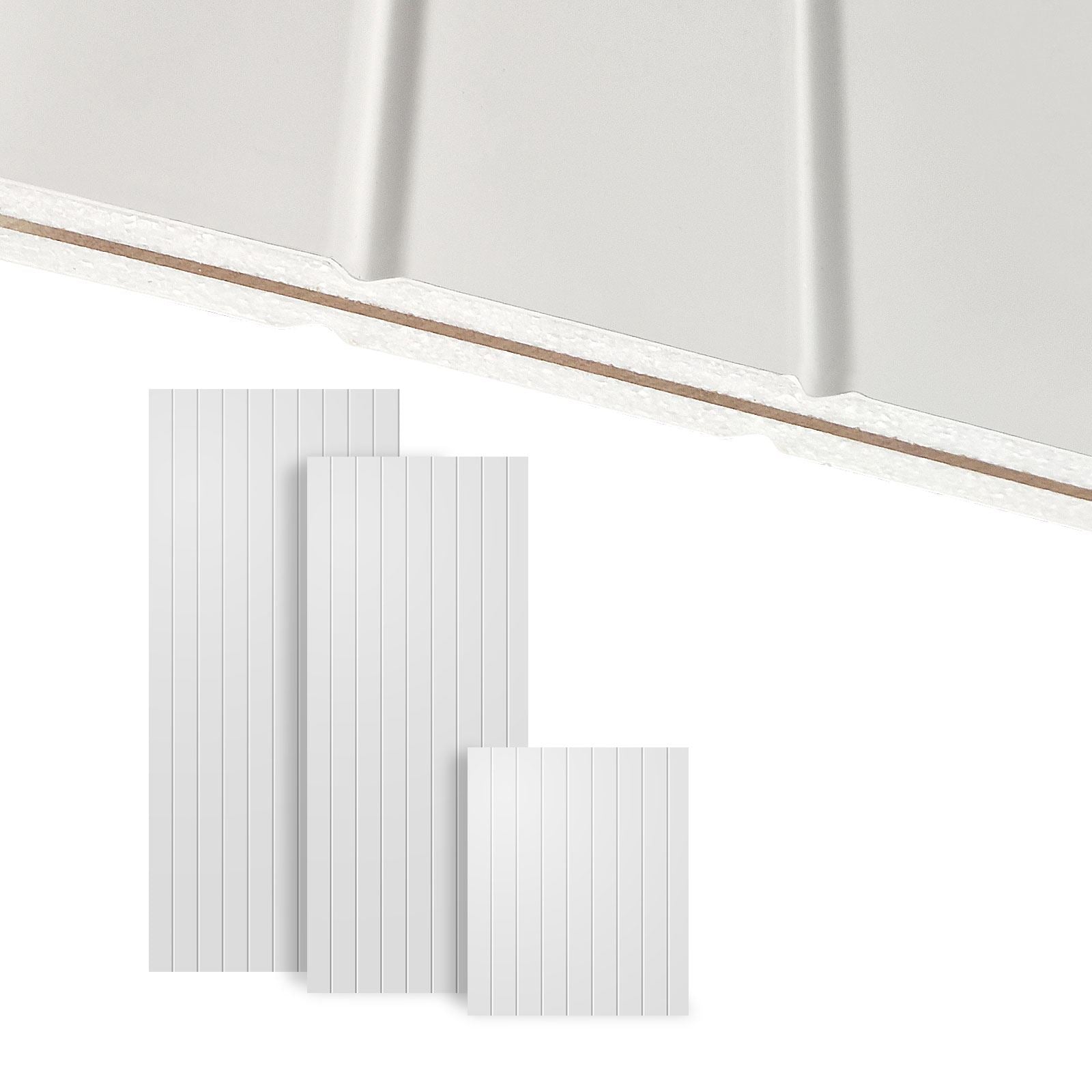

Highly durable, conservatory and door infill panel, with evenly spaced vertical grooves that replicate the appearance of traditional timber shiplap. Features strong MDF reinforcement, sandwiched between Polystyrene and heat reflective UV-stable PVC-u sheets, to offer excellent strength, weather resistance and insulation.

Commonly used for replacing damaged panels, or to blank off unwanted glazed panels. Shiplap's clean linear appearance makes it one of the most versatile decorative panels. Perfect for both traditional and modern homes, and an ideal choice for conservatory panels, front, rear and stable doors. Manufactured in accordance with BS 476 Part 7 - Spread of Flame Class 1 and BS 4735, with self-extinguishing fire retardant materials and fulfils Part L Building Regulations.

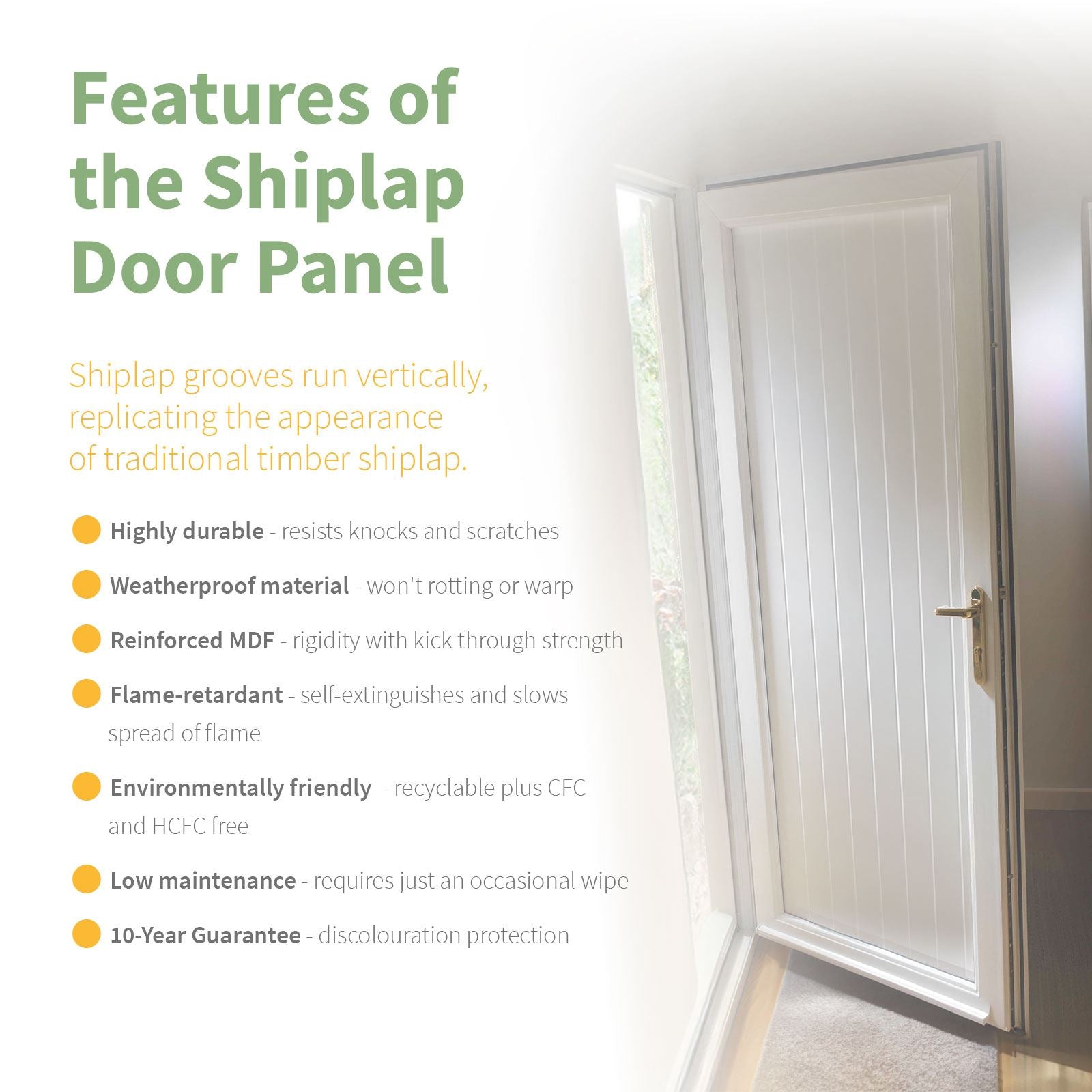

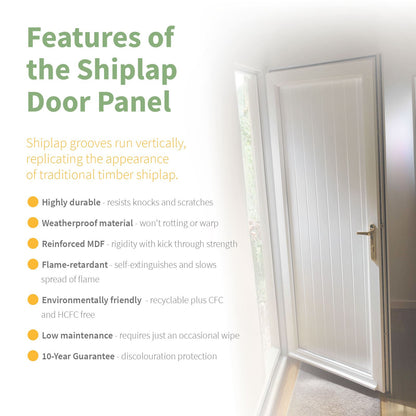

Features & Benefits

Classic shiplap styling - decorative grooved finish
Colourfast and UV stable - fade and discolour protection
High impact durability- resistant to knocks and scratches
Weatherproof material - won't rotting or warping over time
Reinforced MDF security - rigidity with kick through strength
Industry standard colour - matches most smooth white profile
Flame-retardant - self-extinguishes and slows spread of flame
Environmentally friendly - recyclable plus CFC and HCFC free
Low maintenance - requires just an occasional wipe
10-Year Guarantee - discolouration protection

If you want a durable panel that's also decorative and creates a traditional appearance, with classic shiplap styling, then this is a great choice. The shiplap reinforced PVC-u infill panels 4mm MDF core is CFC and HCFC free during manufacture, and following installation, which helps to protect the ozone layer, improves air safety, and reduces global warming.

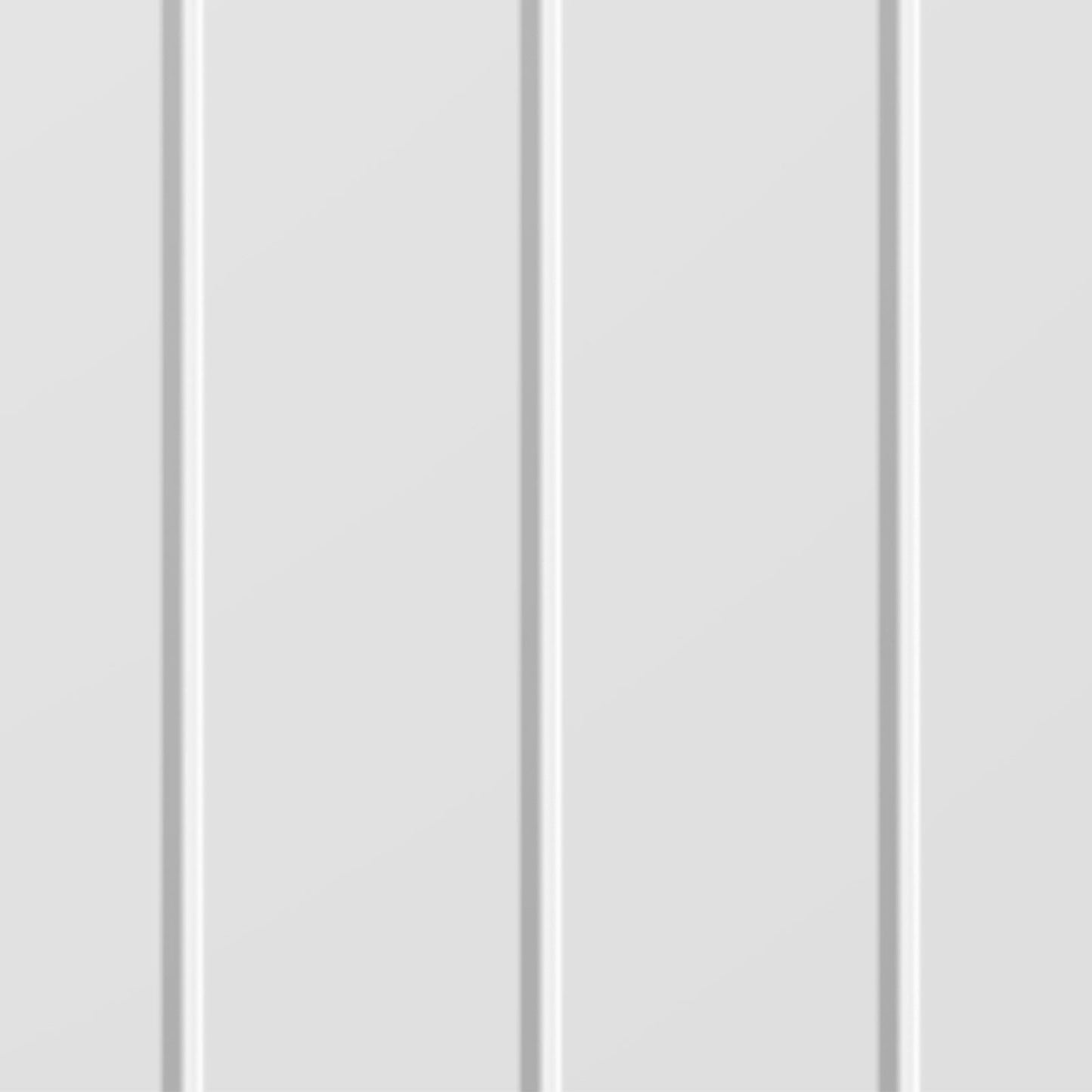

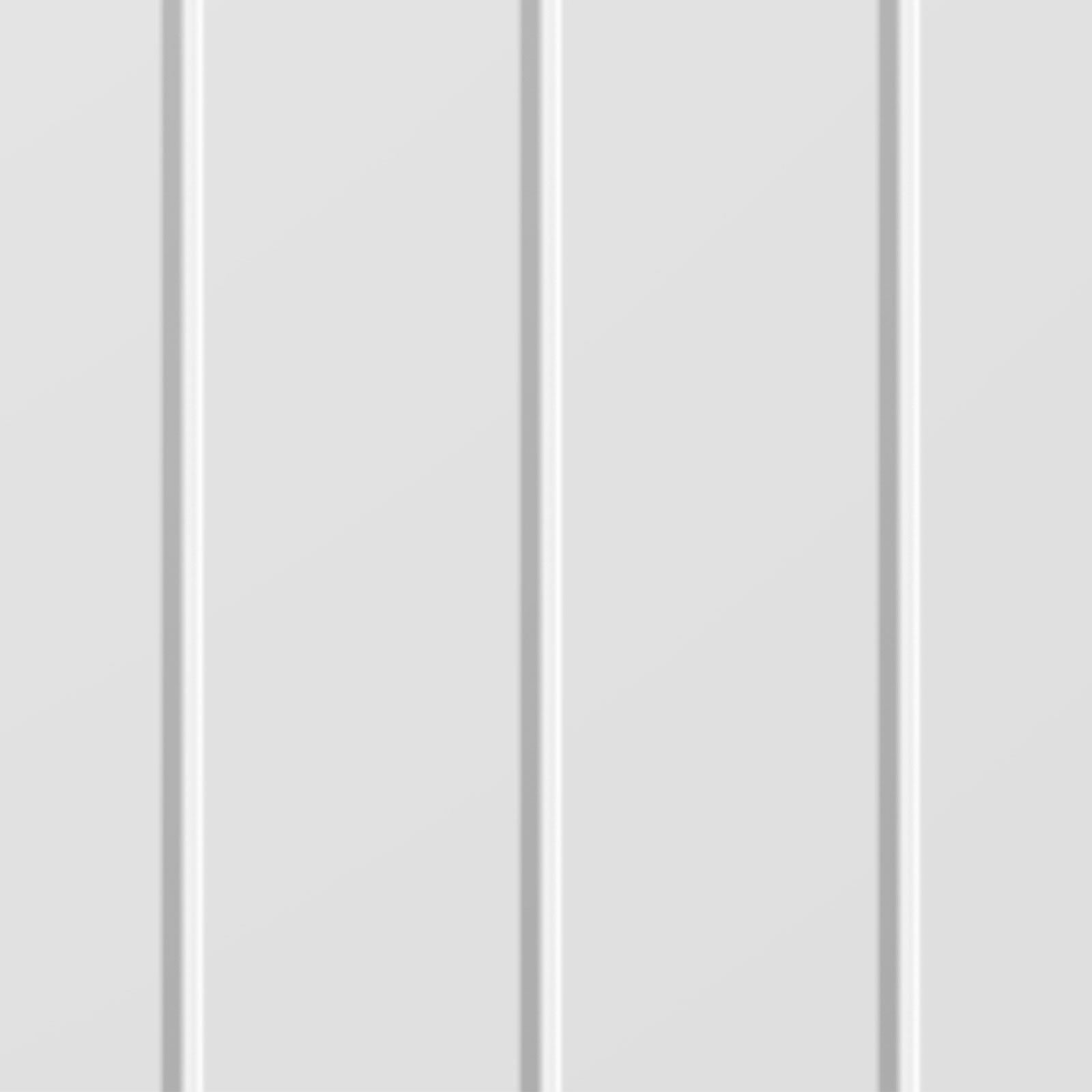

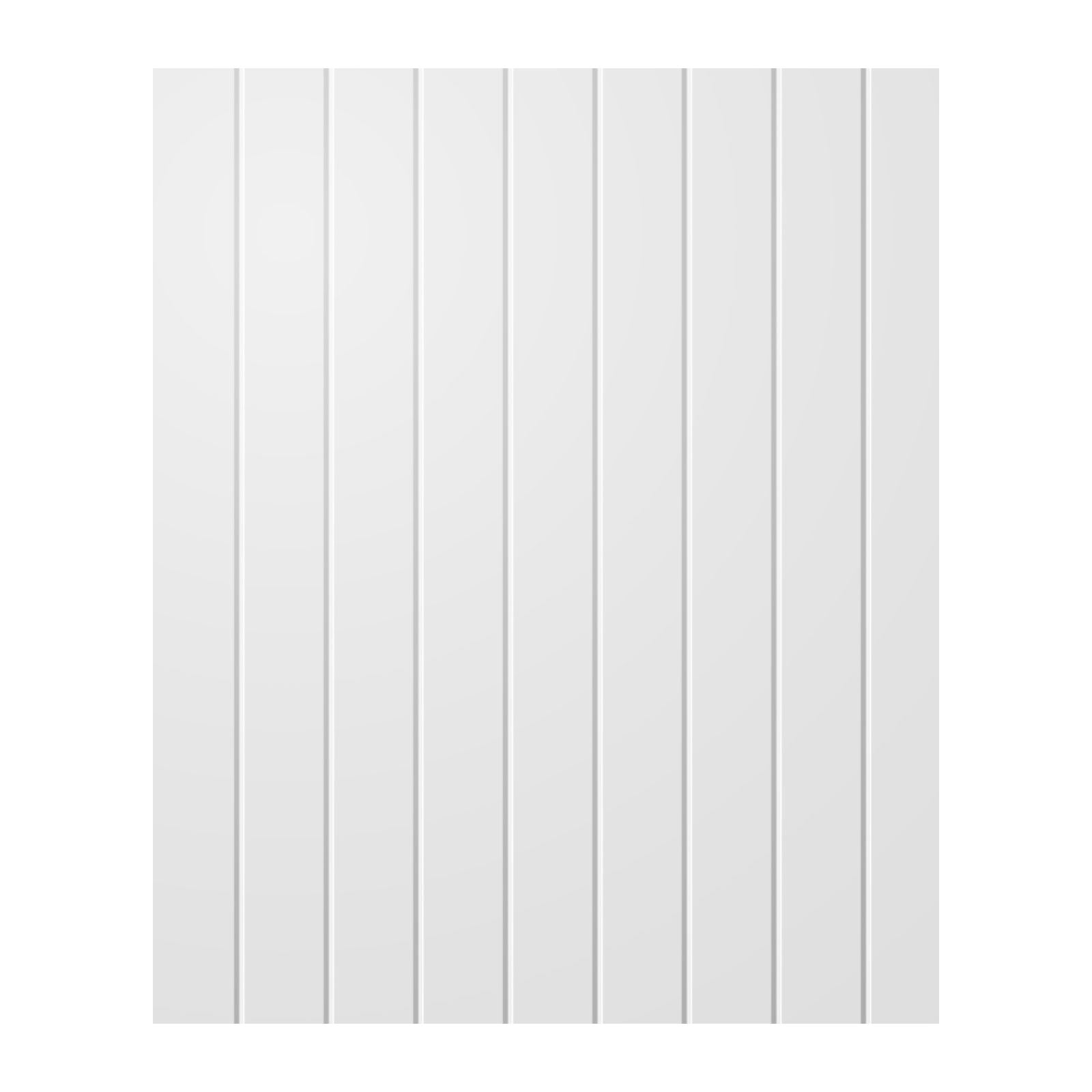

The Shiplap grooves are applied to both sides, and run down the long side of the panel, which can be used any way round to present horizontal or vertical shiplap appearance.

Important: The manufacturing process of infill panels can sometimes cause edges to appear unsightly. As the panels are designed to be housed within a beaded frame, edges are not visible once installed and do not affect the product's performance. Infill panels are intended to be cut down, typically removing any perceived edge imperfections.

Specification

Technical Information

Measurement	Value

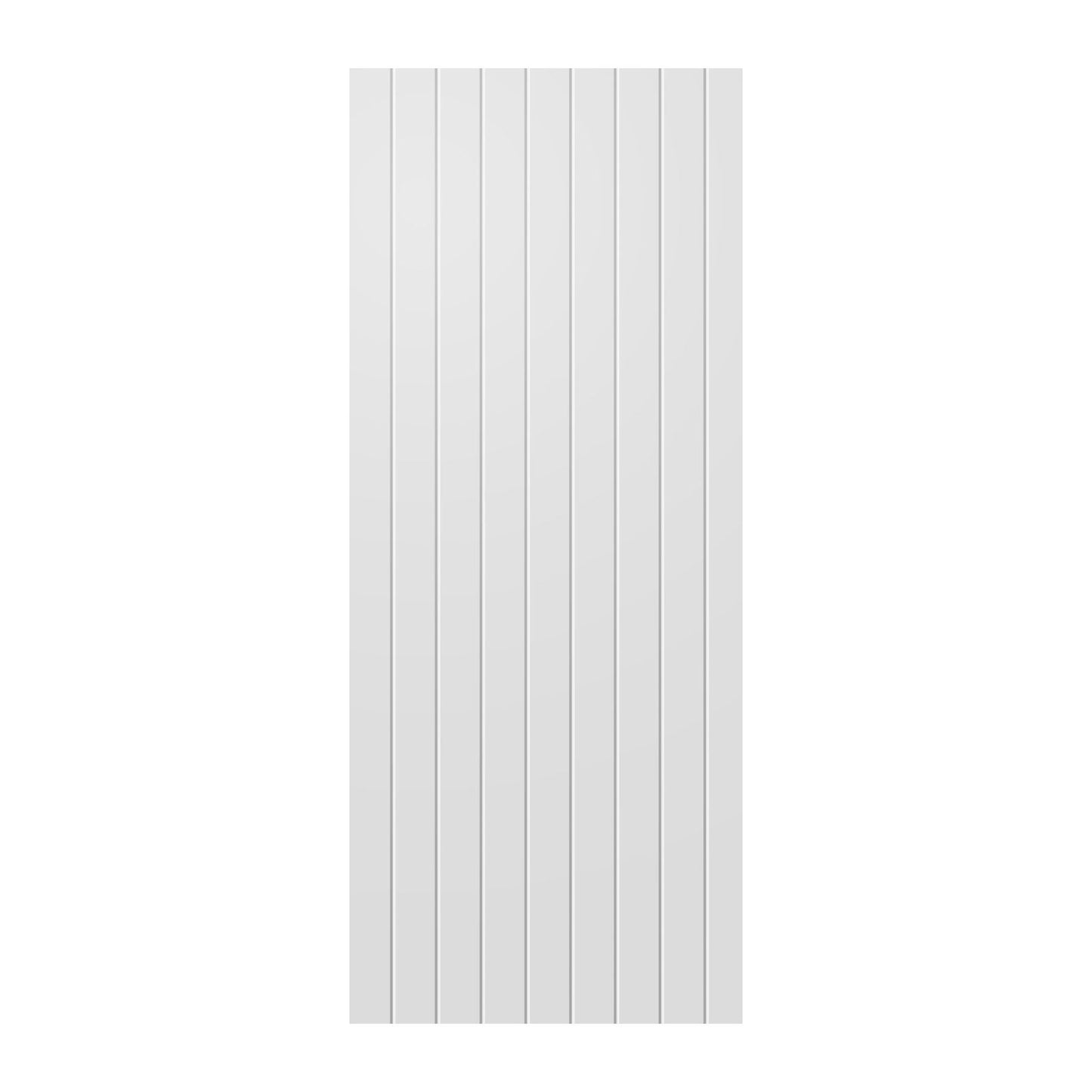

Panel Sizes (w x h)	790mm x 960mm* 790mm x 1920mm* 900mm x 2090mm (Euro Size)
Panel Thickness	24mm or 28mm*
Outer Skin	1.5mm PVC-u sheet

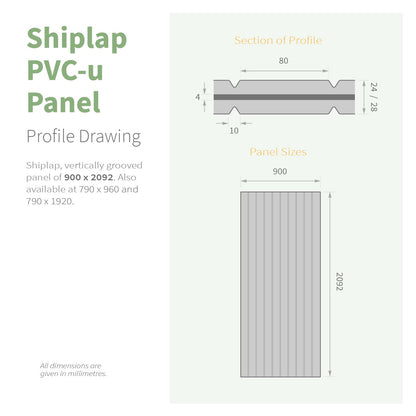

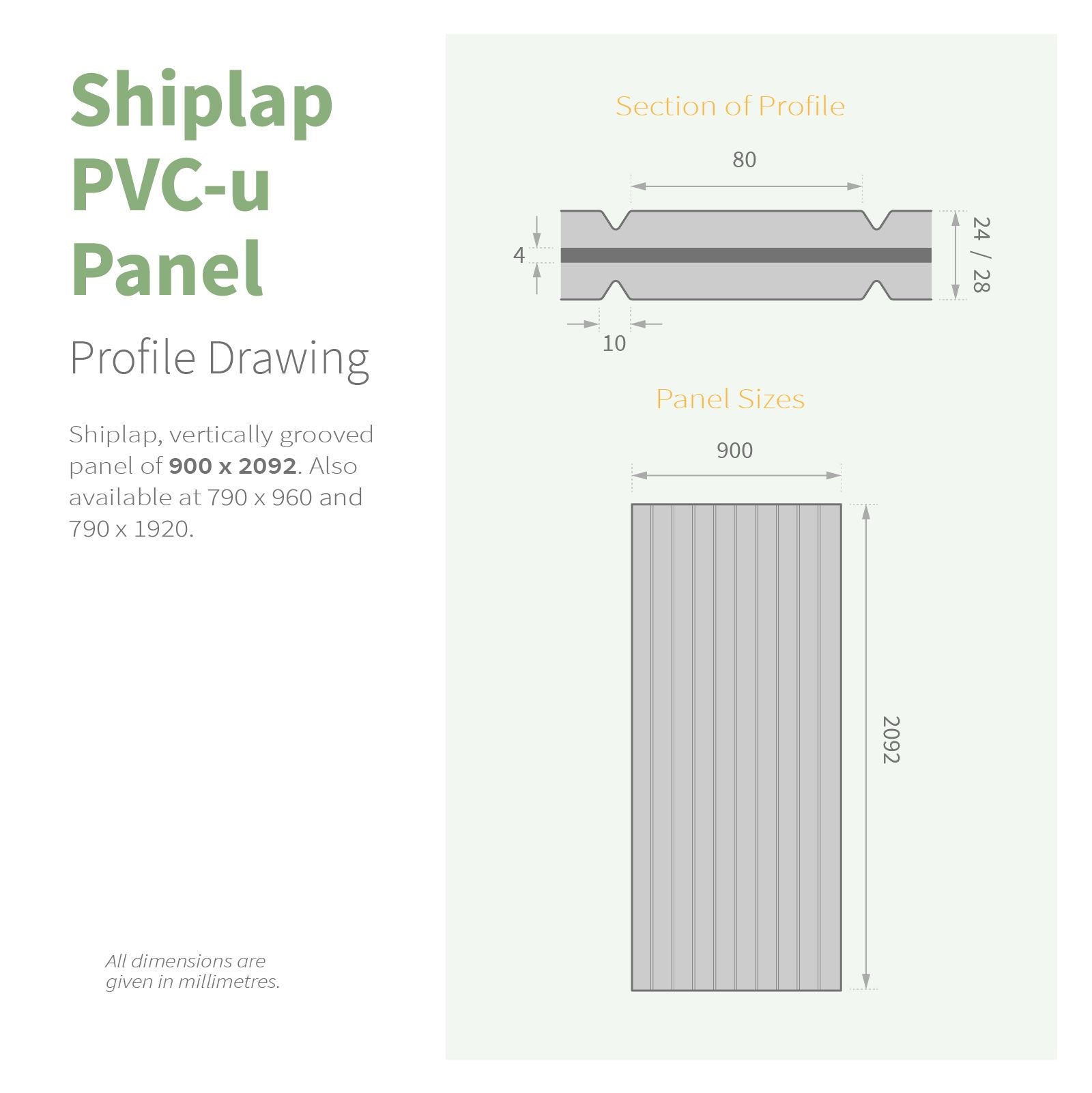

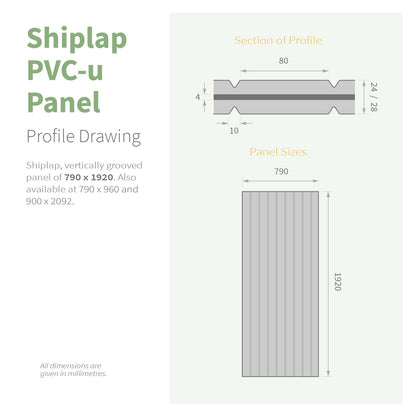

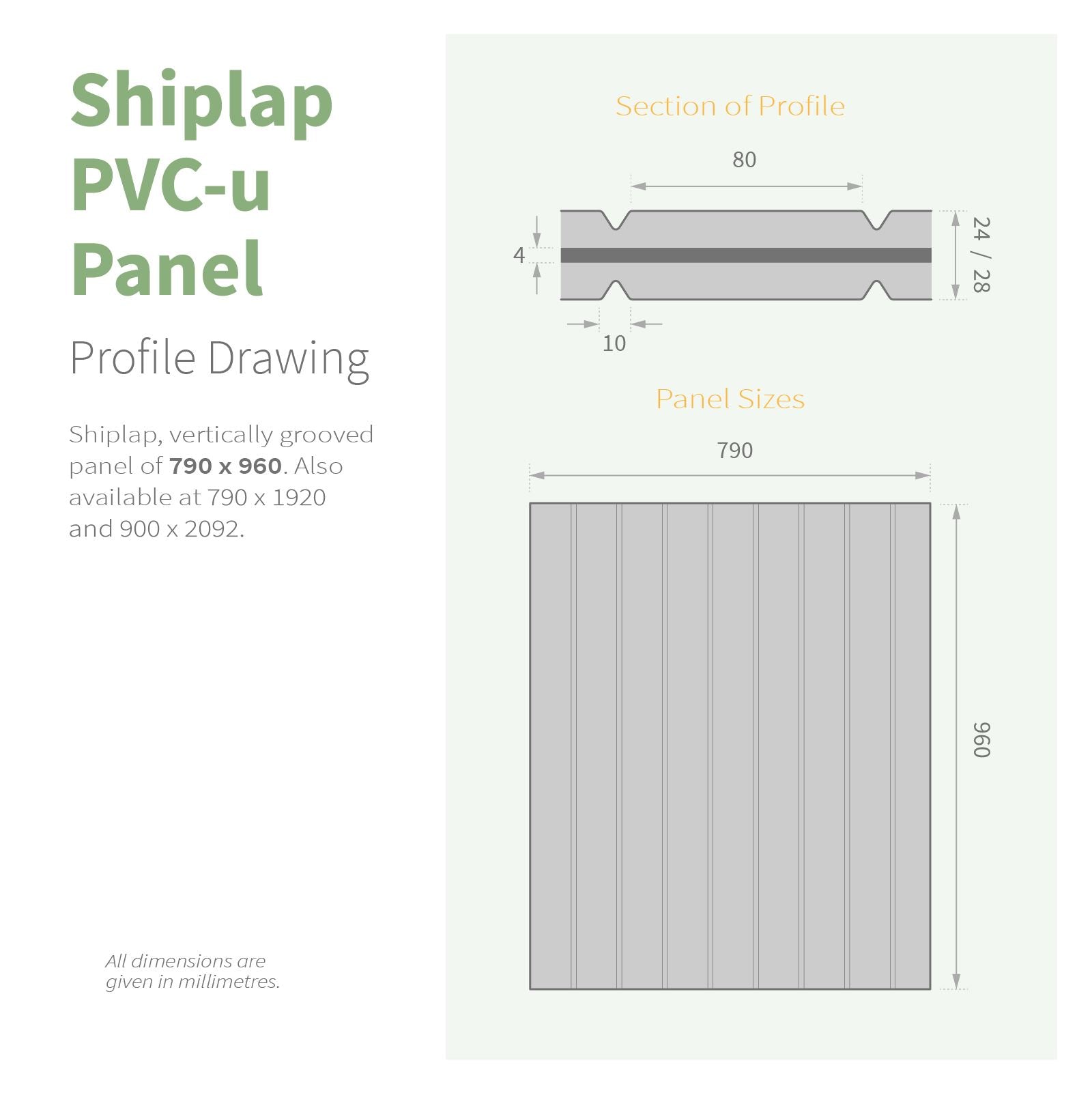

Groove Design	Straight and parallel down the length. 10mm wide by 5mm deep, with 80mm between each.
Infill Material	Polystyrene and 4mm MDF board
Colour	White 626
Standards Compliance	Part L Building Regulations, BS 476 Part 7 - Spread of Flame Class 1, BS 4735.

* Allow cutting and manufacturing tolerances of ±5mm (width and height), and ±2mm (thickness).

Contents

Fitting & Usage

Fitting the Shiplap Reinforced PVC-u Infill Panel

Fitting the panels is fairly straight forward but we offer 6 useful pointers to bear in mind.

Leave protective film in place to prevent scratches during handling. Be sure to peal off before fitting, or peel back from the edges, so that it does not get trapped by the beads.
A decorators paint scraper or similar tool can be used to remove any beads. When removing, it is easier to start with the longer ones. When replacing beads, the longer ones should be done last. As you remove beads, mark the back of them to identify where they came from (ie. top, right, bottom, left) as they should be put back in the same position.
When measuring and cutting to size, remember the phrase 'measure twice - cut once'. Be sure the measurement is correct as a cut can't be undone.
Fine toothed handsaw or jigsaw blade is most suitable for cutting the panels.
Soft headed hammers can be used to encourage reluctant beads to go back in when fitting is tight. Remember that cold temperature can make PVC-u brittle.
Grooved panels often look their best when they are centred within their frame. So when reducing the Shiplap panels width, consider making cuts from both sides, rather than just one. This can centralise the panel and help it look more balanced.
