Measurement | Value |
---|---|
Volume | 750ml (Gun Grade) |
Colour | Blue |
Basis | Polyurethane |
Consistency | Stable foam, thixotropic |
Curing system | Moisture curing |
Skin Formation (FEICA TM 1014) | 8.5 min |
Cutting Time (FEICA TM 1005) | 65 min |
Free foamed density (FEICA TM 1019) | Ca. 40Kg/m³ |
Sound insulation (EN ISO 717-1) | 58 dB |
Shrinkage after curing (FEICA TM 1004) | < 5% |
Expansion after curing (FEICA TM 1004) | None |
Expansion during curing (FEICA TM 1010) | Ca. 135% |
Percentage closed cells (ISO4590) | Ca. 70% |
Fire Rating (DIN4102) | B1 |
Water absorption (EN1609) | Ca. 0.20Kg/m2 |
Compressive strength (FEICA TM 1011) | Ca. 37kPa |
Shear strength (FEICA TM 1012) | Ca. 43kPa |
Tensile Strength (FEICA TM 1018) | Ca. 78kPa |
Elongation at Fmax (FEICA TM 1018) | Ca. 22.7% |
Temperature resistance | -40°C to +90°C (cured) |
Adhesion Compatibility | Good adhesion on all surfaces, except PE, PP and PTFE |
UV Resistant | No |
Shelf Life | 24 months unopened and stored in dry and cool conditions (5° to 25°C). Upright storage is recommended. |
Description

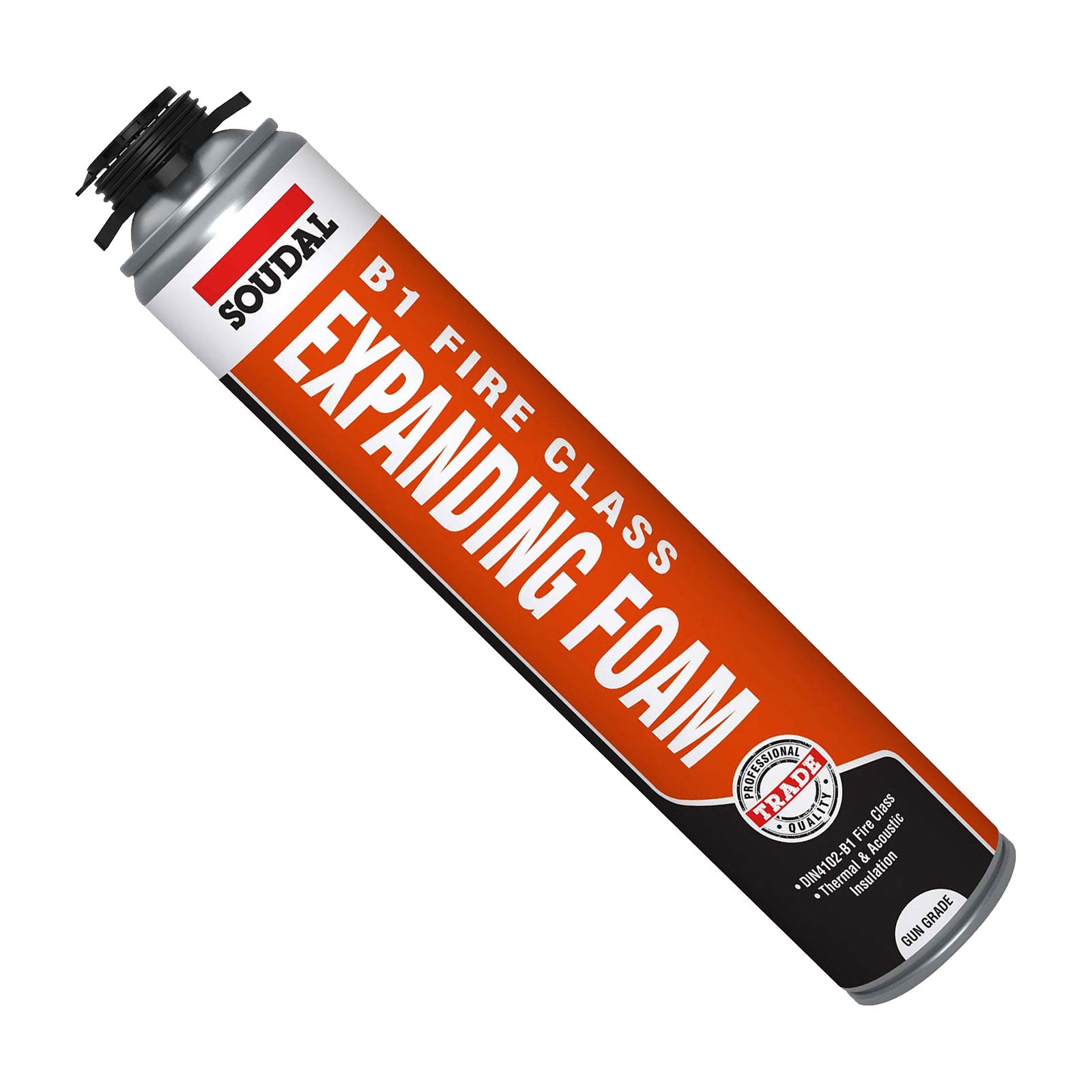

Soudal B1 Fire & Acoustic Expanding Foam
Fire resistance up to 4 hours!
Fire rated one component, polyurethane gun grade expanding foam filler. Quick and easy flame-retardant filling and insulating of joints, cracks, gaps and cavities in all kinds of construction materials.
Rapid curing with excellent thermal and acoustic insulation properties, Soudal B1 Fire provides excellent primerless adhesion to most construction materials.
Features & Benefits
- Fire retardant window and door frames
- Resist heat, cold, moisture and noise
- Fills and insulates gaps and cavities
- Can be used indoors and outdoors
- Excellent bonding properties
Applications
- Passive fire protection systems as a large gap filler
- Installation of fire retardant window and door frames
- Sealing of expansion and connection joints
- Thermal and acoustic insulation around doors and window frames
- Pipe penetrations and insulation
- Roofing materials and general construction
