Measurement | Value |
---|---|
Face Diameter | 32mm |
Face Thickness | 17mm |
Thread Length | 10mm |
Compatibility | Thor Hammer Thorex 11-710 Nyon Hammer |
Face Material | Polyurethane (Brown), Nylon (White and Yellow), PVC (Grey), Plastic (Red) |

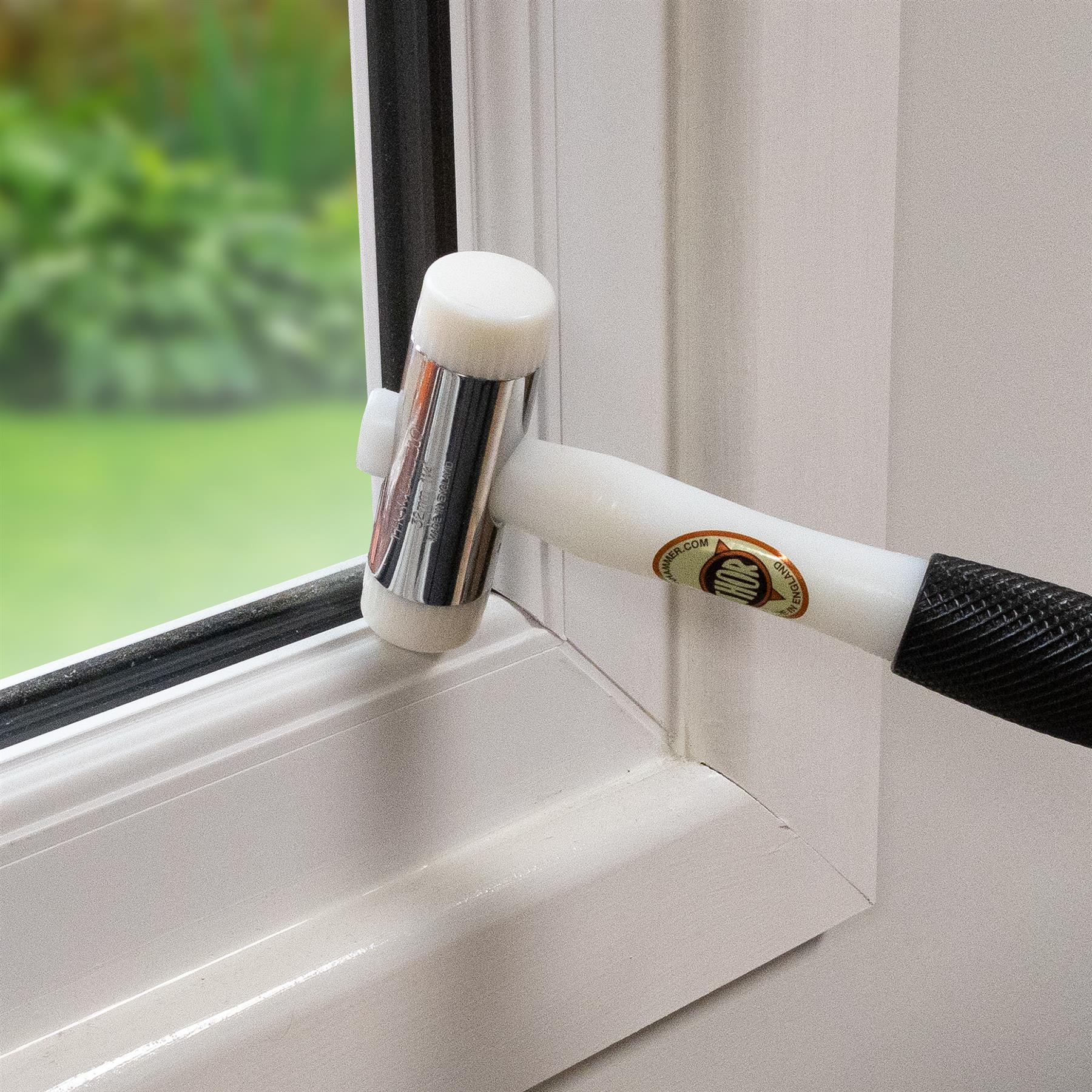

32mm Glazing Hammer Faces for Thorex 710 Nylon Glazing Hammer
Replacement and alternative faces to suit your application!
Replacement faces for the 32mm Thorex 11-710 Nylon Hammer. Simply screw to head of hammer to replace worn faces, or when your application requires a specific face material.

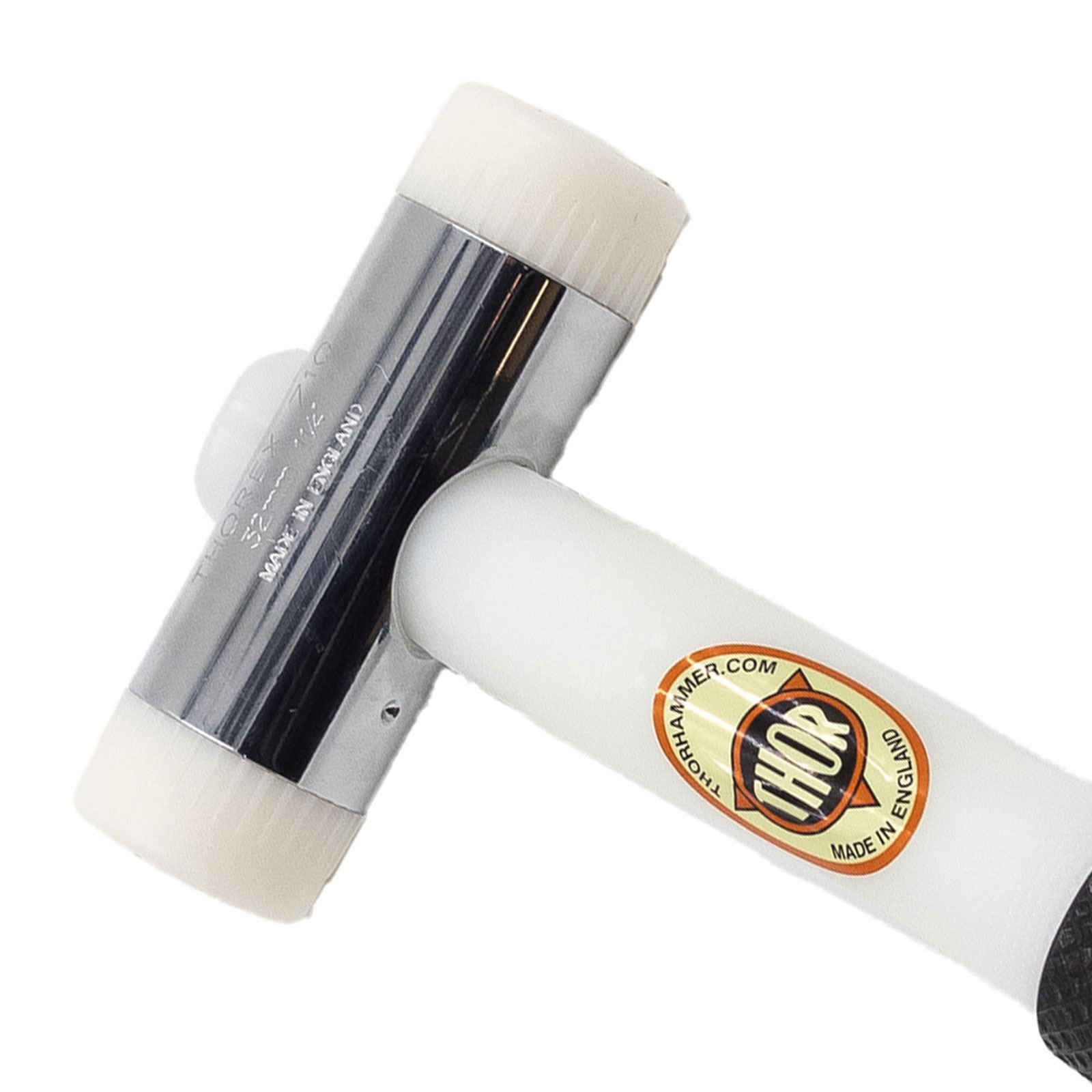

The Thorex 11-710 Nylon Hammer becomes even more versatile when used with a variety of faces. By buying faces separately, you could have one hammer that does multiple jobs and protects the object being struck.
You could even use different colour faces on either end of the hammers head, to switch quickly between striking different materials.
Features & Benefits
- Different hardness available for specific application
- Colour-coded for easy recognition of use
- One piece face with no pegs to damage when worn
- Faces designed for strength and fracture resistance
- Choice of face material available
Choosing the Right Faces

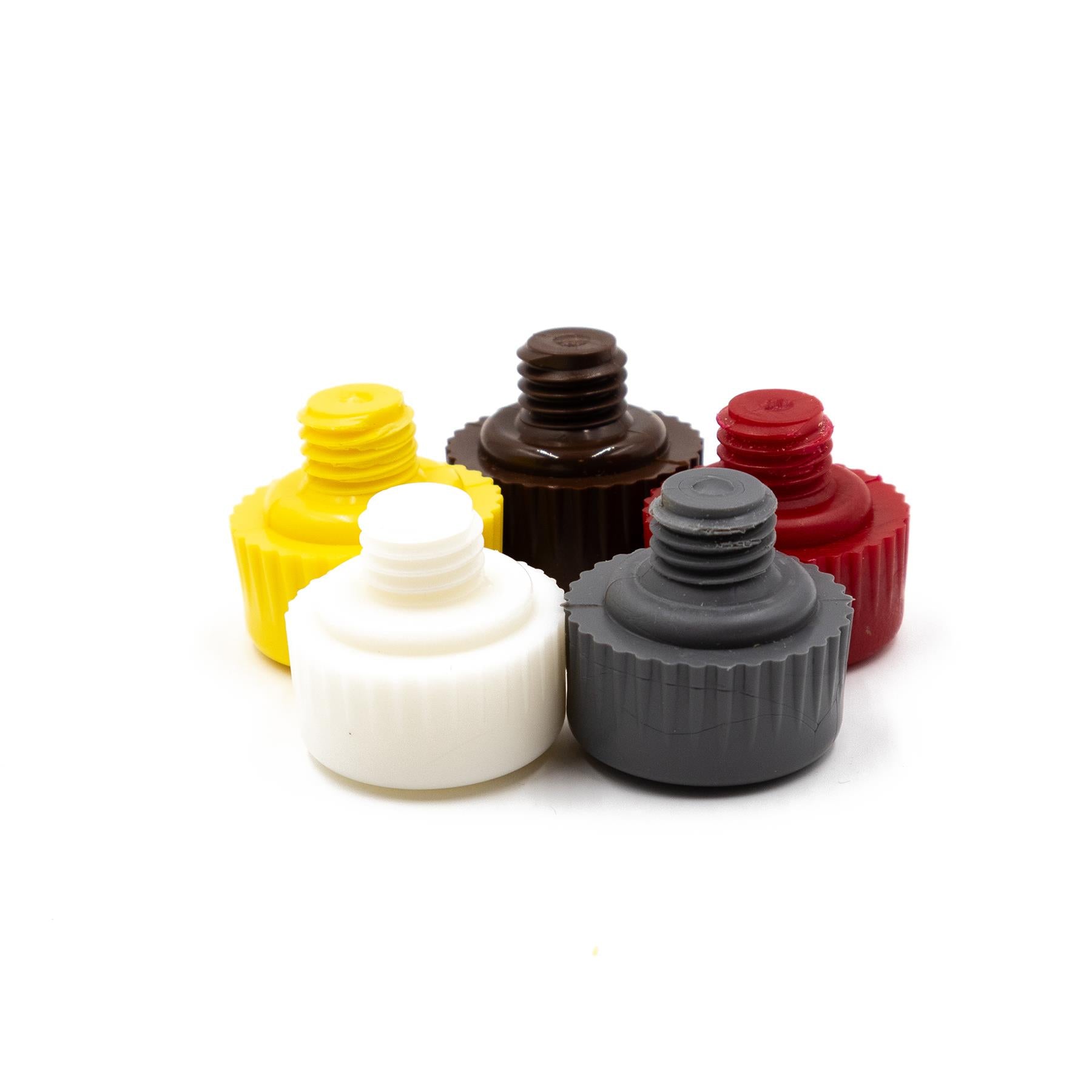

Faces are available in different hardness, which are distinguishable by colour.
Colour (Code) | Hardness | Material | Application |
---|---|---|---|

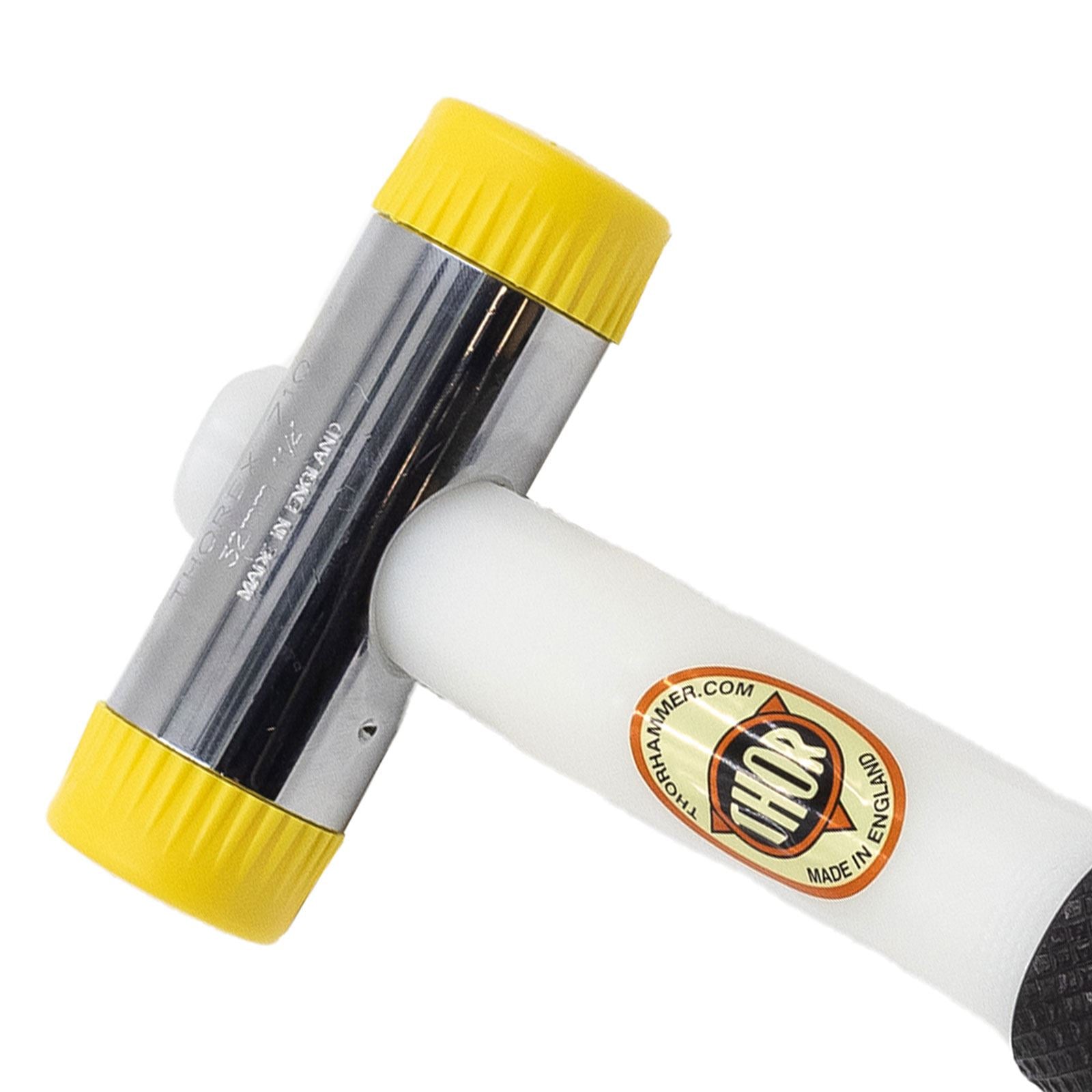

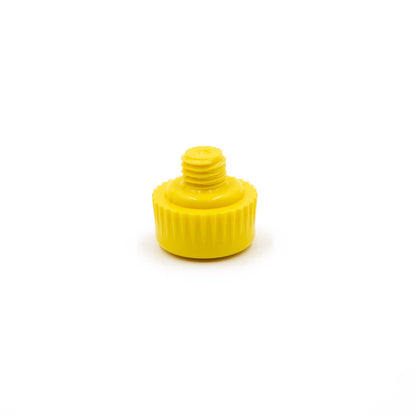

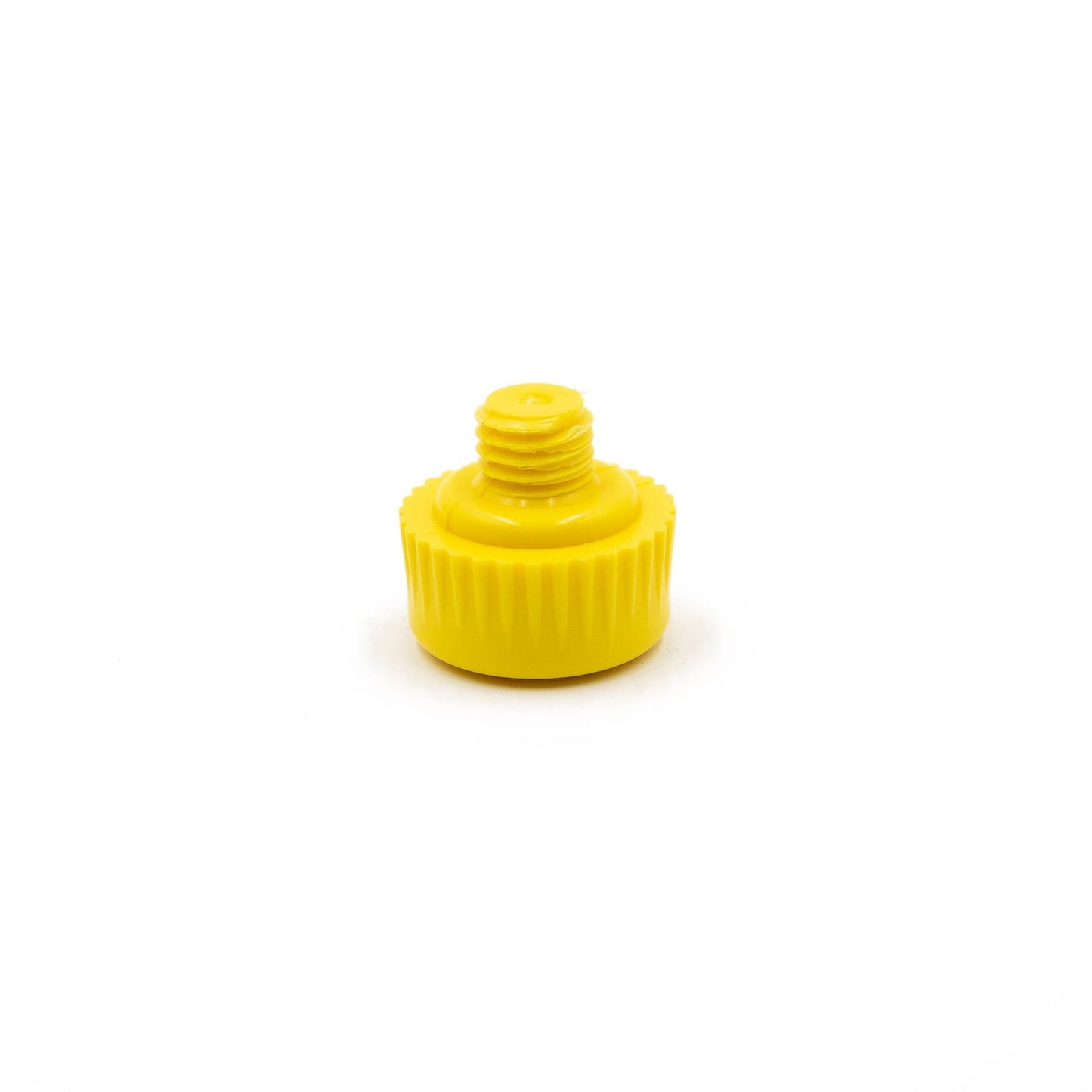

Yellow (76-710AF) | Extra Hard | Nylon | For specialist applications only (eg, setting copper armatures). |

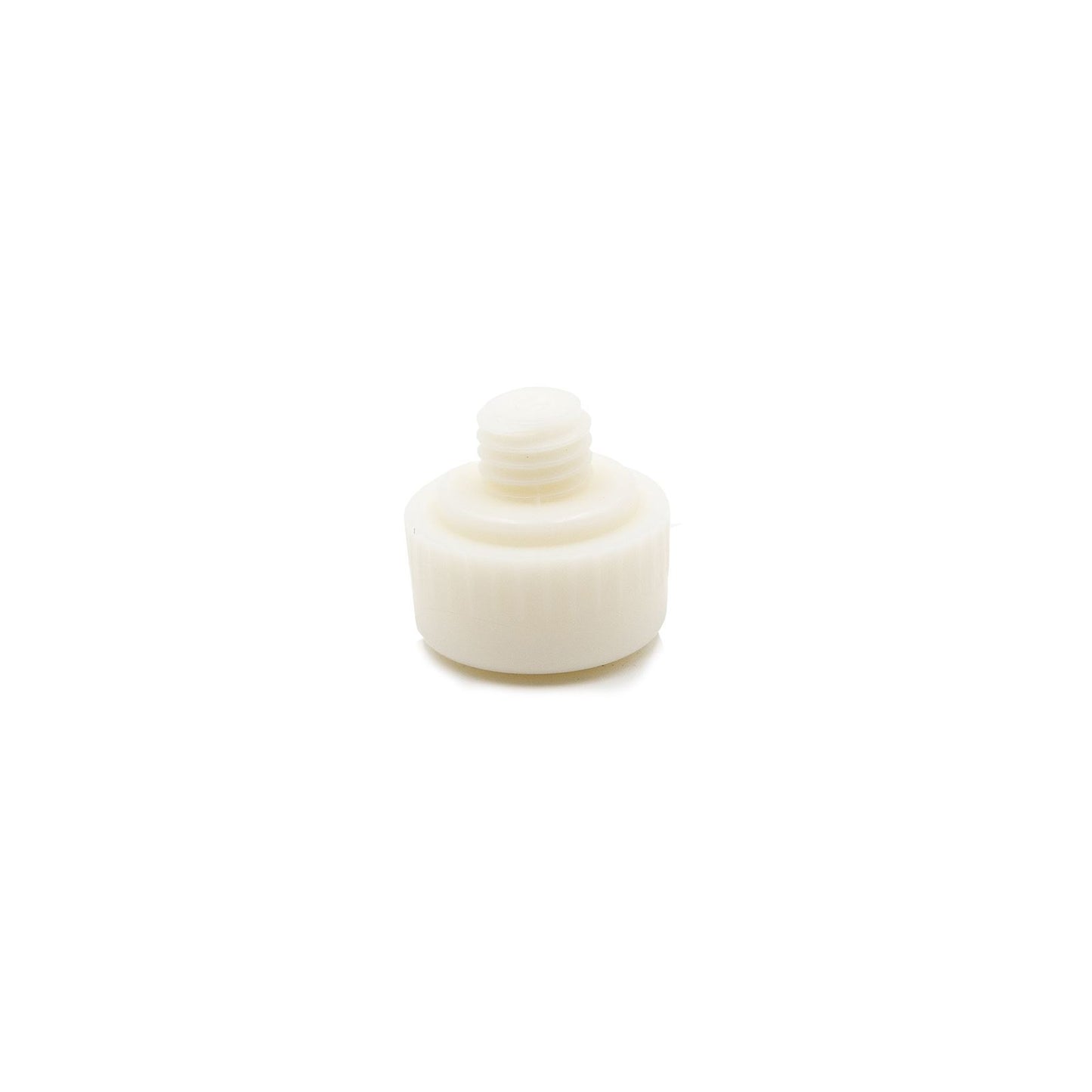

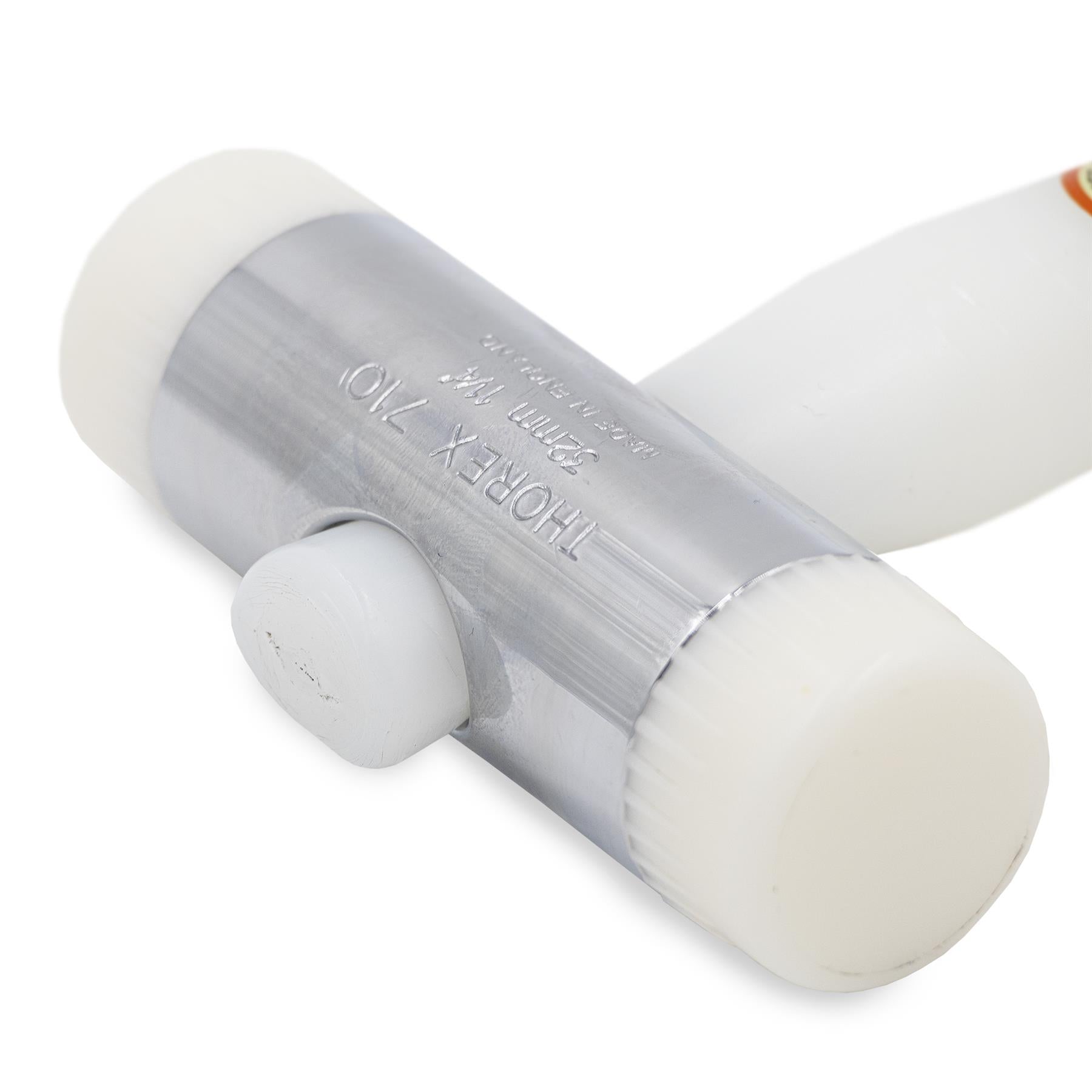

White (76-710NF) | Hard | Nylon | General purpose face for light and heavy assembly work. |

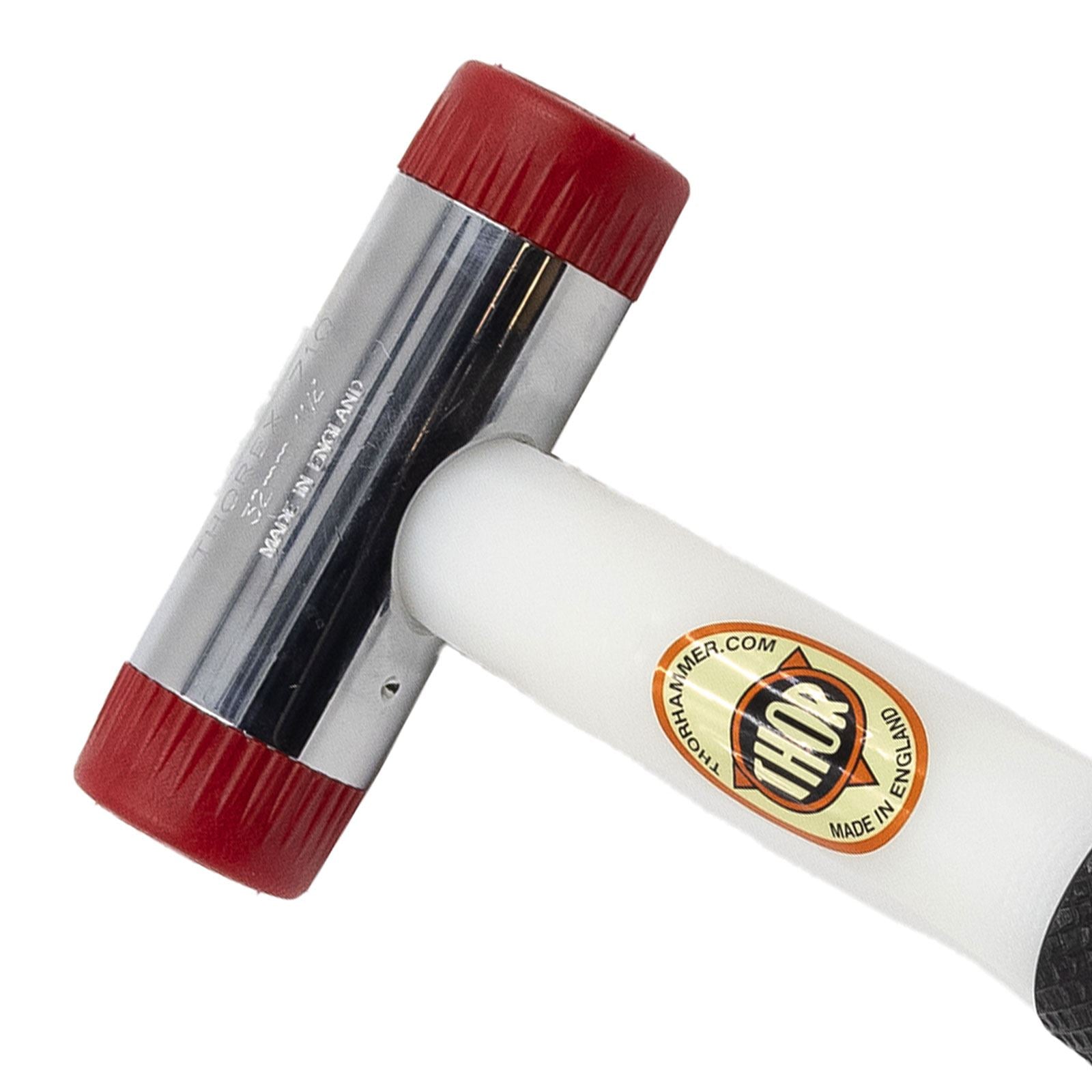

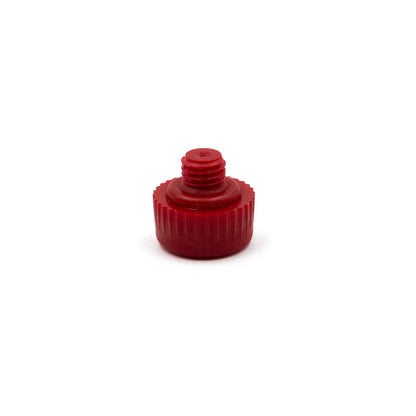

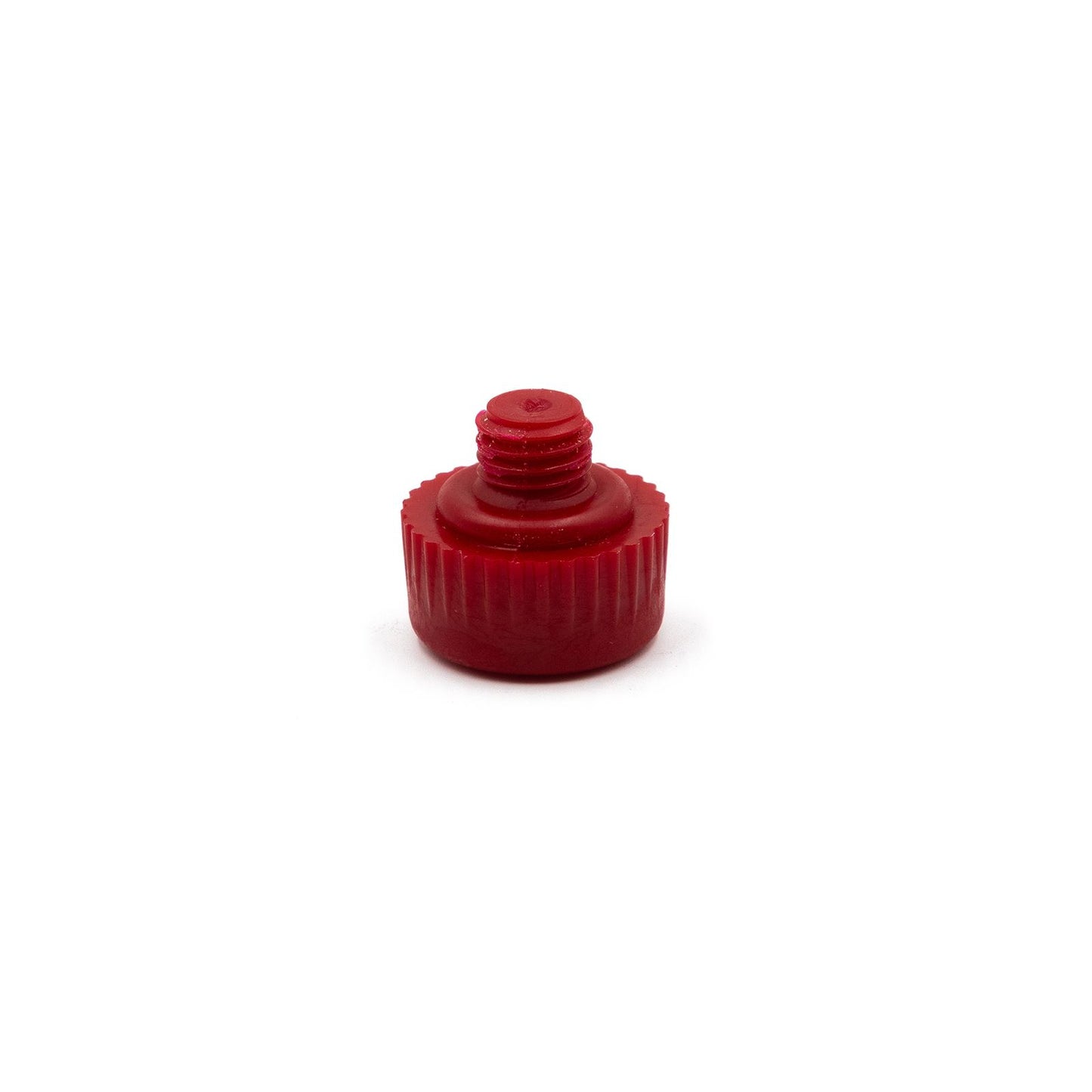

Red (76-710PF) | Medium Hard | Plastic | More suited for light hammering applications and the assembly of precision parts. |

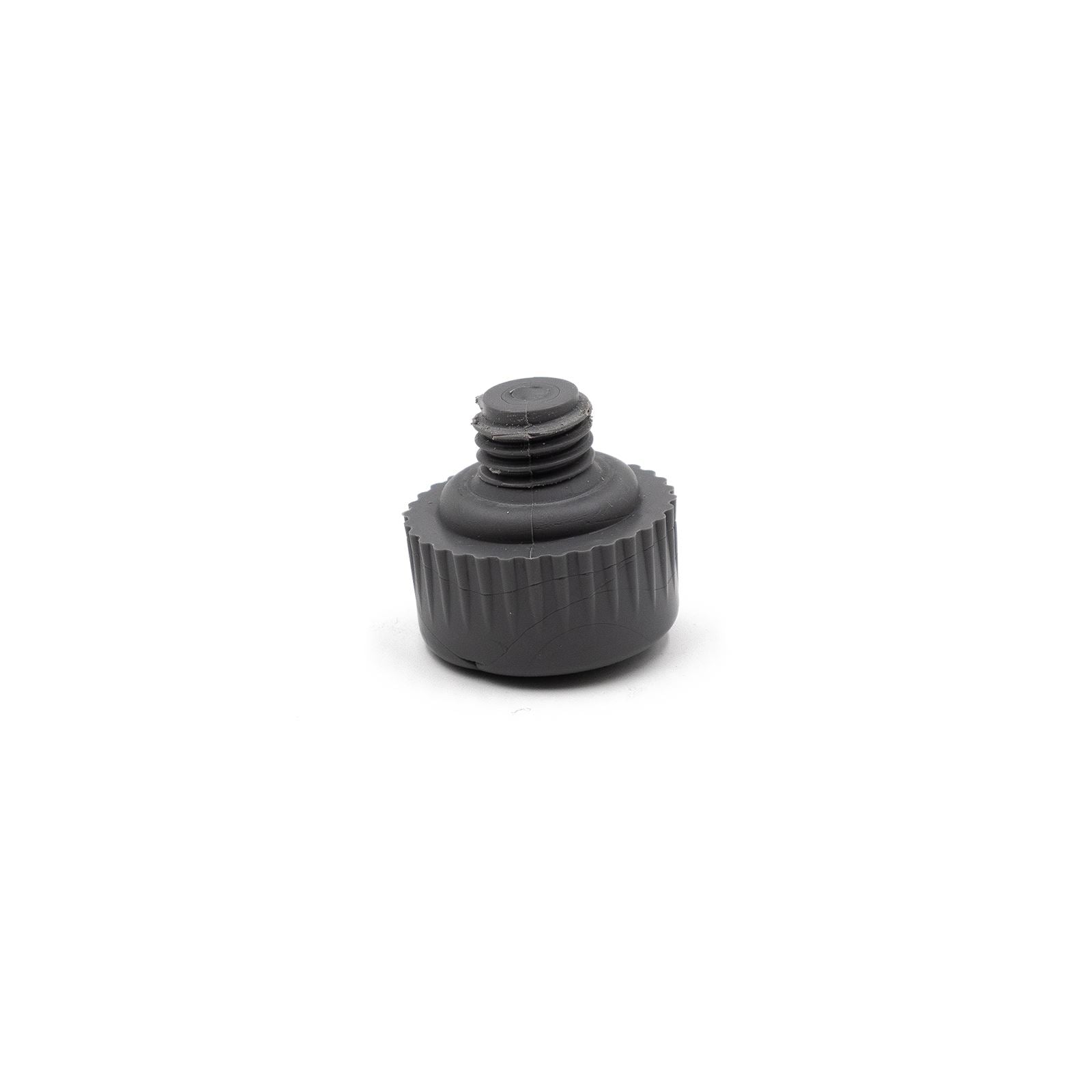

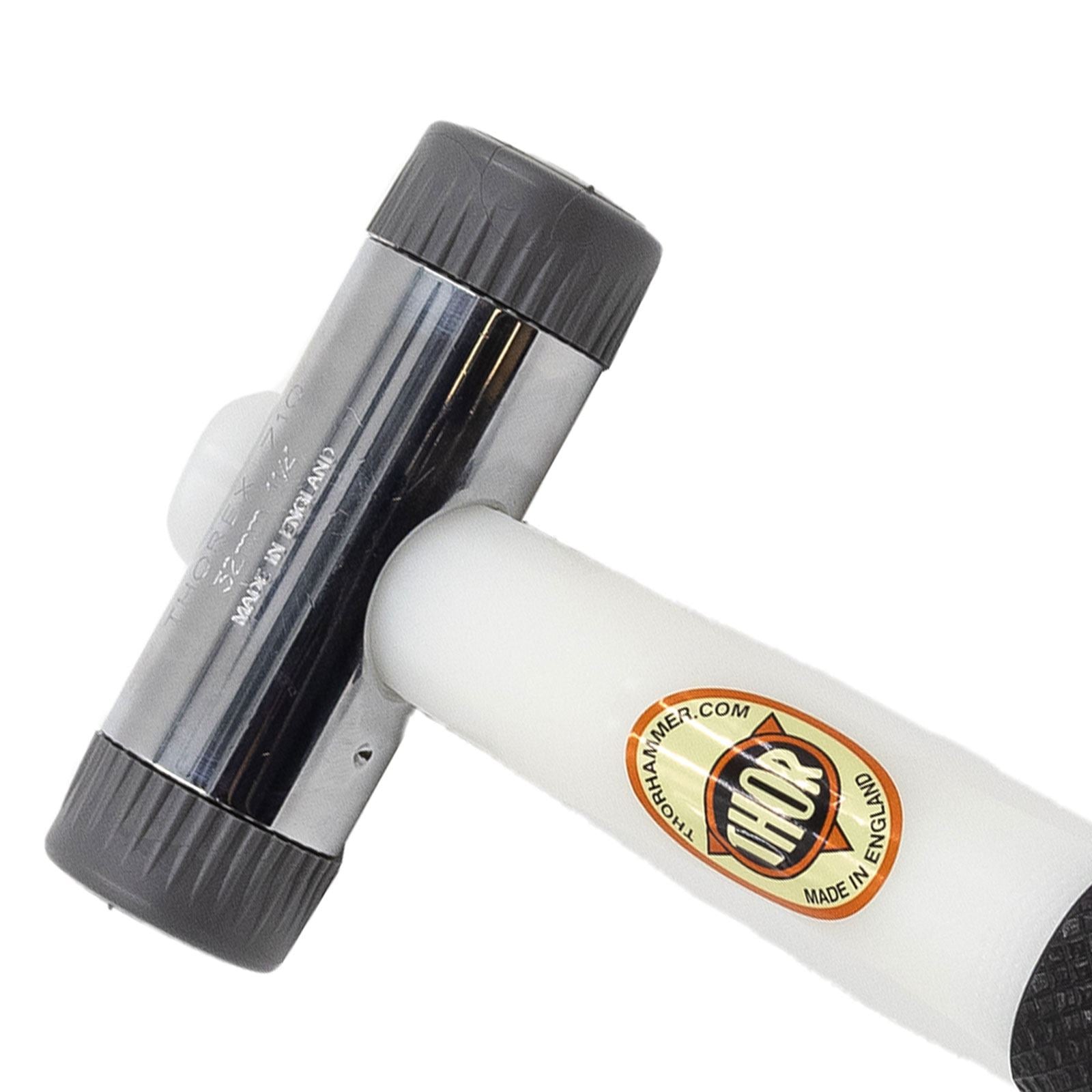

Grey (76-710VF) | Soft | PVC | For light assembly work. Ideal for flat pack furniture assembly and woodworking. Will not mark surfaces. |

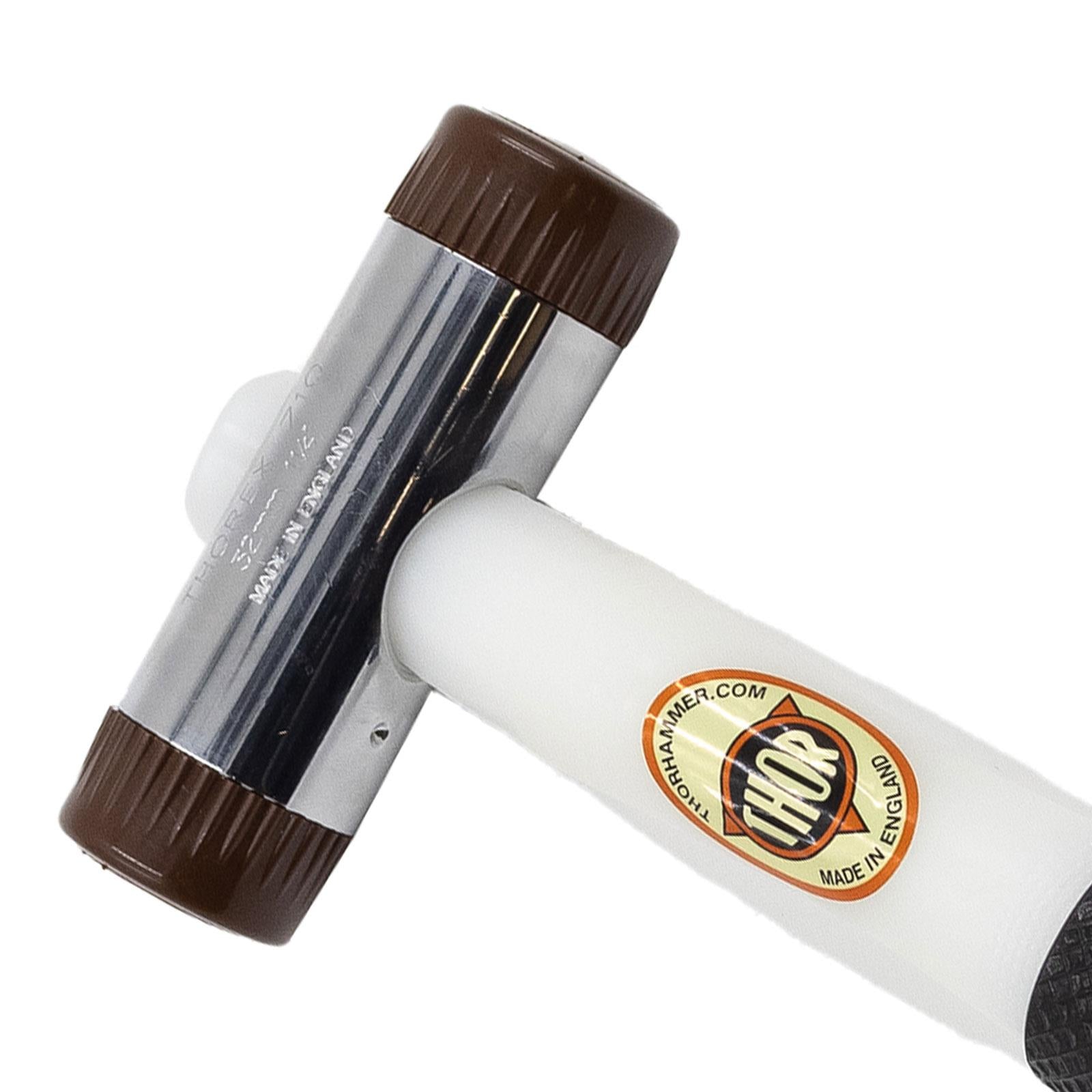

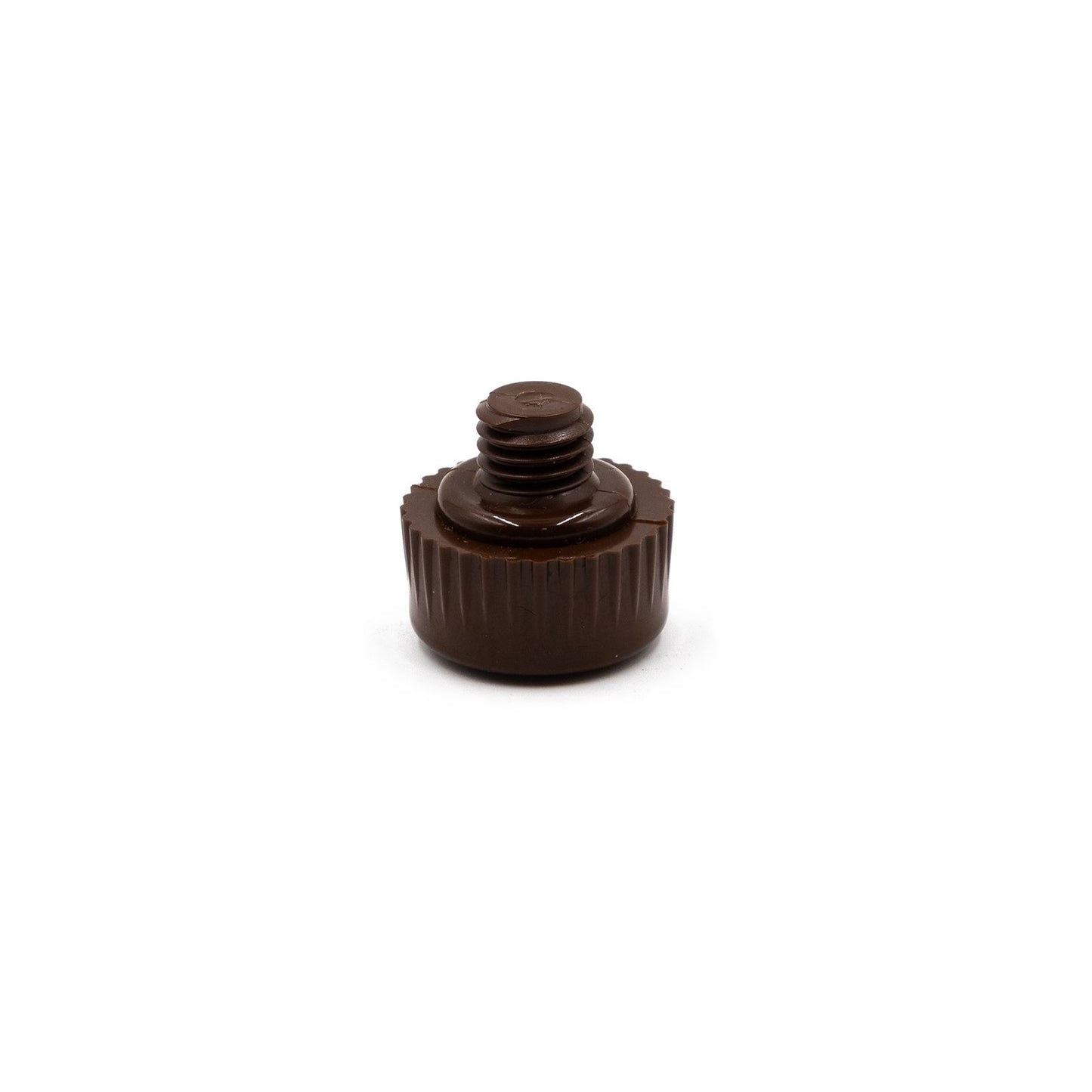

Brown (76-710TF) | Tough | Polyurethane | Tough and abrasive resistant. Ideal for striking sharp surfaces including cutting forms, steel rule die assembly. |
Did you know? The flared shoulder on the faces provide extra strength and prevent fracture from misdirected blows.
