| Measurement | Value |
|---|---|
| Material | Die Cast Zinc (Base, Grip and Key), Nylon and ABS (Mouldings), Passivated mild steel bar (Spindle) |
| Finish | Copper nickel chrome plate layer (Chrome and Champagne Gold, Gold has additional coloured lacquer)). Powder-coated (White, Satin Black and Silver). |
| Backplate size (l x w x d) | 65mm x 17.4mm x 13mm |
| Fixing screw positions | 43mm (centre-to-centre) |
| Spindle length | 10mm, 15mm, 20mm, 30mm or 40mm |
| Spindle thickness | 7mm |
| Overall length | 160.2mm (handle and backplate) |
| Overall projection from sash | 49mm |
| Overall width | 17.4mm |
| Endurance Performance | Tested to BS 6375 Part 2 (Classification EN 12400) Class - 20,000 cycles |
| Corrosion resistance | Tested to BS EN 1670:2007 Grade 4 (240hrs. NSST) |
| Building hardware requirements | BS EN 13126:2011 Part 1: Building hardware |
| Guarantee | 10-year surface and mechanical |

Description

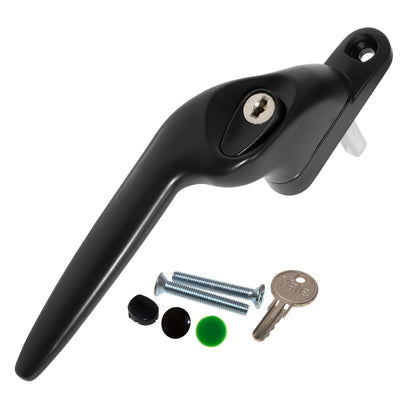

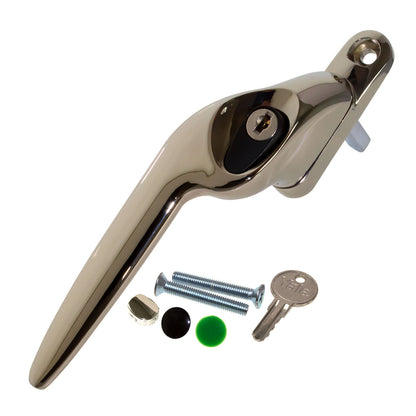

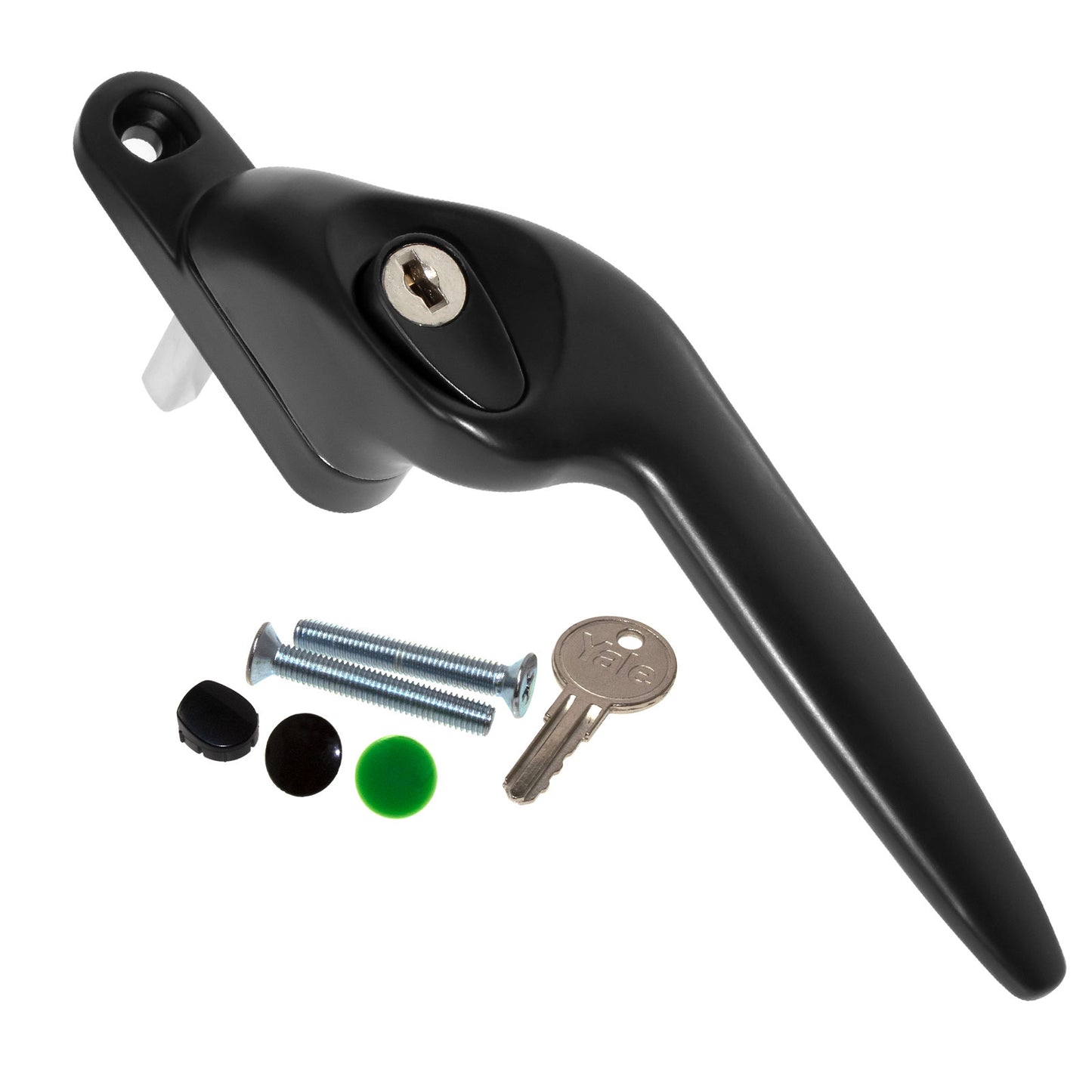

Yale Quartus Cranked Window Handle
Replacement offset window handles from Yale
Stylish and strong, lockable cranked window handle for aluminium and uPVC espagnolette windows. Manufactured by industry leader Yale, and supplied with a 10-year mechanical and surface guarantee.
Offset handles are available for use with left or right hand and are designed to provide more hand clearance when opening. They are made from tough die-cast zinc, with a durable powder-coated or plated finish to offer high corrosion resistance, impact strength and protection against abrasion.
Features & Benefits
- Offset handle design - increases hand clearance
- Attractive and ergonomic - sleek design and comfortable use
- High quality finishes - smooth and durable coating
- Locking or non-locking - optional keyhole cover
- Universal Key - will fit any Yale window lock
- Improved window security - key deadlocks the sash
- Child safety - lever requires button press
- Fixings supplied - includes key, screws and covers
- Standard fitting - 43mm screw centres and common spindles
- 10-Year guarantee - product you can trust
- Quality assured - British Standard accredited
Please check before ordering:
-
Handle Type:
CRANKED (offset)
- Not an inline handle
- Available in Left-hand or Right-hand version (not interchangeable)
-
Screw Hole Centres:
43mm fixed centres
- Will not fit any other size
-
Spindle Length:
Measured from the rear of the backplate
- Spindles are fixed length
- Longer spindles can be cut down if required
